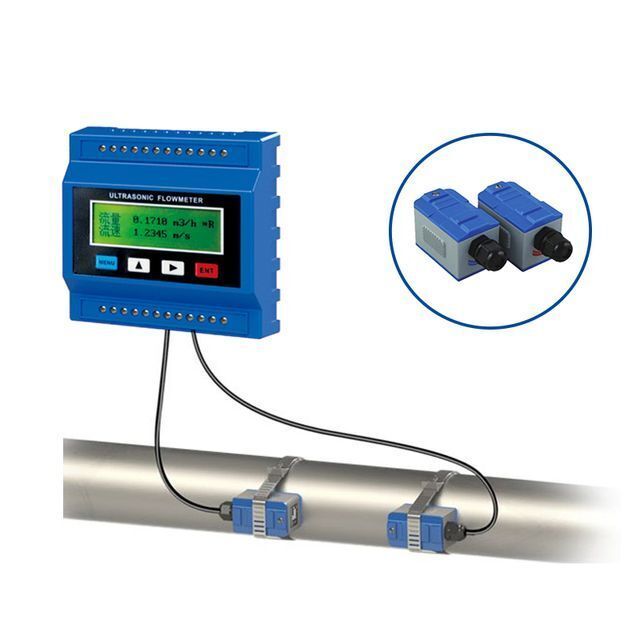

Wall mounted clamp on ultrasonic flow meter digital water flow meter ultrasonic flow meter

Supplier: Dalian Yoke Instrument & Meter Co., Ltd.
Region: Liaoning, China
Contact: Ms Kate Yang
Price: $130.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Variable Area Water Flowmeters,Variable Area Air & Gas Flowmeters;	Single package size:	40X25X16 cm;
Single gross weight:	10.000 KG;	Protection Class:	IP65 IP68;
Power supply:	220V AC/ 8-36V DC;	Packaging Detail:	Standard export carton with protective material inside;
Customized support:	OEM,ODM,OBM;	Velocity:	0.03 - ±32 m/s;
Analog output:	4-20 mA;	Medium:	Water Liquid;
Model Number:	YK-TUF;	Place of Origin:	Liaoning, China;
Relative Humidity:	85% RH;	Repeatability:	0.2%;
Medium temperature:	-40~90℃ / -40~160℃;	Brand Name:	YOKE;
Warranty:	18 months;	Connection:	Magnetic Clamp;
Installation type:	Remote Wall-mounted;	Selling Units:	Single item;

Items	Performance & Parameter
Host	Principle	Transit- time ultrasonic flowmeter
	Accuracy	±1%
	Display	2X20 character LCD with backlight, support the language of Chinese, English and Italy
	Signal Output	1 way 4~20mA output, electric resistance 0~ 1K, accuracy 0. 1%(optional) 1 way OCT pulse output(Pulse width 6~1000ms, default is 200ms) 1 way Relay output
	Signal Input	3 way 4~20mA input, accuracy 0. 1%, acquisition signal such as temperature, press and liquid level
		Connect the temperature transducer Pt100, can finish the heat/energy measurement
	Data Interface	Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS
Special Cable	Twisted-pair cable, generally, the length under 50 meters ; Select the RS485, transmission distance can over 1000m
Pipe Installation Condition	Pipe Material		Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
	Pipe Diameter		DN15~6000mm
	Straight Pipe		Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium	Medium		water,sea water ,alcohol,Acid and alkali,waste water,beer,all kinds of oil Single liquid can transmit sound wave.
	Temperature		-40~90℃, -40~160℃
	Turbidity		No more than 10000ppm and less bubble
	Flowrate		0~±7m/s,Forward and backward measurement
Work environment	Protection grade		Host:IP67;flow sensor:IP68
	temperature		Host:-20~60℃;flow sensor:-30~ 160℃
	Humidity		Host: 85%RH; Flow sensor:can measure under water, water depth^2m (tansducer sealed glue)
Power Supply	DC8~36V or AC85~264V
Power Consumption	1.5W
Dimension	1204025mm(host)
