BSE Lathe Drilling Tool boring machines boring bar Tungsten Carbide Small Hole Boring Tool

Supplier: Shenzhen Xinnai Precision Tools Co., Ltd.
Region: Guangdong, China
Contact: Mr Liao
Price: $2.60 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Project code:	MTR;	Supply Ability:	30000 Pieces per Month;
Material:	Tungsten steel;	Port:	Shenzhen;
Shank diameter:	4-8mm;	Flute length:	3-30mm;
MOQ:	5 piece;	Packaging Detail:	Selling Units:Single item Single package size: 15X8.5X10 cm Single gross weight:0.0500 kg 1, One plastic pipe packs one pieces,10 pieces per group 2, Use air bubble to encase the palstic pipes 3, Put goods encased with air bubble paper into the carton box;
Controlling Mode:	Lathe,Central axis machine;	Precision:	High Precision;
Type:	Small hole boring tool;	Tip arc:	R0.05-R0.2mm;
Customized support:	OEM,ODM;	Package Preview:	;
Brand Name:	BSE;	HRC:	90;
Warranty:	3 years;	Payment Terms:	Western Union,D/P,T/T,paypal;
Penetration depth:	0.1-0.85mm;	Place of Origin:	Guangdong, China;
Diameter:	4-8mm;	diameter:	0.8-7.9mm;

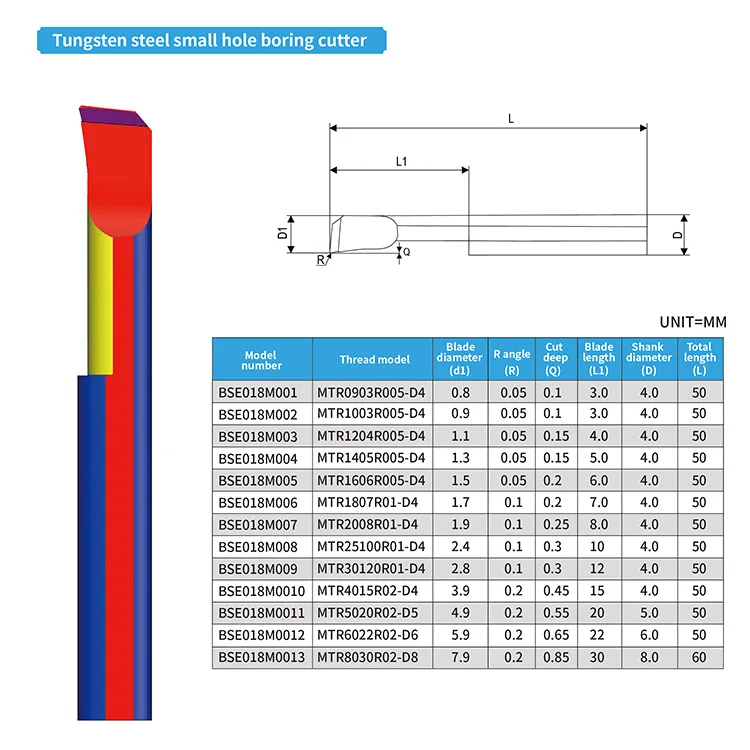

Specification

Model Number	MTR standard
Overall Length	50-60mm
Processing Type	Boring Tool
Precision	High Precision
Diameter	D4 - D8mm
Material	Carbide, Tungsten Steel
Coating	Tin
Controlling Mode	Lathe,Central axis machine
Avoidance length	3.0-30mm
MOQ	2 piece

Product Description

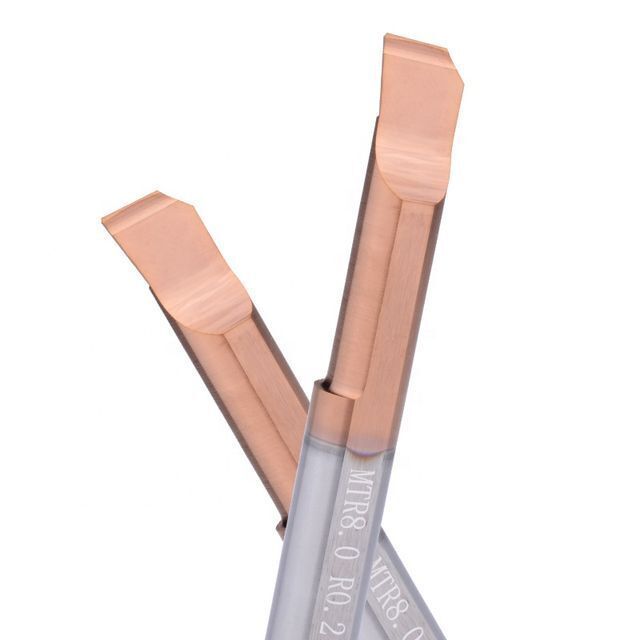

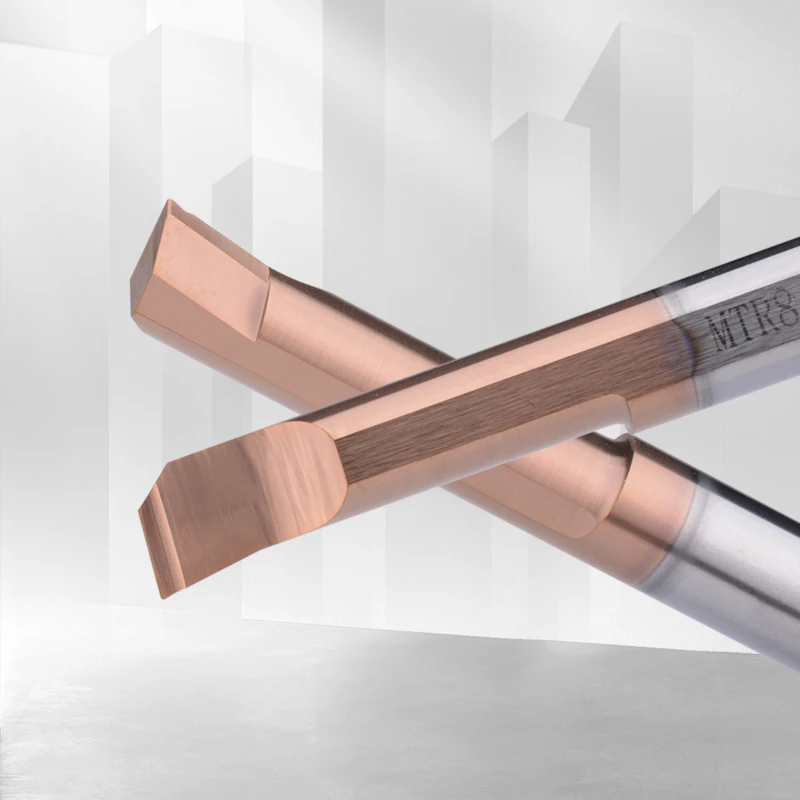

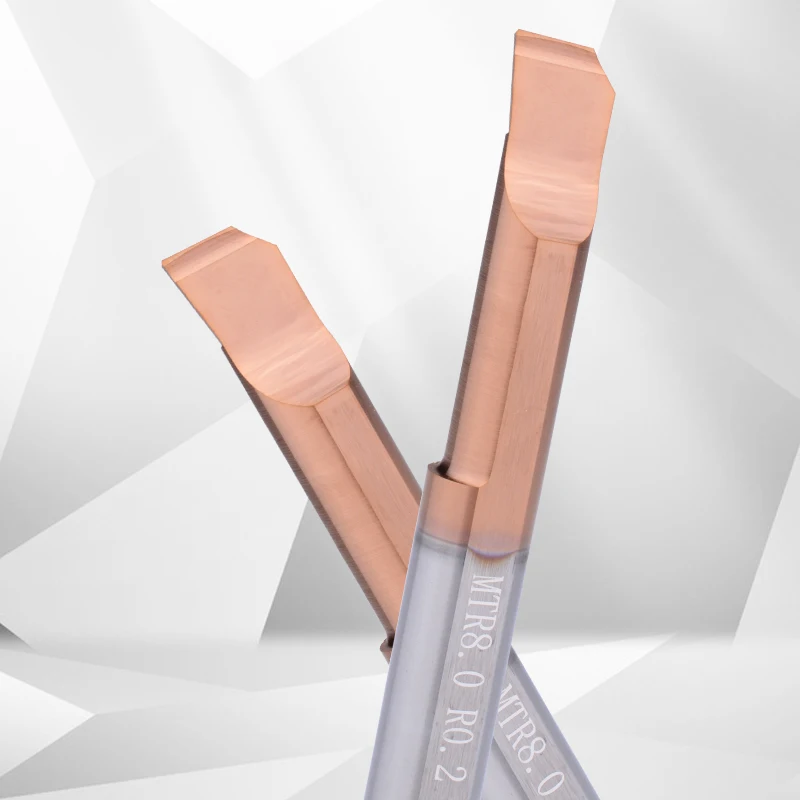

BSE Tungsten steel small hole boring tool

MTR model

Tailored for small hole processing

1.The tool material is hard, using high hardness tungsten steel material, good wear resistance, high hardness, and the tool does not jump during processing

2.The precision of the cutting tools is high, and the finish of the processed materials is high.

3.New type of groove design to increase chip removal

4.Suitable for difficult-to-process materials such as low-carbon steel, high-carbon steel, stainless steel, bearing steel, high-temperature alloys, and nickel alloys.
