Liquid Filling Machine Bottle Filling Machine With 2/4/6/8/10 Heads

Product details
Driven Type:Pneumatic;Video outgoing-inspection:Provided;
Machinery Capacity:4000BPH,2000BPH,1000BPH,100BPH;Weight:50 KG;
Advantage:High Efficiency;Key Selling Points:Easy to Operate;
Port:Qingdao, Shanghai, Guangzhou, etc.;Applicable Industries:Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops;
Application:Food/ Medicine/Chemical,Food,Beverage,Chemical;Type:Filling Machine;
Automatic Grade:Semi-automatic;Place of Origin:Henan;
Model:Water Filling Equipment;Payment Terms:L/C,Western Union,D/P,T/T,MoneyGram;
Brand Name:OCEAN MECHINERY;Filling Material:Milk,Water,Oil,Juice;
Keywords:Essential oil liquid filling machine;Core Components:Pump,Gear;
Machinery Test Report:Provided;Warranty:1 Year;
Packaging Type:CANS,Bottles,Stand-up Pouch,Bags,Pouch;Warranty of core components:1 Year;
Showroom Location:None;Capacity:2000-3000 bottle per hour;
Supply Ability:200 Sets per Month;Function:liquid milk filling machine;
Packaging Material:water;Voltage:220v/380v/440V;
Filling Accuracy:0.03%;Product name:liquid filling machine;
Filling volume:1ml-250ml 250-1000ml;Marketing Type:Hot Product 2019;
Machine material:304 Stainless Steel;Filling speed:1-20ml/s;
Packaging Detail:Standared export wooden case;

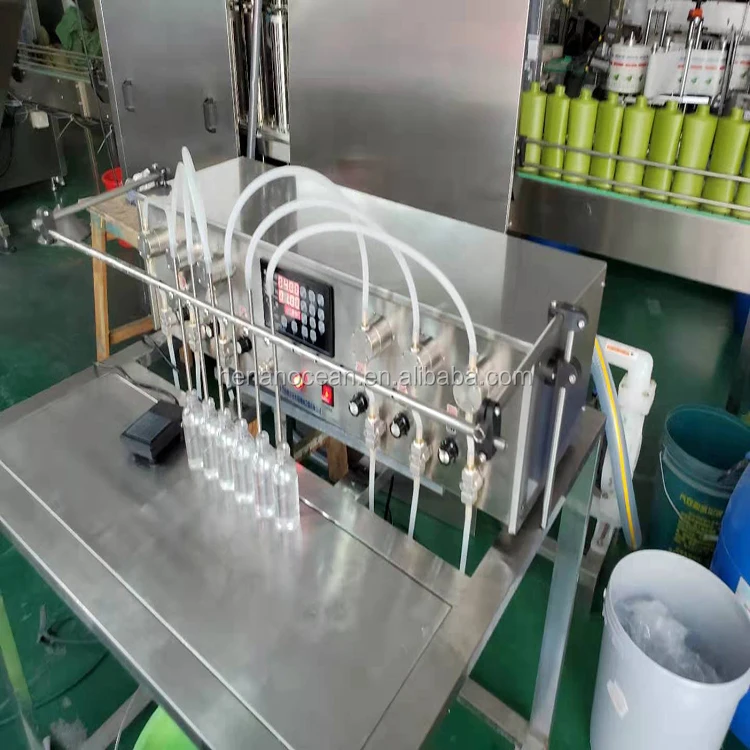

Liquid Filling Machine Bottle Filling Machine With 2/4/6/8/10 Heads

Product Description

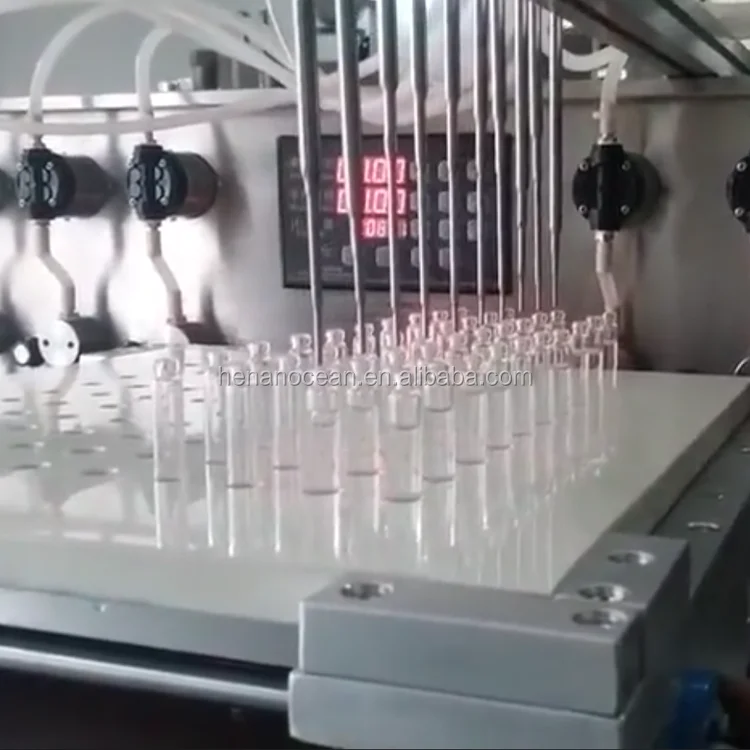

Full-featured, automatic and manual. Can be used to work on the assembly line. Can be equipped with multiple filling heads, commonly used models are: single pump, double pump and four pump. It can fill most types of liquids, including highly viscous liquids. Such as: a variety of pharmaceuticals, chemicals, oils, cosmetics, food and other non-particulate liquids.The filling amount can be adjusted from 1ml to 1000ml; the adjustment is convenient.

 It can be filled with the largest types of liquids, including highly viscous liquids. Such as: a variety of pharmaceuticals, chemicals, oils, cosmetics, food and other non-particulate liquids.


The first step: open the empty bottle and arrange it on the table in turn;

• Step 2: Turn on the device and plug in the foot switch; (Please read the precautions before turning on!)

• Step 3: Place the feeding tube in the barrel containing the material, adjust the filling time, interval time, manual/automatic speed, and adjust the manual/automatic gear to the manual position if the foot switch is needed. , the interval is adjusted to zero, if you need to use the automatic file, the manual / automatic file to the automatic file, the interval time is adjusted to the appropriate time;

• Step 4: Step on the foot switch, the material will automatically suck up until the material is discharged. Before the formal filling, the space inside the material tube needs to be drained clean;

• Step 5: During formal filling, the filled liquid can be placed on the electronic scale to weigh the specific weight. If it is not reached, the desired capacity can be passed, the flow adjustment knob under the pump, appropriate fine-tuning capacity;

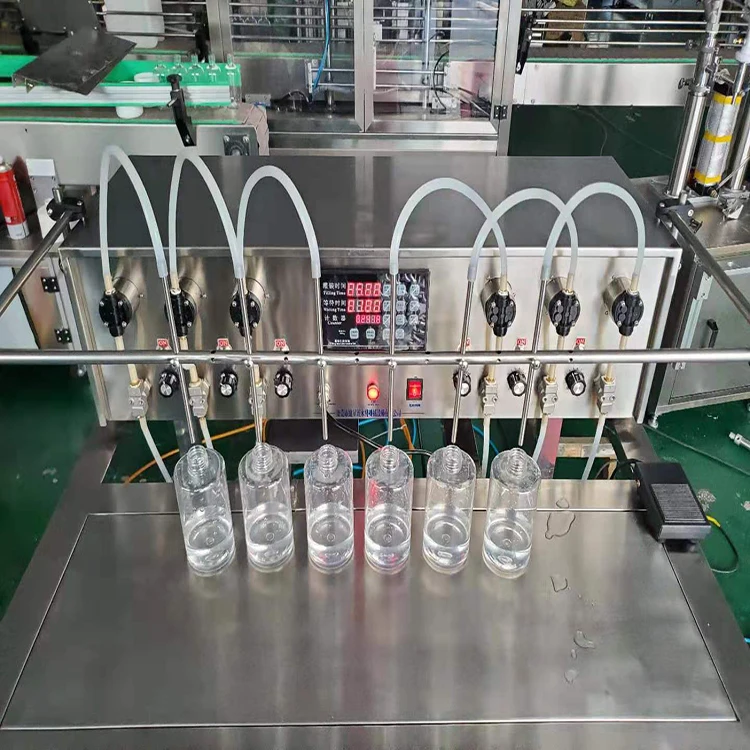

 if you need the semi-automatic liquid filling machine ,pls look the machine as bellow

Features and advantages
1.small size and digital control panel,easy operate and easy cleaning
2.this semi-automatic use Japan gear pump (not magnetic pump),filling error :+- 0.3%
3. 6 heads filling machine has 6 pcs gear pump,one filling nozzles controlled by one pump,They can work individually or synchronously without affecting each other
4.filling speed:1-20ml/s (10-70ml/s need to state to the sales manager),the filling speed can be adjust as your need
5.stainless steel material for the machine body
6.Food class gear pump,has the ability resistant to acid and alkali corrosion
7.filling temperature range:1-120 degree

Product Parameters:


Product /model name OC-WX-2 OC-WX-4 OC-WX-6 OC-WX-8 OC-WX-10
Number of the heads(pcs) 2 4 6 8 10
Number of the motor(pcs) 2 4 6 8 10
Capacity(10ml)pcs/h 1000 2000 3000 4000 5000
Weight(kg) 40-45  45-110
Cooling method cooling method
Tolerance scope ±0.3%
Voltage AC220V 50/60Hz
Speed 20ml/s*10(water)
Package method Standard wooden box packaging
Capacity ability 1ml--250ml  250ml-1000ml  1000ml-5000ml
Material 304 Stainless steel
Machine package size(mm) 1250*350*400mm


Before using the equipment, the liquid should be kept in the feeding tube and the pump, and it should not be leaked. If there is no liquid, the liquid can be introduced into the tube and the pump. If the pump cannot be emptied without liquid for a long time, it will lead to Pump damage, please remember;

Method of introducing liquid into the tube and pump:

1. The device can be put into the filling state. When the liquid is sucked into the feeding tube, the feeding tube can be lifted to allow the liquid to enter the pump, and the liquid is pumped several times;

 2. The vacuum discharge device can be installed at the end of the discharge pipe, and the equipment is put into the filling state, and the vacuum is filled;

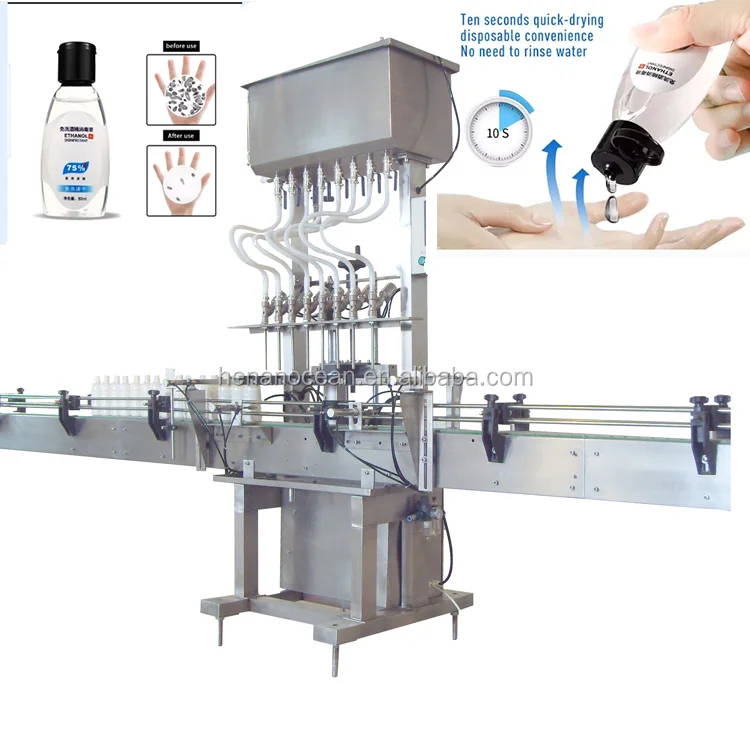

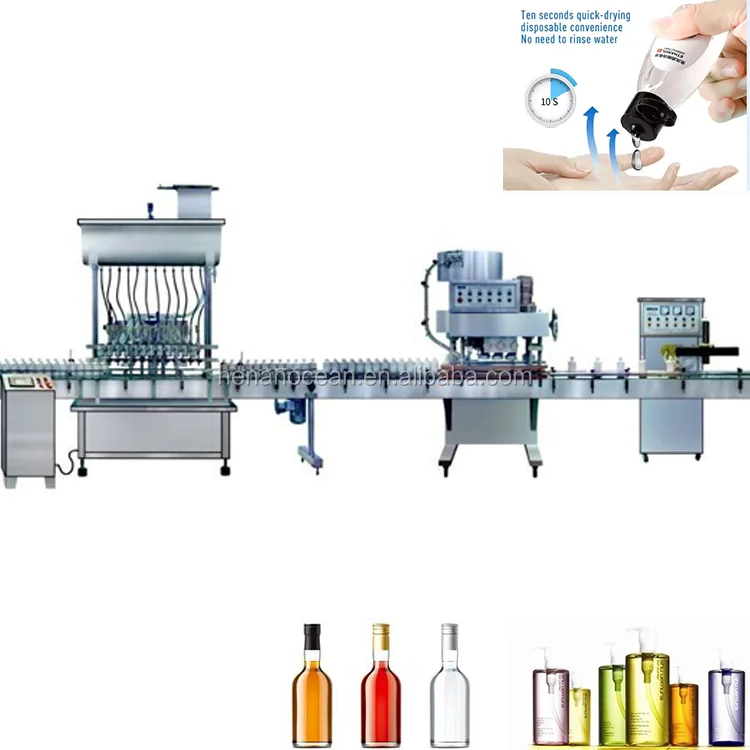

 if you need the automatic liquid/gel filling machine ,pls look the machine as bellow

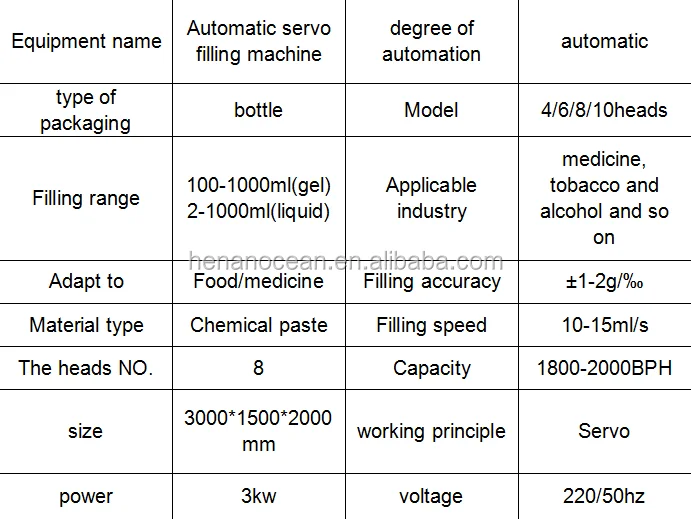

the parameter about the automatic filling machine

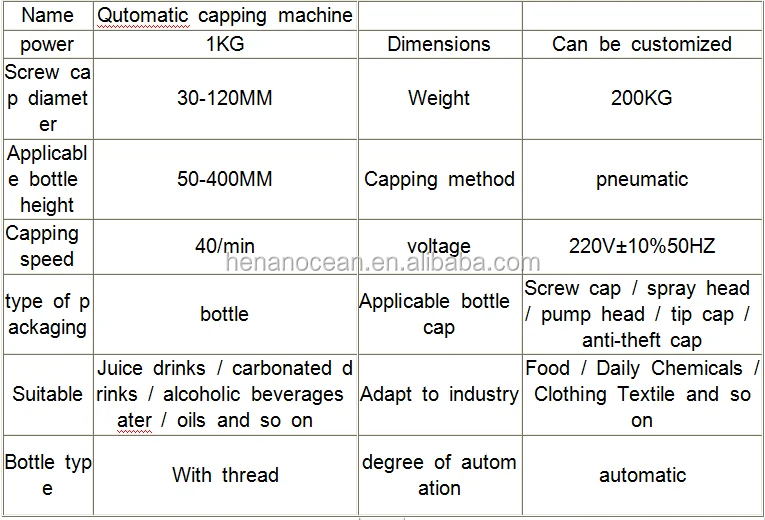

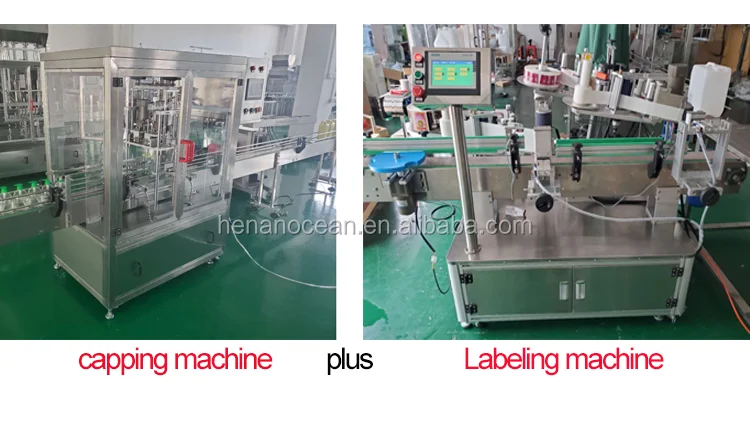

 the parameter about the automatic capping machine

Packaging & Shipping


1.We can load container at: Qingdao, Shanghai , Ningbo, Tianjin, Guangzhou, etc.

2.We provide shipping method:Courier service,Air transport,Sea Transport.

3.Can accept oder:Full container cargo load,Less container load .

4.Our service: EXW, FOB, CIF, CNF, Door to Door, etc.

5.We always choose the most economical and reliable shipping company to ensure you receive  the goods on time.

6.The tracking number will be provided to you once the consignment is shipped.
