Triple Guide Tubes 6-48 station Filling Machine GT-FMPLC filling machine GREATER Tubular Heater Equipment

★Instruction

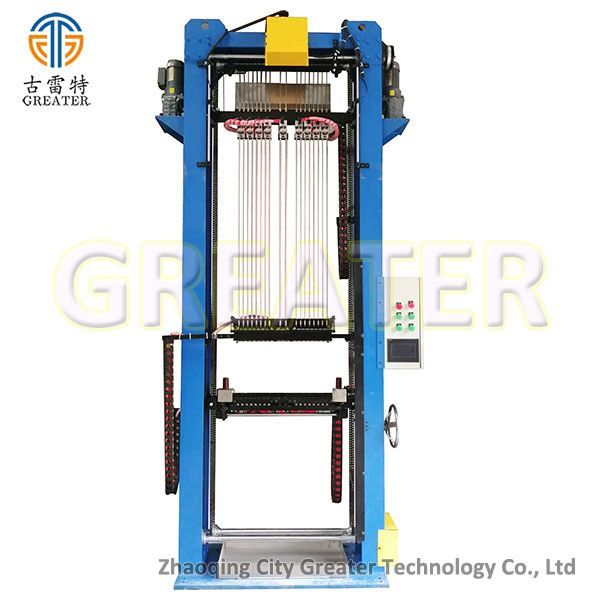

GT-FM-PLC (triple guide tubes in 6-48 station) MGO powder filling machine, is improved on the basis of  GT-FMPLC (double guide tubes in 6-48 station).

The main difference of double guide tubes and triple guide tubes filling machines is as below:

Three guide tubes filling machine can install different diameters on one machine.

If there are different diameters install on one machine, when fill the heater, user can choose the diameters need to fill, can fill one diameter, 2 diameters or more diameters together. Other diameters if do not need to fill, will not add MGO powder. It is a recommend filling machine for different diameters need to fill, or need to fill different diameters often, but not in bulk quantity.

★Main details

1.Filling station: 6-48 stations according to order and diameter.

2.Filling diameter: with 1-6 diameters on the machine according to order.

3. Filling length: 300-max length according to order.

4. Filling speed: 150-500mm / min adjustable.

5. Power supply: AC380V,50HZ.

1. Size of machine: 1700*1000mm*(max length*2+2000)mm (L*W*H)
