128 256 512 Channels Cylindrical Battery 18650 22650 32700 Formation Charge And Discharge Tester Analyzer Equipment

Supplier: Xiamen Acey New Energy Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Allen Tang
Price: $2100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	Cylindrical battery cell tester;	Place of Origin:	Xiamen China;
Product name:	Cylindrical battery cell tester;	Battery type:	Polymer battery;
Port:	Xiamen;	Supply Ability:	100 Sets per Month;
Channels:	96,128,256,512,768 or others.;	Packaging Detail:	Internal anti collision protection, external export plywood box packaging;
Brand Name:	ACEY;	Voltage and current:	5V/2A; 5V/3A; 5V/5A; 5V/6A; 5V/10A etc;
Payment Terms:	L/C,Western Union,D/A,T/T,MoneyGram;	Support battery height:	Adjustable within 10-100mm range;

Product Description

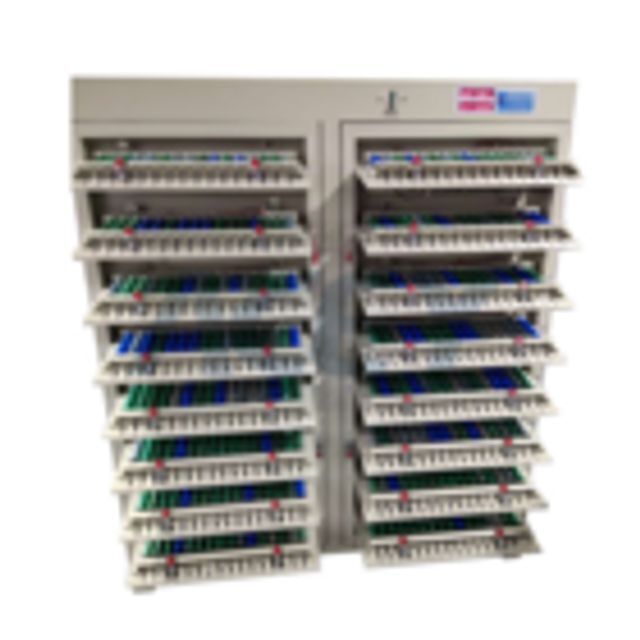

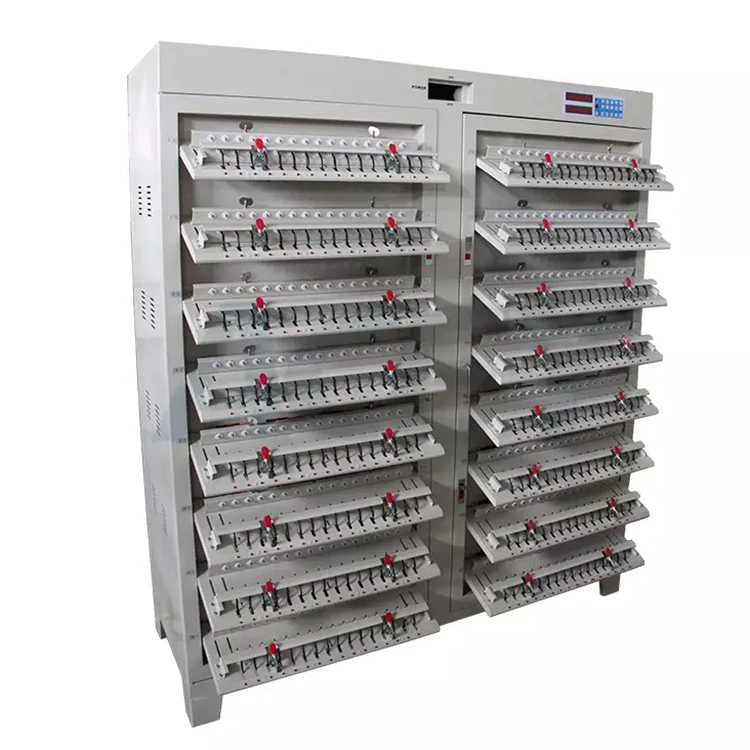

128 256 512 Channels Cylindrical Battery 18650 22650 32700 Formation Charge And Discharge Tester Analyzer Equipment

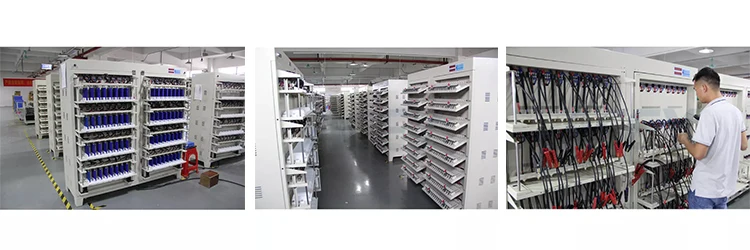

Battery cell tester machine is used when the lithium battery is finished in the production workshop, the battery capacity will be different. Qualified batteries will be screened out through the capacity testing.

Features:

1.Scope of application: Capacity and detection of chemical components of lithium polymer, lithium ion, ni-MH and ni-Cd batteries.

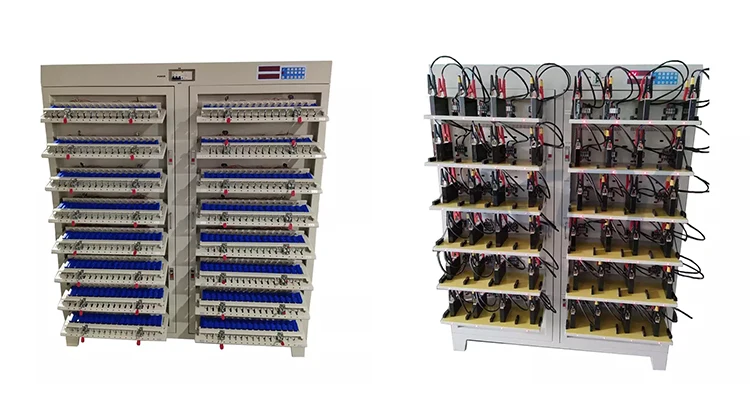

2.Vertical and horizontal.

3.Current Range: 2A/3A/5A/6A/10A for options

4.Channels:128/256/512 channels for options

Product Name	Cylindrical battery cell tester
Number of device channels	96/128/256/512 channels
Size (width * depth * height) cm	14350184/16055184
Frame color	Creamy white
Clamp form	35MM
Fixture center distance	Cylindrical four-wire fixture
working power	Three-phase five-wire system AC380V±10%, 50HZ
Working power dissipation	≤9KW
Work environment	Temperature 0-40 degrees, relative humidity ≤80%
software function
Control mode	Computer connection equipment work, FCL control
Communication mode	RS485 baud rate 57,600
Process set	A maximum of 32 work steps and 256 cycles
Charging mode	Constant current, constant pressure
Discharge cut-off condition	Voltage, time, capacity
Charging cutoff condition	Voltage, current, time, capacity
Discharge	Constant current
Defensive function	Over voltage, under voltage, over current, undercurrent, overcapacity, etc
Time range	Set it anywhere from 0 to 30,000 minutes
Battery sorting	By capacity, time, discharge platform, etc
Data processing	Data, graphs, and loop diagrams
