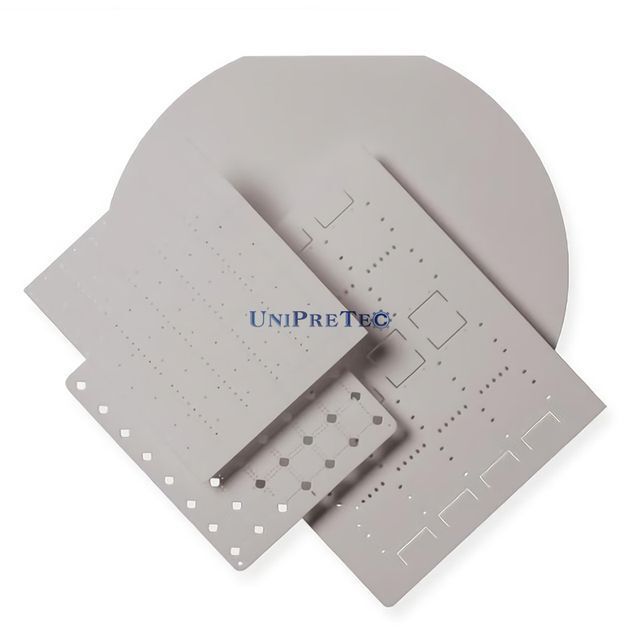

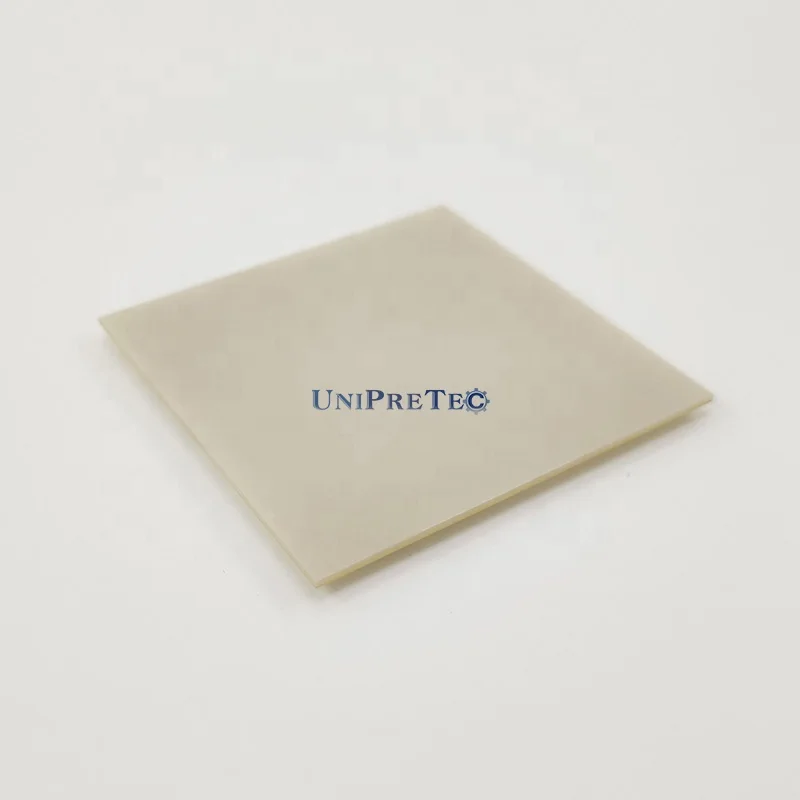

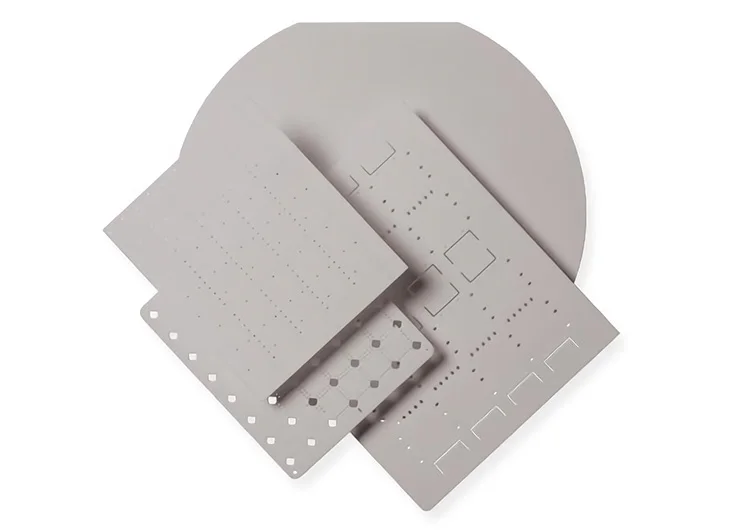

AlN Aluminum Nitride Ceramic Substrate

Supplier: Xiamen Unipretec Ceramic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Thomas Yang
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	customized;	Color:	Grey;
Material:	Aluminum Nitride;	Type:	Insulating Ceramics;
Port:	XIAMEN;	Density:	3.3 g/cm3;
Thermal Conductivity:	>170 W/m.K;	Place of Origin:	Fujian, China;
Packaging Detail:	wooden case with foam OR carton box with foam;	Supply Ability:	20000 Pieces per Month;
Brand Name:	UNIPRETEC;	Max. Serive Temp.:	1,200 degree C;
Payment Terms:	L/C,Western Union,T/T,Paypal;

Material Introduction

When it comes to providing good thermal conductivity and high electrical insulation features, aluminum nitride substrate is a superb option because of its efficacy. Aluminum nitride sheets are widely used in the semiconductor application industry instead of beryllium oxide (BeO) since aluminium nitride is non-toxic and does not produce dangerous vapors when grinded and machined. Aluminum nitride ceramic substrate has a thermal expansion and isolation coefficient which closely matches the silicon wafer product, making it useful in applications in electronics that often have high temperatures and heat dissipation problems. Aluminum nitride ceramic sheet is readily oxidized on the surface. When this occurs, aluminum oxide is formed as a protective film. Nevertheless, when using alumina, you are trying your best to preserve the material, however, it affects the thermal conductivity. When in oxidizing environment, which takes place around 700 degree C. In inert environment, this coating is used to cover aluminum nitride plate up to around 1,350 degree C. The bulk oxidation can take place above this temperature. Aluminum nitride ceramic is one of the few materials that provides both electrical insulation and excellent heat conductivity. Aluminum nitride (AlN) sheet is essential in high power electronic applications in heat sink and heat spreader devices, owing to its unusually high thermal conductivity.

Product Features

√ fast delivery	√ low thermal expansion	√ high thermal conductivity
√ high working temperature	√ good metalization capacity	√ excellent electrical insulation
√ CTE close to that of Silicon (Si)	√ corrosion and erosion resistant	...

Material Properties

ITEM	UNIT	Aluminum Nitride \| AlN
Main Content	-	AlN > 95%
Color	-	Grey
Density	g/cm³	3.30
Water Absorption	%	0
Surface Roughness (Ra)	um	0.3 - 0.6
Flexural Strength	Mpa	440
Thermal Conductivity (25 ℃)	W/m.K	> 170
Thermal Expansion Coefficient (25 - 300 ℃)	10^-6 mm/℃	2 - 3
Thermal Expansion Coefficient (300 - 800 ℃)	10^-6 mm/℃	2.5 - 3.5
Max. Working Temperature	℃	1,200
Dielectric Strength	KV/㎜	> 17
Dielectric Constant	1 MHz	17
Electrical Resistivity (25 ℃)	Ω·cm	> 10¹⁴

Applications
