• Supplier: Hefei HD Machinery Co.,Ltd
  • Region: Anhui, China
  • Contact: Ms Lisa Chen-HD company
  • Price: $8000.00 / 1 - 9 sets
    $3000.00 / >=10 sets
  • Min. Order: 1 set
Product details
Motor:Servo Motor;Applicable Industries:Garment Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Advertising Company;
Brand Name:Arrow star;Port:Shanghai Port ,ningbo port;
Product Name:Double system computerized sweater flat knitting machine;Power:AC220v/380v 50/60HZ,1.5 W;
Package Preview:;Knitting Method:Double;
Warranty of core components:1 Year;Marketing Type:Hot Product 2019;
Packaging Detail:Wooden case package;Warranty:3 years;
Machinery Test Report:Provided;Knitting Width:52 inch (36-80 inch all available );
Weight: aboutKG;Type:jacquard;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Video outgoing-inspection:Provided;
Dimension(L*W*H):2450X750X1750;Knitting width:52 inch;
Model:AS5-2S;Gauge:3.5.7G 5/6/7/8/9/10/12/14/16G,1.5 GG,3 GG,7 GG,12 GG,14 GG,2 GG,Other,16 GG,9 GG,Other,5 GG,10GG,2.5GG,18GG,16GG,8GG,3-5-7 multi-gauge,8-10-12 multi-gauge;
Condition:New;Core Components:Motor,Bearing,Gear,Engine,Gearbox;
Brand:ARROW STAR;Machine Type:Fully Jacquard Sweater Knitting Machine;
Product Type:Hat,Scarf,SWEATER,Collar,shoes upper;Supply Ability:500 Sets per Month;
Computerized:Yes;System:single carriage with single system;
Running speed:1.4m/S;Production Capacity:100pcs/day;
Place of Origin:Anhui, China;Key Selling Points:Famous brand motor;
Product Description

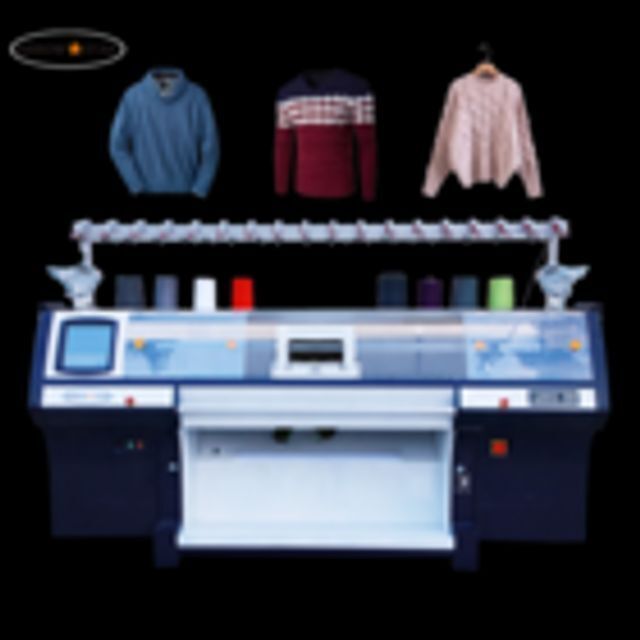

AS52-2S  double system sweater flat knitting machine
It applies unique cam and needle bed to achieve transfer,tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.It can knit basic stitch like plain stitch,rib fabric,links and links,interlock stitch,etc.irregular multi-color jacquard,twist flowers weft organization,aran,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made cardigan,hat,gloves,scarf and
accessories of cloth.Machine through subsection control and adjustable pulling rev,it can complete complex knitting and improve production efficiency.
Products specification
Model
Knitting width
Machine Size  (CM)
Weight (KG)
AS36S-2
36 inch
2050X750X1750
around 490
AS52S-2
52 inch
2450X750X1750
around 590
AS60S-2
60 inch
2650X750X1750
around 650
AS66S-2
66 inch
2800X750X1750
around 700
AS72S-2
72 inch
2950X750X1750
around 750
AS80S-2
80 inch
3150X750X1750
around 800
Details Images
Advantage of our flat knitting machine
Positive feed yarn device
Positive yarn feed device could reduce resistance while yarn is moving , suit for fabrice with lace of elasticity and brittle fabric to make the fabric even and improve knitting efficiency.
Ultra-small Carriage
Further optimize the size of the machine carriage ,reduce the carriage return distance and improve the efficiency .
16 yarn carriages
The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position of the yarn nozzle.
Plus wide transmission belt
Specifical design double row synchronizing transmission belt let the machine with more stable running performance .
Motorized inversion bar & Tight handing head
The carriage inversion bar driven by motor ,carriage return is more accurate
Tight is controlled by the motor ,to achieve different degrees of tight tuck,ranging from 0 to 80 .
Auto oil system
Machine have fully automatic refueling system .Self-determind auto oiling when time up automatically refueling and lubrication the jack and spring needles on the needle bed ,avoide maintance problem ,increase machine serive life
LCD Touch screen
Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of lines of complex patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn ndunderstand.
Japanese MINEBEA Stitch motor
Adopt Japanese Minebea increase torque stitch motor . With Dynamic stitch function ,using high speed stepping motor multi-segment stitch function can be achieved in one course .
Servo Motor
Using cani control ,can achieve the rapid return and direction changing of the machine carriage ,accurate positioning ,smooth conmutation .
Product Paramenters
SPECIFICATION, GAUGE AND TECHNICAL PARAMETER
Gauge
3G,3.5G,5G,7G,8G,9G,10G,12G,14G,16G,3-5-7G multi-gauge
Knitting width
36,52,56,60,66,68,72,80,100,120 inch
Knitting system
Single carriage with double  system
Knitting function
Knit, miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns
Knitting speed
Controlled by sevro-motor with 32 sections optional, max speed reach 1.2M/S
Racking
Controlled by sevro-motor racking within 2 inches and with fine adjusting function
Needle selection
Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.
Stitch density
Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch
of the knitwear can be accurately controlled.
Transfer
Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system
for knitting, which will achieve high production
Sink system
controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Comb system
Grip or knock-over the yam reliably (Optional)
Cutters and Grippers
Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional)
Take-down system
Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100
Color-changing sytem
2X8 yarn feeders at the single side of 4 guide rails, shiftable on any needle position
Protection system
The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle
breakage, error programming occur, also set up the safety auto-lock protect device.
                                                                         Control system
1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
2. USB memory interface,System memory 1G.
3. Free design system is visual and easy to understand and software upgrade free of charge.

4.Support multi-language operation as Chinese and English, Spanish, Russian etc.
Power
Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Knitting Samples
Our samples room
Company Profile
Arrow Star Flat knitting machine company and workshop
Our Arrow Star compay have more than 10 years experience in producing and develop flat knitting machine .Product range including manual flat knitting machine , semi-auto flat knitting machine , Single carriage single system , double system , three system computerized fat knitting machine , double carriage , three carriage computerized flat knitting machine .Knitting width can be 36inch , 48inch ,52inch ,56inch ,60inch ,66inch ,72inch ,80inch ,100inch and 120inch and customzied size according with clients request .Flat machine gague from 1.5G ,3G,5G,7G,8G,9G,10G,12G,14G,16G until 18G ,also can be multi-gauge 3-5-7G ,8-10-12G,10-12-14G and etc .Welcome to sent us inquire for getting more exact introduction !
Our workshop
Adpot morden testing device and producing line to make sure each of our machine with stable quality and excellent performance !
Product packaging
Flat sweater knitting machine package and delivery
Sweater machine packed into suit for export delivery wooden case
Successful Case
Our customer all over the world
At present ,our flat knitting machine have export to South Africa , Uzbekistan ,Bangladesh , Pakistan , Kenya ,Russia ,Turkey ,Egypt,Ecuador, Colombia, Venezuela, Peru, Brazil, Chile, Uruguay, Paraguay, Argentina, Bolivia, ......,more than 100 countries and win good reputation on the market .
