Product details
Application:Machinery;Certification:ISO9001:2008;
Quality:High-Quality;Model Number:SNH522-619;
Stock:Large;Service:OEM Customized Services;
Supply Ability:10000 Pieces per Month;Housing material:Cast Iron HT200;
Precision Rating:P6;Package:Original Package;
Type:Pillow Block;Port:Qingdao Shanghai Shenzhen Guangzhou;
Place of Origin:Sweden;Material:Chrome Steel;
Cage:Chrome Cage;Product name:Split plummer block housing SNL522-619 bearing SNH522-619;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Construction works ,Energy & Mining;Brand Name:OEM;
Packaging Detail:1.Industrial packaging:plastic tube+carton+pallet 2.Commercial packaging:plastic tube+kraft papei+carton+pallet 3.Original packaging+pallet 4.As customer request;Payment Terms:T/T,paypal;
product description

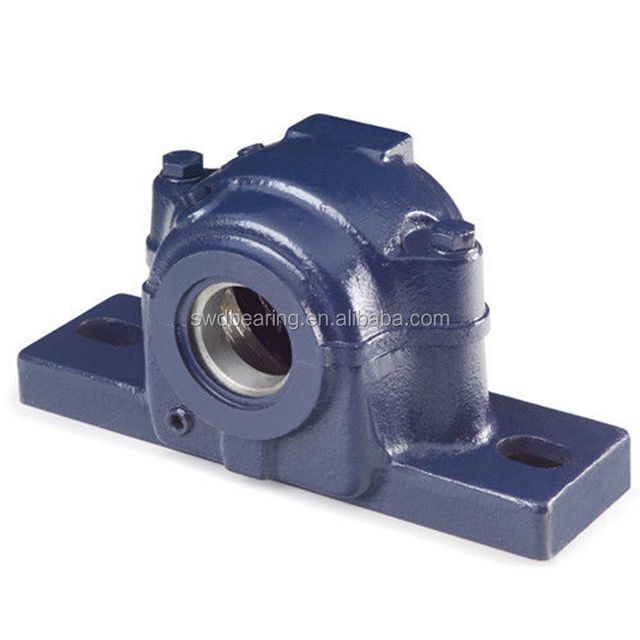

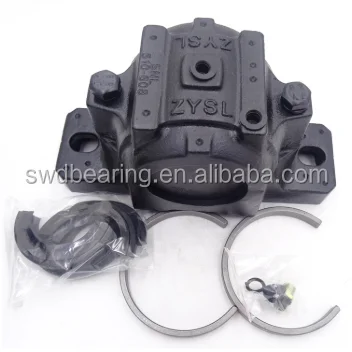

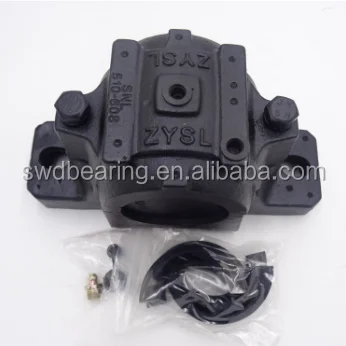

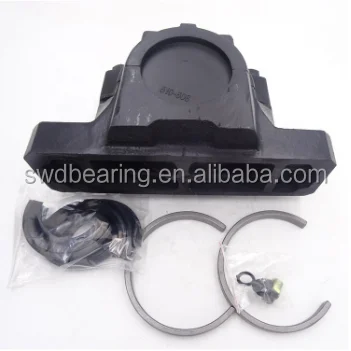

Sweden Split plummer block housing SNH522-619 whole set black split SNH522-619 pillow block bearing

Pillow blocks: the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustment during mounting.Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.
Check out our selection of high quality pillow block bearings listed below. We are always updating and adding sizes and styles. So be sure to check the pillow block bearing page often. Also check out our insert bearing page for the inserts that fit in our pillow blocks, two bolt flange bearings and four bolt flange bearings.

Cast Iron SNH series split pillow block housing for bearings on an adaptor sleeve, from our Premium range.

SNH522-619

Appropriate products
Bearing (basic designation)
1319 K /1212K
Adapter sleeve
HE 319
Locating ring
2 x FRB 17.5/200

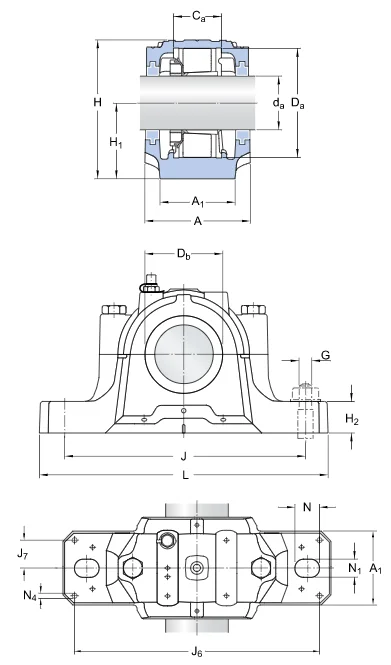

da   82.55 mm
Ca   80 mm
Da   200 mm
Db   147.5 mm
A   175 mm
A1   120 mm
H   242 mm
H1   125 mm
H2   45 mm
J   350 mm
L   410 mm
N   32 mm
N1   26 mm
Dowel pins
J6   378 mm
J7   44 mm
N4 max. 8 mm

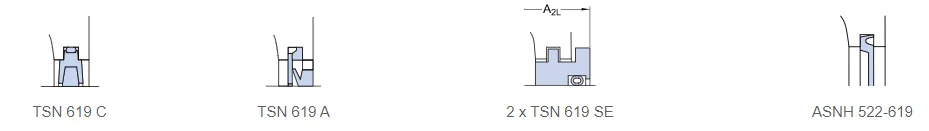

Seal dimensions
A2L   191 mm



Appropriate seals and end cover



P   600 kN
P55°   680 kN
P90°   410 kN
P120°   310 kN
P150°   275 kN
P180°   340 kN
Pa   220 kN



Q120°   620 kN
Q150°   360 kN
Q180°   310 kN



Mass
Mass housing     22 kg
Mounting information
Cap bolt, size     M 20x100
Cap bolt, rec. tightening torque     200 N·m
Appropriate attachment bolt, size G   24 mm
Appropriate attachment bolt, rec. tightening torque     665 N·m
Initial grease fill, 20%     530 g
Initial grease fill, 40%     850 g
