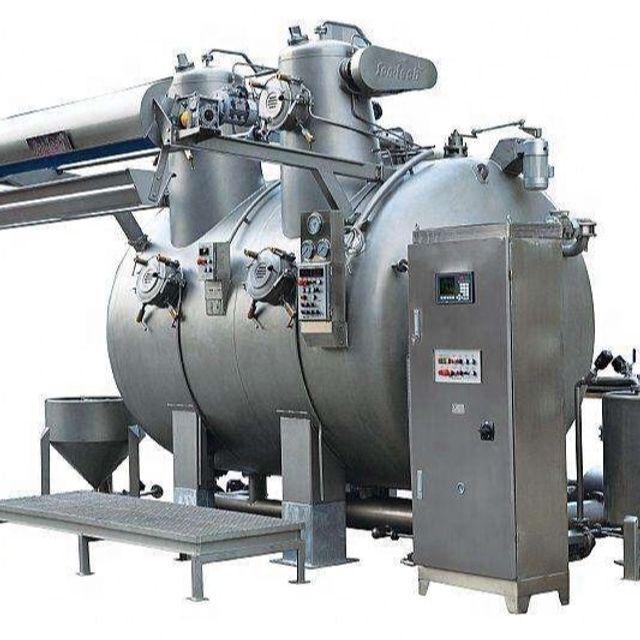

automatic dyeing machine

1,

Whole machine is dual frequency converter control system, human-computer operation interface

2,

Set of constant tension, constant linear speed

3,

Functions of manual, automatic, speed up, slow down

4,

Automatic head back, automatic record the lines, automatic stop machine, automatic swing function if line is full

5,

Whole machine automatic temperature control, technological operation

6,

Operation screen programmable set, technology storage, automatic identification, automatic alarm

1

Controller

Omron PLC

2

Frenquency converter

sets of Yaskawa frequency converter , 7.5KW/set

3

Operation interface:

7 inches Weinview Colorful touch screen

4

Motor

sets of linking type motor reducing gear, 7.5kw/set

5

Electrical cabinet

Stainless steel electric control cabinet

6

High temperature vat body

Vat body is made of Q235B which is 12mm thick, designed pressure 0.4Mpa,designed temperature: 140℃,there is pressure vessel license

7

Main cloth roller

Dia. 325mm, coated with SUS304

8

Bottom cloth guide roller

Dia. φ125mm, SUS304 roller

9

Upper cloth guide roller

Dia. φ100mm, SUS304 roller

10

Dyeing tank

Made of SUS316L

11

Tension frame

Spring type

12

Machine frame

One set of machine frame

13

Heating system

Vat body heating, vessel body directly heating

14

Circulating pump

Equipped with a circulating pump

15

Chemical barrel

Equipped with a chemical barrel made of SUS304

16

Doffing frame

Optionally available
