Product details
Automatic Grade:Semi-automatic;Packaging Detail:Wooden case for Industrial garment dyeing machine;
Payment Terms:L/C,Western Union,T/T;Showroom Location:Viet Nam,Pakistan,Thailand;
Heating type:Steam/electirc/hot water;Aftersale service:Available;
Power:5500;After Warranty Service:Online support;
Marketing Type:Ordinary Product;Loading type:Front loading;
Dimension(L*W*H):2950*1700*1750;Voltage:Optional,According to your requirement;
Brand Name:Hangxing;After-sales Service Provided:Engineers available to service machinery overseas,Online support;
Warranty of core components:1 Year;Warranty:12months,1 Year;
Certificate:ISO/CE;Package Preview:;
Product name:Industrial garment dyeing machine;Core Components:PLC,Motor;
Capacity:15-400kg;Weight:1500 KG;
Video outgoing-inspection:Provided;Condition:New;
Local Service Location:Viet Nam,Pakistan;Port:Shanghai;
Applicable Industries:Hotels,Farms;Production Capacity:200KG;
Drum type:Horizontal;Place of Origin:Jiangsu, China;
Machinery Test Report:Provided;Supply Ability:500 Units per Month;
Certification:ISO9001,CE;
Product Description

GX Series Industrial garment dyeing machine

1.Suitable for laundry, hostel, troop, hospital, hotel, blanching & dyeing factory, large & middle size enterprise and service field to wash various fabrics made of cotton, wool, linen and chemical fibre.

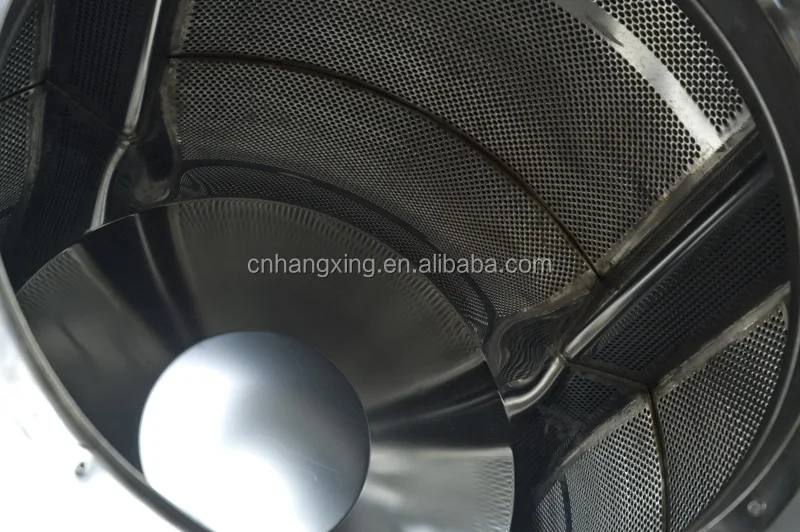

2.The machine adopts horizontal and drum-type structure, low noise, low shock.                     3.The cylinder and shell are in stainless steel,smooth surface,good appearance and long life.

4.There are safety lock on both inner drum and outer drum.

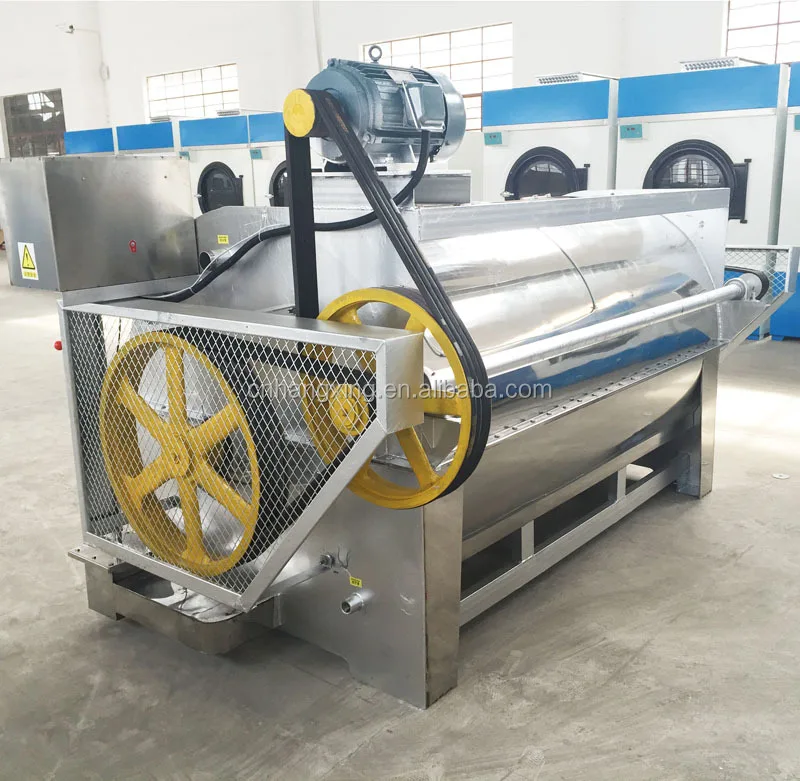

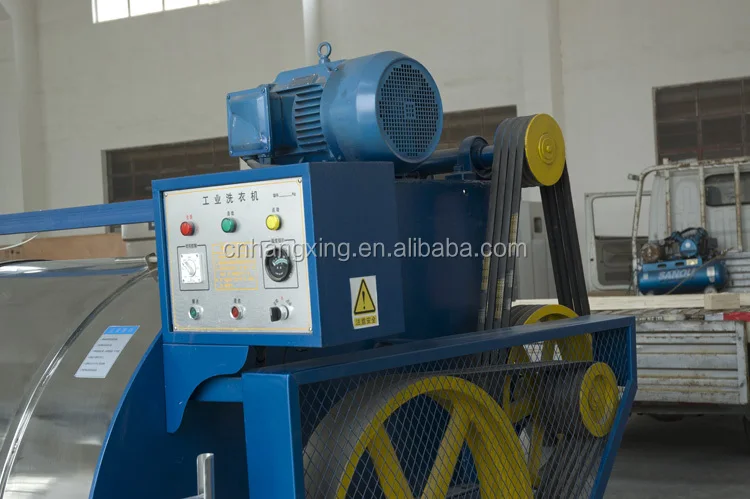

5.It is driven by triangle belt which is duable and moves smooth with little shock.

6. Its capacity is from 15kg to 400kg.

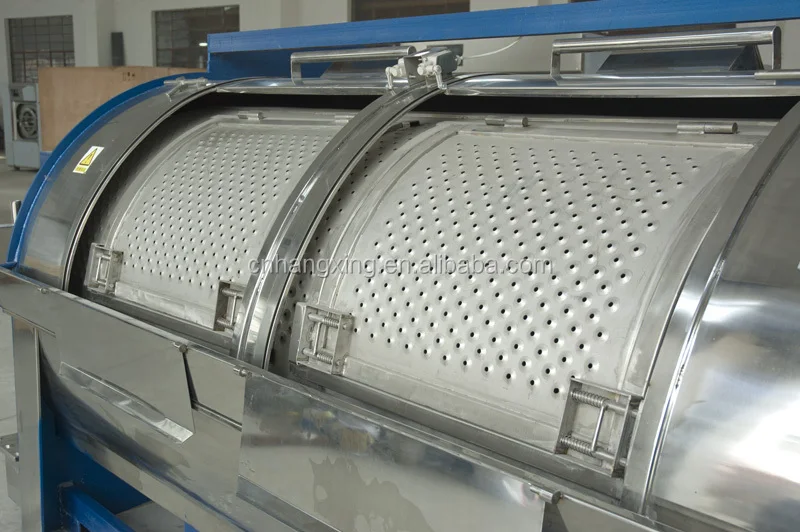

Detailed Images



Specifications
GX Series Industrial garment dyeing machine
Model GX-15 GX-20 GX-30 GX-50 GX-70 GX-100 GX-150 GX-200 GX-250 GX-300 GX-400
Max. Capacity(kg) 15 20 30 50 70 100 150 200 250 300 400
Speed (r/min) 46 46 36 36 34 34 33 32 30 28 27
Drum Diameter(mm) Ø540 Ø600 Ø660 Ø800 Ø950 Ø960 Ø1060 Ø1080 Ø1200 Ø1300 Ø1450
Drum Depth(mm) 680 700 800 980 1220 1420 1650 2000 2280 2280 3360
Steam Pressure(Mpa) 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6 0.3-0.6
Steam Consumption(kg) 15 15 18 20 30 45 50 60 70 80 100
Electric Heating Power(kw) 15 15 18 30 45 60 (Don’t recommend electric heating)
Power(kw) 0.75 0.75 1.1 1.5 2.2 3.0 4.0 5.5 7.5 7.5 7.5
Machine Length(mm) 1100 1170 1500 1700 1980 2200 2480 2950 3200 3200 4100
Machiner Width(mm) 1100 1100 1190 1320 1530 1400 1550 1700 1800 2000 2150
Machine Height(mm) 1000 1080 1180 1350 1520 1590 1700 1750 2200 2300 2350
Machine Weight(kg) 220 290 400 500 700 960 1150 1500 1950 2300 3100

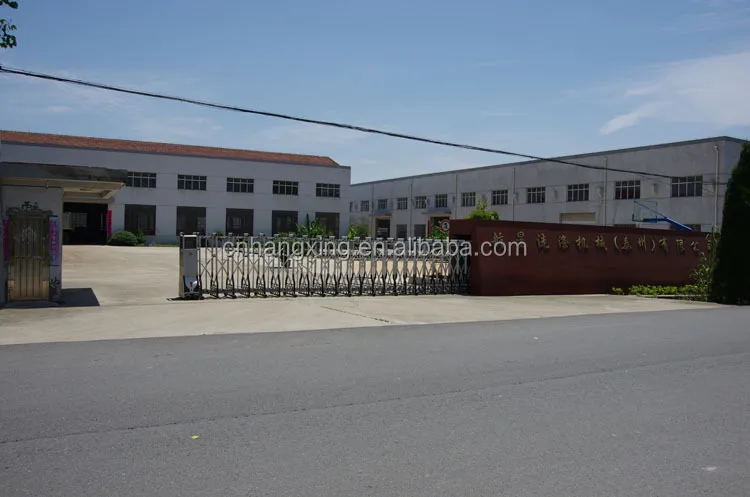

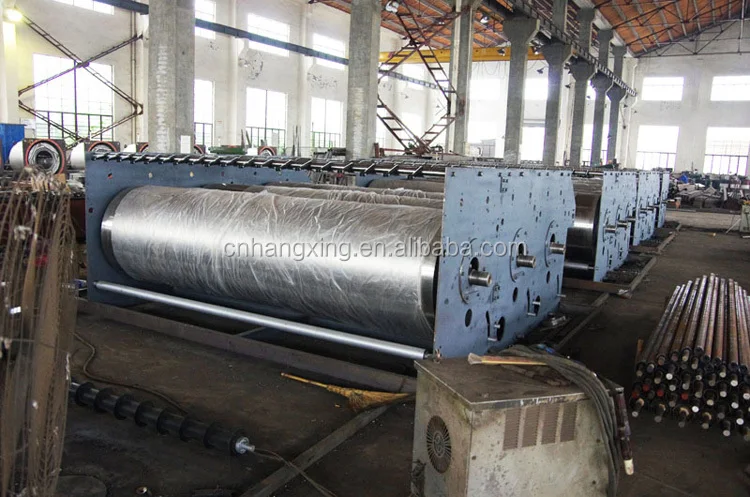

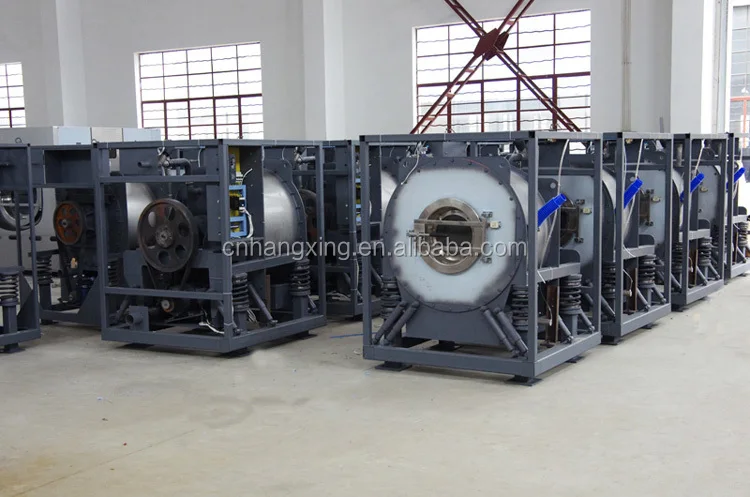

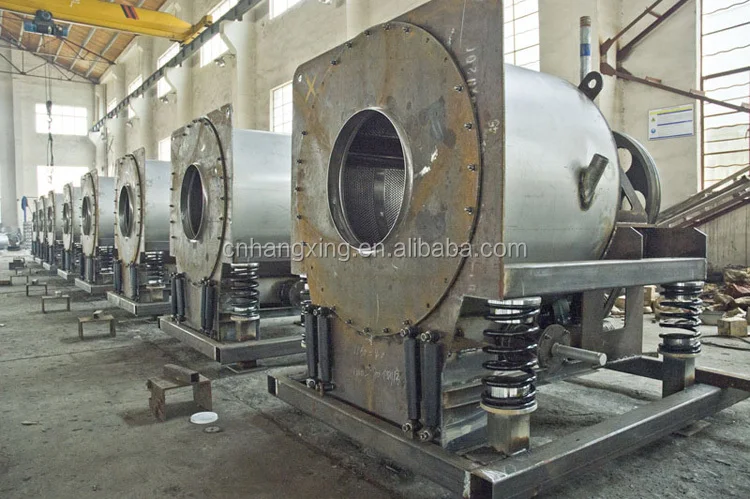

Company Information
