Product details

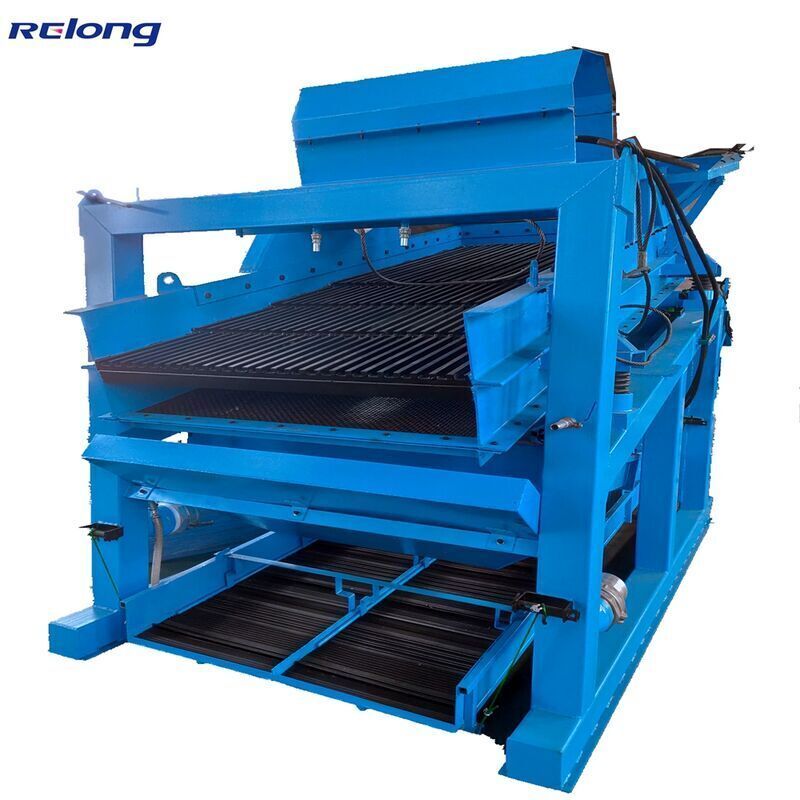

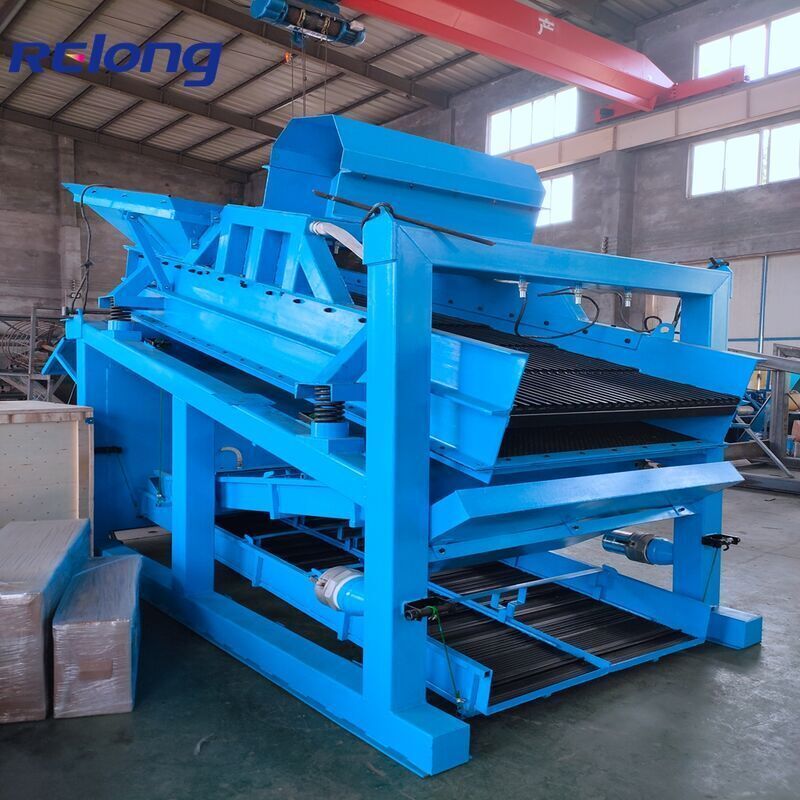

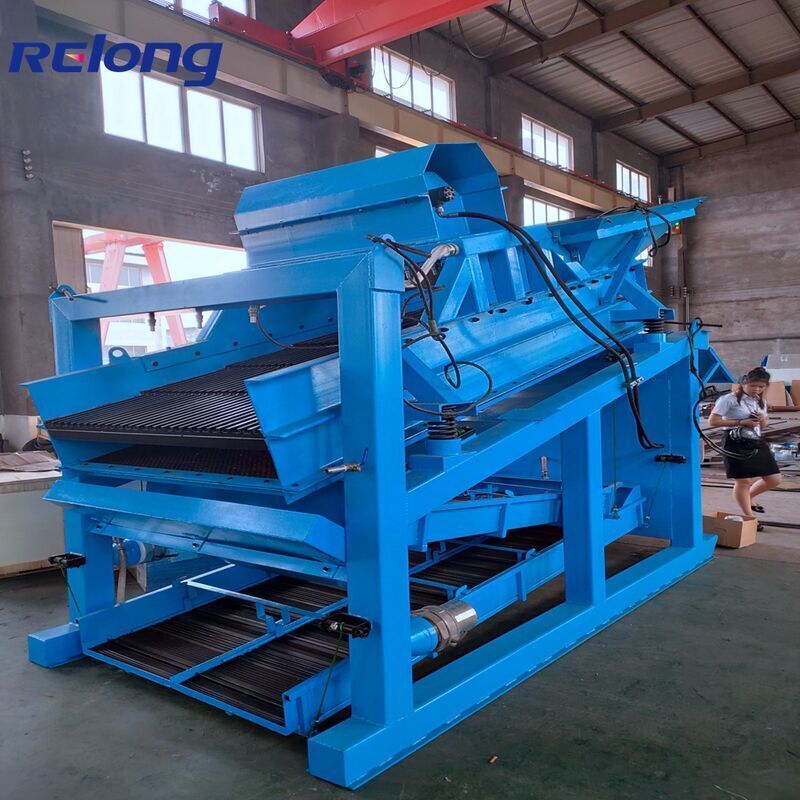

 Fully Hydraulic Drive All-in-one Gold Mining Wash Plant

VGM-300 is a complete,portable equipment.

Excavator pour the materials on grizzly bar to screening,gravel rinsed by high pressure water then discharge form the hindside, material particle size can reach 40 cm. The smaller particles fall to the second floor screen for separation, after sifting through the second layer, the sand water mixture flows into two separate adjustable sluice for gold enrichment.This sluice can be adjusted front and rear angle, left and right balance to achieve maximum recovery rate by adapting to different terrain and operating conditions.
This machine can be cleaned easily and quickly,gold mat can be removed to flush quickly.

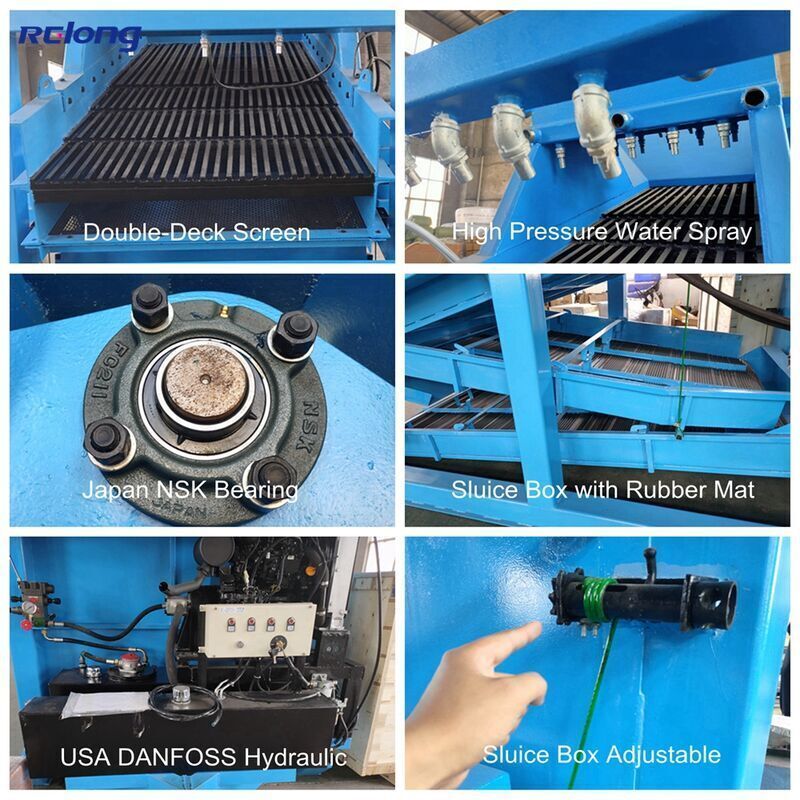

Advantage and Feature:
1. It's 100% hydraulic drive, no electric needed. Lowers fuel consumption, with fewer mechanical breaking points.
2. The sluice can be adjusted front and rear, left and right to keep balance.
3. With new desigh rubber mats, fine gold down to 200-300 mesh.
4. The engine is diesel engine, bearing is Japan NSK
5. Partical size of the feed material can reach 50cm.
6.  Highly portable -when it's time to relocate, your excavator is all you need.
7. Long service life and low cost for maintenance.

VGM-300-Vibrating Gold Mining Machine

NO

Item

Specification

Remark

1

Length

4.8m



2

Width

2.2m



3

Height

3.2m



4

Input size

<30cm



5

Vibrating Screen Size

L*W 3.7*1.5m



6

Gold Sluice

 Box Size

The first chute: L*W 2.5*1.7m

 Zigzag Arrangement

The second chute: L*W 3.2*1.5m



7

Drive Power

YANMAR



Power/Speed

28hp/2200r


8



High Pressure

Water Pump

IS300-250

Optional. The price is not including these parts.

Water flow/Water lift

600m³/h,32m

Engine

Weichai WP6D

Rated Power/Speed

138kw,1500r/min

9

Capacity

300t/h



10

Operator

1 Operator



11

Fuel Consumption

158kw×0.178L=28l/h



12

Suggest Excavator

20-35T,

Bucket capacity 1-1.5m³



Excavators should be selected based on actual working conditions, not less than the above model
