Product details

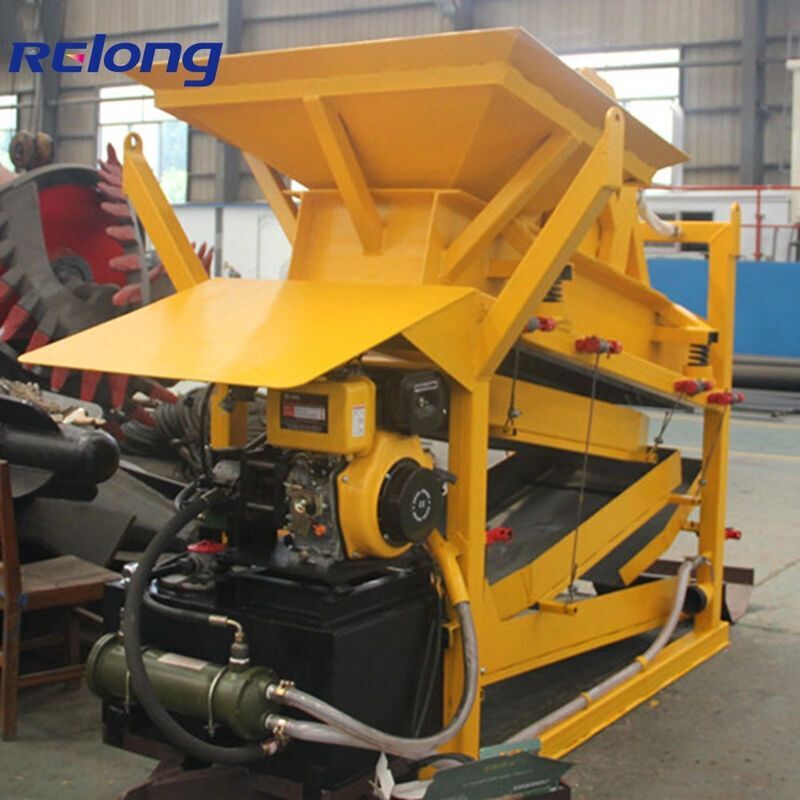

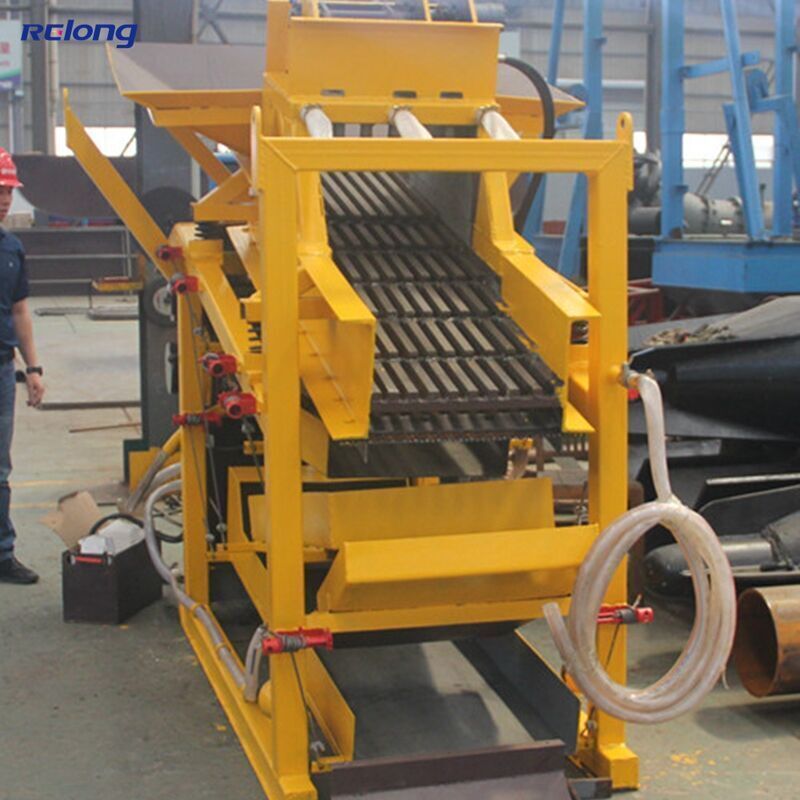

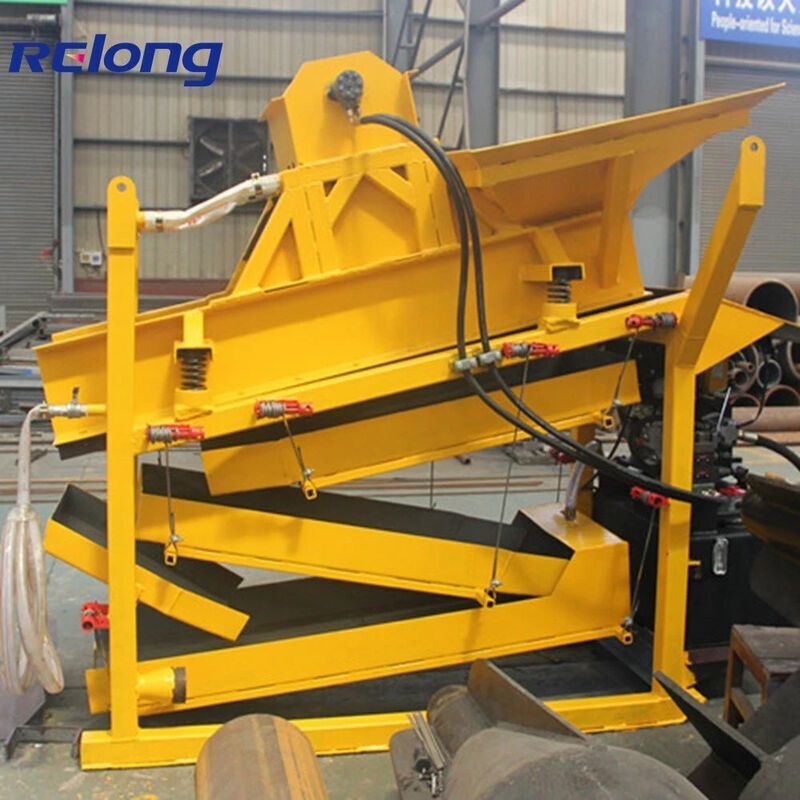

All-in-one Gold Mining Wash Plant

VGM-50 is a complete,portable equipment.

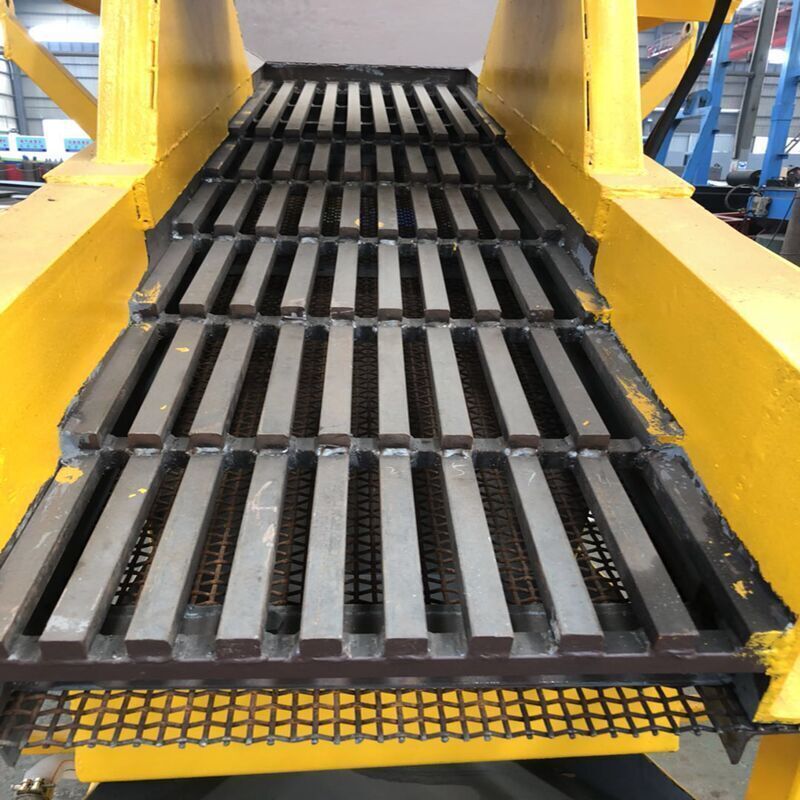

Excavator pour the materials on grizzly bar to screening,gravel rinsed by high pressure water then discharge form the hindside, material particle size can reach 30 cm. The smaller particles fall to the second floor screen for separation, after sifting through the second layer, the sand water mixture flows into two separate adjustable sluice for gold enrichment.This sluice can be adjusted front and rear angle, left and right balance to achieve maximum recovery rate by adapting to different terrain and operating conditions.
This machine can be cleaned easily and quickly,gold mat can be removed to flush quickly.

Advantage and Feature:
1. It's 100% hydraulic drive, no electric needed. Less transmission.Reduce fuel consumption and Reduce      mechanical wear.
2. The sluice boxes are independently adjustable,
3. The sluice box is equipped new desigh rubber mats with fine gold down to 200-300 mesh.
4. The engine is diesel engine, bearing is Japan NSK
5. You can drag this portable wash plant by the excavator.
6. Long service life and low cost for maintenance.

Drive System
It's 100% hydraulic drive, no electric needed.
The machine is fully driven by hydraulic system. The system is driven directly by hydraulic motor. No belt or chain is required. This means that a lot of driving mechanism is not necessary. Hydraulic system can reduce fuel consumption and mechanical loss.

VGM-50-Vibrating Gold Mining Machine

NO

Item

Specification

Remark

1

Overall Size

(L*W*H)

3m*1.7m*2.3m



2

Vibrating Screen Area

1.2CBM*2Layers

1.95*0.62m

3

Gold Sluice

 Box Area

2.36CBM

 Zigzag Arrangement (1.89*0.7+1.48*0.7)

4

Drive Power

single cylinder,four-stroke


5

Power/Speed

12hp/1800r



6

High Pressure

Water Pump

DS100X

Optional

7

Water flow/lift

115m³/h,32m

8

Rated Power

12hp/3600

9

Capacity

50t/h



10

Operator

1 Operator



11

Fuel Consumption

3-4l/h



12

Suggest Excavator

8-15t





VIEW MORE
