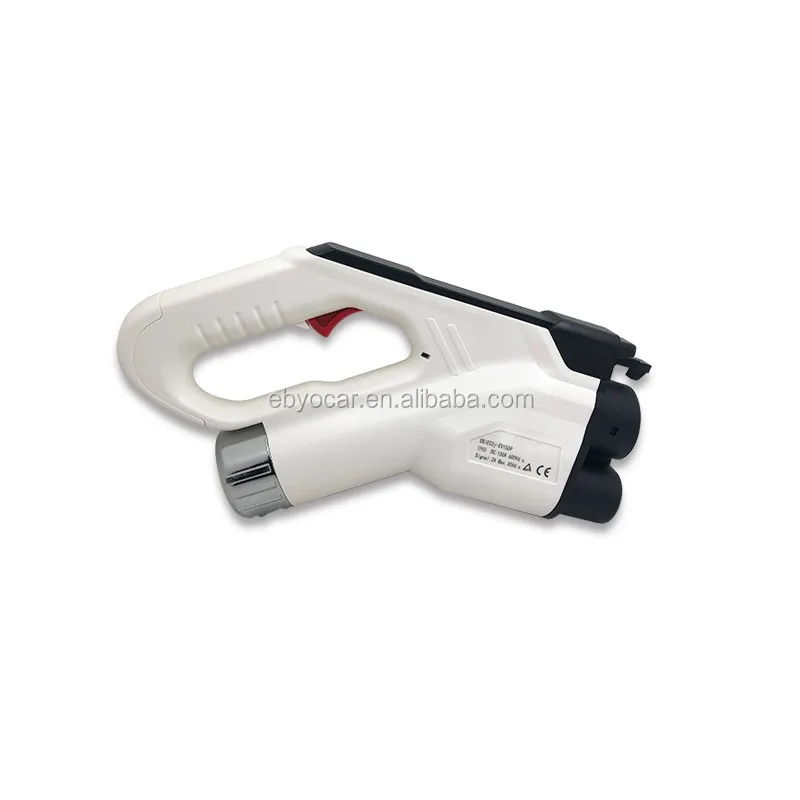

CCS 2 to CCS 1 combo plug DC EV fast charger adapter 150A

Supplier: Yocar International Trading Co., Ltd.
Region: Jiangsu, China
Contact: Mr Linda Zhang
Price: $195.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Application:	combined charging system;	Rated current:	150A DC;
Packaging Detail:	Neutral packing;	Package Preview:	;
Supply Ability:	50000 Pieces per Year;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Type:	Plug;	Operating voltage:	1000V DC;
Features:	For fast evse charging;	Grounding:	Standard Grounding;
Brand Name:	Duosida;	Operating temperature:	-30°C ~ +50°C;
Place of Origin:	China;	Port:	Shanghai/Ningbo/Shenzhen;
IP Level:	IP54 ( Working Condition);	Model Number:	CCS 2 TO CCS 1;
Poduct name:	CCS 2 to CCS 1 ADAPTER;	Mechianical life:	10000 Times;

Products Show

Product Description

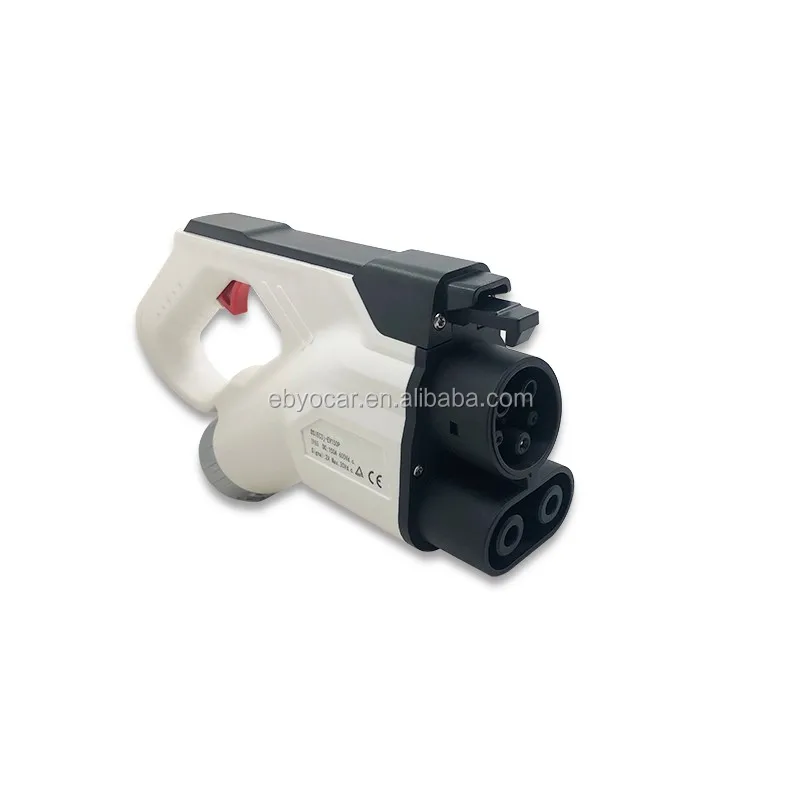

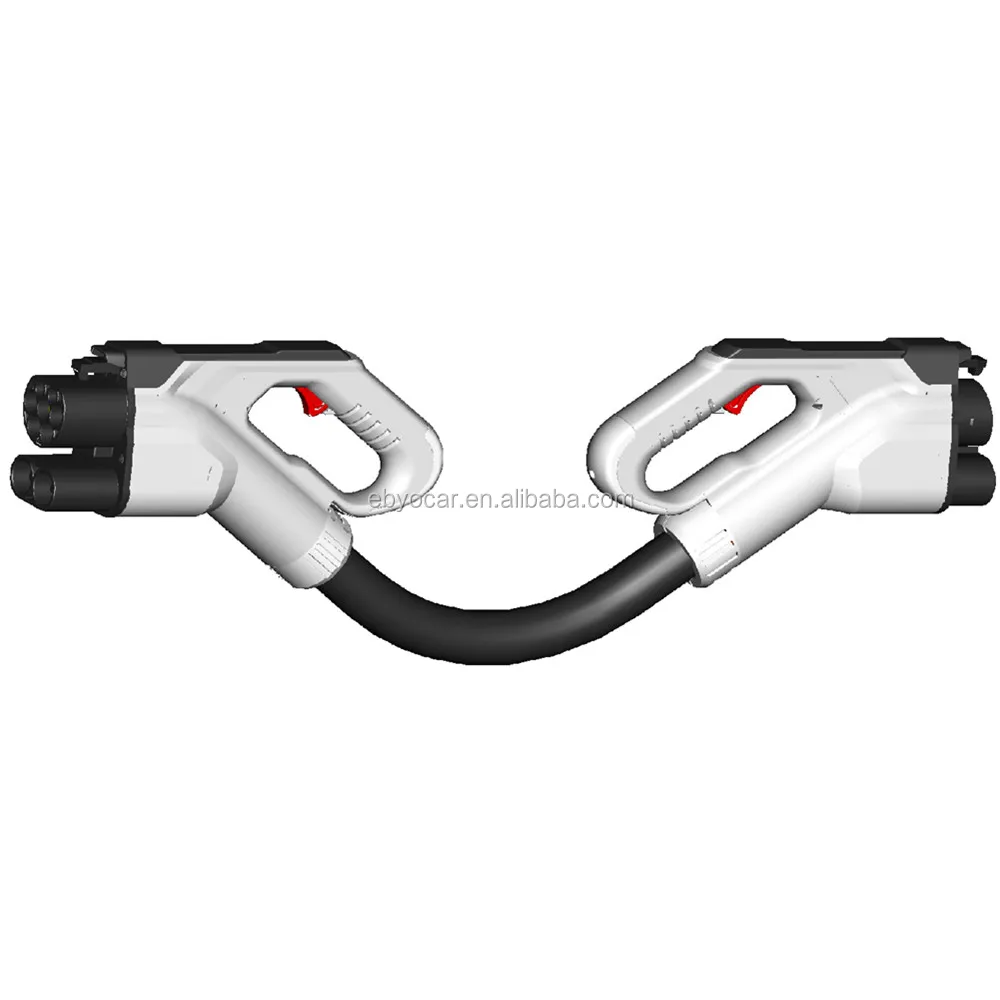

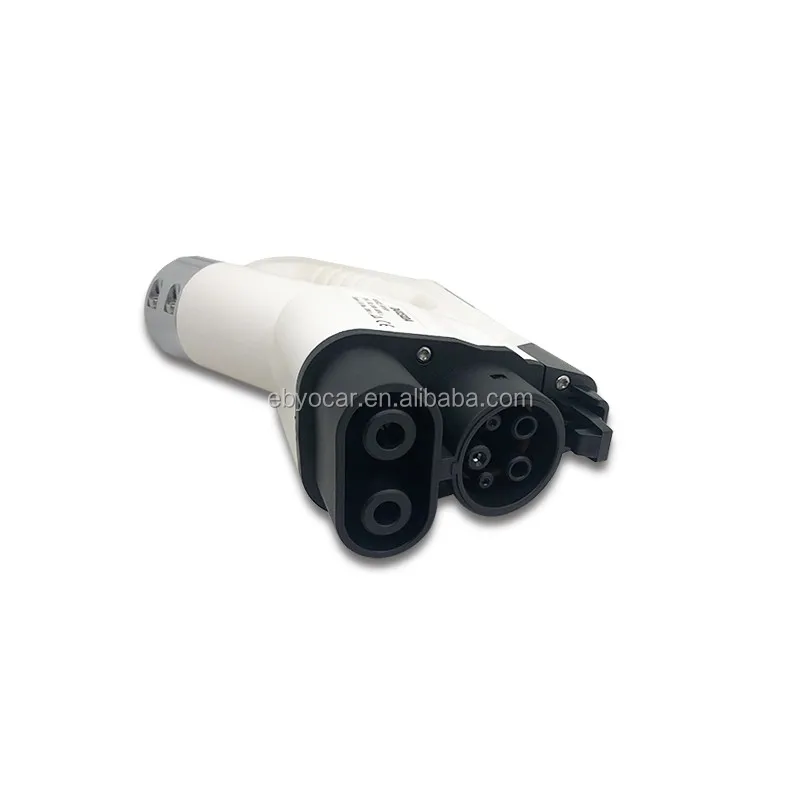

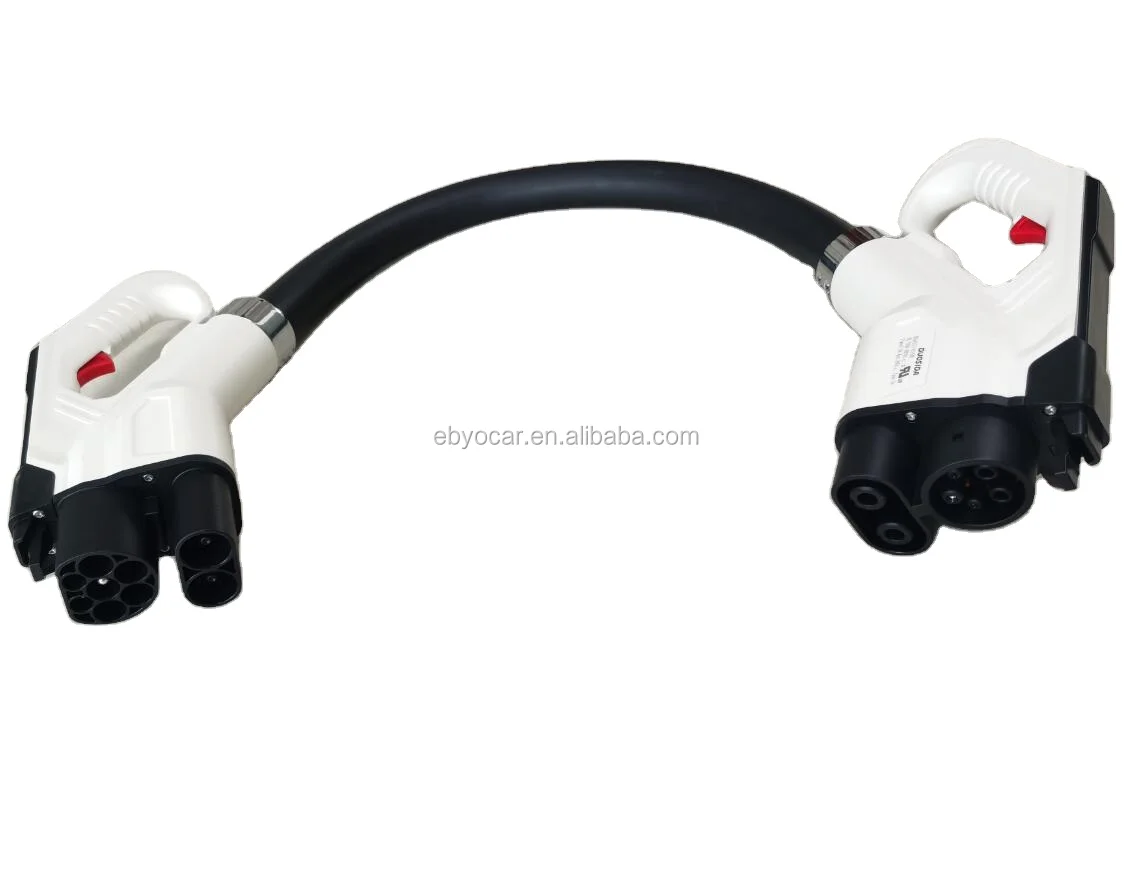

CCS 2 to CCS 1 combo plug DC EV fast charger adapter 150A

CURRENT CHOOSE	150A

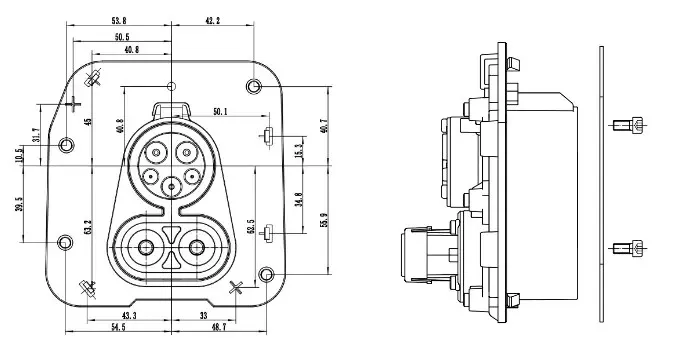

COMBO2 socket	1000VDC

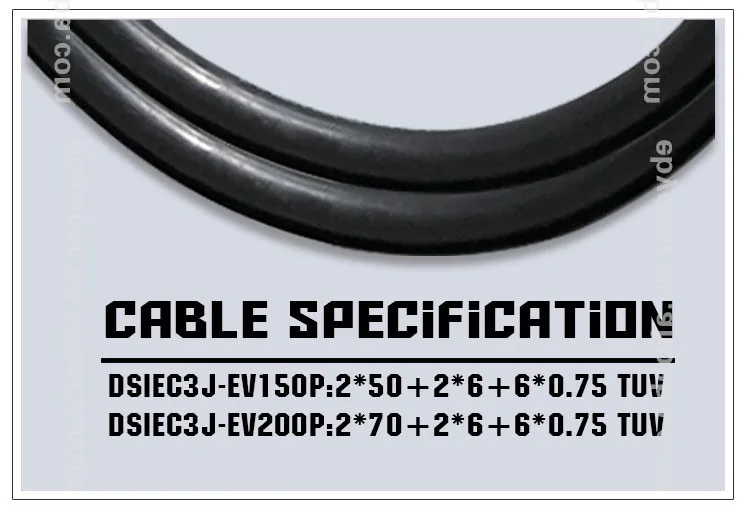

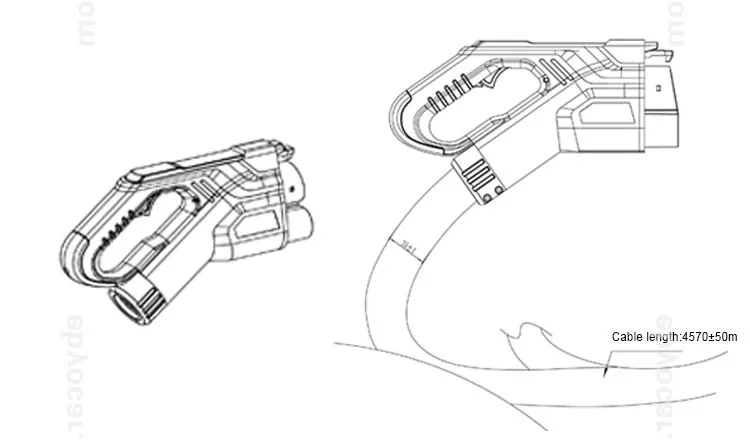

Cable	0.3m Cable length can be customized
Warranty	12 month
Certificate	TUV - CE - Rohs
Pin	Copper alloy, Silver
IP Grade	IP 67
Operating Voltage	1000V
Withstand Voltage	3200V

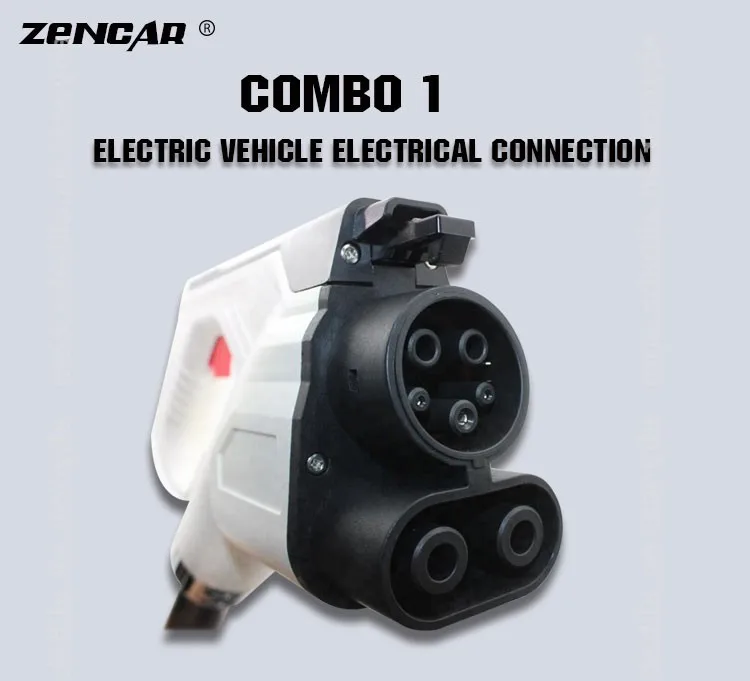

Electrical perfromance for CCS COMBO 1

Rated current:125A/150A /200A
Operation voltage:1000V DC
Insulation resistance:>2000MΩ
Terminal temperature rise:<50K
Withstand Voltage :3200V
Contact Resistance:0.5mΩ Max

Standard : IEC 62196-3

Mechanical properties for CCS COMBO 1

 Mechanicallife:no-loading plug in /pull out >10000 times
 Impat of external force :This Combo 1 fast dc plug can afford 1m drop and 2t vehicle run over pressure

Applied Materials for CCS COMBO 1

Case Material: Thermoplastic,flame retardant grade UL94 V-0
Contact bush:Copper alloy,silver palting
