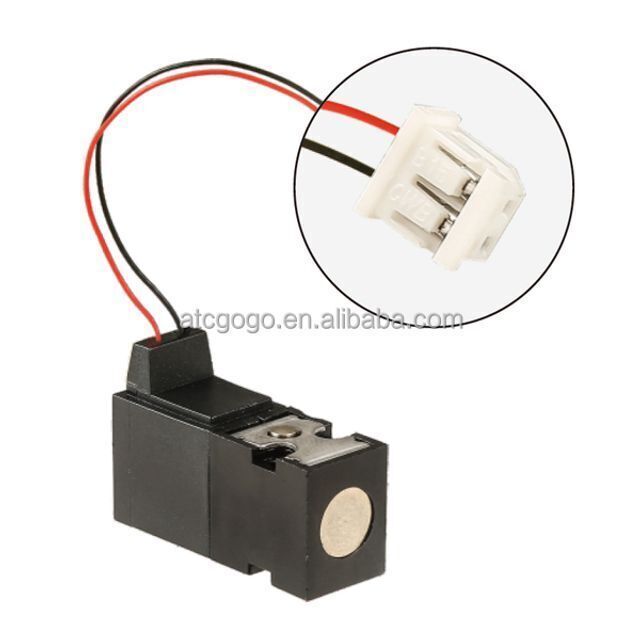

exquisite in workmanship miniature mini proportional solenoid valve
-
Supplier: Ningbo Fenghua Gogo Automatic Trading Company Limited -
Region: Zhejiang, China -
Contact: Ms E Z -
Price: $3.20 / >=10 pieces -
Min. Order: 10 pieces

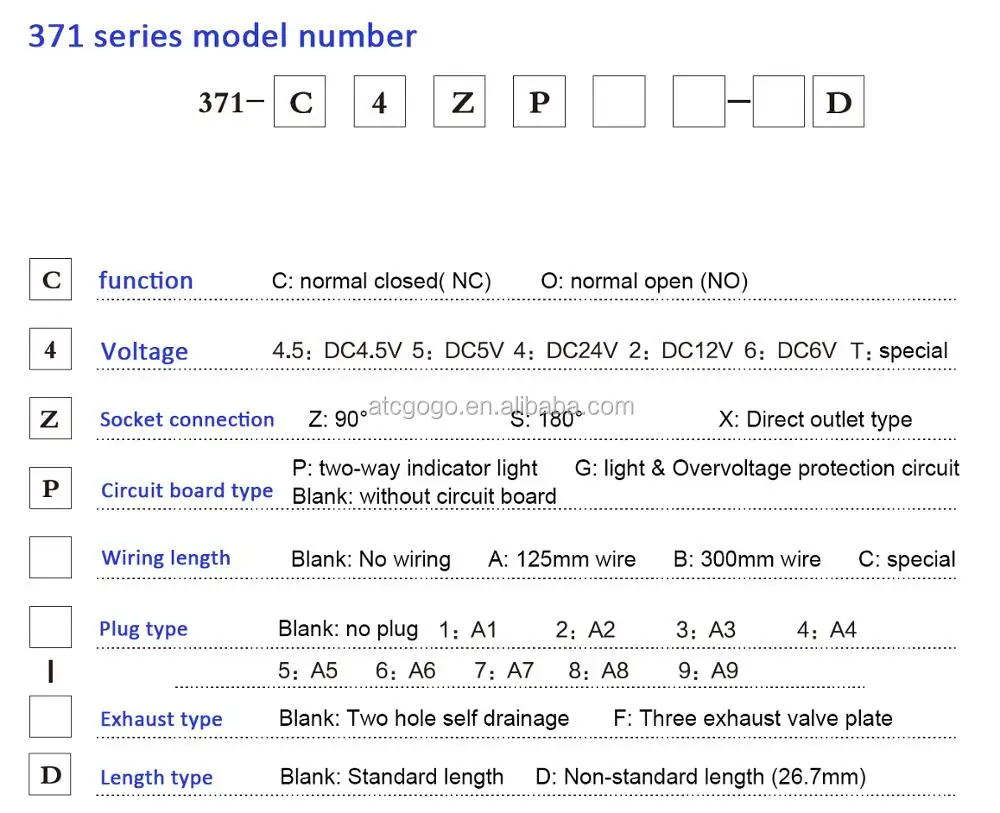

| Model Number: | 371series; | Power: | Solenoid; |
| Valve position function: | Two position three way, Normally closed (NC) or Normally open (NO); | Supply Ability: | 10000 Pieces per Week for miniature solenoid valve; |
| Standard or Nonstandard: | Standard; | Temperature of Media: | High Temperature; |
| Port Size: | Standard; | Manual device: | Button-type manual switch; |
| Way of working: | Cut-off type; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
| Nominal Flow: | 19L/min (0.7drift diameter,6 bar), 11.5L/min (1.2drift diameter,2 bar); | Structure: | Root; |
| Response time: | on < 6ms, off < 8ms; | Packaging Detail: | Carton; |
| Material: | Ceramic; | Delivery Detail: | 5-7days; |
| Installation method: | free to install; | Pressure: | High Pressure; |
| Port: | Ningbo; | Media: | Water; |
| Brand Name: | GOGO; | Application: | General; |
| Place of Origin: | Zhejiang, China; | Work Pressure: | 0-6 bar (NO), 0-7 bar (NC), -100kpa; |
| Drift Diameter: | 0.7mm, 1.2mm ( Large Flow, Two pass type); |
exquisite in workmanship miniature mini proportional solenoid valve

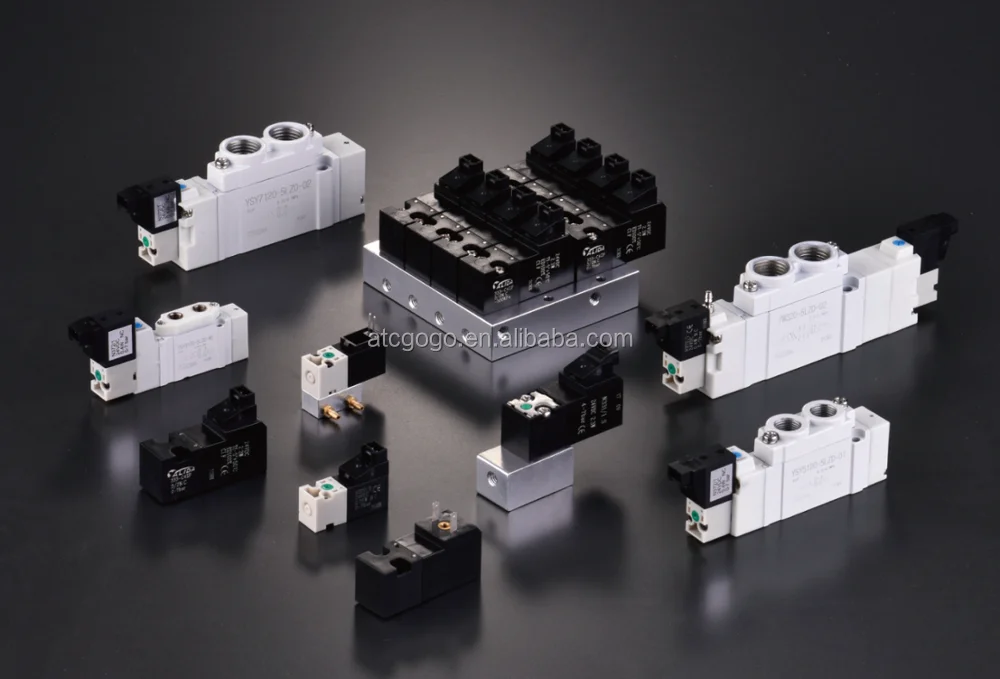

More series click here

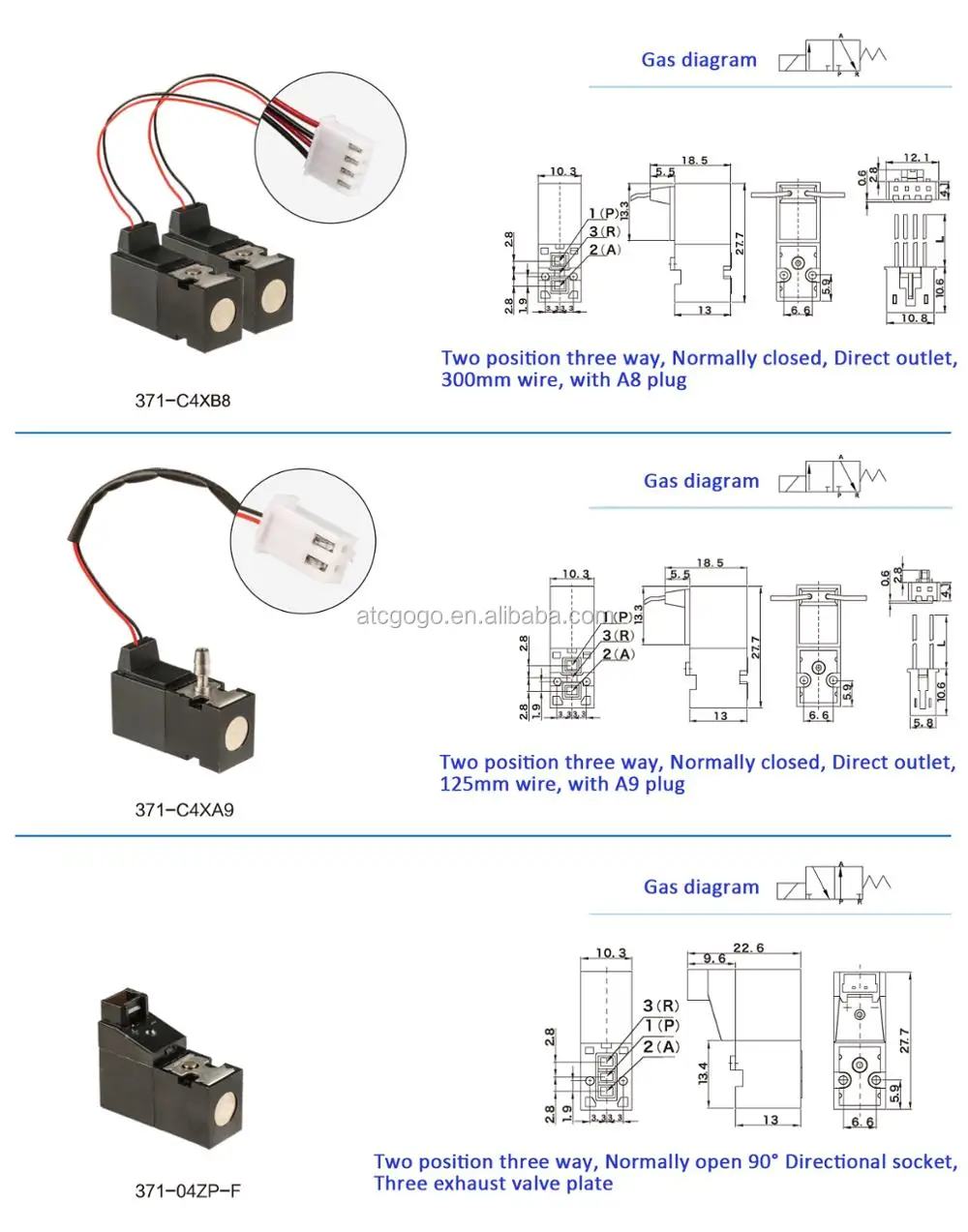

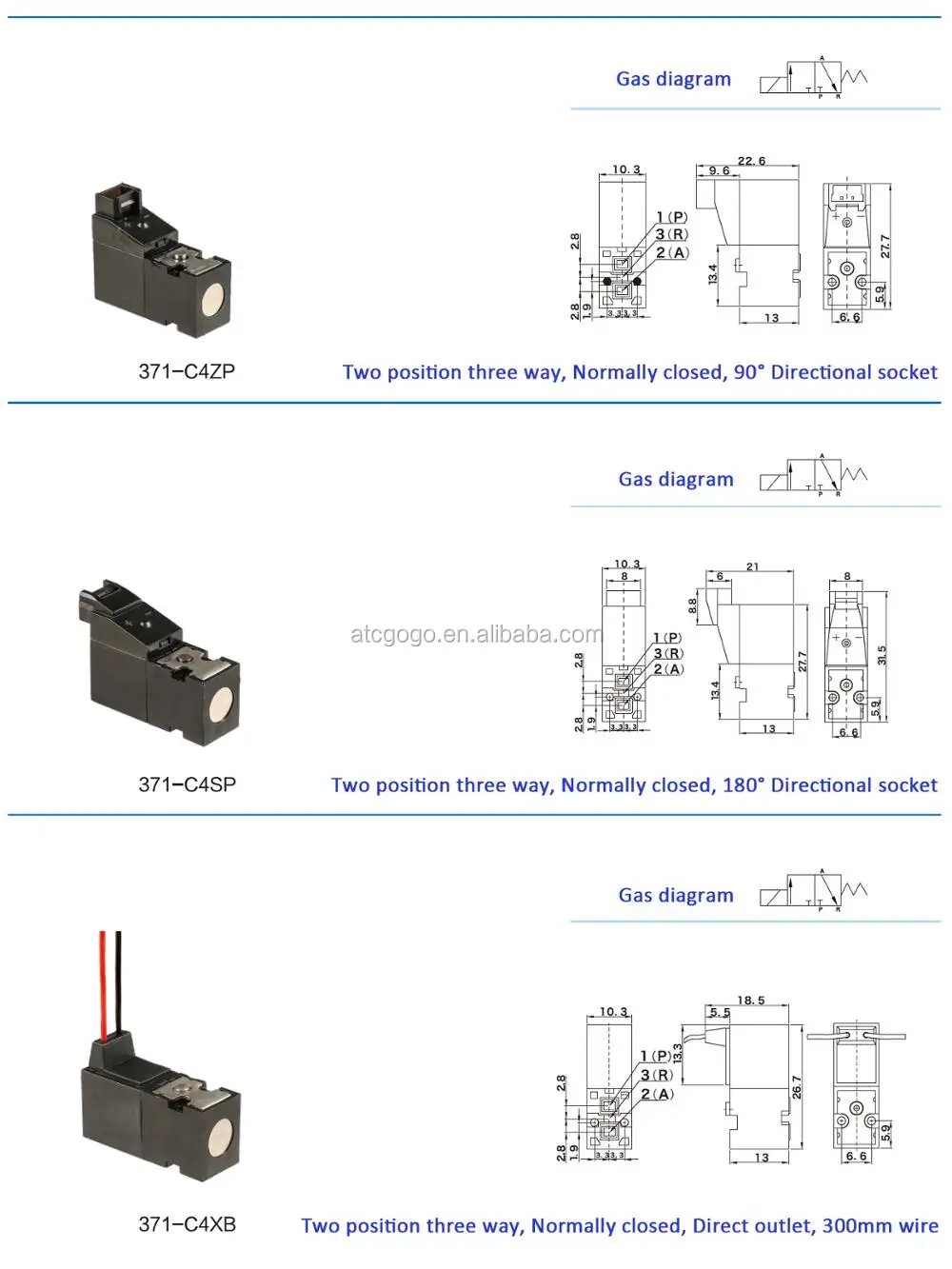

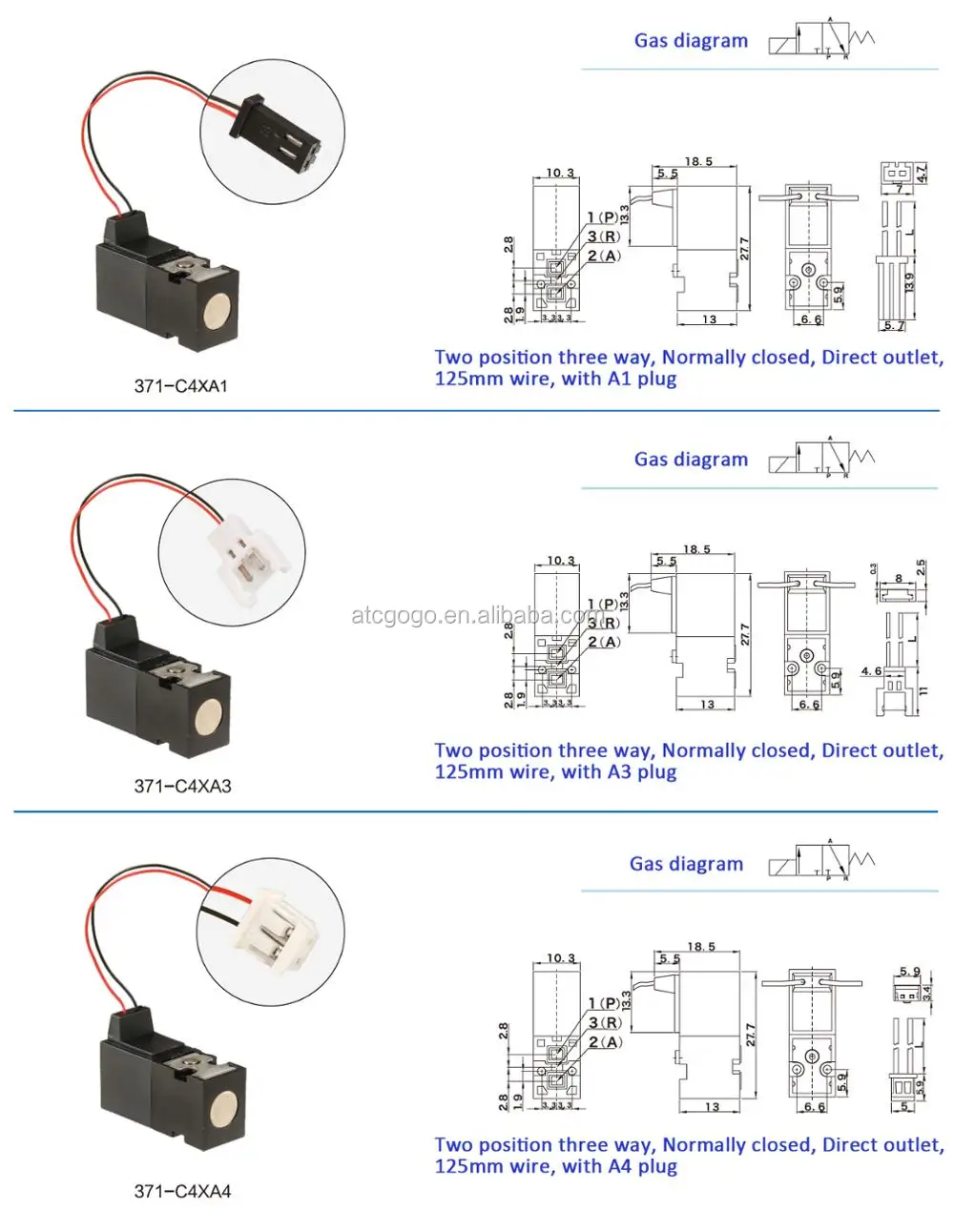

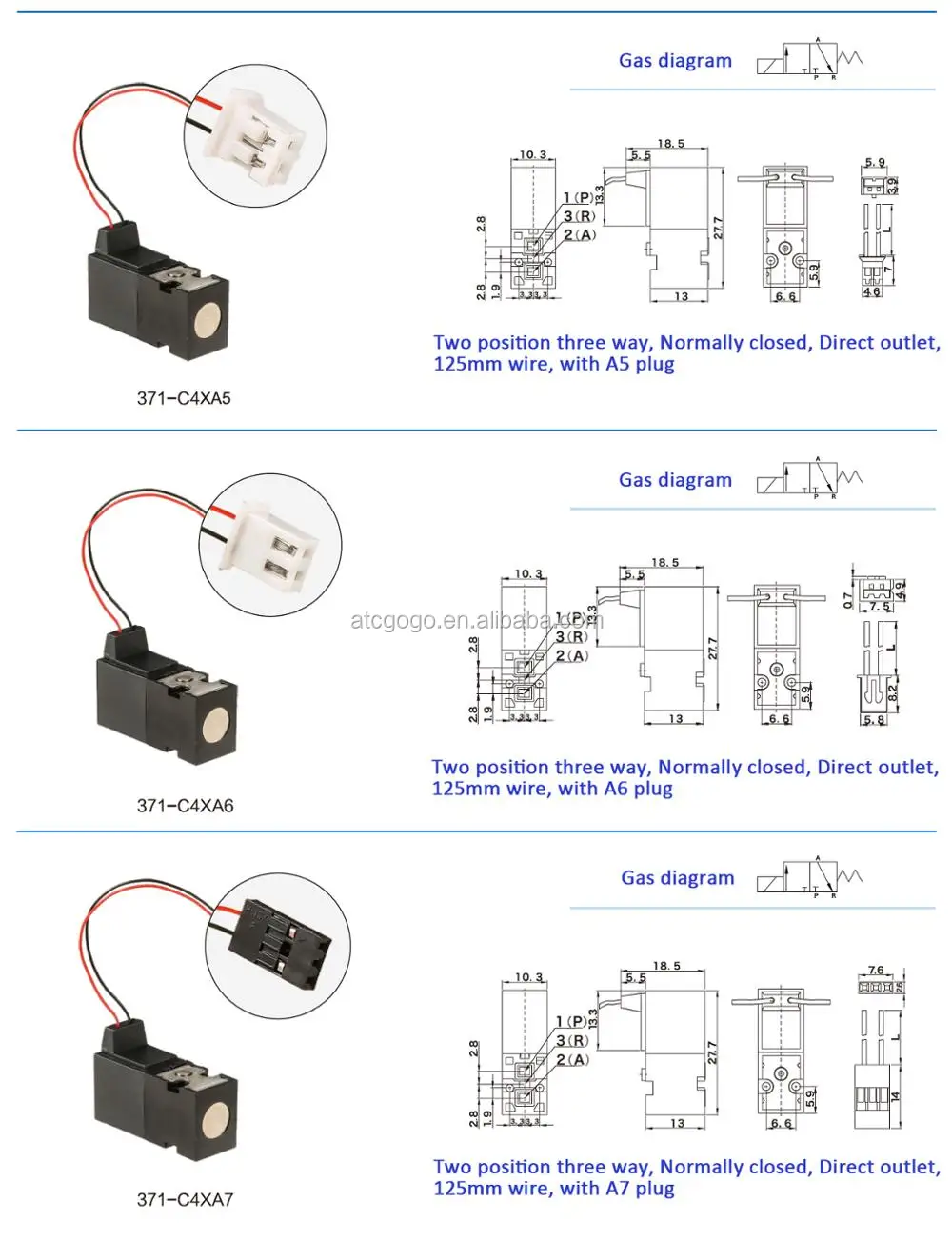

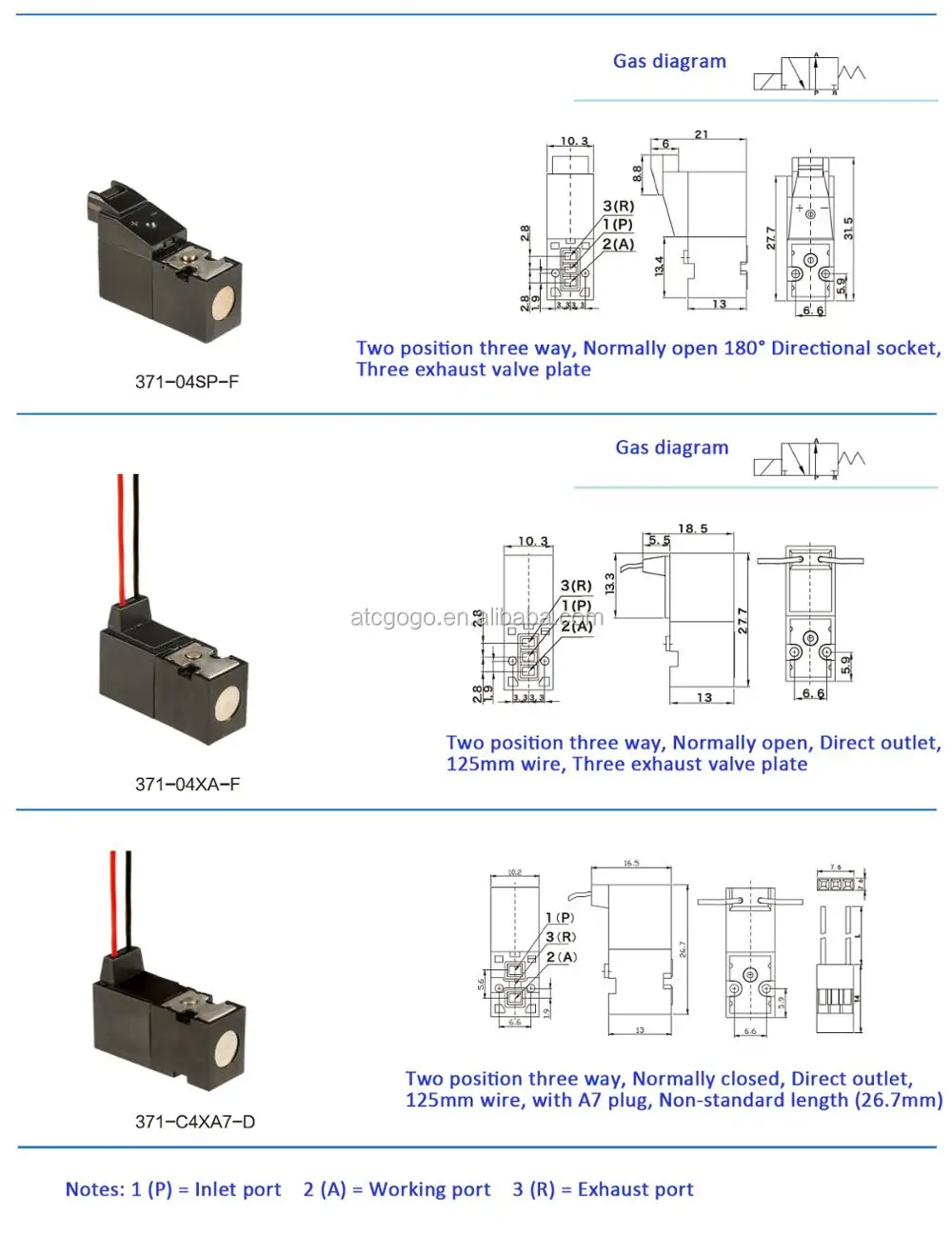

Comprehensive Parameter
Valve position function | Two position three way, Normally closed (NC) or Normally open (NO) |
Way of working | Cut-off type |
Installation method | Free to install |
Drift Diameter | 0.7mm, 1.2mm ( Large Flow, Two pass type) |
Nominal Flow | 19L/min (when 0.7 drift diameter, 6 bar), 11.5L/min (when 1.2 drift diameter, 2 bar) |
Work Pressure | 0-6 bar (NO), 0-7 bar (NC), -100kpa |
Medium and ambient temperature | -5℃ - 50℃ (But Unfrozen) |
Working medium | Filtered compressed air (Filtration level in line with ISO8573-15.4.4), Or inert gas |
Response time | on < 6ms, off < 8ms |
Manual device | Button-type manual switch |
Materials contact with medium
Body | Engineering plastics PA66, PA12 |
Seals | FKM (fluororubber), NBR (Nitrile Butadiene Rubber) |
Internal Parts | Stainless steel, Copper |
Electrical Parameters
Voltage | DC4.5V, DC5V, DC6V, DC12V, DC24V (As required) |
Voltage Tolerance | ±10% |
Power Consumption | 1.3W |
Work cycle | 100% can work continuously |
Electrical connections | Outlet or lead directly |
Degree of protection | IP50, IP65 (Straight line type) |
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
1: Various style for each products and completely series automatic products for you to choose from.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
-
