Mobile Rotary Trommel Gold Screens Wash Plant

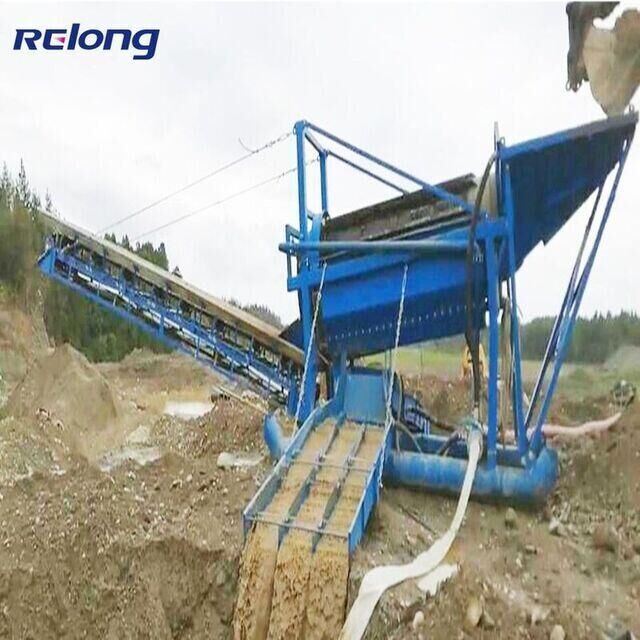

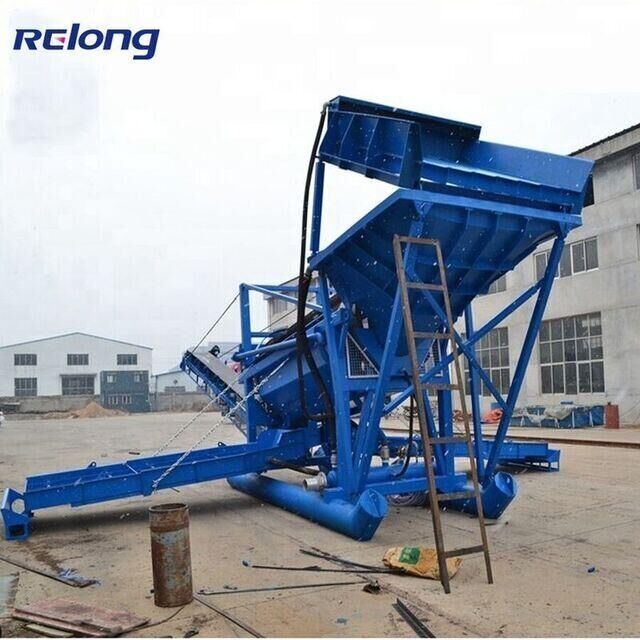

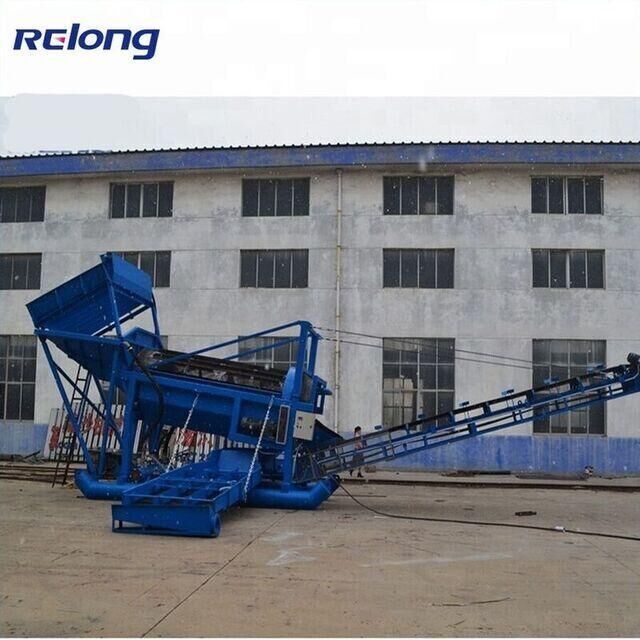

TGM-1200 trommel screen gold wash plant is widely used for the alluvial gold mining. It's no-shaft type, with high pressure water spray inside the trommel and feed hopper, high efficiency washing and sieving, separate the gold from clay. The sled type support leg easy to move from this mining site to another mining site. The sluice box equipped with world famous gold rubber mat inside, high recovery rate and easy to wash it.

Advantages and Features
-- New designed trommel screen
-- Integral welded main frame
-- Heavy duty chute with wear plate
-- Move easily on site
-- Equipped with belt conveyor to discharge the tailing. trommel screen driven by the motor, frequency converter      control speed
-- Reinforced water spray pipe installed inside the hopper
-- Front and behind with traction handles
-- High recovery rate for alluvial gold, especially for fine particle and flake gold,Gold recovery rate is more than 97%
-- Sluice box equipped with rubber mat, material will not hardened and block
-- Lower operation and maintenance cost
-- Suitable for remote areas

TGM1200-Gold Trommel Screen
Model TGM-1200
Size Overall Length 7m
Overall Width 2.3m
Overall Height 3.3m
Tommel Diameter 1.2m
Screen Area 2.8 CBM
Gold Processing Mat Rubber Mat
Processing Capecity 75-120 m 3 /h
Trommel Mesh 6-10 mm (can be chosen)
Power 7.5 kw-4 p
Water Pump 8 inch
Water Flow 400 m 3 /h
Water Lift 32m
Rated Power 52kw
Rated Speed 1500 r/min
Operator 1 person
Fuel Consumption 72kw * 0.178L =12.8 L/Hour
