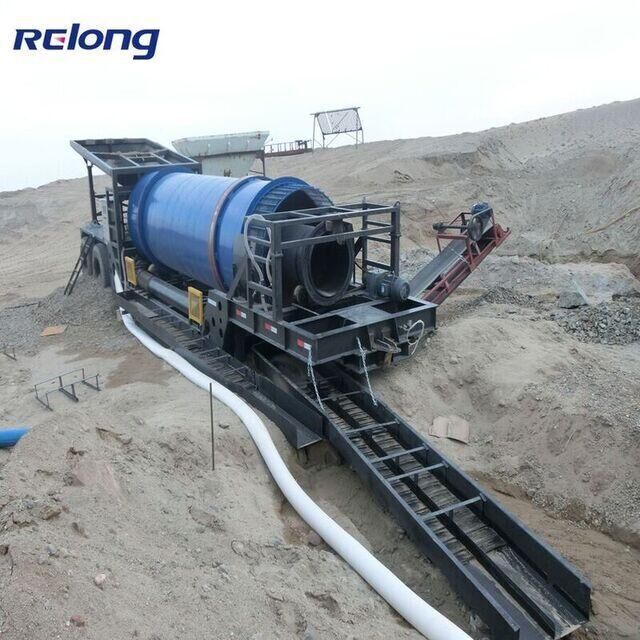

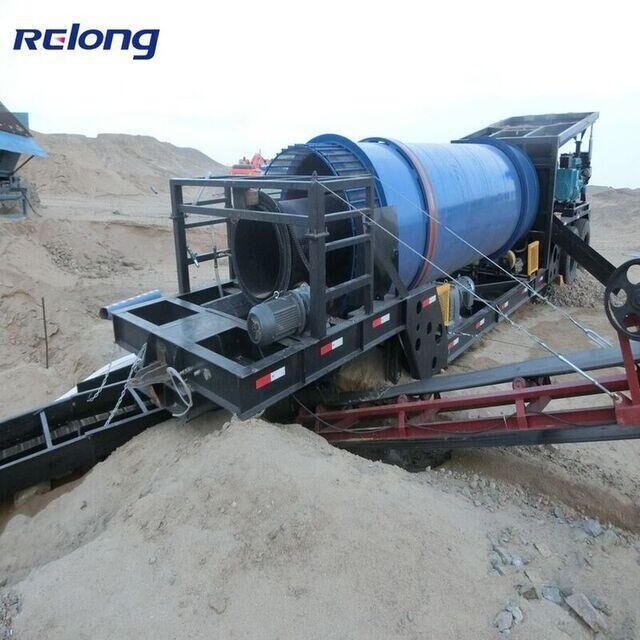

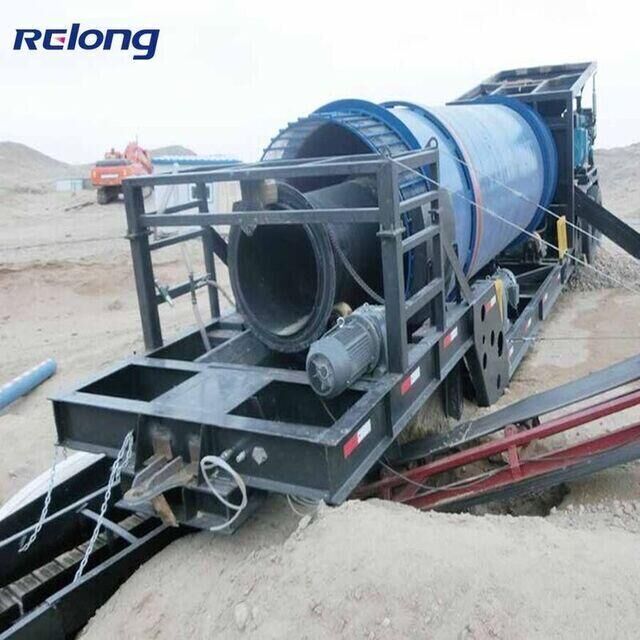

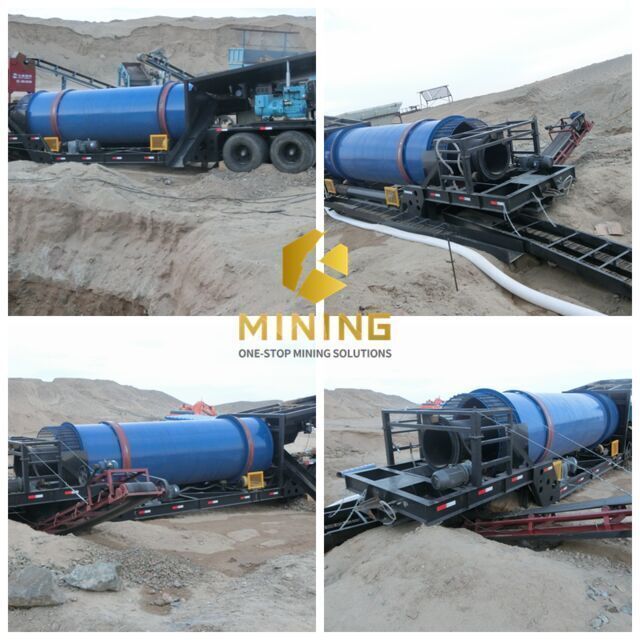

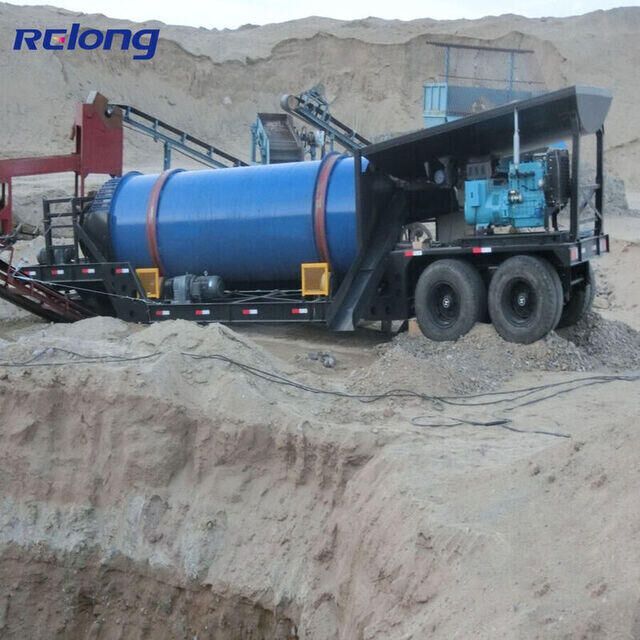

100TPH Gold Trommel Wash Plant Alluivial Gold Mining Machine

Product details

GM-100 Mobile gold equipment is one of the most popular gold washing equipment in the market. The machine with high recovery capacity is suitable for medium mines with lower water consumption, and easy to clean up. In 1 minutes you can power off the whole machine. Then there is new and high valued gold sand. The equipment can work in different construction and operation areas, with lower operation cost.

The gold mining machine is equipped with a trailer platform, a large wet material hopper (2.3m*3.7m) and vibration grizzly which can remove stones from 7cm-60cm. This is the reason why it has special high capacity.
The structure of this gold machine can withstand very bad mining conditions, and the main components with rubber which can extend the working life. Model 100 gold mining machine can be assembled and start to run.

Advantages and Features
1. Over 95% Recovery rate down to 300 mesh fine or 50 Microns.
2. Advanced reverse spiral system for non-stop continuous processing, giving you the ability to calculate your gold values while you're operating.
3. Continuous concentrations during production result in almost pure gold at the end of each production cycle, eliminating the need to purchase an expensive gold room to clean up your concentrate.
4. Advanced Sluice Box Design, consisting of different sizes of Expanded Metal, Hungarian Angle Iron Riffles and Water Pressured Hydraulic Riffles, designed to catch all sizes of gold from fine to coarse.
5. High capacity wet hopper with vibrating grizzly.

GM100 -Gold Trommel Machine
Model GM-100
Size Overall Length 11.9m
Overall Width 2.3m
Overall Height 2.9m
Pump Model  6 inch
Capecity 50-100 t/h
Water Consumption 30 m 3/h
Diesel Generating Set 1 Set(Optional)
Feed Type 200-300 series excavator
or 30-50 wheel loader
Required Container Type / Qty. 1*40'container
