Precast concrete Floor slab machine FOR Prefab house

Product details
Place of Origin:Shandong, China;Use for:Flooring Application Process;
Prestressed:Yes;Showroom Location:Viet Nam,Philippines,Saudi Arabia,Pakistan,Mexico,Thailand,UAE,Colombia,South Africa,Uzbekistan,Malaysia;
Packaging Detail:searothy package;Payment Terms:L/C,T/T,Western Union;
Certification:ISO&CE;Warranty:1 year;
Muntifuncational:Yes;Keywords:Floor slab machine;
Applicable Industries:Building Material Shops,Manufacturing Plant,Home Use,Construction works ;Brand Name:HAIYU;
Warranty of core components:1 Year;Machinery Test Report:Provided;
Condition:New;Key Selling Points:High-accuracy;

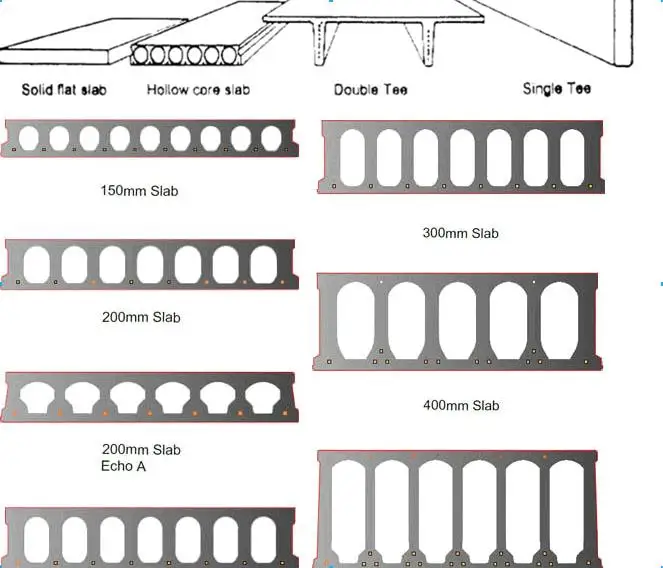

Usage:Slab, wall panels, T beam, H column , post;Voltage:450v,415v,380v,220v etc;
Dimension(L*W*H):4500x2200x2100;Video outgoing-inspection:Provided;
Automatic machine:easy operation;Weight:4500kgs;
Port:Tianjin,Qingdao;Marketing Type:Hot Product 2019;
Advantage 2:low cost and easy operation;machine molding speed:1.2-1.4m/min;
Local Service Location:Philippines,Brazil,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Thailand,Malaysia,Morocco,Argentina,Chile,UAE,Colombia,South Africa,Kazakhstan,Uzbekistan;After-sales Service Provided:Engineers available to service machinery overseas;
After Warranty Service:Video technical support,Spare parts;Core Components:PLC,Gearbox,Motor,Gear;
Supply Ability:150 Units per Month;Production Capacity:1.2m/min;
Application:prefab house wall panel;Power:22kw;

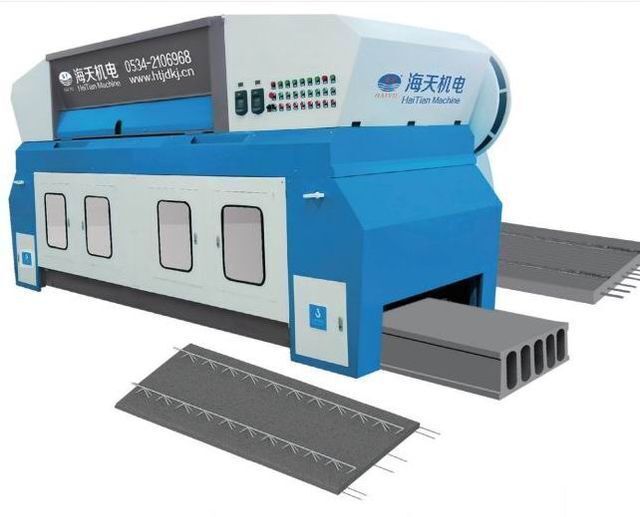

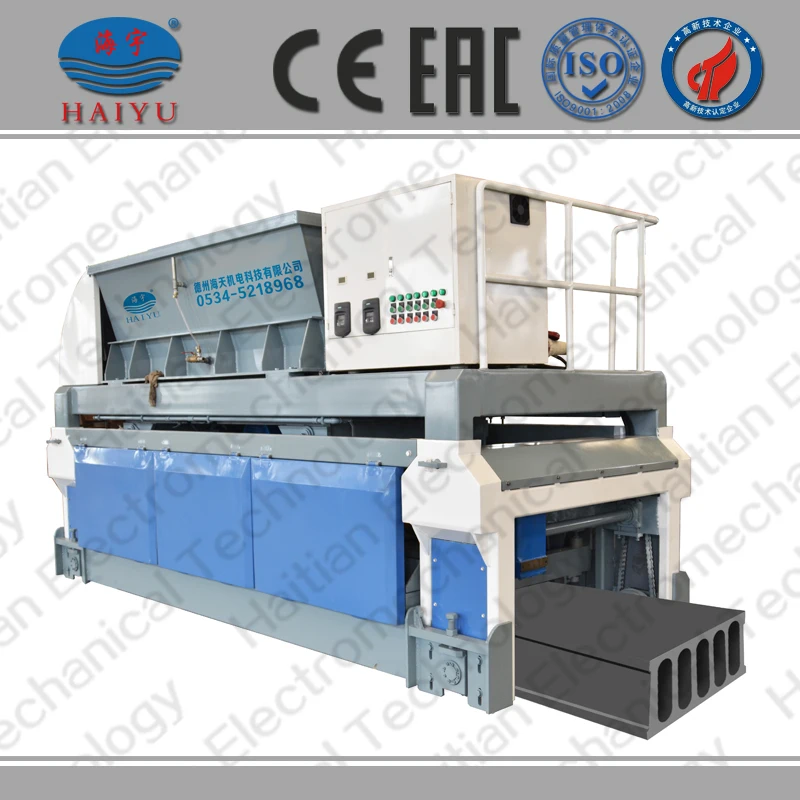

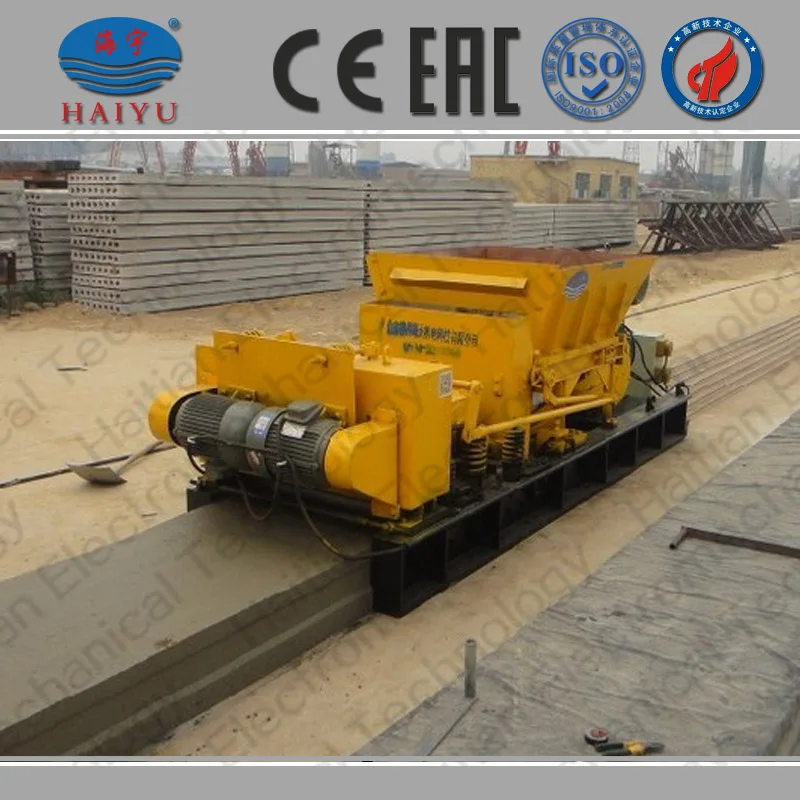

Precast concrete Hollow core slab making machine

008615866626003

Product Description















Advantages:

1.Heavy Duty ,High strength

2.Multi-enviromental protection

3.One machine for different size, by change the insert  Molds.

4.Antiseptic,fireproofing,water proof

5.Low cost





Working principle:



The concrete slab forming machine works on the flat platform whit the motor power. The materials are pushed into the mold in the machine to be formed after the convening of speed reducer and taking advantage of the repeatedly straight working line of the slider.

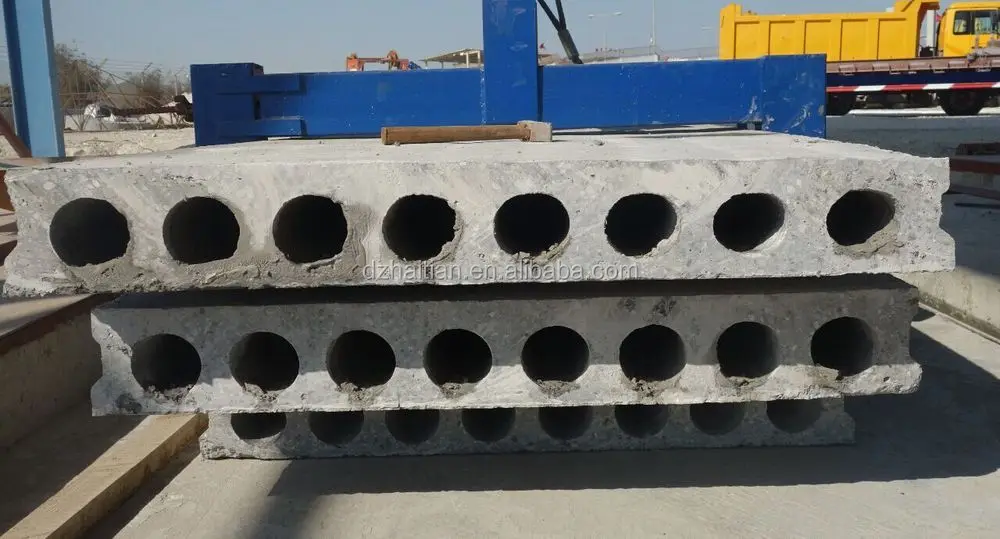

At the same time the outside vibration makes the concrete highly plasticized. And the under the reaction of the slider moving, the whole machine will move along the steel wire overcoming the frictional resistance. The concrete slab is forming behind the machine. After few days’ maintenance, we can cut the concrete hollow core slabs into different sizes.

Adopted interior and exterior vibration at the same time  ,make density of the slab be more better



2.Specification:

Hollow Core Concrete slab Machine



Motor Power

(kw)

Vibrator power

(kw)

Weight (kg)

Forming speed

(m/min)

Holes no.

Dia. Of holes

Dimension

L*W*H

(m)

TW90X600

4.0

2.2

955

1.2-1.4

6

Φ50

2.1*0.84*0.73

TW100X600

4.0

2.2

975

1.2-1.4

6

Φ60

2.1*0.85*0.73

TW120X600

5.5

3.0

1050

1.2-1.4

5

Φ76

2.1*0.85*0.75

TW120X900

7.5

3.0

1580

1.2-1.4

8

Φ76

2.5*1.3*0.9

TW120X1200

7.5

3.0

1650

1.2-1.4

11

Φ76

2.5*1.7*0.9

TW180X600

7.5

3.0

1290

1.2-1.4

3

Φ130

2.3*1.1*0.95

TW180X900

7.5

3.0

1900

1.2-1.4

5

Φ130

2.8*1.5*1.4

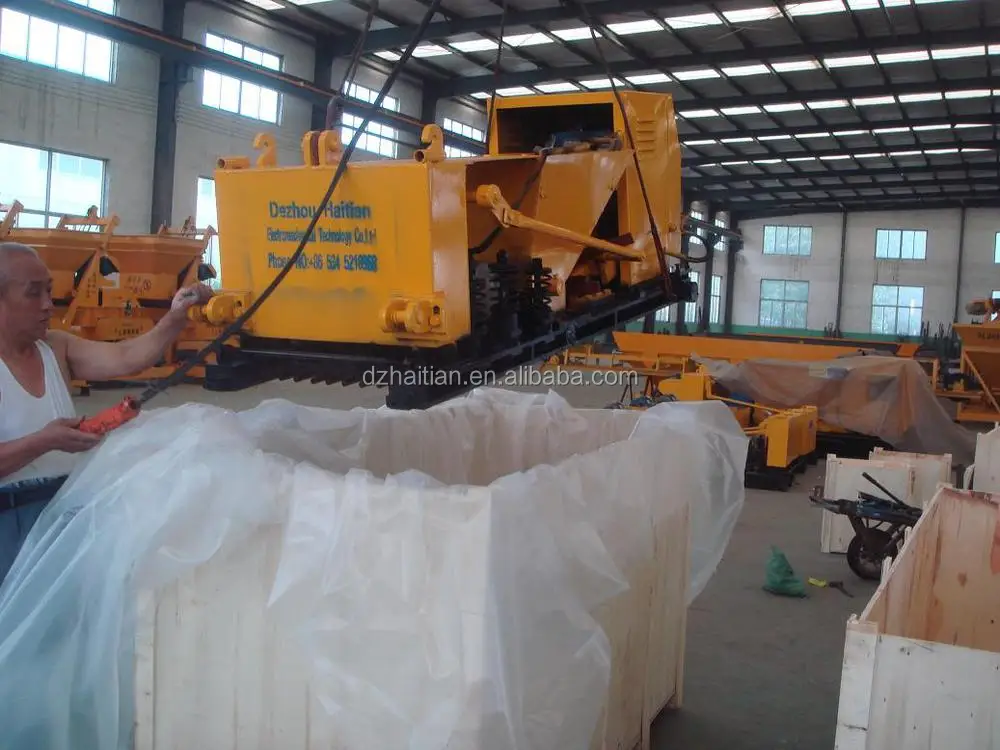

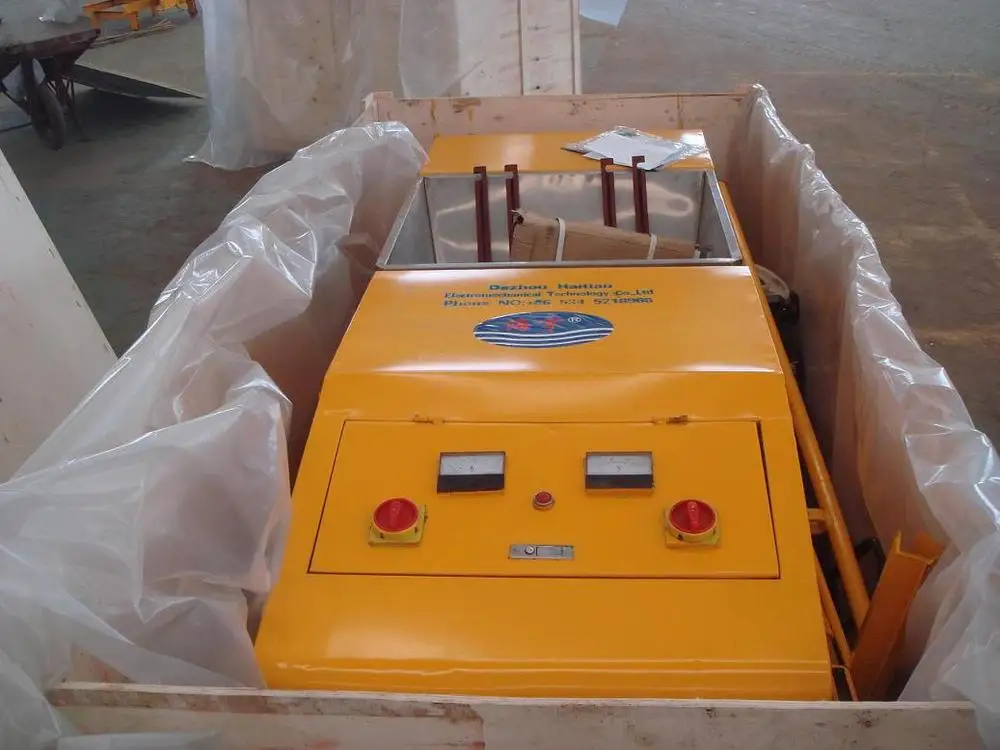

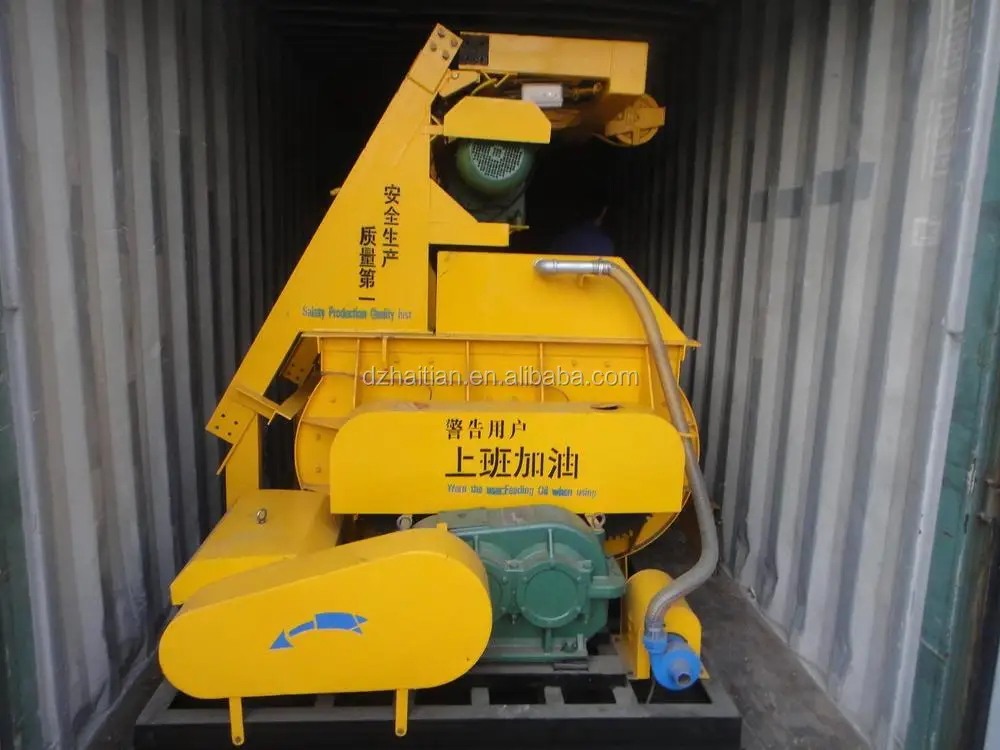

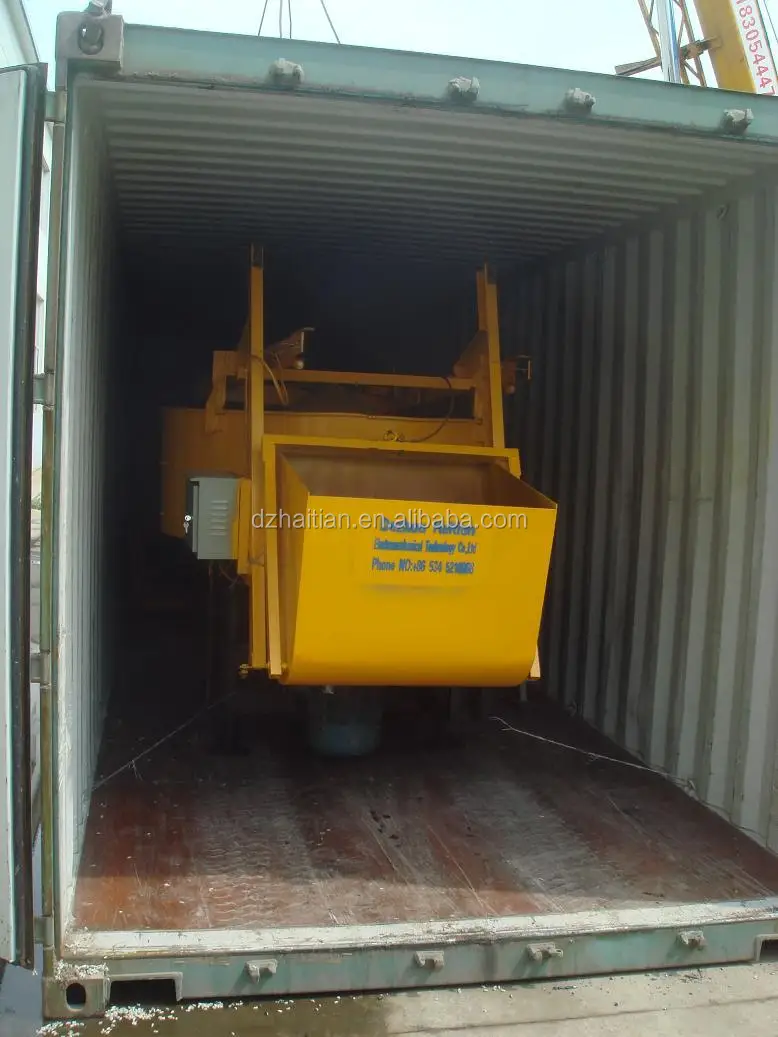

Packaging & Shipping











Our Services

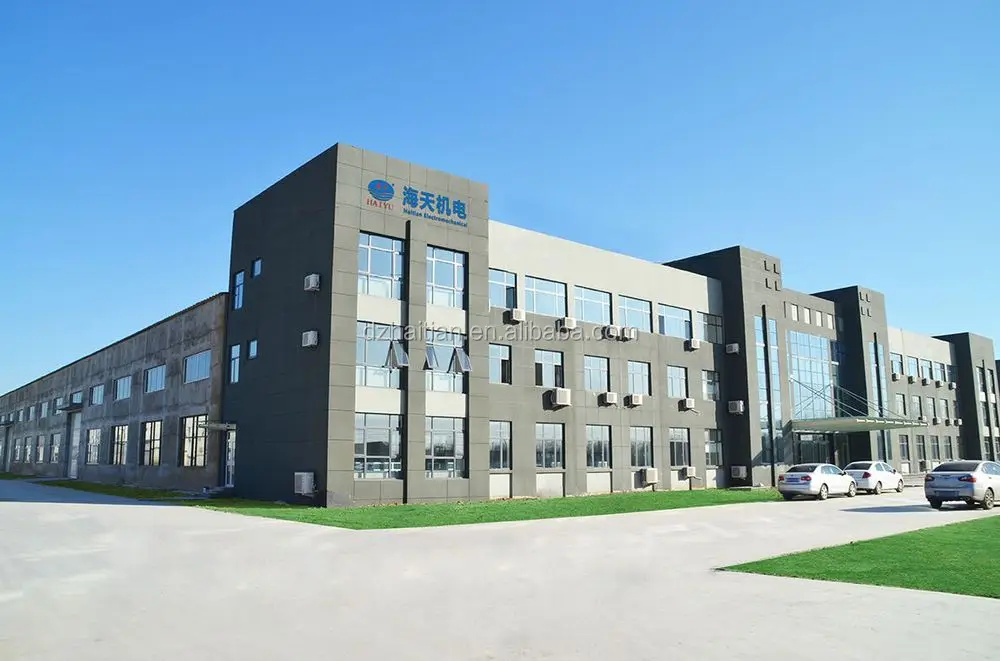

Company Information



Why choose our machines:

18 years experience in the precast concrete machinary industry!!

Vice president of CCPA: China association of concrete and cement products!!



Dezhou Haitian Electromechanical Technology Co., Ltd. was founded in 1997. We’re the Leading Expert in China for manufacturing series machines/machine lines for producing precast concrete components, such as Precast Slipformer Machine Line/Precast Concrete Hollow core slab machine/ Precast Wall panel machine/Prestressed concrete beam making machine/T beam and H column Producing machine, etc.



 Welcome to visit our factory!
