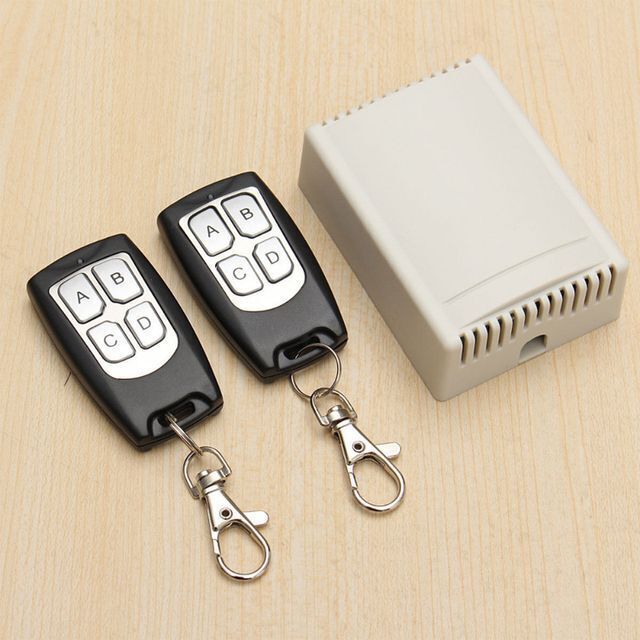

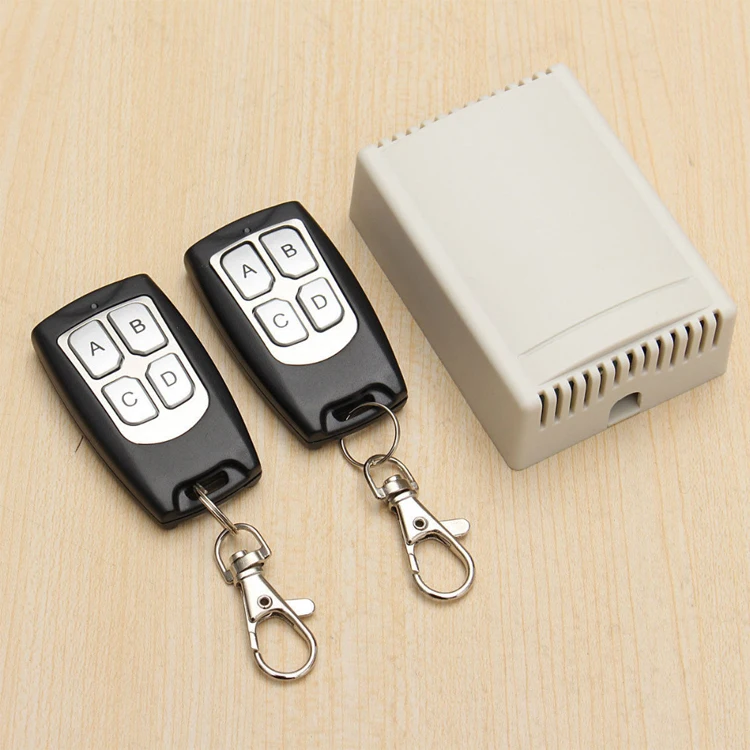

4 CH Channel 12V DC Wireless Relay Remote Control Switch 200m 433Mhz

Product details
Payment Terms:L/C,Western Union,T/T,paypal;Color:Black,White;
Place of Origin:Guangdong, China;Material:ABS,Plastic;
Package Preview:;Receiving sensitivity:-105db;
Dimension:72*52*26mm;Packaging Detail:1). Each one in a plastic bag or white box 2). 400 pieces in a carton, one carton weight is 15KG, carton size is 40*29*24CM 3). Packing can be customized;
Use range:automitic gate/garage door/window etc.;N.W:45G;
Supply Ability:100000 Pieces per Week;Working Voltage:12V/24V/220V;
Model Number:AG-C402;Port:shenzhen;
Transmitting distance:50~100m;Encoding type:Learning code/fixed code;
Frequency:315mhz /433mhz /others;Quiescent current:5mA;
Brand Name:Champions;Working mode:Momentary/Toggle/Latched;
Product Description

4 CH Channel 12V DC Wireless Relay Remote Control Switch 200m 433Mhz

Product name
RF Remote control Waterproof
1/2/3/4 buttons
315MHz, 433MHz
Plastic and ABS
CR2016 *2pcs
12 Month
50-100 meters(open space)
Product name
Wireless RF Receiver
4 channels
Operating frequency
315MHz, 433MHz
Working voltage
DC 12V 24V
Learning remote way
learning mode
Quiescent current
Contact current
Operating Temperature
-40℃ - +80℃
Board size


This item has 4 relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2272 2262 or 1527 chip with the different code wireless remote can learn more than 10pcs different remote controls.

Technical indicators

RF Frequency: 433MHZ/315MHZ
Working Voltage: DC12V ,DC24V ,AC12V ,AC24V optional
Working Temperature:-20℃- +70℃
Standby Current: 5MA
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: -105 dBm
Remote Control Distance: >100 meter(in open environment)
Support remote control type: learning code,Fixed code
Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)
Output : output with switch signal / output with voltage
Wiring Method: Fixed wiring terminal
Output Current: 10A

OutPut Way: Latched/ Toggle/ Momentary can be adjust by jumper

Learning and clearing method and steps

Power On,press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote controls.

Wiring Diagram :
Related Products

Our Service

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Packing & Delivery


Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.


We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Customers visiting ,welcome!

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
