China Manufacture Wireless remote control Switch Motor Controller For Rolling Door/ linear actuator
-
Supplier: Shenzhen Champions Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Aimee Wang -
Price: $2.00 /set -
Min. Order: 1 set
| Material: | ABS; | Port: | shenzhen; |
| Max.Current: | 5MA; | Code: | Fixed Code,Learning Code; |
| Frequency: | 315mhz /433mhz /others; | Packaging Detail: | 1). Each one in a plastic bag or white box 2). 400 pieces in a carton, one carton weight is 15KG, carton size is 37*24*17CM 3). Packing can be customized; |
| Color: | White; | Use range: | automitic gate/garage door/window etc.; |
| Certification: | ce; | Function: | Automatic; |
| Package Preview: | ; | Payment Terms: | L/C,Western Union,T/T,paypal; |
| Place of Origin: | Guangdong China; | N.W: | 45G; |
| Channel: | 2 Channel; | Working way: | inching,self-lock,interlock; |
| Supply Ability: | 100000 Piece/Pieces per Week; | Brand Name: | Champions; |
| Product name: | rf receiver and transmitter; | Model Number: | AG-C201; |
| Dimension: | 58*40*15mm; | Working voltage: | AC220V, 12V DC, 24V DC; |
| Distance: | 50~100m; |

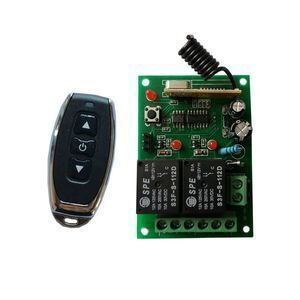

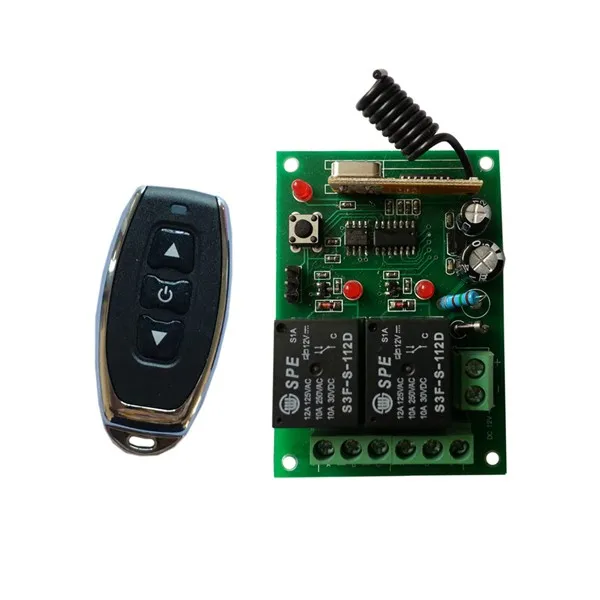

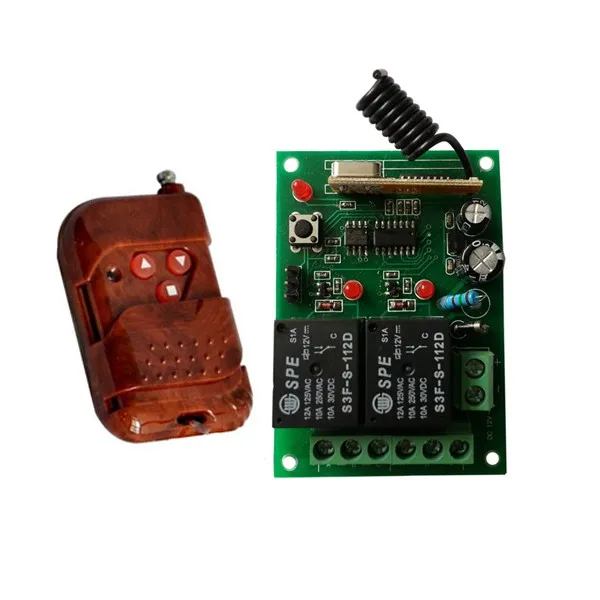

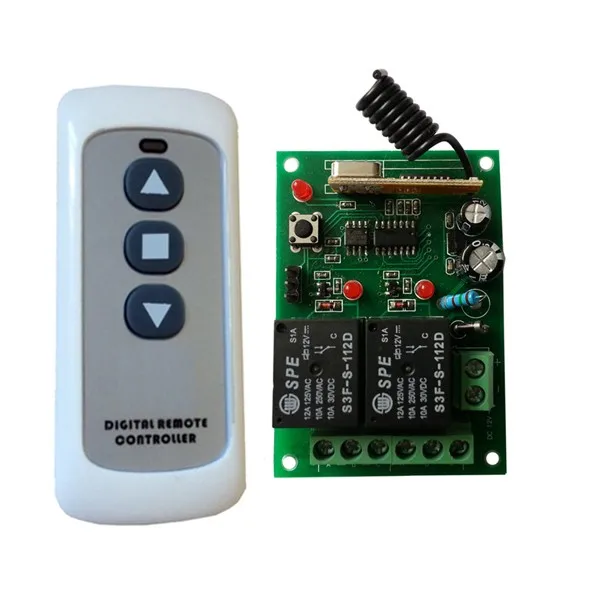

Universal Use and 433mhz/315mhz Frequency wireless remote motor control switch
Features
It has 2 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 18pcs different remote controls.
Main Technical Parameter:
RF Frequency: 433MHZ/315MHZ
Working Voltage: AC220V, 12V DC, 24V DC optional
Working emperature:-20℃- +70℃
Quiescent Current: ≤8mA
Remote Control Distance: 100 meter (in open environment)
Support remote control type: learning code,Fixed code
Output way : Momentary. Toggle .Latched Adjusted by Jumper
Code type: Learning code Add Controller by the Learning Button on the receiver
Wiring Method: Adjustable wiring terminal
Learning Remote Way
flashes after the light,This time that the switch has received a remote control signal; please click on the
button just used to hear the sound of the relay beating,
Remark: The controller can learn fixed code, learning code and other 16 different encoding, any button
remote control, in turn will be cleared in accordance with the earliest learn of the remote control.
Clear Remote Way
Press the learning button about 8 seconds, the leaning indicator from OFFto ON, it means clear succeed.
Application Scope
Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
Packing
Standard packing :each one in a plastic bag or white box;
500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.
Delivery
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.
1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours
Trade terms
1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry
Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.
1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
-
