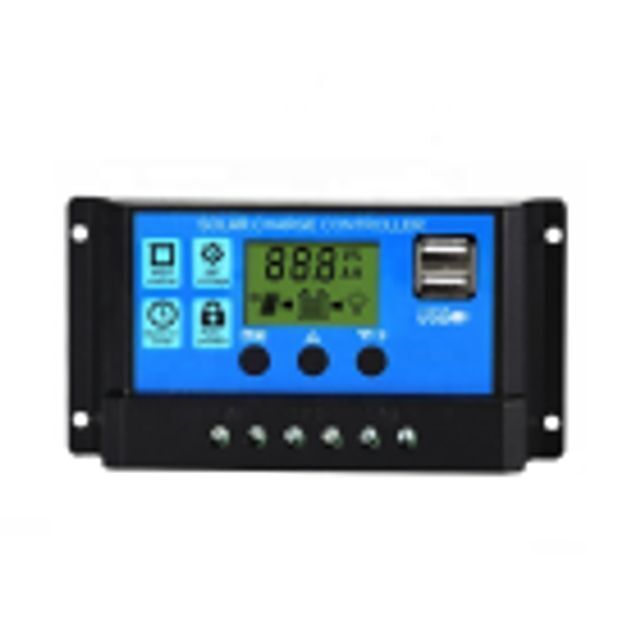

10A 20A 30A USB Solar Charge Controller Panel Battery Regulator Intelligent 12V 24V

Supplier: Shenzhen Binyueda Electronics Co., Ltd.
Region: Guangdong, China
Contact: Mr Ablonce Cai
Price: $0.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max PV Power:	240W (12V) / 480W (24V);	Unit Price:	Competitive and negotiable;
Brand Name:	/;	More Details:	Email us;
Warranty:	/;	Certificate:	CCC;
Max PV Voltage:	12V/24V;	Application:	Charger Controller,Solar Working Station,Lighting Controller,Solar System Controller;
Supply Ability:	10000 Pieces per Week;	Port:	Shenzhen/HongKong;
Model Number:	Solar Charge Controller;	Type:	PWM;
Place of Origin:	China;	Work Time (h):	24Hour;
Packaging Detail:	Manufacturer Packaging;	Payment Terms:	Western Union,T/T,PAYPAL, Credit Card, RMB Payment;

10A 20A 30A USB Solar Charge Controller Panel Battery Regulator Intelligent 12V 24V
Part Number	Solar Charge Controller
WhatsApp & Skype	86-13268016466 ; abloncecai@ binyda.com
Email	abloncecai@ binyda.com

This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can recongize 12V and 24V Lead acid ,Gel battery automatically

Model Name: W88-C(10A)

Rated Charge Current:10A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 130W when your battery is 12V; 260W when your battery is 24V

Model Name: W88-C(20A)

Rated Charge Current:20A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 260W when your battery is 12V; 520W when your battery is 24V

Model Name: W88-C(30A)

Rated Charge Current:30A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 390W when your battery is 12V; 780W when your battery is 24V

Model Name: W88-C(40A)

Rated Charge Current:40A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 520W when your battery is 12V; 1040W when your battery is 24V

Model Name: W88-C (50A)

Rated Charge Current:50A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 600W when your battery is 12V; 1200W when your battery is 24V

Model Name: W88-C (60A)

Rated Charge Current: 60A

System Voltage: 12/24V AUTO

Max. PV open circuit voltage: 50V(24V System) 25V(12V System)

Max. PV input power: 720W when your battery is 12V; 1440W when your battery is 24V

Features:

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

Display:

MENU:switch between different display,or to enter/exit setting by long press.

UP: press to increase value.

DOWN: presss to decrease value.

Setting:

1.press the [Down] button to ON/OFF load manully at main display.

2.the work mode is working as below:

[24H] load output 24hours

[1-23H] load on after sunset and closed after setting hours

[0H] Dusk to dawn

Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling! An improper sequence order can damage the controller!
