gasoline power Leaf vacuum loader / truck loader /debris loader with hang kit
- 1180.00 1 - 5 units
- 1080.00 6 - 11 units
- 1050.00 12 - 23 units
- 980.00 >=24 units
| Video outgoing-inspection: | Provided; | Weight: | 145 KG; |
| Port: | Qingdao / Rizhao; | Warranty: | 3 years; |
| Horse power: | 13hp; | Warranty of core components: | 3 years; |
| Showroom Location: | None; | output chute height: | 1.3m; |
| Brand Name: | YAAHKIEH; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Use: | Leaf, debris loading; | Type: | Vacuum loader,Leaf, debris cleaning; |
| Package Preview: | ; | Output chute: | turnable; |
| Core Components: | Bearing,Motor,Engine; | Place of Origin: | Shandong, China; |
| Engine: | 4 Stroke gasoline engine; | Product name: | Leaf vacuum loader / truck loader /debris loader with hang kit; |
| Hose dia.: | 220mm; | Machinery Test Report: | Provided; |
| Dimension(L*W*H): | 1150*680*1300mm; | Packaging Detail: | Plywood Crates; |
| Key Selling Points: | Built to last; | Frame: | Hang kit for tailgate; |
| Applicable Industries: | Farms; | Marketing Type: | New Product 2020; |
| Power Type: | Gasoline; | Payment Terms: | T/T; |
| Input hose: | 3.5m; | Condition: | New,New; |
SPECIFICATIONS FOR VL 220 | ||||||
Engine | Engine model | Kohler CH440 Estart | Jonco 420cc Estart | |||
No. of cylinders | 1 cylinder 4 stroke | 1 cylinder 4 stroke | ||||
Net Power | 9.1kw | 8.3kw | ||||
Performance parameters | Efficiency | 8 cbm/h | 8 cbm/h | |||
Working speed (max. & min.) | 3200rpm | 3200rpm | ||||
Max. input capacity | 220mm | 220mm | ||||
Specification | Length & Wideth | 550*1020mm | 550*1020mm | |||
Height | 1200mm | 1200mm | ||||
Weight | 145kg | 145kg | ||||
Main Features
An ideal combination of power and size, at 80 CBM of commercial suction.
These units are perfect for small to mid-size jobs and crews. Light weight and low overall cost.
This unit will get you into the game of leaf or debris removal. A dual shredding 400 mm diameter armor plate impeller with 4 blades that reduces debris up to 15:1 and maximizes loading before dumping, saving you time and dump fees.
In addition, the units can be mounted in one of 2 ways: Tailgate mounted with optional hanger kit; or skid mounted to a trailer.
The 220 mm intake hose is a 3.5 m long, best in class, clear poly helical coil so your crew can visually see if a blockage occurs, for quick fix.
A replaceable steel liner and 12-gauge housing is standard for long life and durability.
Parts
Name: Output chute
Part of Jonco Chipper, solidly welded and coated from corrosion. all bolts are of 8.8 grade, with Zinc coated.
Parts

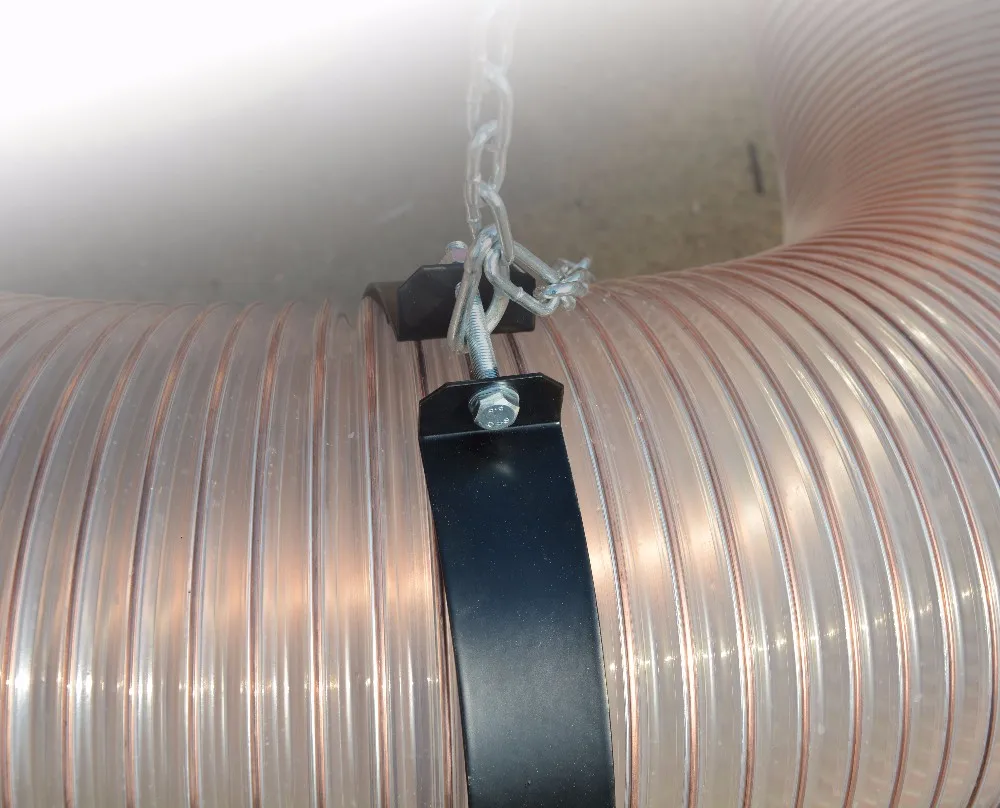

Name: Input Hose
220mm in Dia. suits most of leaf below this Dia. Transparent input hose, easily confirm and fix while it gets stuck.
Parts

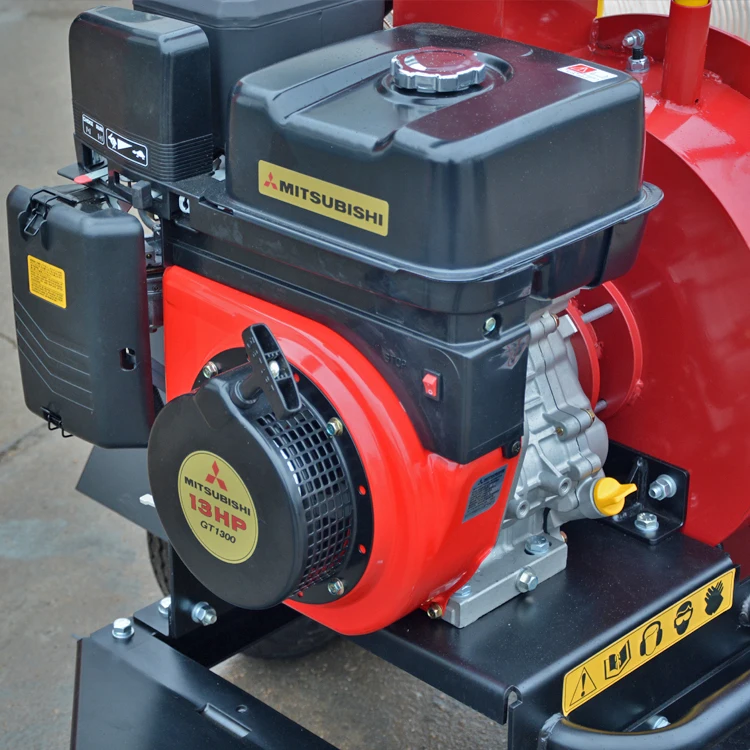

Name: Engine
Famous engine brand, strong driving force, low fuel consumption, high economic, very steady power conveying.
Parts

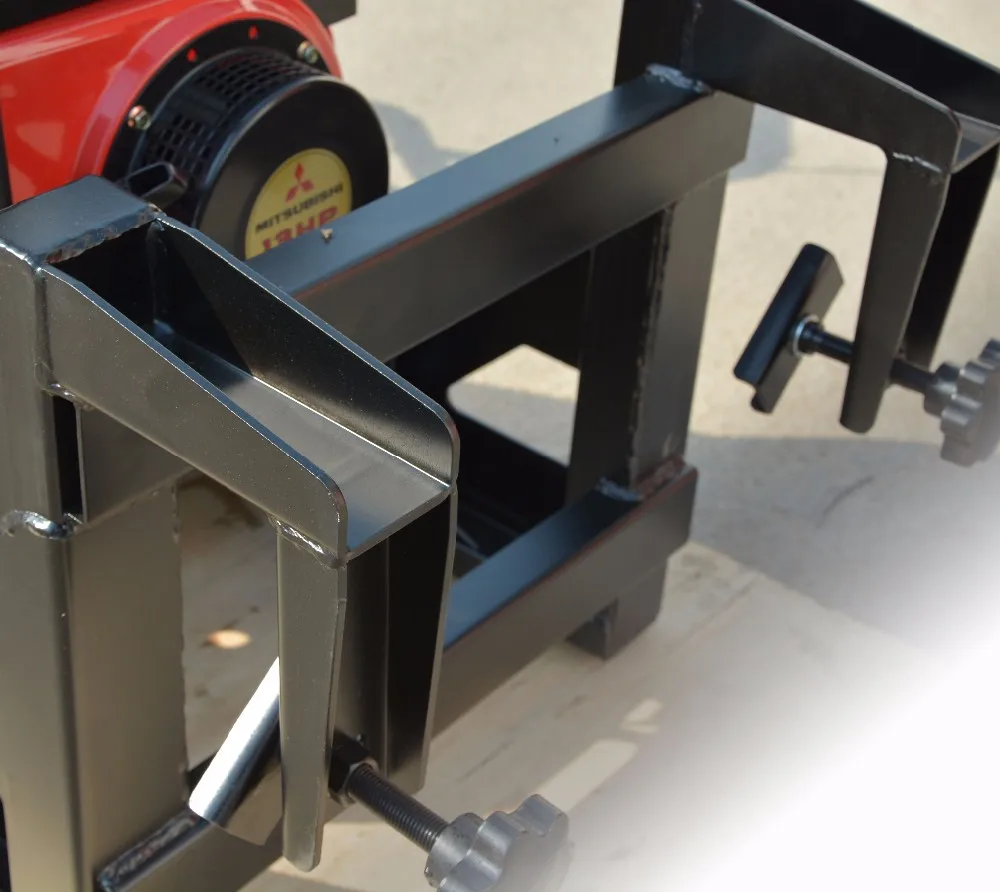

Name: Hang kit for tailgate
You can choose hang kit for your truck tailgate.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1500 (L) * 800 (W) * 1080 (H) | |
Weight | 300KG | |
Packaging Details | The normal package is Plywood crates. For 20 FCL, we can load 30 units in. | |
