300kW large Charging station for electric car and bus Solar car charging pile EV charger

Supplier: Dalian CDS New Energy Technology Co., Ltd.
Region: Liaoning, China
Contact: Ms Karida Yin
Price: $0.01 /set
Min. Order: 1 set

Click here to contact

Product details

Size(WDH):	160012321900mm;	Input Current:	<500A;
Connector Output Mode:	Double-connector;	Communication:	7-inch TFT touch screen;
Output Voltage Range:	DC 150~1000V;	Supply Ability:	100 Sets per Week;
Installation Mode:	Fixed Installation;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Input Frequency:	50/60Hz;	Package Preview:	;
Place of Origin:	China;	Port:	Dalian;
Connector Interface:	CCS2;	Input Voltage:	380±15%V;
Brand Name:	Luobinsen;	Model Number:	RGZP-300KW850-EN;
Efficiency:	>94%;

Product Description

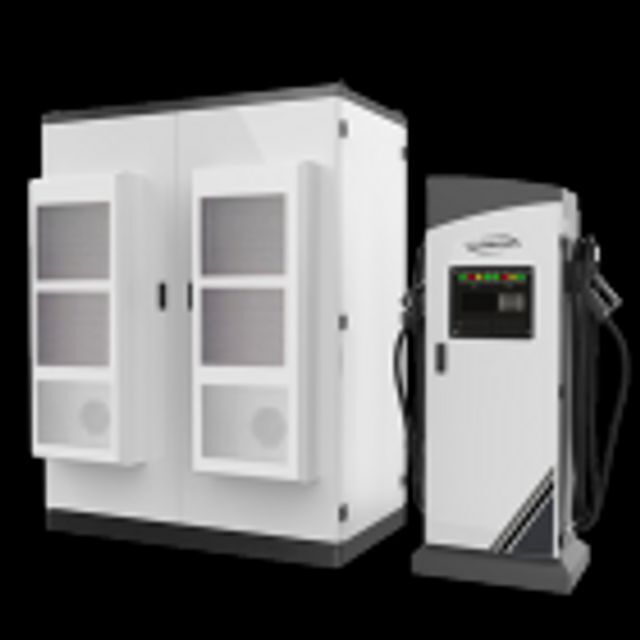

The RGZP-300KW850-EN split-type charger is the latest generation of LUOBINSEN commercial charger. The product is designed in accordance with relevant standards for functionality, ergonomics and aesthetics.

Item	Features
Model	RGZP-300KW850-EN

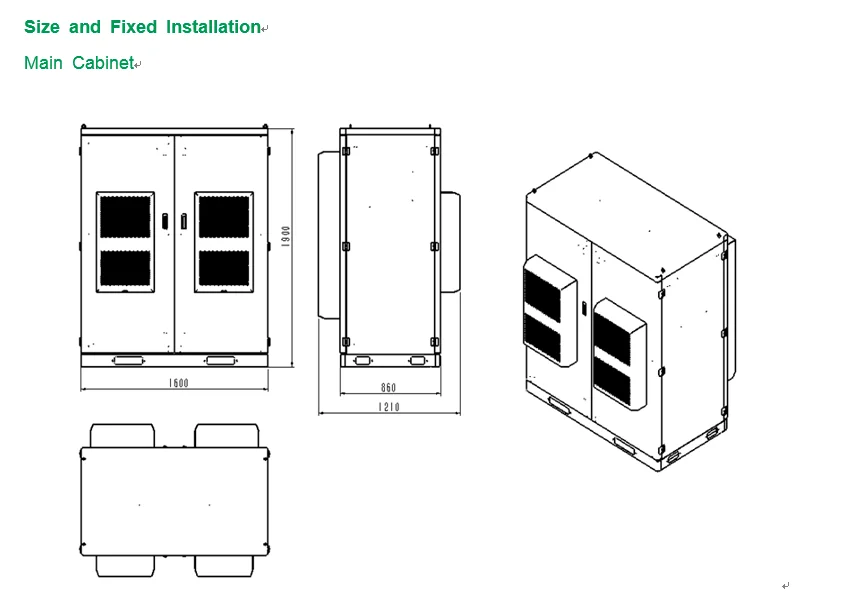

Size(WDH)(Main cabinet) (with air conditioners)	160012321900mm
(WDH)(Charging pile)	5504501650mm
Enclosure Rating	IP54
Operating Temperature	-30℃~50℃
Altitude	<2000m
Relative Humidity	0~95%(No condensation)
Installation Mode	Fixed Installation
MTBF	≥8760h
Input Voltage	380±15%V
Input Current	<500A
Input Frequency	50/60Hz
Input Power Factor	>0.99
Output Voltage Range	DC 150~1000V
Output Voltage Range in Constant Power Mode	DC 300~1000V
Output current range	2~200A
Ripple Coefficient	<0.5
Current Sharing Coefficient	<5%
Stabilized Voltage Precision	<0.5%
Stabilized Current Precision	<1%
THD	≤5%
Efficiency	>94%
Noise	<65dB
Cooling Method	Forced fan cooling
Connector Communication Mode	In accordance with DIN 70121 and ISO 15118 standard
Connector Interface	CCS2
Connector Output Mode	Single-connector
Platform Communication	OCPP

Safety and Protection

Protection	Description
Interlock	The interlock between the charger and BMS.
Interface Safety Protection	Circuit discharge function, Insulation monitoring device (IMD), Battery reverse connection protection.
Charger Safety Protection	Short circuit protection, Over/under voltage protection, Voltage/current limitation protection, Overheat protection, SPD, Plug temperature monitoring function, Circuit contactor adhesion protection.
Emergency Stop	Disconnect the charger and EV to prevent emergency incidents.

Safety and Protection

Protection	Description
Interlock	The interlock between the charger and BMS.
Interface Safety Protection	Circuit discharge function, Insulation monitoring device (IMD), Battery reverse connection protection.
Charger Safety Protection	Short circuit protection, Over/under voltage protection, Voltage/current limitation protection, Overheat protection, SPD, Plug temperature monitoring function, Circuit contactor adhesion protection.
Emergency Stop	Disconnect the charger and EV to prevent emergency incidents.

Product Details

Function

DC split-type charger is composed of main cabinet and charging pile, include charging module, power interface, charging interface,protection module, control module, measuring module, HMI, cabinet and etc.

Charging management function, HMI can display charging mode, charging current, charging voltage, charging time and account information.

The charger can dynamically adjust the charging mode according to BMS charging voltage and current character. The charging output is adjusted by the request of BMS, when the charging current requested is larger than the current output range in constant power charging mode, the charging current should output according to the maximum allowable current value of the charger.

Intelligent power distribution function, in case of fault of individual module, the module can be separated without of affecting the normal operation of the charger.

The charger meets the relevant standards and the charging connector meets the CCS2 requirements. Th7 charger could support a variety of background management platforms.

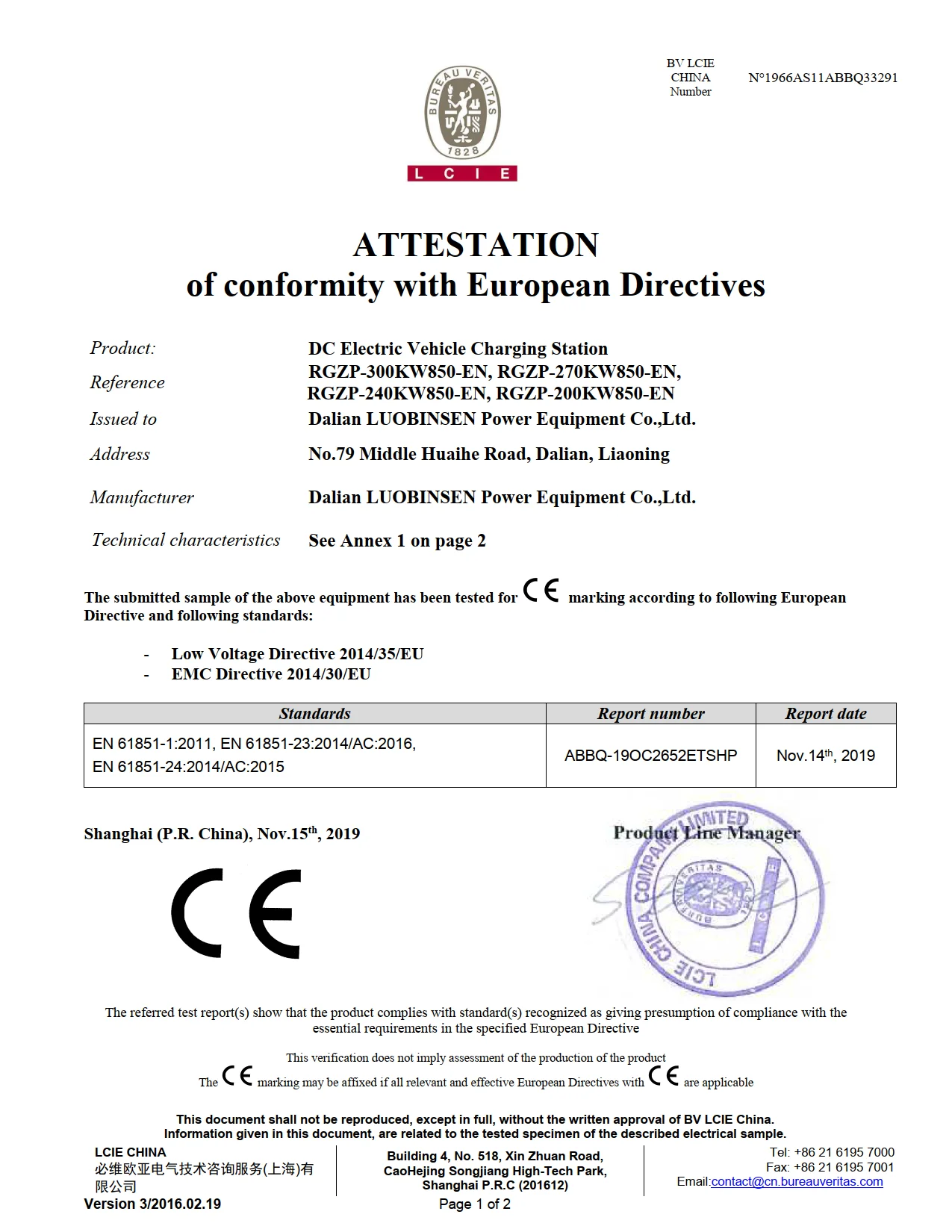

Relevant Standards

IEC 61851 Electric vehicle conductive charging system

IEC 62196 Plugs, socket-outlets, vehicle connectors and vehicle inlets-Conductive charging of electric vehicles

DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the Combined Charging System

ISO 15118 Road vehicles—Vehicle-to-Grid Communication Interface

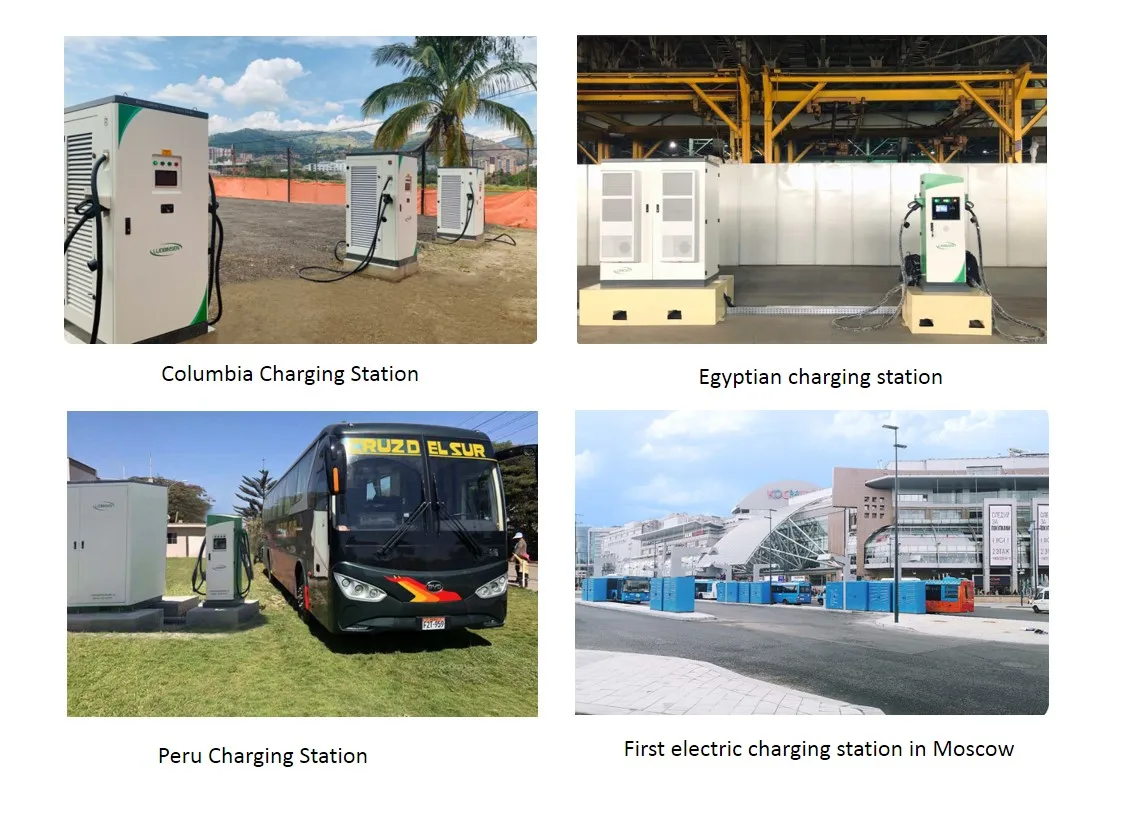

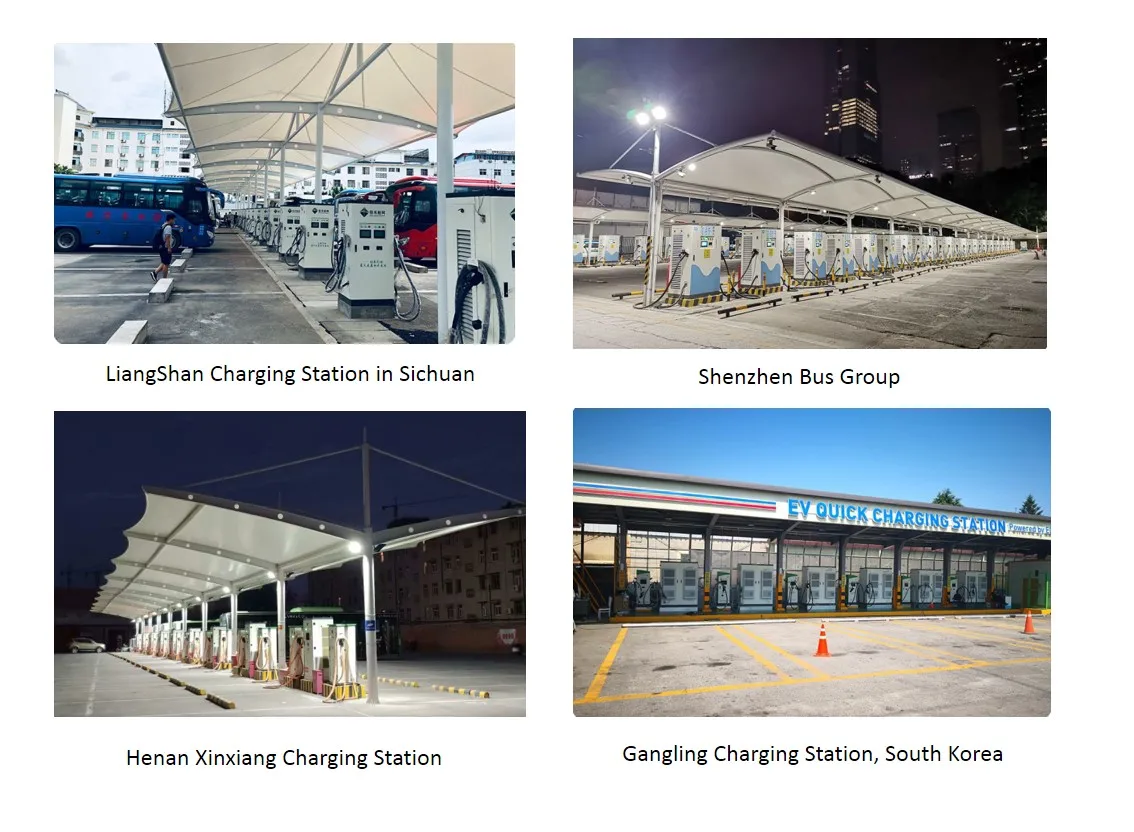

Our projects
