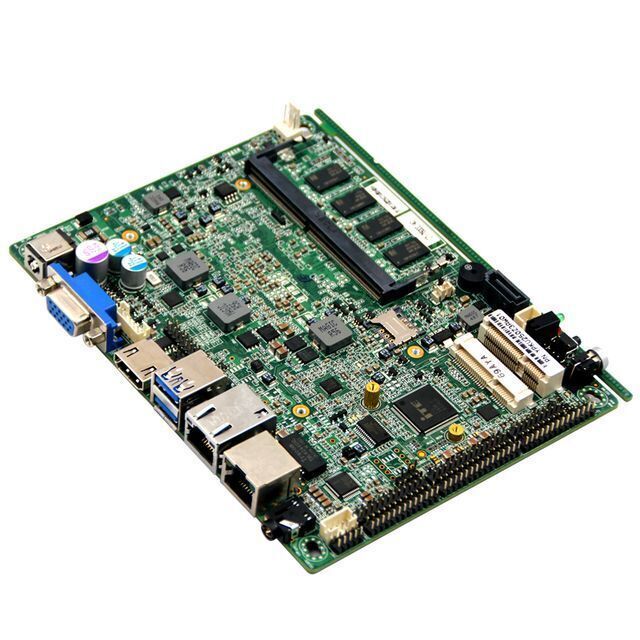

3.5inch Integrated Intel 7th mobile Kaby lake i7-7500U industrial mainboard with 2 Mini-PCIe slots
- 291.00 1 - 99 pieces
- 279.00 >=100 pieces
| Warranty: | 2 Years; | CPU: | Intel Core seventh generation Kaby lake-U Soc i3/i5/i7 processor; |
| Video: | Ruiyu HD ALC662 Audio Decoding; | Package: | Yes; |
| Item Condition: | New; | CPU Type: | Intel; |
| Application: | LAPTOP; | Products Status: | New; |
| Hard Drive Interface: | SATA,m-SATA; | Technology framework: | Single channel DDR4 2133Mhz;; |
| Slot: | Can add 1 slot, maximum expansion of 16GB memory; | Chipset Manufacturer: | Intel; |
| Brand Name: | PIESIA; | Graphic controller: | Intel HD Graphics 620(I3-7100U display card type is related to CPU; |
| FSB / HT: | 800/1066/1333 MHz; | Cooler: | Aluminum with fan radiator; |
| Packaging Detail: | 1 * Drive CD-ROM 1*SATA 1*SATA-P line 1*COM line; | Single package size: | 22X21X7 cm; |
| Graphics Card Type: | Integrated; | Maximum Ram Capacity: | 8GB; |
| Place of Origin: | Guangdong China; | Capacity: | Integrated 2GB/4GB/8G DDR4; |
| With CPU: | Yes; | Selling Units: | Single item; |
| GPIO: | -bit, providing routines, freely defined input / output 3.3V; | Form Factor: | Z-3.5; |
| Ports: | Ethernet,SATA,USB 2.0,USB 3.0,VGA,wifi,bluetooth; | Memory Type: | DDR4; |
| network: | 1 Intel I211AT and 1 Intel I219V Gigabit network card; | Certification: | FCC,ce,RoHS; |
| Socket Type: | Other; | Single gross weight: | 1.0 KG; |
3.5inch Integrated Intel 7th mobile Kaby lake i7-7500U industrial mainboard with 2 Mini-PCIe slots
|
Processor system |
CPU |
Intel® Core™7th Kaby lake-U Soc i3/i5/i7 CPU |
|
|
CPU package |
BGA |
|
|
chipset |
Intel® Kaby lake-U series SOC |
|
|
BIOS |
EFI BIOS |
|
internal storage |
Technical architecture |
single channel DDR4 2133Mhz; |
|
|
memory |
integration 2GB/4GB/8G DDR4 |
|
|
slot |
Add 1 slot, up to 16GB of memory |
|
video frequency |
graphics controller |
Intel HD Graphics 620(I3-7100U Graphics card);Graphics card model is related to CPU |
|
|
Dual LVDS and EDP |
Support dual channel 24 bit output, maximum resolution 1920 x 1200 EDP maximum resolution support 4096U 2304 (only one option) |
|
|
VGA |
VGA Support maximum resolution 2048x1536 |
|
|
HDMI |
Maximum resolution support(HDMI1.4)4096*2304@30HZ Support for 4K display |
|
|

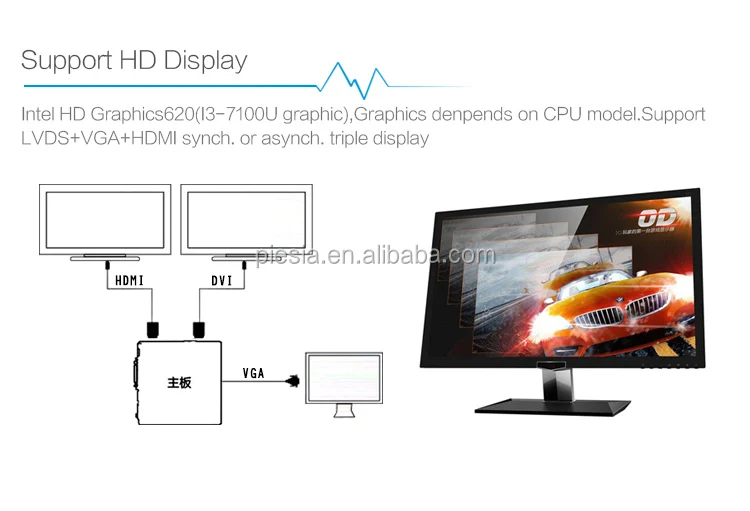

Dual display support |
LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display |
|
|
Three display |
Support LVDS VGA HDMI three-screen synchronous or asynchronous display |
|
I/Orear panel |
port |
1*VGA,1*HDMI,2*LAN,2*USB3.0/1*MIC-OUT/LINE-OUT |
|
network |
controller |
1*Intel I211AT and 1*Intel I219VGigabit Ethernet(When the I / O interface is 4 USB, there's only one Intel I211AT card.) |
|
audio frequency |
controller |
HD ALC662 audio decoding (left and right channel + microphone) |
|
Super I/O |
controller |
ITE8786E |
|
Hardware monitoring |
Watchdog timer |
0 - 255 seconds to provide watchdog routines |
|
|
Cooler |
Aluminum with fan radiator (support automatic and manual fan speed adjustment) |
|
Input / output interface |
USB |
2*USB3.0 is compatible with USB2.0 / 1.1 / 6*USB2.0, with maximum support of 5V / 1.5A |
|
|
COM |
5 RS-232, 1 RS422 / 485 optional RS485 supports automatic flow control |
|
|
PS/2 |
1*PS/2 Pin interface |
|
|
touch screen |
Support for touch-screen 4wire 5wire 8 wire8 (optional) |
|
|
GPIO |
8-bit, providing routines, freely defined input / output 3.3V @ 24mA level |
|
Extended bus |
Mini-PCle |
2 Mini-PCIe slots supporting PCIe and USB devices |
|
memory |
SATA |
1 standard SATAIII interface with maximum transmission rate of 6GB / s |
|
|
Onboard SSD |
Onboard SSD 16/32/64/128G optional |
|
|
M-SATA |
1 Mini-PCIe M-SATA Scoket.Supports SANDISK protocol, maximum transfer rate 6gb/s |
|
source |
Power supply type |
Wide voltage 8-36V input |
|
|
Power consumption |
35W |
Integrated Intel 7th Generation Mobile Kaby lake-U single Chip CPU;
Integrated 2GB / 4GB / 8G DDR4 memory;
1 * VGA , 1 * HDMI 1.4 ( Support 4K Display Output );
1 * LVDS ( dual 24 - bit ) and EDP1.3 , 4 - bit ( select one )
On board dual channel power amplifier, each channel supports 6W 8 Omega horn;
Support power - on auto - start function , jumper selection;

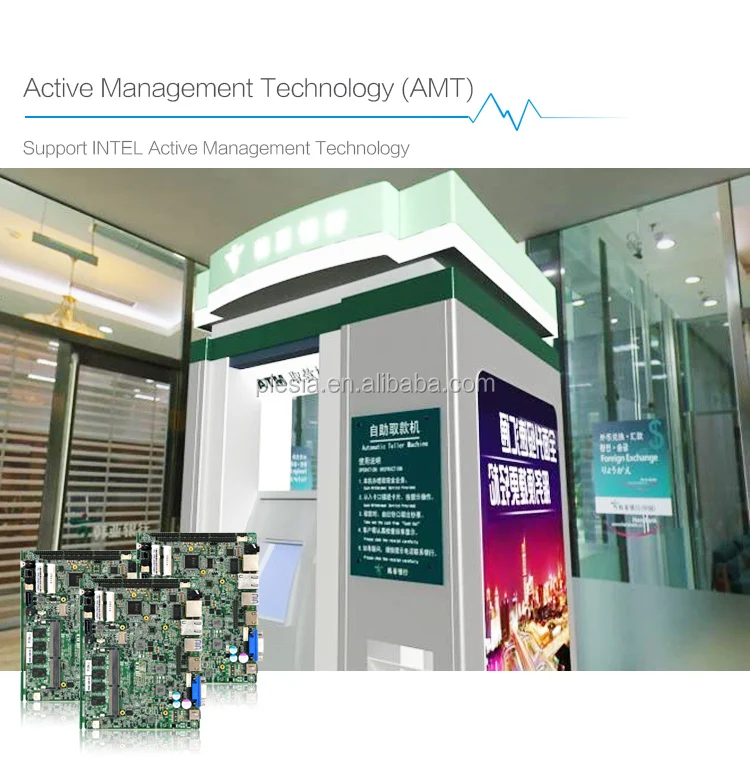

Support Intel AMT active Management Technology
Wide pressure 8-36V inpu
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
