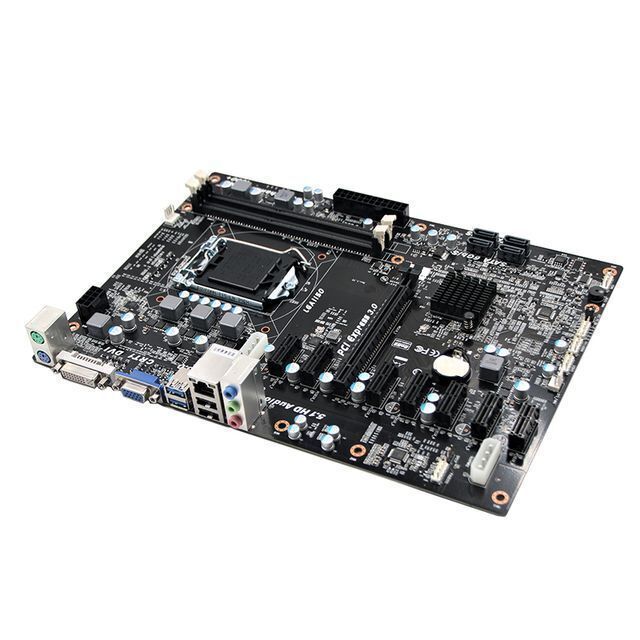

H81/B85/Q87 Chipset LGA1150 Socket In Tel Pen Tium Industrial Motherboard Support 8 PCIE
- 60.00 piece
| Technology framework: | Dual channel DDR3 1333/1600Mhz; | Application: | mining; |
| Memory Bank: | 2 DDR3 DIMM; | Place of Origin: | Guangdong, China; |
| Warranty: | 3 Years; | Memory channel: | Double; |
| Chipset Manufacturer: | Intel; | Payment Terms: | L/C,Western Union,T/T,MoneyGram,PAYPAL; |
| CPU Type: | Intel; | Supply Ability: | 1000 Pieces per Week; |
| Network: | 1*RTL8111E 1000M Lan card; | Power consumption: | 80W; |
| Item Condition: | New; | Form Factor: | Other; |
| Ports: | 1*VGA 1*DVI 1*LAN,2*USB3.0 2*USB2.0,Ethernet,SATA,USB 2.0,USB 3.0,VGA,wifi; | Graphic controller: | Intel HD Graphics 4400 (I3-4160 graphic); |
| Maximum Ram Capacity: | 16GB; | FSB / HT: | 800/1066/1333 MHz; |

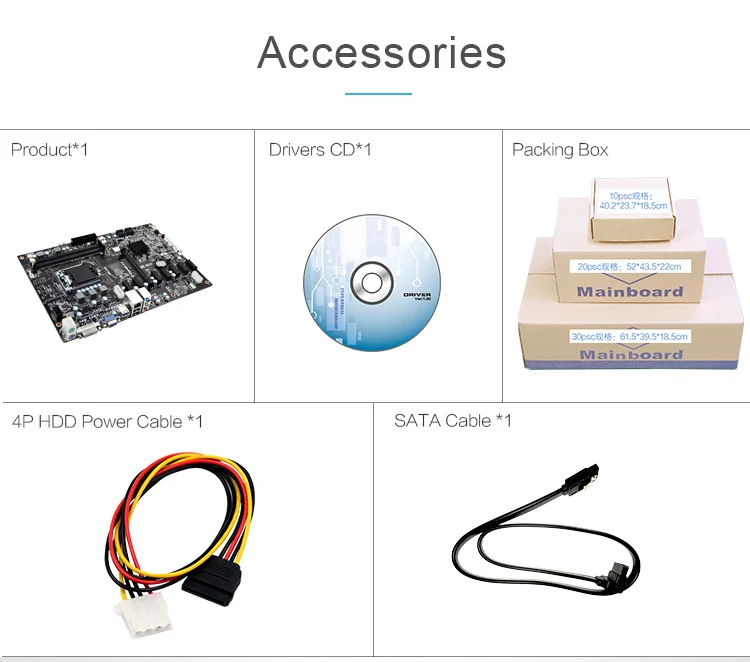

| Packaging Detail: | Carton Package 1*I/O board 1* CD driver 1*SATA cable 1*SATA-P cable; | With CPU: | Yes; |
| CPU: | Support LGA1150 socket Intel Pentium CPU; | Chipset: | INTEL; |
| Brand Name: | PIESIA; | Graphics Card Type: | Integrated; |
| Memory Type: | DDR3; | Package: | Yes; |
| Socket Type: | LGA1150; | Products Status: | New; |
| Port: | SHENZHEN; | Hard Drive Interface: | SATA; |
| CPU package: | LGA1150; | Certification: | CE FCC ROHS,FCC,ce,RoHS; |
| Power supply: | ATX power supply; |
H85 chipset LGA1150 socket Intel Pentium industrial motherboard support 8PCIE
Item Advantages:
1.Support LGA1150 socket Intel 4th i3-i5-i7/Pentium/Celeron CPU;
2. H81/B85/H87 chipset;
3. 2*DDR3 RAM Socket,Support DDR3L 1600Mhz dual channnel;
4. 1*VGA 1*DVI;

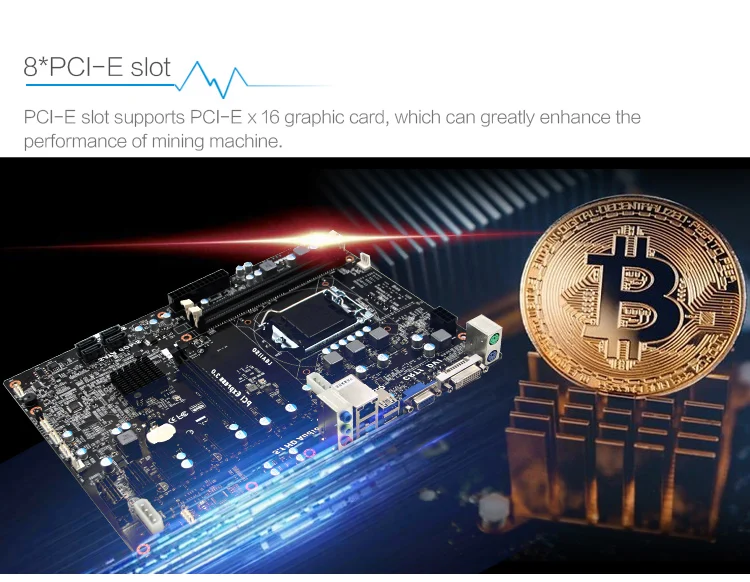

5. 1*PCIE_X16 5*PCIE_X1;
6.ATX Power Supply;

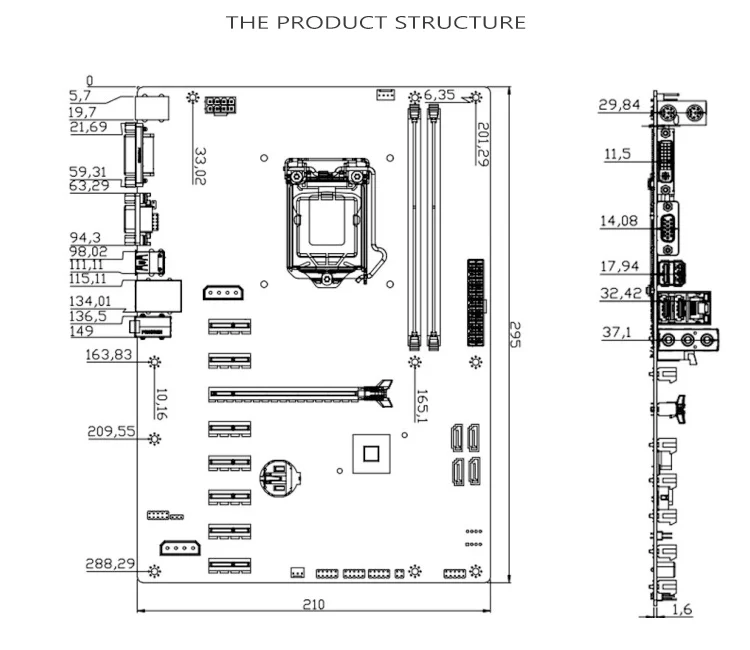

7. Size:295*210 mm
|
Processor |
CPU |
Support LGA1150 socket Intel 4th i3-i5-i7/Pentium/Celeron CPU |
|
|
CPU package |
LGA1150 |
|
|
Chipset |
B85 Chipset |
|
|
BIOS |
EFI BIOS |
|
RAM |
Technology framework |
Dual channel DDR3 1333/1600Mhz |
|
|
Ram socket |
2* DDR3 socket |
|
Video |
Graphic controller |
Intel HD Graphics 4400 (I3-4160 graphic) |
|
|
VGA |
VGA max resolution 2048x1536 |
|
|
DVI |
Max resolution 4096*2304 |
|
|
Double display support |
Support VGA+DVI Synchronous or asynchronous display |
|

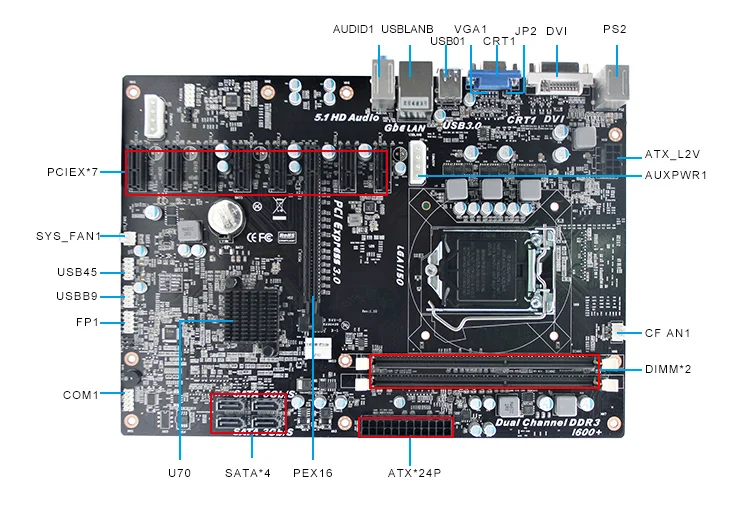

I/O Back Panel |
Ports |
1*VGA 1*DVI 1*LAN,2*USB3.0 2*USB2.0 1*MIC_OUT/LINE_OUT/LINE_IN 1*PS/2 |
|
Network |
Controller |
1*RTL8111E 1000M Lan card |
|
Audio |
Controller |
Realtek HD ALC662(LINE_OUT+MIC_IN+LINE_IN) |
|
|
SPDIF |
1*SPDIF PIN Header |
|
Super I/O |
Controller |
ITE8163 |
|
Hardware monitor |
Watchdog & Timer |
0~255 timer (Watchdog code optional) |
|
Input/Output Interface |
USB |
2*USB3.0 compatible USB2.0 / 1.1,6*USB2.0,Max. Supported +5V/1.5A |
|
|
Serial port |
1*RS-232 |
|
|
PS/2 |
1*PS/2 |
|
Storage |
SATA |
4* standard SATAIII Interfaces,max 6Gb/s,2*Standard SATAII Interfaces |
|
Power supply |
Power type |
ATX power supply |
|
|
Power consumption |
80W |
|
Working environment |
Working temperature |
-20℃ ~ +60℃ |
|
|
Storage temperature |
-40℃ ~ +85℃ |
|
|
Working humidity |
0% ~ 90% (non-condensing) |
|
|
Storage humidity |
0% ~ 90% (non-condensing) |
|

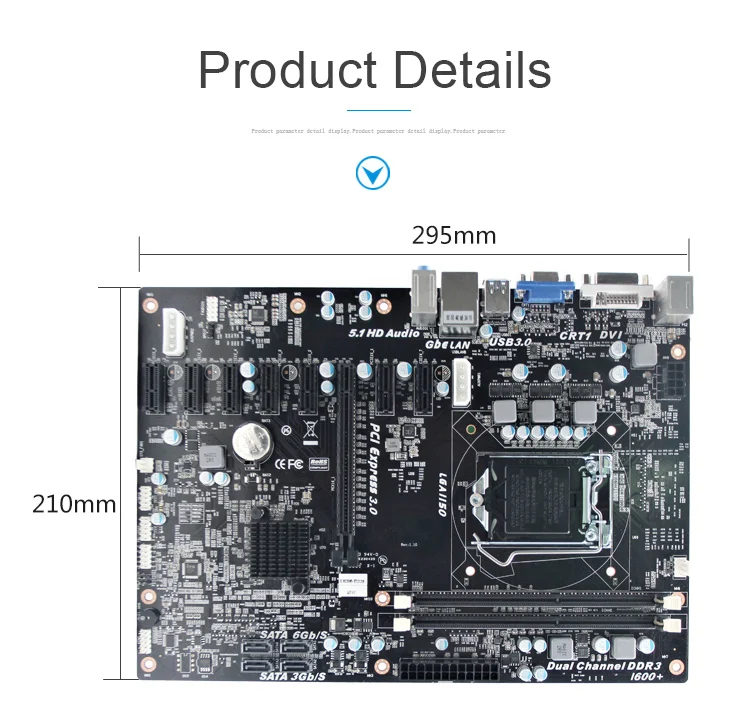

MEASURE |
Size |
295*210 mm |
|
|
Weight |
0.5KG |
|
Certificate |
|
CE,ROSH,FCC |
