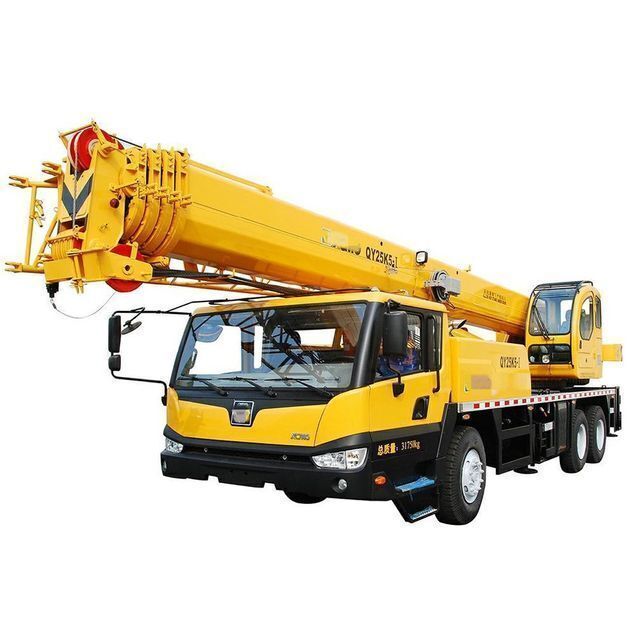

China brand QY25K5-I hydraulic truck crane 25 ton mobile truck crane with EXW price for sale

Supplier: Bigbund(Shanghai) Construction Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Lin
Price: $110000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Engine rated power:	206/2200kw/(r/min);	Engine Brand:	Top brand;
Certification:	ISO CE;	Overall width:	2500mm;
Applicable Industries:	Construction works ;	Warranty of core components:	1 Year;
Hydraulic Valve Brand:	import brand;	Hydraulic Cylinder Brand:	import brand;
Machinery Test Report:	Provided;	Port:	any port in china;
Max. Lifting Height:	47.2;	Overall length:	12300mm;
Condition:	New;	Feature:	TRUCK CRANE;
Place of Origin:	Jiangsu China;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts;
Core Components:	Engine;	Showroom Location:	Philippines,Peru,Indonesia,Pakistan,Kenya,Colombia,Algeria,Bangladesh,Uzbekistan;
Rated Lifting Moment:	961kN*m;	Application:	construction;
Rated Loading Capacity:	25ton;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Brand Name:	Bigbund;	Marketing Type:	New Product 2020;
Supply Ability:	5 Set/Sets per Month;	Span:	Longitudinal5.14m/Lateral6.0m;
Overall height:	3350mm;	UNIQUE SELLING POINT:	High operating efficiency;
Local Service Location:	Philippines,Peru,Indonesia,Pakistan,Kenya,Colombia,Algeria,Bangladesh,Uzbekistan;	Weight (KG):	25000;
Packaging Detail:	According to the customers' requirements.;	Total vehicle mass:	31750kg;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Warranty:	1 Year;
Hydraulic Pump Brand:	KYB;	Video outgoing-inspection:	Provided;

HOT PRODUCTS

Chinese QY25K5-I hydraulic 25 ton mobile truck crane with EXW price for sale

Product Description

1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
4. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
5. Ferrule-type compression joints are used for pipeline, have features of reliable connection, better tightness and less leakage.

Dimension	Unit	QY25K5-I
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125

Packaging & Shipping

We have made remarkable achievements in maritime transportation. Over the past decade, we have been taking customer satisfaction as our goal, keeping the goods intact as our duty, cooperating with the shipping industry, paying close attention to the logistics process and ensuring that customers receive the goods on time.

Company Information

In order to meet the requirements of different countries for emission standards, our company and products have relevant certificates issued by authoritative agencies, you can buy at ease.

Advantage:

1:Over 10 Years'Foreign Trade Experience

2:Rich experience in sea transportation

3:Professional and enthusiastic salesman

Our Exhibition

Our company will participate every year to exhibit our products. At the exhibition, we will receive overseas online customers and cooperate on the spot. We will actively provide services to customers.

Our Services

pre-sale service

Dear friends, before the sale, we will fully understand your needs, according to your machine requirements and your budget, choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in Shanghai, China, we will book hotels, air tickets and take you to the scenery of Shanghai in advance.

After-sale service

After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

FAQ

Q1:Which country do you export to?

Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.

Middle east:Saudi Arabia,UAE,Jordan,Oman,Pakistan,etc.

Europe:Russia,Ukraine,Belarus,Bulgaria,etc.

Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,etc.

South America:Brazil,Peru,Chile,Cuba,Mexico,etc.

Oceania:Papua New Guinea,Australia,etc.

Q2:What is the proportion of your products export?

75% of our products are exported to all over the world.

Q3:What is the payment term?

Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.

Q4:What kind of logistic service do you supply?

FOB,CIF,DAP,ETC.
