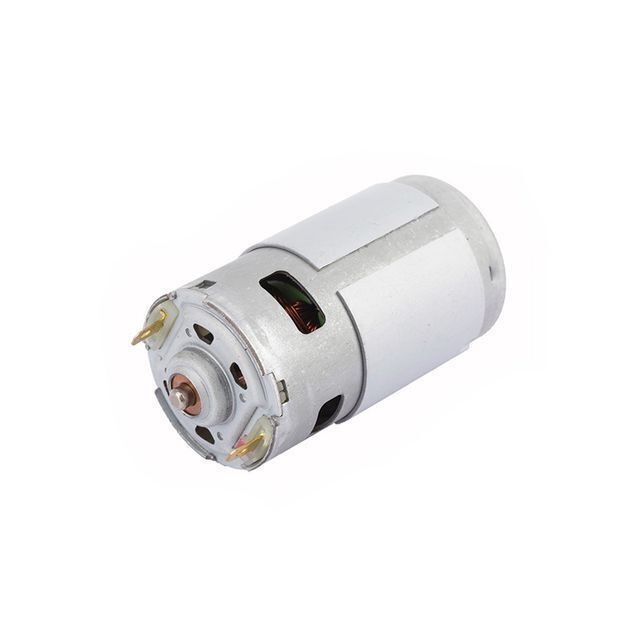

230v dc bush micro motor for Stick Blender (RS-7912SH)
- 8.00 5 - 4999 pieces
- 6.00 5000 - 9999 pieces
- 5.00 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message

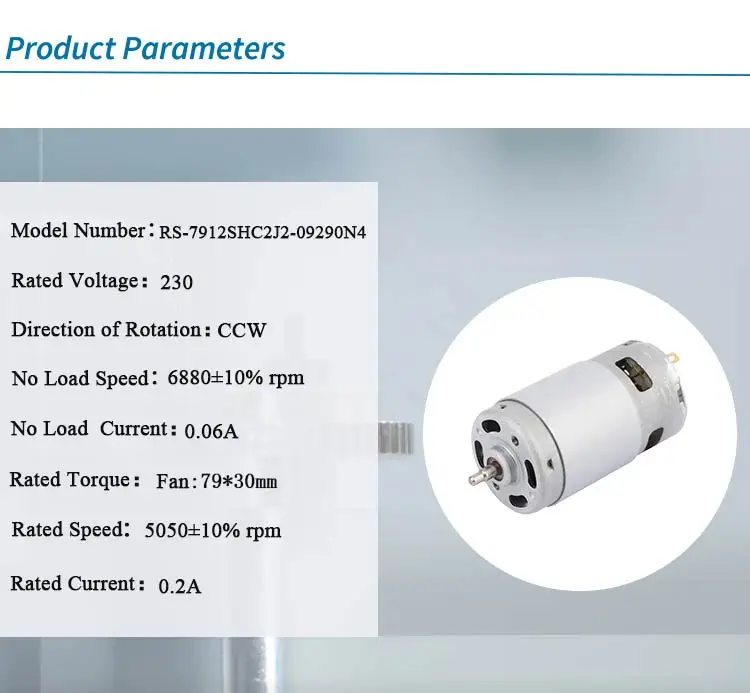

Product Details
| End cap: | Metal; | Packaging Detail: | B3B Corrugated Carton; |
| Supply Ability: | 90000000 Piece/Pieces per Year Sample available; | Model Number: | RS-7912SHC2J2-09290N4; |
| Certification: | RoHS; | Place of Origin: | Guangdong China; |
| Application: | Hand mixer, Hand dryer etc; | Working voltage: | 230V DC; |
| Magnet wire: | Class F; | Brush system: | Cage brush system; |
| Warranty: | 3months-1year; | Voltage: | With AC Rect, 110v,120v,230v; |
| Armature: | 16 slots armatures; | Commutator: | 32bar commutator; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram,paypal; | Stator: | 2pole stator; |
| Port: | Shenzhen or Hongkong; | Brand Name: | Kinmore; |
| Housing: | SECC; |
Product Description
Unit Conversion
Unit | gf.cm | kgf.cm | N.m | mN.m | N.cm | Ib.in | oz.in |
gf.cm | 1 | 0.001 | 0.000098 | 0.098 | 0.0098 | 0.000888 | 0.013889 |
kgf.cm | 1000 | 1 | 0.098 | 98 | 9.8 | 0.868 | 13.889 |
N.m | 10200 | 10.2 | 1 | 1000 | 100 | 8.85 | 141.64 |
mN.m | 10.2 | 0.0102 | 0.001 | 1 | 0.1 | 0.00885 | 0.142 |
N.cm | 102 | 0.102 | 0.01 | 10 | 1 | 0.0885 | 1.42 |
Ib.in | 1152 | 1.152 | 0.113 | 113 | 11.3 | 1 | 16 |
oz.in | 72 | 0.072 | 0.00706 | 7.06 | 0.706 | 0.0625 | 1 |
FAQ
1. What kind of motor do you supply?
Kinmore specializes in making DC motors & gear motors with the diameter ranging from 6mm-80mm; automotive motors and vibration motors are our strength area, too; we also provide brushless motors.
2. What's the lead time for samples or mass production?
Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.
3. Could you mind sending the quotation for this motor?
For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.
4. Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?
We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.
5. Are your motors certificated with UL, CB Tüv, CE?
All of our motors are UL, CB Tüv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
Kinmore specializes in making DC motors & gear motors with the diameter ranging from 6mm-80mm; automotive motors and vibration motors are our strength area, too; we also provide brushless motors.
2. What's the lead time for samples or mass production?
Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.
3. Could you mind sending the quotation for this motor?
For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.
4. Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?
We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.
5. Are your motors certificated with UL, CB Tüv, CE?
All of our motors are UL, CB Tüv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
