industrial electric high temperature lab electric muffle furnace

Supplier: Dongguan Haida Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Lisa Zhong
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Temperature element:	Chromated nickel - nickel - silicon thermocouple;	Model Number:	HD-E805;
Port:	Shengzhen & HK &Shanghai;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Cash, escrow;
Dimension(mm):	690x610x870;	Heating element:	iron - chromium - aluminum wire;
Permitted temperature in furnace:	1050℃;	Furnace size:	200300500;
Highest temperature:	1000℃ or 1200℃;	Temperature Rising time:	≤50minute~120;
Classification:	Laboratory Heating Equipments;	Power:	3 phases ,AC 380V, 50~60HZ;
Packaging Detail:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.;	Brand Name:	Haida;
guarantee:	1 year;	Supply Ability:	200 Set/Sets per Month high temperature lab electric muffle furnace;
Temperature range:	Room temp.-1000℃;	Place of Origin:	Guangdong China;

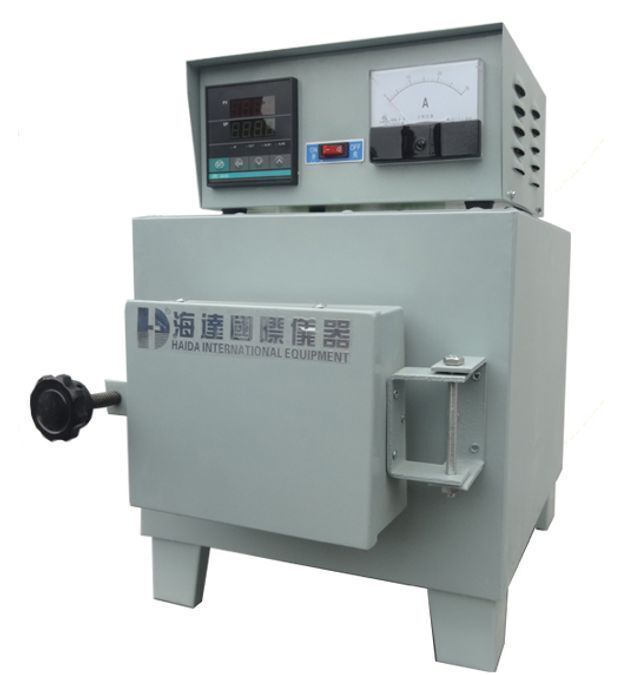

high temperature lab electric muffle furnace

Product Description

Introduce:

High temperature lab electric muffle furnace is upgraded product with easy installation. With corres qualified environment lab ashing chamber ponding thermocouple and temperature console, it can automatically measure and control temperature under rated range.

High temperature lab electric muffle furnace is widely used for elementary analysis, ash determination of small samples in Lab, industrial and mining enterprises and scientific unit.

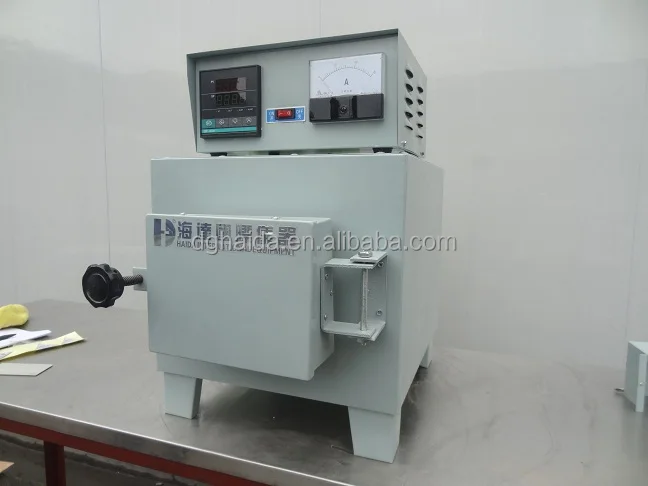

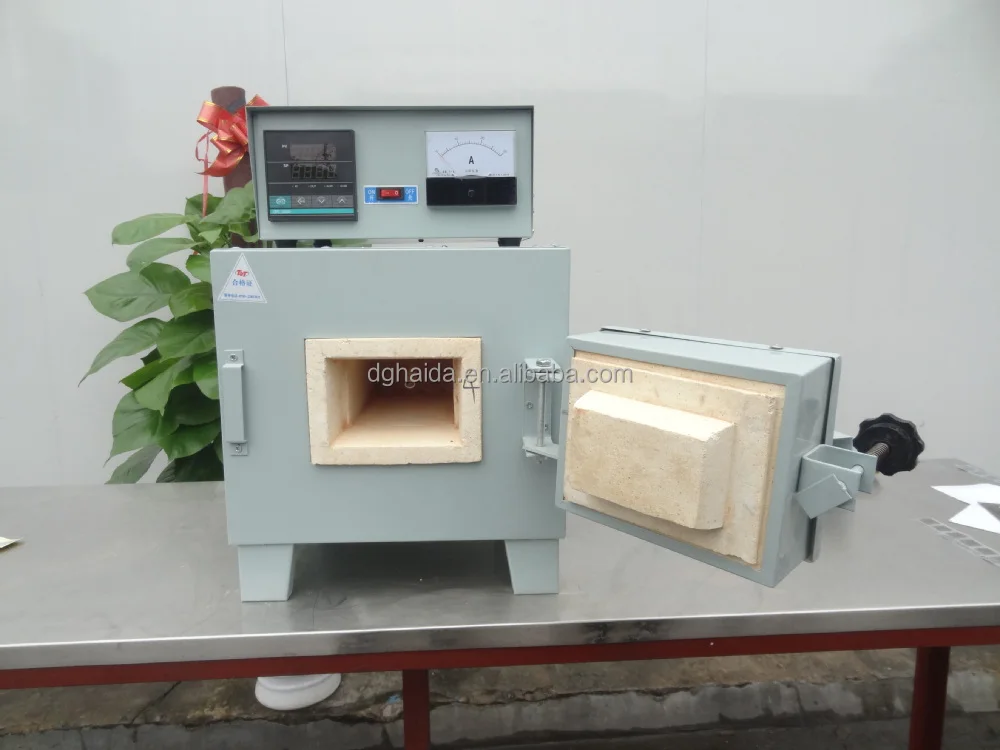

Images:

Application:

Can be widely used in plastic, rubber, packaging, apparatus, machinery and metallurgy, chemical industry etc, and apply for heating of industrial and mining enterprises, scientific research units for chemical analysis physics laboratory determination and the heating treatment of general small steel parts.

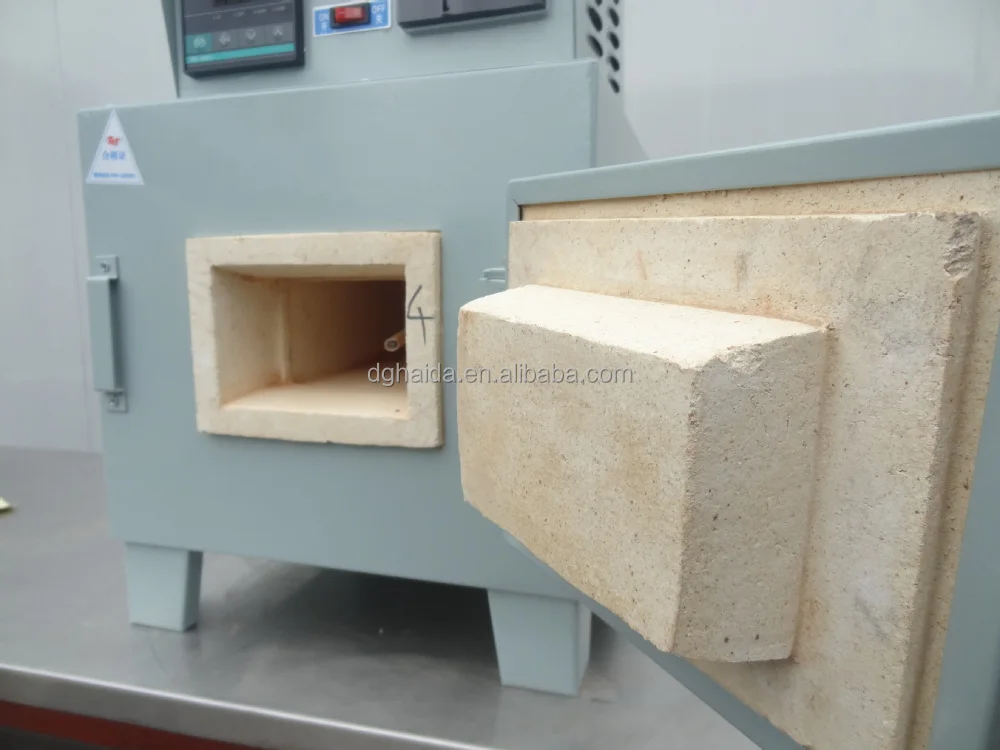

1 .It has stainless steel shell and there are observing holes on the door.

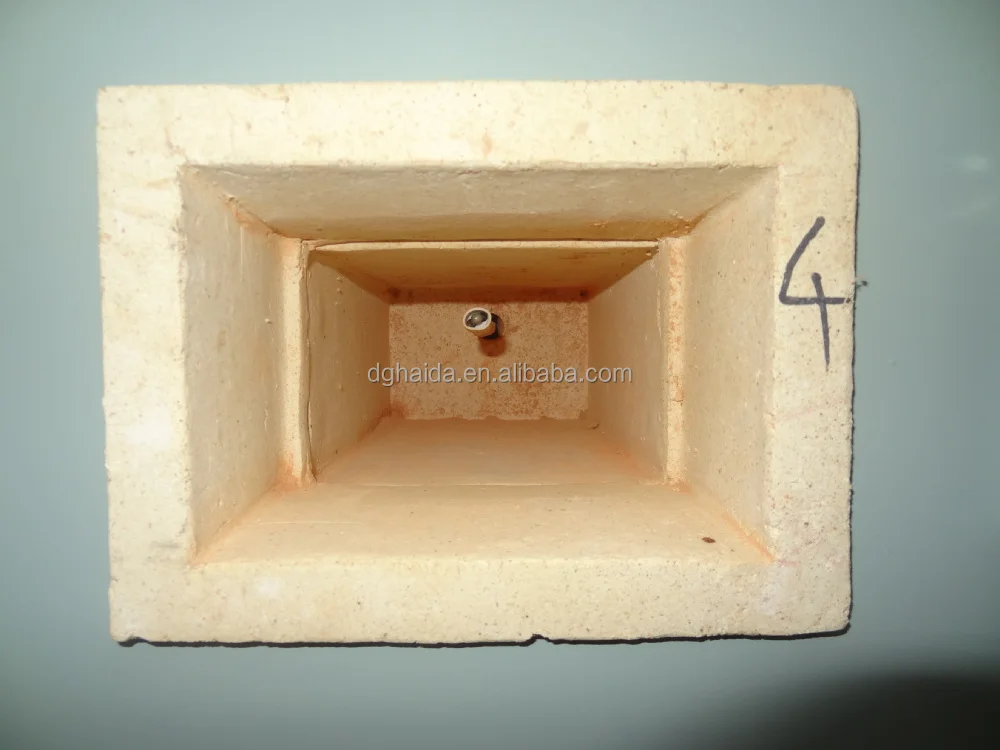

2. It has high-quality refractory materials and the vacuum, forming fiber module or lightweight ceramic.

3. There are vents on rear wall, and it can be connected with fan or catalytic device.

4. It has grounding leakage circuit breakers, and can protect personal safety.

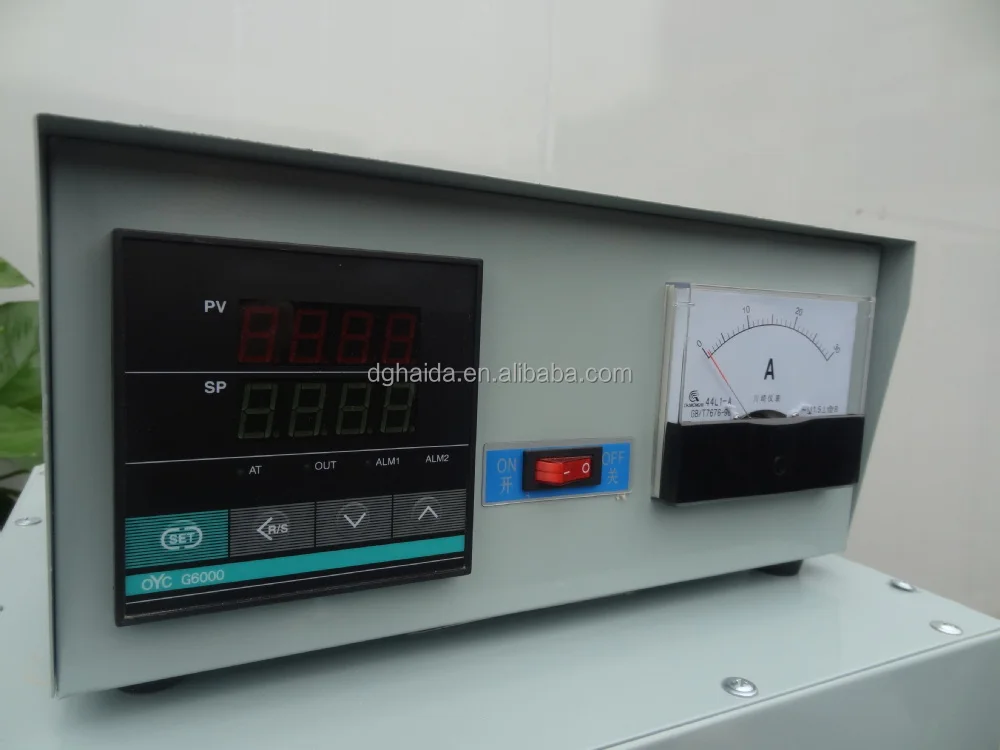

5. It matches with process controller C6D or C6 S27 (optional) respectively.

The main technical parameters:

Power	Highest temperature	Temperature Rising time	Furnace inside dimension	Out size dimension
2.5kw	1000℃	≤50minute	200×120×80mm	542×360×440mm
5kw	1000℃	≤60minute	300×200×120mm	650×440×515mm
8kw	1000℃	≤70minite	400×250×160mm	800×520×587mm
12kw	1000℃	≤80minite	500×300×200mm	920×608×725mm
2.5kw	1200℃	≤120minite	200×120×80mm	600×440×550mm
54kw	1200℃	≤135minite	300×200×120mm	650×570×550mm

Main Technical Parameters:

Item	Specifications
Temperature range	Room temp.-1000°C
Permitted temperature in furnace	1050°C
Temperature element	Chromated nickel - nickel - silicon thermocouple
Heating element	iron - chromium - aluminum wire
Furnace size	200×300×500
Dimension(mm)	690×610×870
Power	3 phases ,AC 380V, 50~60HZ

Features:

Heating element with a special refractory material, and completely concealed in the inner wall, it can avoid to contact the corrosive gases, steam, etc., and extend its service life.

Muffle furnace with the control section is provided separately, so even in the case of prolonged operation, electronic temperature controller is also able to accurately control the temperature.
