Hydraulic mini hand pallet jack price

Supplier: Xiangshan Xinsen Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr. Allen Jin
Price: $115.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Color:	Yellow;	Material:	Round Solid Steel;
Max. Lifting Height:	200mm;	Port:	Ningbo/Shanghai;
Supply Ability:	3000 Piece/Pieces per Month pallet jack;	Product name:	Pallet jack;
Pump:	Casting Integral Pump;	Wheels:	Nylon PU;
Fork Width:	520/550/685mm;	Place of Origin:	Zhejiang China (Mainland);
Fork Length:	800/900/1000/1100/1150/1220mm;	Packaging Detail:	1.standard color,yellow,red pallet jack 2.standard wooden package for pallet jack 3.Details is discussed before place pallrt jack order;
Model Number:	AC3000;	Payment Terms:	L/C,T/T,Western Union,other payment term for pallet jack;
Lift Drive / Actuation:	Hand;	Min. Lifting Height:	55mm/75mm/85mm;
Brand Name:	Xinsen;	Load capacity:	2000kg-3000kg Pallet Jack;

Product Description

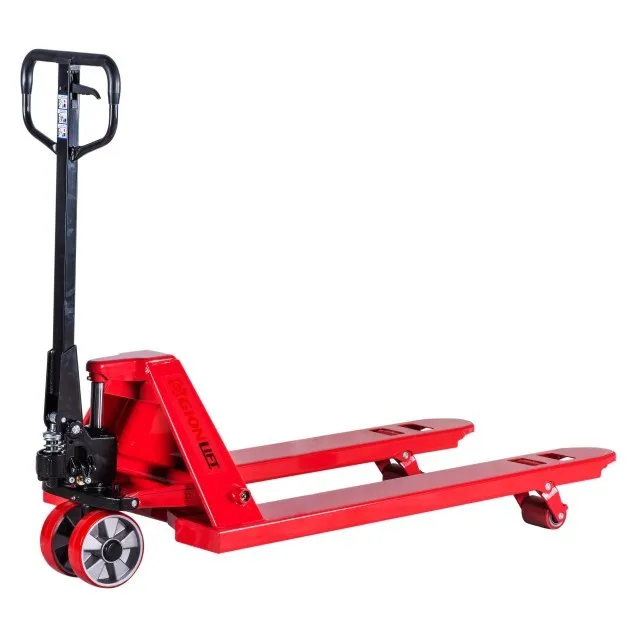

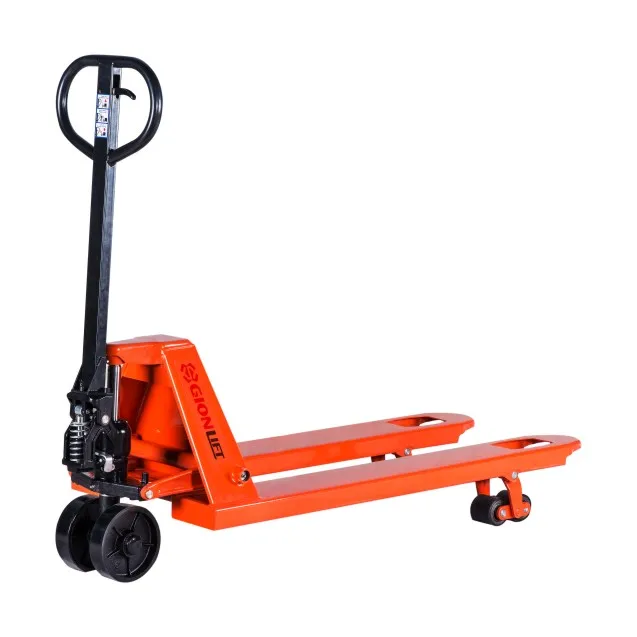

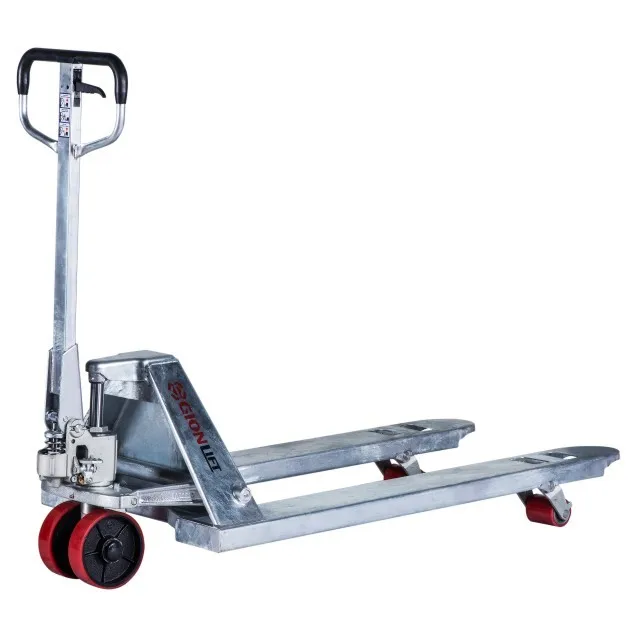

Hand manual hydraulic pallet Jack truck with AC pump

Product Application

Hand pallet trucks are simple devices that make it possible to transport one or more pallets without the use of a forklift or other heavy equipment. Sometimes known as a pallet jack or a pallet lifter, the hand pallet truck is relatively small in design, and makes it possible to slide a set of blades into to the open area of a pallet, gently lift it, and transport the pallet to a different location. .

SPECIFICATIONS FOR STANDARD AC HYDRUALIC PALLET JACK
Capacity	kg	2000	2500	3000
Min. lifting height	mm	75/85	75/85	75/85
Steering wheel size	mm	Φ180*50	Φ180*50	Φ180*50
Tandem wheel size	mm	Φ80*70	Φ80*70	Φ80*70
Truck height	mm	1224	1224	1224
Truck length	mm	1533/1603	1533/1603	1533/1603
Fork length	mm	1150/1220	1150/1220	1150/1220
Fork width	mm	520/550/685	520550/685	520/550/685
weight	kg	68	75	78

Main Features

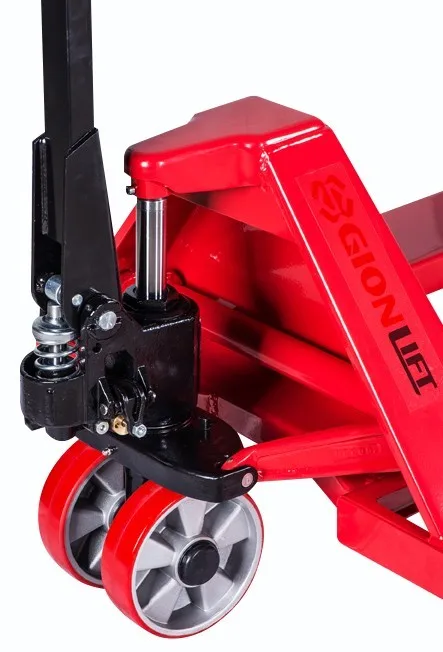

1)Full hydraulic system. Bullet connection between steering shaft and pump piston. It is covenient to replace the rear wheel.
2)The oil pump body can be made by assembling the separated prefabricated parts using threaded connection or make by die casting decrease leak possibility.
3)Easy to maneuver with 210 degrees turning radius.
4)Grease fitting at all pivotal points to ensure trucks long life and easy control.
5)Special lowering valve to control the rate of descent and over load by- pass valve to make the trucks durable.
6)Number of pump strokes-10 . lift height per stroke:12mm.Reliable oil leak-proof hydraulic system

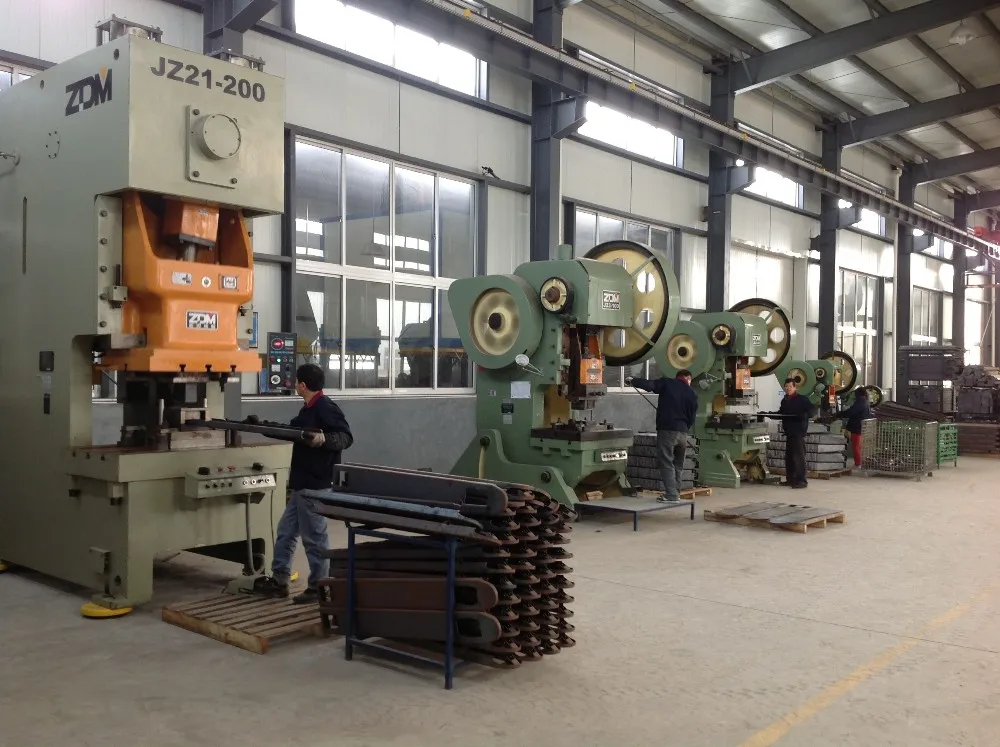

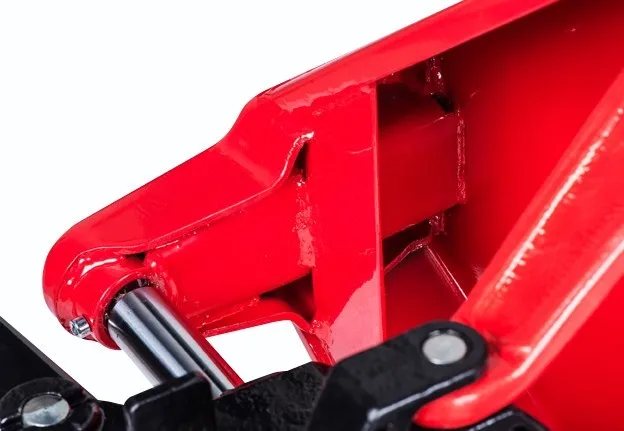

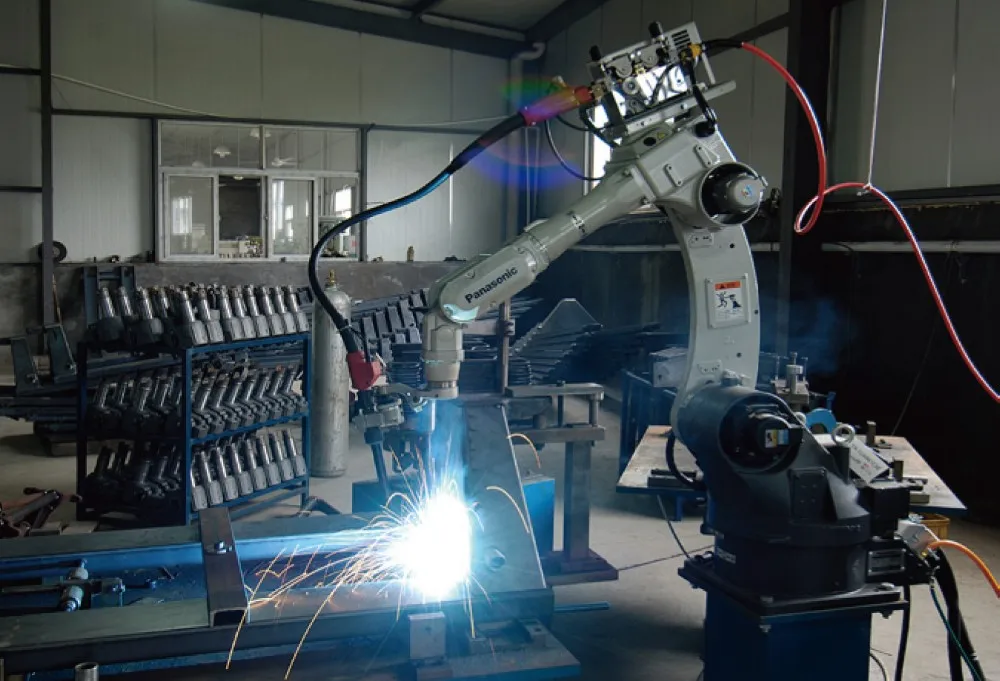

7)Welding robot for frame and pump make the tuck very strong and nice.
