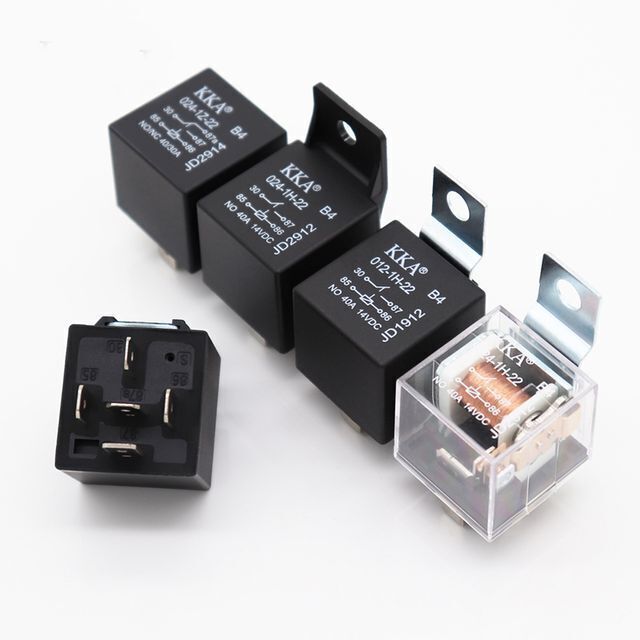

KKA-B4 40A 12V/24V 4pin/5pin Universal Automotive Relay, JD1912/1914/2912/2914 Car Relay

Supplier: Zhejiang KKA Electrics Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Haohao Wei
Price: $0.39 / 25 - 499 pieces
$0.32 / 500 - 19999 pieces
$0.30 / >=20000 pieces
Min. Order: 25 pieces

Click here to contact

Product details

Car Make:	Universal;	OE NO.:	JD1912/1914/2912/2914;
Brand Name:	KKA;	Contact Capacity:	40A/14VDC 30A/14VDC;
Warranty:	1;	Package Preview:	;
Rated Current:	30A/40A;	Contact Material:	AgSnO2;
Contact Form:	1A, 1B, 1C;	Port:	Ningbo Port/Wenzhou Port/Shanghai Port;
Coil Max. Voltage (85℃):	15.7VDC/31.5VDC;	Coil Pick-up Volt.(VDC):	≤8V/16V;
Supply Ability:	20000 Piece/Pieces per Day;	Terminal Type:	4 Pin/5 Pin;
Packaging Detail:	25 pcs/box 500 pcs/carton;	Coil Res.:	80Ω/320Ω;
Coil Max. Voltage (23℃):	20.2VDC/40.5VDC;	Place of Origin:	Zhejiang China;
Model Number:	KKA-B4;	Voltage:	12V/24V;
Coil Release Volt.(VDC):	≥1.2V/2.4V;	Payment Terms:	L/C,D/P,T/T;

Contact Ratings
Contact Form	1A, 1B, 1C
Contact Load Volt.	13.5VDC/27VDC
Contact Material	AgSnO2
Electric Endurance	1*10⁵
Mechanical Endurance	1*10⁶

Coil Ratings
Nominal Volt.	12V/24V
Pick-up Volt.	≤8VDC/16VDC
Release Volt.	≥1.2VDC/2.4VDC
Coil Res.	80Ω/320Ω
Coil Power	1.8W
Max. Coil Volt. (23℃)	20.2VDC/40.5VDC
Max. Coil Volt. (85℃)	15.7VDC/31.5VDC

25 pcs/box 500 pcs/carton

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
