4mm swc ductile flanged universal coupling joint stainless sus316 cheap iron

Supplier: Syi Industrial Co., Ltd.
Region: Shanxi, China
Contact: Ms SYI Group
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	stainless steel;	Product:	swc universal coupling;
Applicable Industries:	Building Material Shops,Other;	Single gross weight:	7.0 KG;
Flexible or Rigid:	Flexible;	Quality Control:	strict 100% test;
Structure:	Universal;	Selling Units:	Single item;
Packaging Detail:	Standard export wooden case, wooden pallets or 100% as per your requirements;	Warranty:	3 years;
Single package size:	40X30X30 cm;	Standard or Nonstandard:	Standard;
Place of Origin:	China;	Customized support:	OEM,ODM;
Surface Treatment:	FBE Coating/Powder Coating;

Welcome to SYI Group

swc Universal Coupling And Flange Adaptor - SYI Group

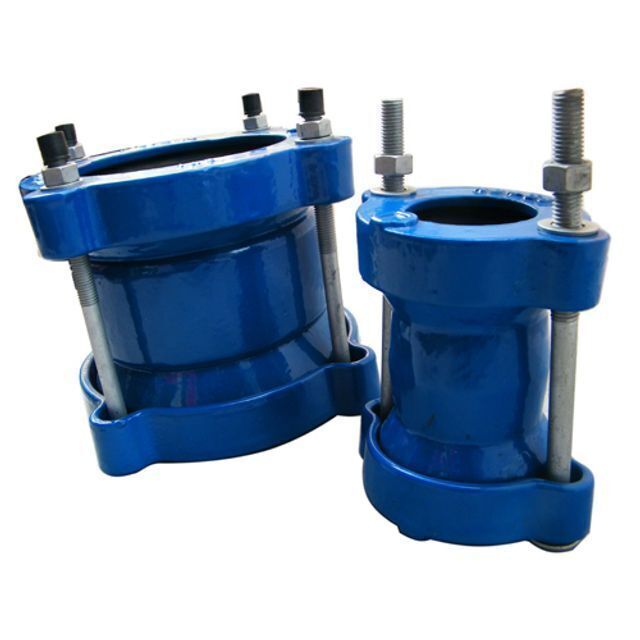

About Our SYI Universal Flanged Adaptors - SYI Group :

SYI Universal Flanged Adaptors SPECIFICATIONS
Material:
BODY: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GLAND: Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536 GASKET: Rubber E.P.D.M./SBR/NR in accordance with EN 681.1 D-BOLTS AND NUTS: Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
Flange:
Both PN10 and PN16 drillings in accordance with ISO 7005-2/EN 1092-2
Working Pressure:
16 Bar or 250 PSI
Fluid Temperature:
0°C-50°C, excluding frost
Allowed Angular Deflection:
3°
Joint Gap:
19mm
Coating:
Externall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements	Internall coatings: liquid epoxy resin painting epoxy applied by FBE according to customers' requirements
Reference Rules:
Designed by SYI and tested in accordance with EN 14525, ANSI/AWWA C219 and EN 545
Use:
SYI Universal Flanged Adaptors, designed by experienced engineers in SYI in 2010 and applied the patent, with wide range tolerance on O.D. (up to 24mm), SYI Universal Couplings are suitable for jointing plain-ended pipes with same or different materials and same or different outside diameters within the pipe O.D. ranges. The circumferentially ribbed, specially profiled gaskets in the high quality material, provide for smooth installation by minimizing contact friction and restrict to pull out. The gasket also provide a leak tight seal across the O.D. range per nominal size and still allow for thermal expansion and contraction of the pipe (up to 5mm per gasket), facilitated through gasket deformation. SYI Universal Flanged Adaptors , with the further more reasonable sizes and ranges, can allow the pipes of main sizes in the most reasonable location, and the gasket can be at the perfect situation after assembled.
Note: The accessories for SYI Universal Couplings are usually supplied by assembled on the body.

About SYI Couplings :

Specialist in Pipeline and Construction Products & Services!

Universal Couplings,
Universal Flanged Adaptors,
Straight Couplings,
Straight Flanged Adaptors,
Large Range Couplings
Quick Adaptors,
Dismantling Joints,
Clamps,
Couplings Products Designed By SYI.

swc universal coupling - SYI Group

Manufacture Process & Quality Control :

Manufacture Process:

Pattern Making	Sand Mixing	Moulding

Pouring	Grinding & Shot Blasting	Machining

Coating and Lining	Accessories manufacturing	Packing
