Grabo H Electric Vacuum Suction Cup For Structure Tile Glass Wood 170kg Capacity Portable Heavy Duty Lifter Stone Lifting Tool

  • 81.00 1 - 49 pieces
  • 76.50 50 - 499 pieces
  • 63.00 500 - 4999 pieces
  • 49.50 >=5000 pieces
Min. Order: 1 piece FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Video outgoing-inspection:Provided;Condition:New;
Warranty of core components:1 Year;Place of Origin:Shandong China;
After-sales Service Provided:Online support;Warranty:1 Year;
Single package size:37X28X30 cm;Weight (KG):3;
Applicable Industries:Hotels,Machinery Repair Shops,Farms,Home Use,Energy & Mining,Food & Beverage Shops;After Warranty Service:Video technical support,Online support,Spare parts;
Dimension(L*W*H):30X18X17 cm;Brand Name:May top;
Single gross weight:2.0 KG;Certification:CE;
Local Service Location:Egypt,Canada,United States,Italy,France,Philippines,Mexico,Malaysia,Sri Lanka,Ukraine;Machinery Test Report:Provided;
Dimensions:297mm x 181mm x 115mm;Weight Load Capacity:170KG;
Showroom Location:Canada,Italy,Brazil,Mexico;Selling Units:Single item;
Grabo kit includes:2 16.8 V Lion batteries;Marketing Type:Ordinary Product;
Max lifting load:375 lbs (170 kg);Product Name:Grabo Electric Vacuum Suction Cup Lifter;
Package Preview:;Core Components:Engine,Motor;
Packaging Detail:carton box;
Product Overview

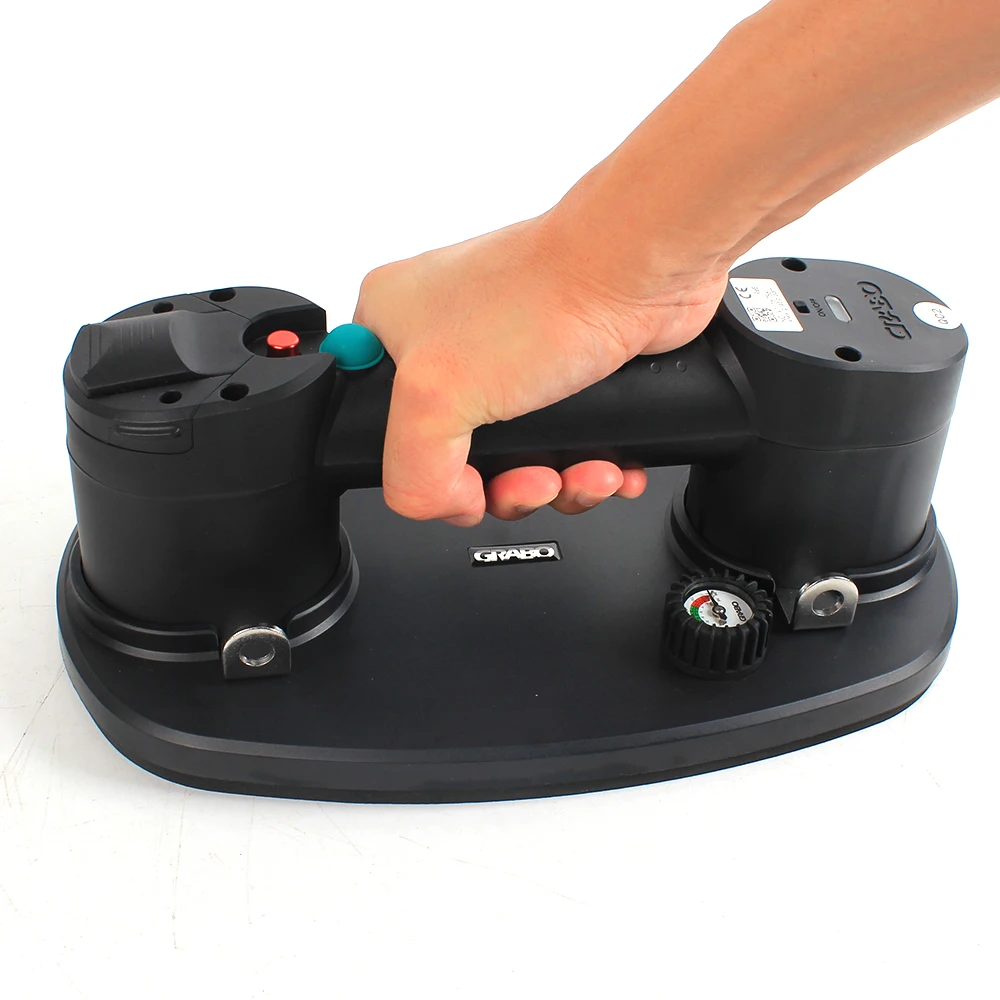

Electric Vacuum Suction Cup Lifter
This is the Grabo Electric Vacuum Suction Cup Lifter and this is exactly what you need for material handling with slabs of stone.

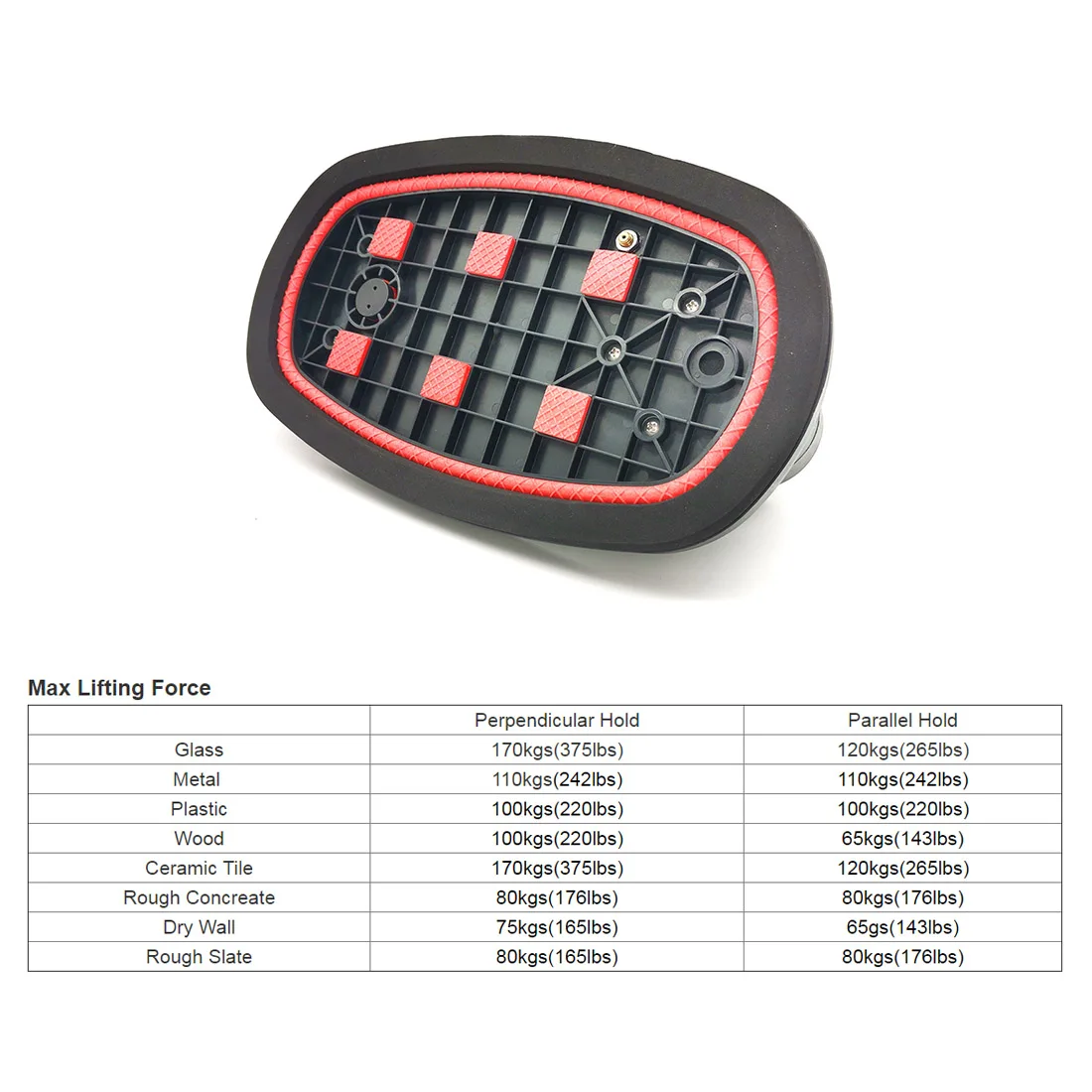

Traditional suction cups are only capable of creating a good seal with flat, clean and airtight surfaces such as glass. However,
Grabo’s unique seal allows the tool to adhere to rough, etched surfaces. The maximum surface roughness which Grabo can attach to
depends on the exact “Profile roughness parameters” (The geometry of peaks and valleys in the material), and is generally limited
to an amplitude of about 2.5mm (0.1 inch). This capability allows Grabo to create a seal with the majority of patterned tiles,
pavers and construction materials.
Product Paramenters
Battery Voltage: 16V Li-ion
Battery Cell Specification: 2.2 Ah
Rated Power: 16W
Dimensions: 297 x 181 x 115mm (11.7 x 7.1 x 4.5inches)
Net weight (with battery): 1.5kg (3.3lbs)
Working temperature: -5°C – 60°C (23°F – 140°F)
Working time (full charge): 1.5
hours
