Professional Cosmetic Powder Press Machine for Eyeshadow Blusher Facial Powder

Supplier: Shanghai Gieni Industry Co., Ltd.
Region: Shanghai, China
Contact: Ms Gieni Team
Price: $16000.00 / 1 - 4 sets
$14000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Type:	compact machine;	Pans available on each press mold:	6pcs( acc. to godet size);
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Showroom Location:	None;
Supply Ability:	1 Set per Month for cosmetic powder press machine, compact powder machine;	Weight (KG):	800;
Condition:	New;	Applicable Industries:	Cosmetic;
Production Capacity:	720-1080pcs/hour;	Machinery Test Report:	Provided;
Package Preview:	;	After Warranty Service:	Video technical support,Online support;
Local Service Location:	None;	Key Selling Points:	Easy to Operate;
Warranty:	12 months,1 Year;	Core Components:	Pump,Gear,Engine,PLC;
Packaging Detail:	Ply-wooden case for eyeshadow press machine,compact powder machine ,cosmetic powder press machine;	Marketing Type:	Ordinary Product;
Voltage:	AC220V/380V,3P, 50/60HZ;	Warranty of core components:	1 Year;
Material:	SUS304;	Video outgoing-inspection:	Provided;
Suitable:	Powder cake, eyeshadow, blush,etc;	Brand Name:	GIENI,Gieni;
NO. of Operateor:	1 person;	Port:	Shanghai;
After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Pressure Method:	Hydraulic;

Product Description

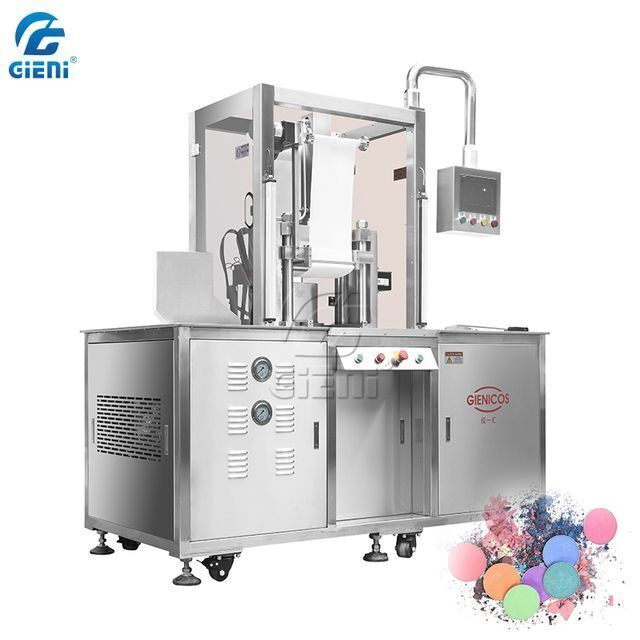

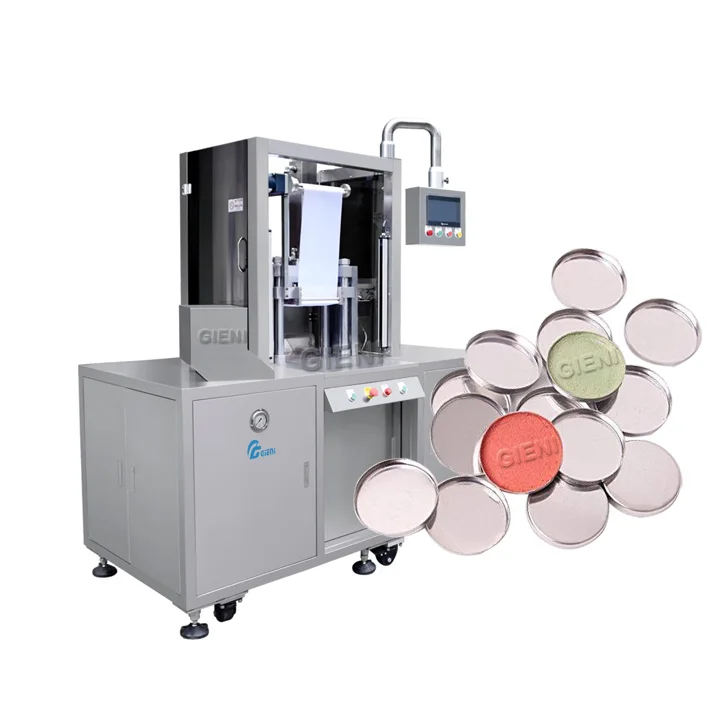

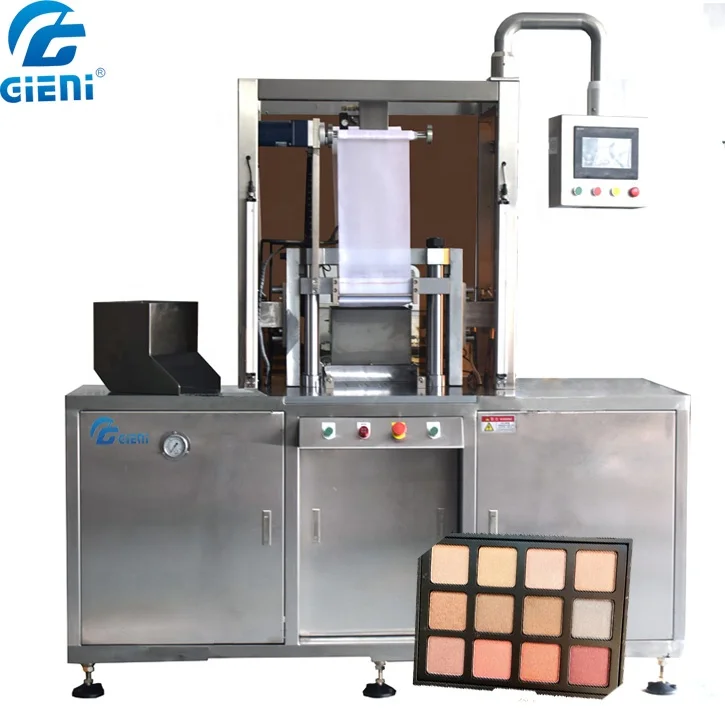

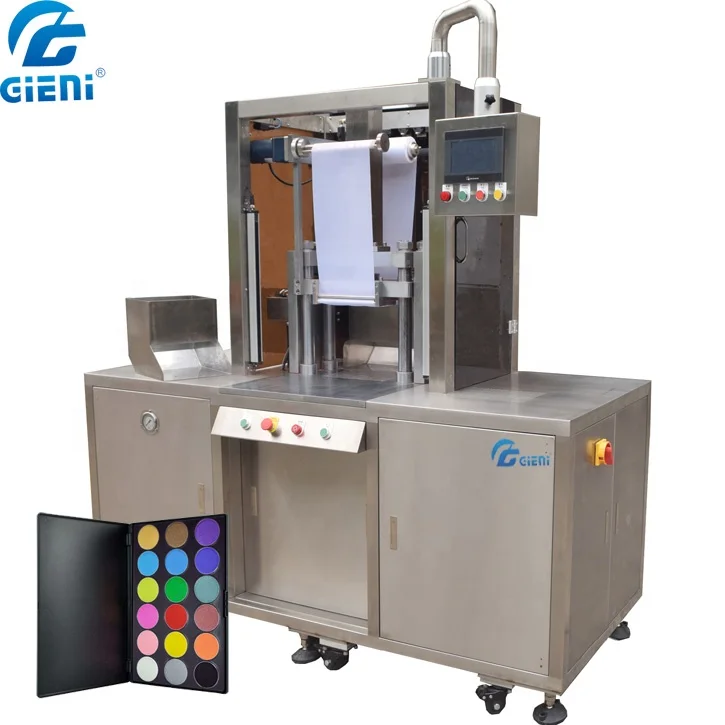

Professional Cosmetic Powder Compact Machine for Eyeshadow Blusher Facial Powder

Product Application

JBC-4 newly design is suitable for cosmetic powders, such as face powder,blusher and eyeshadow. It can be used for handling a wide range of formulations. And it can press embossed, engraved cakes and domes.The output is 720-1080 pcs / hours depending on the pan size and powder formula.

Detailed Images

Newly Update

Add a powder storage tank beside the hopper, more easy to collect remaining powder.

Easy and convenient when color changing and cleaning.

Machine Parts

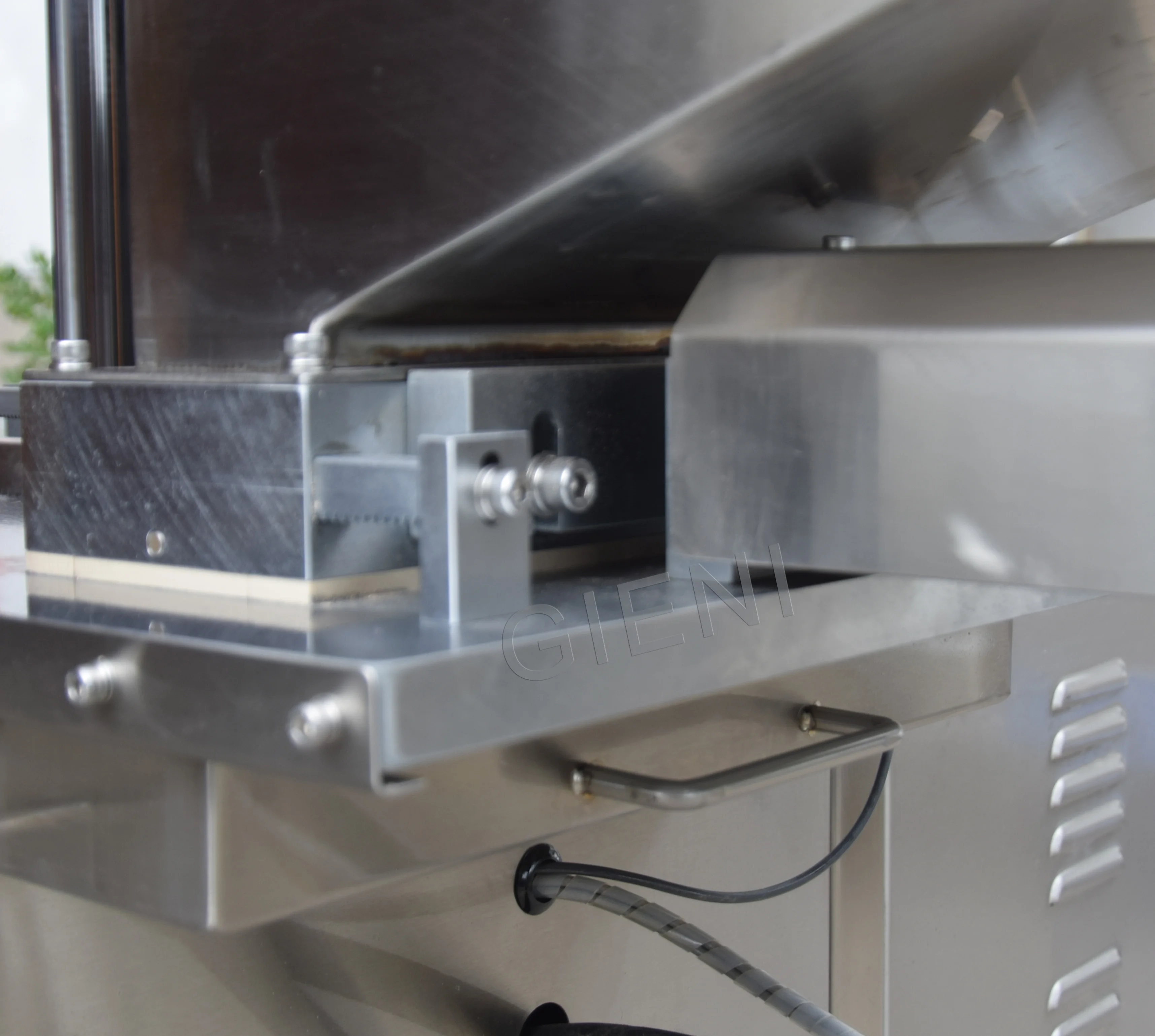

Name: Safety sensor
Brand: FOTEK
Original: Taiwan
Feature: extended safety sensor for ptotecting the operator.

Main Features

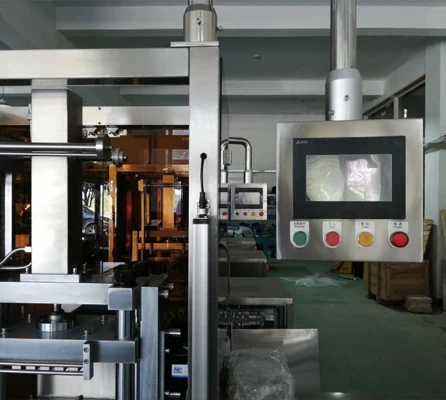

Name: Touch sreen
Brand: Mitsubishi
Original: Japan
Feture: World famous touch screen, all the related parameters can be setted on the touch screen, very conventient.

Machine Parts

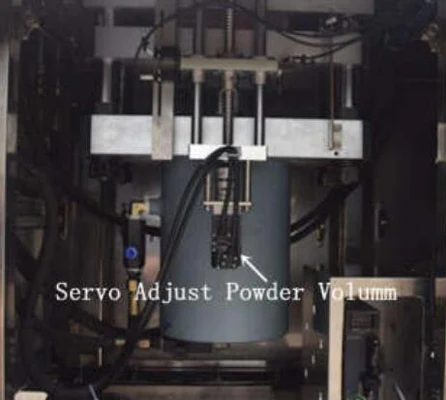

Name: Servo motor

Brand: TSCC
Original: Germany
Feature: adopting servo motor to control the filling volume, easy to operate.

Technical Parameters

Powder Compact Machine Technical Parameters
Model			JBC-4
Outer dimension			1800 x 1600 x 2010 mm (L x W x H)
Voltage			AC380V, 3P, 50/60HZ
Power			4.5KW
Working pressure			6-7MPa
Output			2~3 molds/min
Pans available on each mold			6 pcs (acc. to size of aluminum pans)
Max.output pressure of il hydraulic			15 Tons
Weight			900 kg
Operator			1~2 persons

Main Features

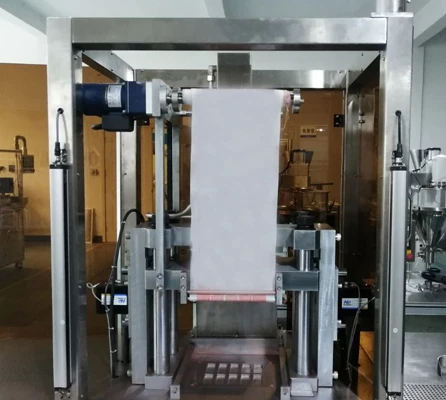

1) One set press mold includes top, middle, and bottom which are installed inside the machine to reduce the wear loss;
2) Pressing from bottom to top, oil pressure is adjustable to achieve good performance for the powder compacting;
3) fully hydraulic driven system ensures perfectly stable running;

4) with hopper for storage aluminum pan,save manual operation time;

5) with dust collection system, low pollution and powder can be recycled as well;

6) Powder feeding optional: automatic or manual;

7) the number of times of the powder feeding, powder pressing, cloth rolling, etc. can be adjusted on the touch screen.
