Private Label Eyeliner Liquid Pencil Filling and Capping Machine JPF

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	20 Set/Sets per Month for rotary eyeliner filling machine;	Name:	eyeliner filling machine;
Packaging Detail:	Ply-wood carton for rotary eyeliner filling machine;	Filling Volume:	0-5 ml;
Capacity:	0-40 pcs/min;	Port:	Shanghai;
Type:	Filling Machine;

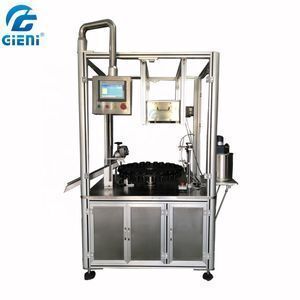

Private Label Eyeliner Liquid Pencil Filling and Capping Machine JPF

Product Description

This machine is specially designed for eyeliner pencil.

Semi - automatic eyeliner filling machine is designed independently by our company according to the current fashionable eyeliner materials.
Process: Manual feeding container→Detecting container→Peristaltic pump filling→Manual feeding cap→Auto capping→Auto container discharged

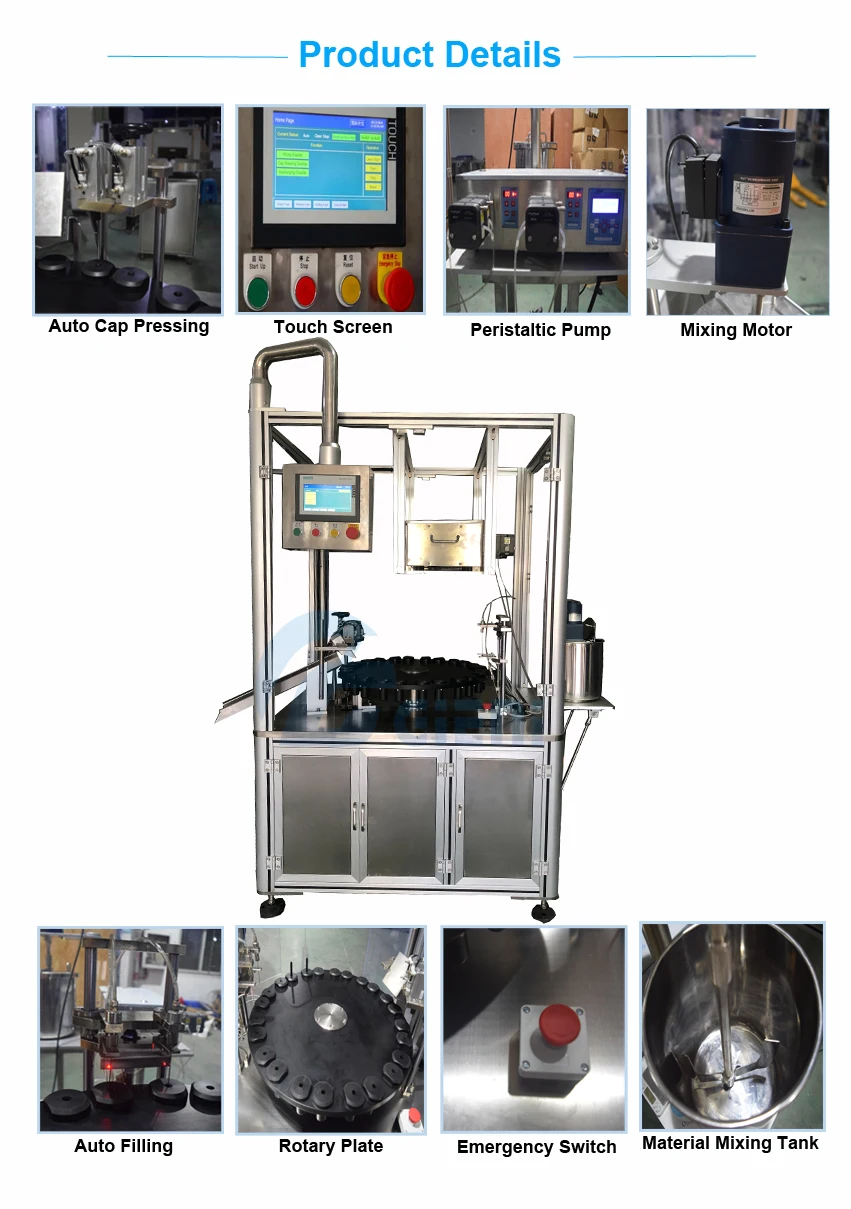

Machine structure:Main machine rack,Rotary plate system,Filling system,Peristaltic pump material feeding system,Capping system,Container discharging system,Controlling system.
The main engine is powered by JSCC motor, the filling system use servo peristaltic pump, the capping and container discharging are controlled by cylinder mechanical, and the detection sensor is OMRON optical fiber sensor.
Optional configuration: Auto container collating, Auto container feeding, Auto swab refill feeding, Auto cap feeding

Features:

-Use rotary table type feeding makes convenient operating and reduce space.

-Fill 2pcs one time. Quantity is precision.

-Automatically enter steel ball and detect steel ball

-PUMP structure cleaning is convenient and easy to change materials.

-Material tank is made of SUS304.

-Can match with auto check weigher.

Technical Parameter:
