Beer filling machine beer brewing equipment/beer brewery machine/beer plant

  • Supplier: Shanghai Ok Machinery Co., Ltd.
  • Region: Shanghai, China
  • Contact: Ms Sophia .
  • Price: $27500.00 / 1 - 1 sets
    $26500.00 / 2 - 2 sets
    $25500.00 / >=3 sets
  • Min. Order: 1 set
Product details
Processing Types:Alcohol;suitable bottle:glass bottle;
Package Preview:;capacity:2000-3000bottle per hour;
Payment Terms:L/C,Western Union,T/T,beer brewing equipment;Key Selling Points:Easy to Operate;
line:automatic beer produce line;Bottle size:330ml -1500ml;
type:beer filling equipment;Dimension(L*W*H):2100x1400x2500;
After Warranty Service:Video technical support,Online support;Place of Origin:Shanghai, China;
cap:crown cap;Machinery Test Report:Provided;
Marketing Type:New Product 2020;Warranty:2 years;
Showroom Location:None;Machinery Capacity:4000;
Processing:food processing,Fermenting Equipment;Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant;
Brand Name:OK;After-sales Service Provided:Engineers available to service machinery overseas,Free spare parts;
Power:5KW;Weight:6000 KG;
Core Components:Motor,PLC,Bearing,Engine;Main material:Stainless steel SUS304 , SUS316;
Local Service Location:None;Packaging Detail:wooden packing for beer brewing equipment;
Warranty of core components:Not Available;Certification:ISO , CE;
Port:ShangHai pot for beer brewing equipment;Video outgoing-inspection:Provided;
Supply Ability:5 Sets per Month beer brewing equipment;Voltage:380V/220V/415V/440V;
Condition:New;Product:beer brewing equipment;

  beer brewing machine /beer brewery equipment/beer plant

Product Description

beer brewing equipment Main technical parameters



This machine is 3 in 1 machine have 3 functions :

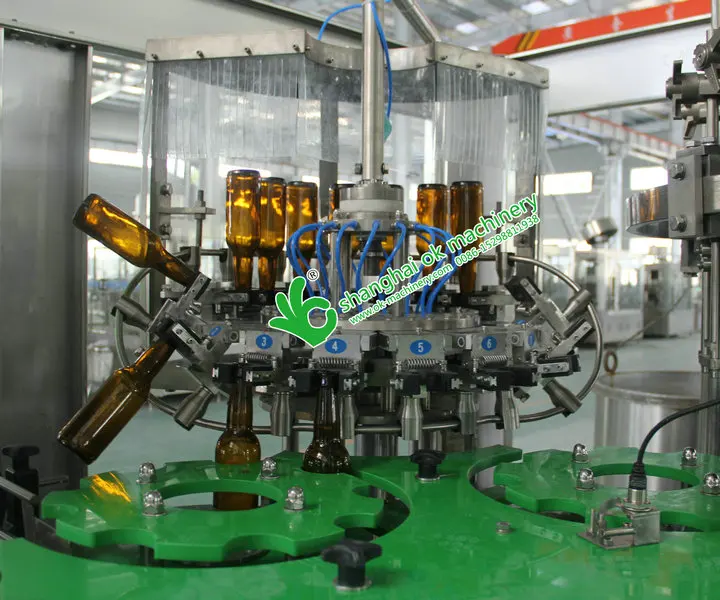

    1.washing part : washing bottle before filling .

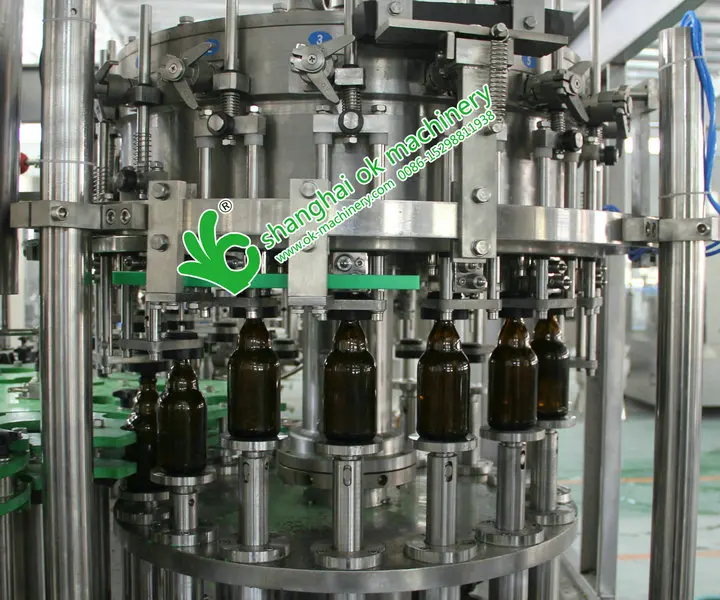

    2.filling part : filling beer into bottle .
    3.capping part : sealing the caps on the top bottle



A. the whole process is auto-matic

    control by
   PLC(MITSUBISHI)
   TOUCH SCREEN(WENLUN)
   INVERTER (MITSUBISHI)



B. THE Materil

    Filling Valve (SUS316)
   Washing and Capping and Frame (SUS 304)
   (sus304,sus316 are model of stainless steel )



Beer process machine Technical Standards

1 Name Model: BGF24-24-8
2 Main material : Stainless steel SUS304 , SUS316
3 Production capacity 5000-6000bph 500mL
4 Bottle size 330ml -1500ml
5 Bottle height/diameter 200-350mm/52~84mm
6 Aseptic air consumption 0.4m3/min(0.4~0.6Mpa)
7 CO2 consumption 150g/100L
8 Operating voltage AC 380V/220V/415V/440V( 3P 50/60HZ)
9 Dimension 2200*1830*2100(L*W*H)
10 Weight 6000kg



beer brewing machine /beer brewery equipment/beer plant Beer brewing equipment Introduction

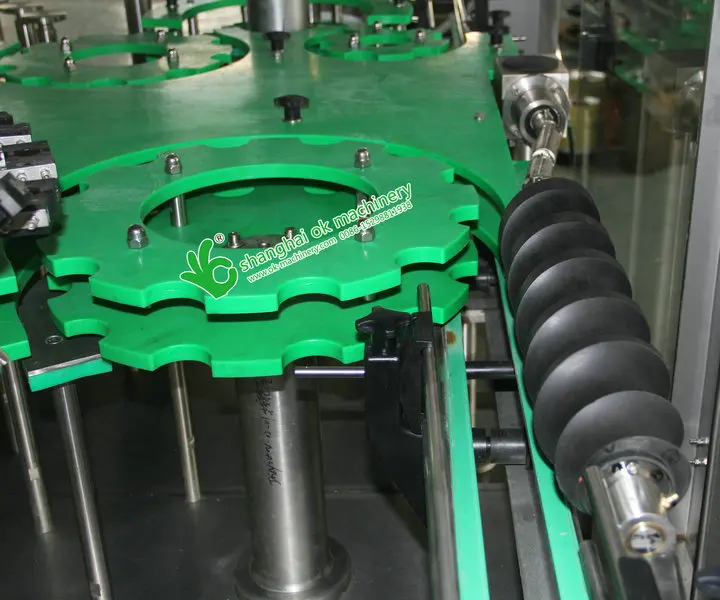

The empty bottles are transferred to filler through pitch-changing screw and bottle in-feed star wheel via conveyor and sent to the bottle holder on the elevating cylinder of the filler. The bottle then is hold up and contact with the sealing valve. During this lifting process, the vacuuming device will vacuum twice to bottles.
After the control cylinder gets the bottle signal, the gas is injected to the bottle, and then the bear is injected. If the bottle blasts, then the cleaning starts automatically. After some period of filling, the bear seals the muffler, and the filling stops automatically. The valve closes, and the gas is discharged. Then bottle leaves the filling valve with the help of the elevating cylinder via the cam. Then the bottle is sent to the capper through the star wheel. The capping head will press the cap to the bottle with the help of gland plunge. Then the capping head returns to its original place, and the bottle is sent out through the transferring chain and enters the next process.



beer brewing machine /beer brewery equipment/beer plant Technical parameters

Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

BFG14-12-4

14

12

4

1000bph

1.5KW

2100x1400x2500

BGF18-18-6

18

18

6

2000bph

2.2KW

2460x1720x2650

BGF24-24-8

24

24

8

3000bph

3KW

3100x2100x2650

BGF32-32-10

32

32

10

6000bph

4KW

3500x2500x2650

BGF40-40-10

40

40

10

8000bph

7.5KW

4600x1800x2650

BGF48-48-12

48

48

12

9000bph

9.5KW

5200x4500x3400

BGF60-60-15

60

60

15

12000bph

12KW

6500x4500x3400



Main Features

• Adopt high-precision mechanical filling valve, with no bottle no vacuuming structure;
• Outside mechanical valve structure, no spring in valve;
• Twice vacuuming, with high-pressure foaming device;
• Centration guide adopts double guide rod structure, with pre-covering function, stable bottle in-feeding and out-feeding;
• Equipped with auto-cleaning device in carton of blasted bottle due to bottle quality during gas-injection or filling;
• Filler level is controlled by electric probe to ensure stable level and reliable filling;
• Height of filler, capping head and control ring can be adjusted to adapt different bottle size;
• Only need adjusting relevant parts when changing different bottle, easy and simple;
• Drive adopts open-gear and gear box combination, large adjust-speed scope;
• During operation, machine is controlled automatically and set full-speed or slow-speed according to the number of in-feeding bottle; no bottle no opening valve and falling-cap, auto-cleaning blasted bottle, and filling speed, filling number, cap-falling system can be controlled by PLC;
• Main electrical components are famous imported brands;
• It’s also suitable for filling contain-gas beverage and drinking water after changing some parts.

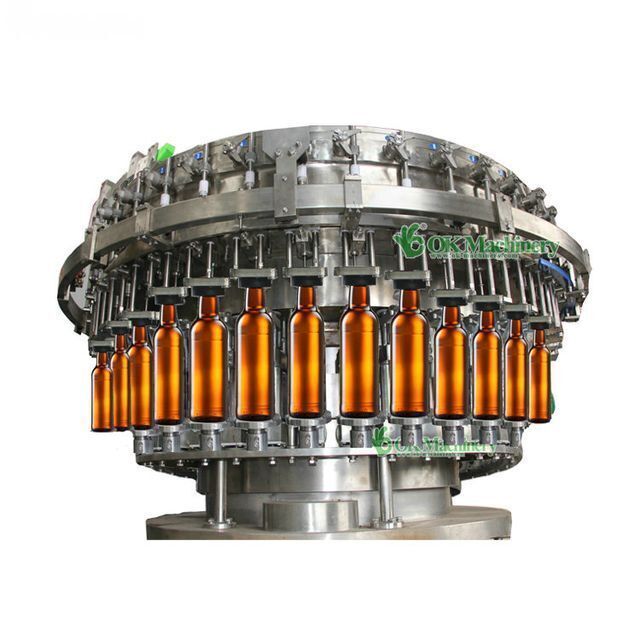

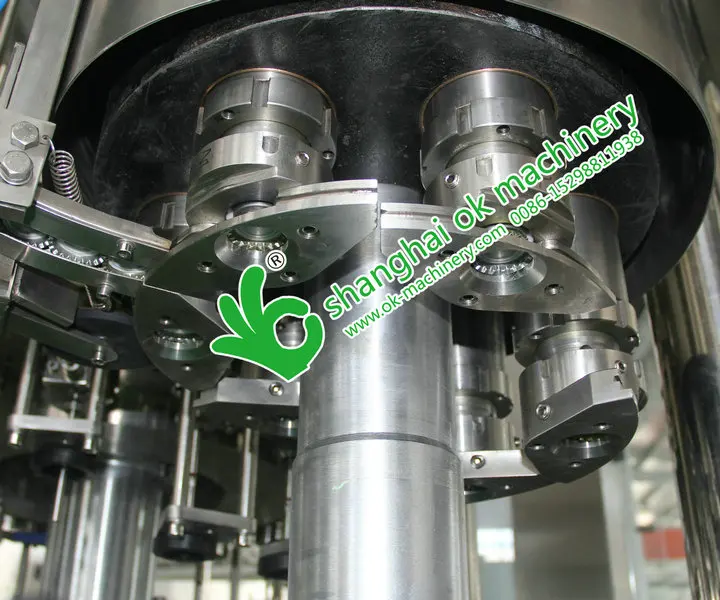

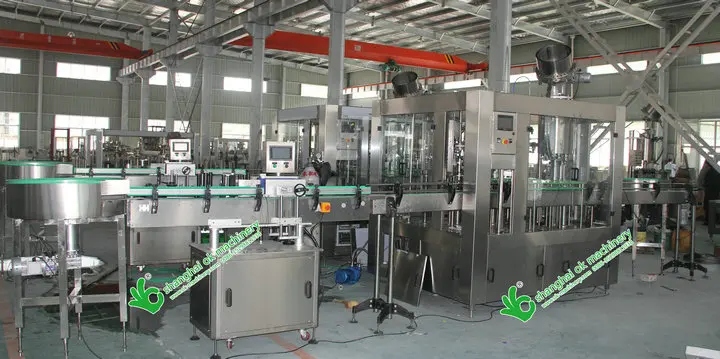

Beer brewing equipment Picture



More Product Picture





Packaging & Shipping

Wooden Packing For Filling Machine

As usual, we adopt wooden case as package type, it's suitable for long-distance transport.

Accroding to customers's demands, shipping and air transportation are available.

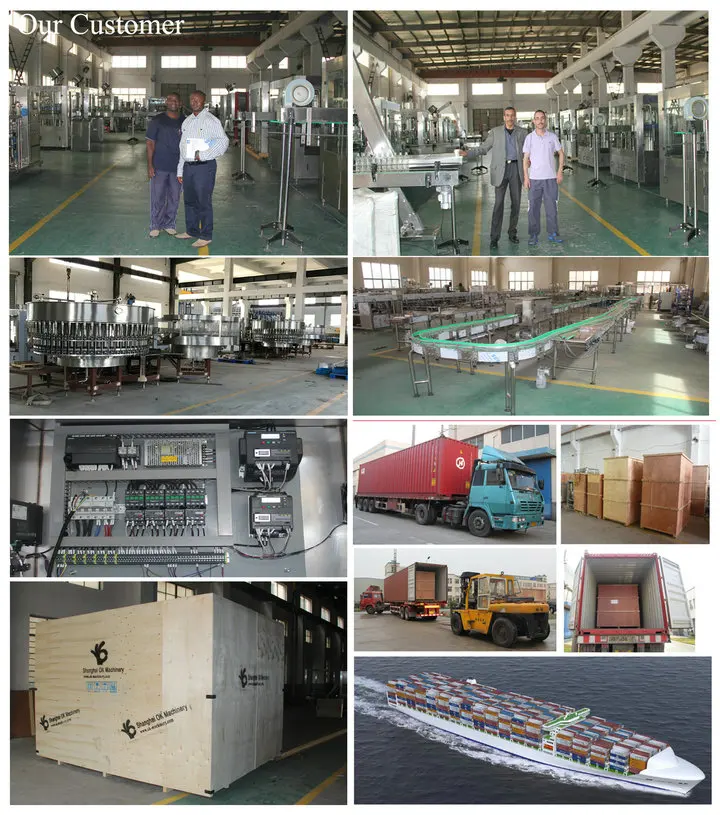

Company Information

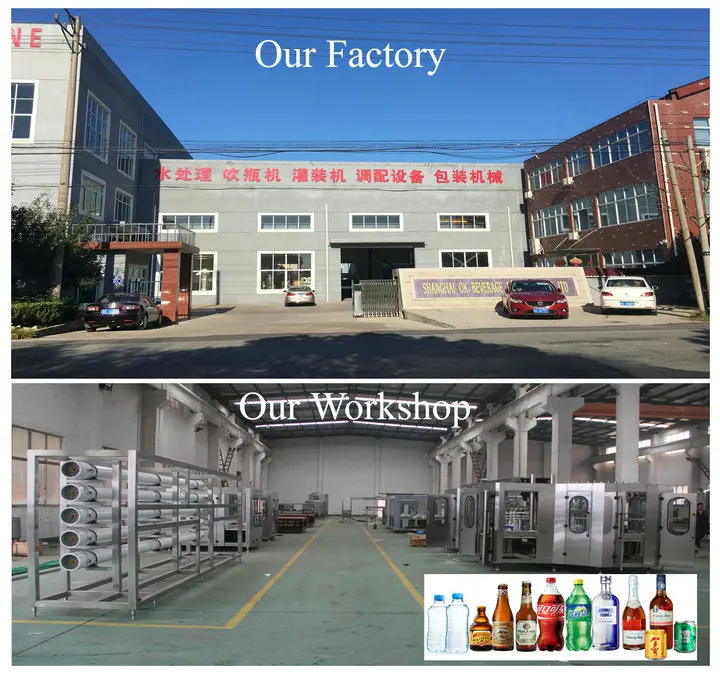

                           Welcome you visit Our factory
