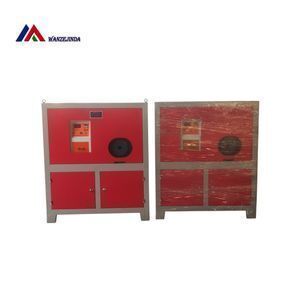

High temperature steel tube end forming machine cone
-
Supplier: Shanxi Wanzejinda Machinery Manufacturer Co., Ltd. -
Region: Shanxi, China -
Contact: Mr OCEAN XUE -
Price: $8194.00 /set -
Min. Order: 1 set
Product details
| Year: | 2019; | Certification: | ISO 9001:2000; |
| POWER: | 5.5KW; | Condition: | New; |
| VOLTAGE: | 380V; | WEIGHT: | 1300KGS; |
| Automation: | Automatic; | HEATING POWER: | 35KW (CAN CUSTOMIZE); |
| Warranty: | 1 Year; | Material / Metal Processed: | Brass / Copper,ALLOY,Stainless Steel,Aluminum,Carbon Steel; |
| TAPERED LENGTH: | 8-10CM; | WORKING SPEED: | 8 SECOND/PIECE; |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Machine Type: | Pipe End Forming Machine; |
| Port: | XINGANG; | PIPE THICKNESS: | 3-8MM; |
| Brand Name: | WZJD; | Packaging Detail: | STANDARD EXPORT WOODEN CASE; |
| Raw Material: | PIPE; | Place of Origin: | Shanxi China (Mainland); |
| After-sales Service Provided: | Free spare parts,Online support,Video technical support; | Extra Services: | Heat Treating; |
| DIMENSION: | 800MM X 730MM X 1400MM; | MODEL NO.: | GSJ-42; |
| Power: | Hydraulic; | PIPE OUT DIAMETER: | 42MM; |
| Supply Ability: | 500 Set/Sets per Year small catheter shrink tip machine; |
| SPECIFICATION | |||||
| MODEL NO. | GSJ-42 / GSJ-50 | ||||
| PIPE OUT DIAMETER | 42mm/50mm | ||||
| PIPE THICKNESS | 3-8mm | ||||
| TAPERED LENGTH | 8-10cm | ||||
| HEATING POWER | 35kw(can customize) | ||||
| POWER | 5.5kw | ||||
| WORKING SPEED | 8"/PIECE | ||||
| DIMENSION | 800mm x 730mm x 1400mm | ||||
| WEIGHT | 1300KGS | ||||
| DESCRIPTION | |||||
| Small duct grouting is a shallow buried tunnel supporting measures. | |||||
| It is used to process the automatic machining of tapered head, which is characterized by low noise, | |||||
| easy operation, high yield and stable performance. The surface is smooth and the workpiece has no scar. | |||||
| There is a closed-loop lubrication system to ensure that the machine is running normally for a long time. | |||||
| The machine tool replacement is simple and can be used to process different metal pipes to meet different demands. | |||||
| FEATURE | |||||
| 1.LOW NOISE, EASY OPERATION, HIGH OUTPUT, STABLE PERFORMANCE. | |||||
| 2.WORKPIECE TIME WILL BE REDUCED WITH HIGH EFFICIENCY | |||||
| 3.SAVE CONSUMABLES AND SAVE COST | |||||
| 4.A SMOOTH SURFACE, WITHOUT ANY PRODUCING SCARS. | |||||
| 5.THE MOULD CHANGING IS EASIER | |||||
| 6.DIFFERENT CLIENTS NEED WILL BE SATISFIED BY DIFFERENT MOULD | |||||
| 7.THE FINISHED PRODUCTS IS STANDARD | |||||
| 8.IT CAN REPLACE 5-8 WORKERS AND INCREASE PRODUCTION |
