Product Details

Keyword:	CARBON WELDING ELECTRODE AWS E6013;	Welding Current:	40-280A;
Port:	Tianjin, China;	Package Preview:	;
MOQ:	5 Ton;	Model:	AWS A5.1 e6013;
Brand Name:	BRIDGE;	Operating Temperature:	NORMAL TEMPERATURE;
Certification:	ABS,ISO,CE,BV,BKI,ABS,NAKS,BKI,LR,NK;	Operating Current:	AC/DC;
Usages:	Welding Carbon Steel Structure;	Type:	Welding Electrode E6013;
Warranty:	1 YEAR;	Material:	CARBON STEEL;
Model Number:	AWS E6013;	Product Name:	Welding Rod;
Payment Terms:	L/C,T/T;	Place of Origin:	Tianjin China;
Standard:	AWS A.5.1 E6013;	Customized support:	OBM;
Supply Ability:	1000 Metric Ton/Metric Tons per Month;	Size:	2.0-5.0;
Advantage:	Small Smoke;	Application:	CARBON STEEL;
Packaging Detail:	2.5mm x 300mm 2.5kg/bag, 3.2mm/4.0mm/5.0mm 5kg/bag, 20kg/carton;

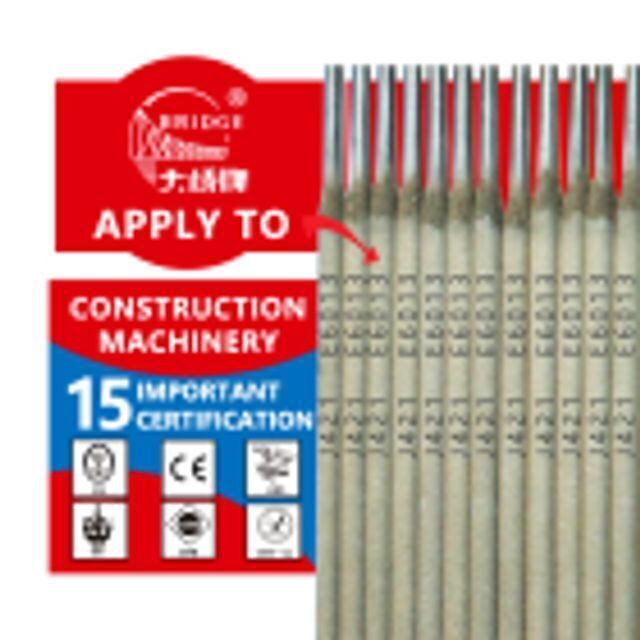

J421

Rutile Type Electrode

AWS A5.1 E6013

ISO 2560-A-E35 0 RA 12

Applications:

It is Suitable for welding low carbon steel structure, especially suitable for the welding of thin plate and short weld of discontinuous and covering welding which requires smooth surface.

Features:

J421 is a coated rutile type acid electrode. Both AC and DC can be used and can be all-position welding. It can reach excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance.

Attention:

In general, don't need to bake before welding electrode. When the electrode be affected with damp,it should be subject to use 150-170℃ for 0.5-1hour.

DEPOSIT COMPOSITION(Quality Score): %

items	C	Mn	Si	S	P	Ni	Cr	Mo	V
Require-ments	≤0.10	0.32-0.55	≤0.30	≤0.030	≤0.035	≤0.30	≤0.20	≤0.30	≤0.08
Typical Results	0.08	0.37	0.18	0.020	0.025	0.030	0.035	0.005	0.004

MECHANICAL PROPERTIES:

items

Tensile Strength

Rm/MPa

Yield Strength Rel/Rp_0.2 MPa

Elongation

A/%

Charpy V-Notch

KV₂(J)0℃

Require-ments

440-560

≥355

≥22

≥47

Typical Results

500

430

X-ray flaw detection: Ⅱ level

TYPICAL OPERATING PROCEDURES:(AC,DC)

Diameter

in(mm)

2.0

2.5

3.2

4.0

5.0

5.8

Current

in(A)

40-70

50-90

80-130

150-200

180-240

220-280

Classification Society Certification:

Ship inspection agency	ABS	BV	CCS	DNV	GL	LR	NK	CWB
Recognition level	2	2	2	2	2	2m	KMW2	E4313

The European Union certification:

Certification authority

CPD - CE certification of steel structure

Type

ISO 2560-A-E35 0 RA 12

--- PRODUCT DISPLAY ---

--- PRODUCT APPLICATION ---

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade applied to hydro steel at Laos pumped storage power station E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project.
