15kg clothes drying machine

Supplier: Shanghai Flying Fish Machinery Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Alice Zhang
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine Type:	15kg clothes drying machine;	Weight:	250kg ~1000kg;
Place of Origin:	Shanghai China;	Warranty:	12 month;
After-sales Service Provided:	No overseas service provided;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Condition:	New;	Fuel:	Electric;
Cleaning Type:	Clean-In-Place (CIP);	Port:	Shanghai/Zhejiang/Fujian/Shandong/Guangdong;
Packaging Detail:	according to order fo 15kg clothes drying machine;	Model Number:	HG clothes drying machine;
Feature:	Critical Cleaning / Residue Free;	Delivery Detail:	2-40 days of 15kg clothes drying machine;
Certification:	CE,CE;	Voltage:	220/240/380/415/440;
Material:	stainless steel;	Type:	Drum Drying Equipment;
Supply Ability:	5000 Set/Sets per Year 15kg clothes drying machine;	Cleaning Process:	Cold Water Cleaning;
use for:	For clothes, garment;	Industry Used:	hospital, hotel, laundry, dry cleaing shop;
Brand Name:	Flying Fish clothes drying machine;

Product Description

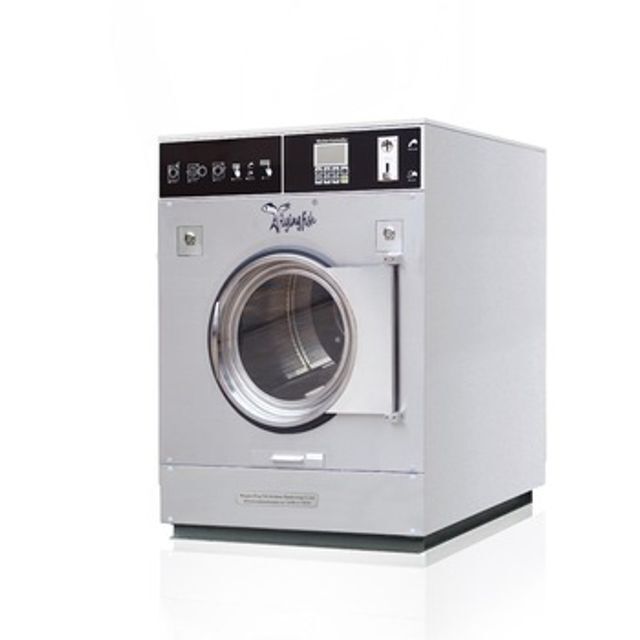

15kg clothes drying machine

1,Heating: electrical,gas,steam, electrical and steam, coal. Operator could choose.
2,Drums are all in stainless steel,panels are in stainless steel or spray material, prevent the pollution of corrosion to fabric.
3,Large door, easy loading and unloading, opens 180°, option:left or right opening.
4, Optimal design of cooling fan, with the best heat dissipation, wind speed.
5, Fully automatic computer control the temperature, temperature control devices, over-temperature protection device.
6, Easy accessibility to the vital parts, easy service, quick replacement of the belt.

All information is subject to change without notice.

Model		HG-30	HG-35	HG-50	HG-70	HG-100
Capacity	kg	30	35	50	70	100
Drum Dimension	mm	Φ980x840	Φ970x1000	Φ1070x1000	Φ1200x1000	Φ1500x1100
Drum voluem	l	633	739	900	1130	1943
Motor Power	kw	0.75	0.75	1.1	1.5	2.2
Fan power	kw	0.75	0.75	1.1	1.5	1.5x2
Heating power	kw	32	32	39.6	51	65
Steam Pressure	mpa	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Consumes of Steam	kg	60-70	60-70	70-80	80-100	120-150
Dimension(L.W.H)	mm	1130x1370x1920	1060x1560x2000	1320x1550x1988	1380x1590x2200	1600x1880x2430
Net Weight	kg	385	480	550	700	1000

Model		HG-10	HG-15	HG-20	HG-25
Capacity	kg	10	15	20	25
Drum Dimension	mm	Φ670x350	Φ750x645	Φ890x700	Φ970x670
Drum voluem	l	123	285	435	495
Motor Power	kw	0.55	0.55	0.75	0.75
Fan power	kw	0.55	0.55	0.75	0.75
Heating power	kw	14.8	14.8	20	20.25
Steam Pressure	mpa		0.4-0.6	0.4-0.6	0.4-0.6
Consumes of Steam	kg		40-50	50-60	50-60
Dimension(L.W.H)	mm	1000x870x1780	840x1180x1700	1040x1210x1780	1060x1250x2000
Net Weight	kg	250	400	430	450
