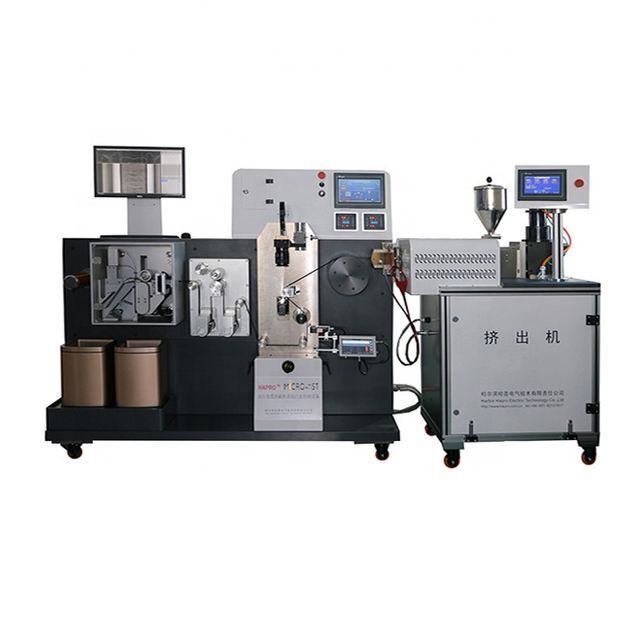

Surface finish detection system of high-voltage cable semiconductive material strip

Supplier: CHENGDU MICROVAST TRADING CO., LTD
Region: Sichuan, China
Price: $166000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Heilongjiang China;	Certification:	CE;
Application:	Suitable for processing PVC powder and other polymer materials.;	Brand Name:	MICROVAST;
Warranty:	1years;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Packaging Detail:	It is packed in wooden case and filled with foam or foam paper to ensure the equipment reaches your laboratory safely;	Customized support:	OEM,OBM;

The structure of XLPE high voltage cable insulation is composed of an insulative layer and semiconductive layers. The semiconductiv material is a blend of polyolefin elastomer material and carbon black, which is used for the boundary layer of the electric field of the cable insulation layer. Since the physical properties of the semiconductive layer and the insulative layer are similar, they are also co-extruded in the production process, there is no air gap at the interface. The electric field in the insulation from the high potential of the core shielding layer to the low potential of the external shielding layer is perfect in XLPE insulation layer, which can withstand higher operating voltage and service life. According to the principle of higher electric field strength at the small curvature radius of the equipotential surface, the semi-conductive layer faces the insulation. If there are protrusions on the interface, it will cause the increase of the electric field strength to damage the insulation. Therefore for, the production of semi-conductive materials and cable insulation systems, it is required to limit the number and size of the protrusions on the surface of the semi-conductive layer strictly. The specific implementation of the quality control system is to control the number and size of the protrusions on the surface of the semiconductive material strip.

Product Description

Extrusion system Technology Parameters
Power supply	3*380V，50/60Hz,+N,+PE
Motor	Schneider servo motor
Power of motor	1.8kW
Reduction ratio	1 : 35
Screw diameter	20mm
Screw L:D	25 : 1
Screw material	Imported high-strength alloy steel
Screw compression	1.5：1
Temperature control system	RKC company of Japan, heating and cooling dual PID control
Feeding	Volumetric feeder
Maximum controlle temperature	350℃
Temperature sensor	J type thermocouple
Heating zone	4 zone heating (3 zone heating and cooling of the screw barrel, heating zone 1 of the die)
Heating	Electrical heating
Heating power	4.0kW
Cooling	Wind
Die	lip of die 60mm*1.5mm
Film casting system Technology Parameters
Power supply	3*380V，50/60Hz,+N,+PE
Size of casting roll	Φ200mm*200mm
Center height of casting roller	1022mm
Thickness film of casting	25~30mm
Casting film thickness	0.5mm±0.02
Method of casting roll temperature control	constant temperature control of the cooling and heating integrated machine
Casting roller drive motor power	Servo motor 640W
Traction roller drive motor power	Servo motor 640W
Optical inspection system Technology Parameters
Thickness of measurement	0.4~0.5mm
Resolution of protrusion height	20μm
Width of field	0~75mm
Width of detection	44mm
Width of the minimum imaging	10μm
Width of the minimum measurement size	30μm
Detection rates	100％
Speed of measurement	＞1kg/h
Work environment	The class of ten thousand
Operating temperature	0~+40℃
Film-drawing speed	0~110mm/s
Environment humidity	＜65％
Diameter	40mm
Coaxial accuracy	3μm
Test light source	220mm line-scanning light source
