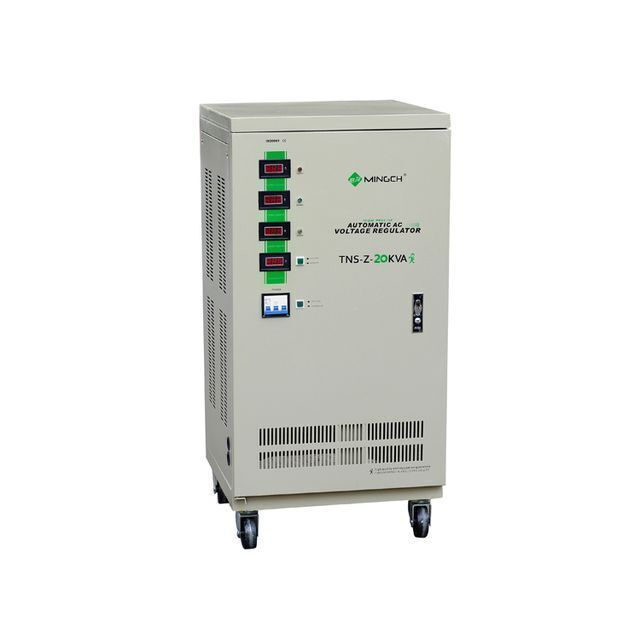

MINGCH Three-Phase Tns Svc 15kva 20kva 30kva 40kva 50kva 60kva 75kva 100k Voltage Stabilizer For Elevator With Surge Protector

Supplier: Zhejiang Mingch Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ken Wan
Price: $315.00 /set
Min. Order: 1 set

Click here to contact

Product details

Input Voltage:	230-430V;	Capacity:	20KVA (1.5 KVA to 100 KVA Available);
Usage:	To stabilize the input voltage automatically,To stabilize the input voltage automatically;	Output Voltage:	380V;
Response Time:	≤1S;	Phase:	Three Phase;
Model Number:	TNS-Z-20KVA;	Ambient Temperature:	-10℃~+40℃;
Packaging Detail:	small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package. big capacity products, we use strong plywood case.;	Efficiency:	≥90%;
Item Name:	Three-Phase 20kva Voltage Stabilizer;	Brand Name:	MINGCH or OEM Logo;
Main Products:	Voltage Regulator,Voltage Stabilizer,AVR,UPS,Inverter and so on.;	Port:	Ningbo or Shanghai or any other ports in China.;
Protection:	Over/Under Voltage, Short Circuit, Over Temperature, Phase Failure,etc;	Supply Ability:	600 Set/Sets per Month Three-Phase 20kva Voltage Stabilizer;
Current Type:	AC;	Place of Origin:	Zhejiang China;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;

You are here:Home>>Voltage Regulators/Stabilizers>>TNS-Z Voltage Regulator

MINGCH Three-Phase Tns Svc 15kva 20kva 30kva 40kva 50kva 60kva 75kva 100k Voltage Stabilizer For Elevator With Surge Protector

Product Description

TNS-Z series three phases high precision automatic voltage regulator is combined with TND(SVC) single phase high precision automatic voltage regulator .

Three phases adjust individually to guarantee steady safe voltage in per phase
Network is three phases four wires system, starlike (Y) connection, the output power made in three phases four wires or three phases three wires

Specification	TNS-Z 1.5KVA up to 100KVA
Input Voltage	230-430V
Output Voltage	380V
Output Deviance	1-3%(Adjustable)
Frequency	50/60Hz
Efficiency	≥90%
Response Time	≤1S
Ambient Temperature	-10℃~+40℃
Insulation Resistance	≥5MΩ
Overload	Double Reted Current,One Min
Waveform Distortion	Non-Lack Fidelity Wareform
Protect	Overvoltage,Overcurrent,Lack Phases
Trade Items
MOQ	1 Set
Design Ability	OEM&ODM is welcome,can supply sample
Certification	CCC,CE,ISO9001,ISO14001,SGS
Packing	Standard Export Packing
Payment Term	Trade Assurance,T/T,L/C,D/A,D/P Western Union MoneyGram and so on
Delivery time	7-10 working days after payment received

Model	Rated Capacity(KVA)	Weight(KG)	*Outline (LWH, CM)*
TNS-Z-1.5 K	1.5	20	*48.522.517*
TNS-Z-3 K	3	24	*48.522.517*
TNS-Z-4.5 K	4.5	28	*48.522.517*
TNS-Z-6 K	6	34	*362868*
TNS-Z-9K	9	43	*383278*
TNS-Z-15 K	15	68	*443678*
TNS-Z-20 K	20	85	*524086*
TNS-Z-30 K	30	91	*494697*
TNS-Z-40 K	40	175	*6457118*
TNS-Z-50 K	50	185	*6457118*
TNS-Z-60 K	60	196	*6457118*
TNS-Z-80 K	80	233	*6755132*
TNS-Z-100 K	100	257	*8170147*

Company Information

Mingch Electrical is a manufacturer specialized in development,production,marketing as a body electric power voltage regulator.Since origination,it has been persisting in taking the science and technology as the forerunner,the abundant technology as a backing,and positively introducing the overseas advanced technology,unceasingly improve and consummate the products, many years specialized management,the product best-selling nation,While exports to Bangladesh,Myanmar,India,Russia,Indonesia,Thailand and other countries in Southeast Asia and Africa, some of them are well sold to the world meanwhile receive high praise from the majority of customers.

Our Advantage

Certifications

Packaging & Shipping

1.Packaging:

Small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.

Big capacity products, we use strong plywood case.
2.Shipping Methods:
By air or by sea(FOB port:Ningbo),by express (DHL,UPS,TNT,FEDEX).

FAQ

Q1: What is the Guarantee?

A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.
Important:
a. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don’t let them work overload!
b. Please make sure that all the electric wires are connected correctly according to the electric diagram

Q2: Can we put/show our own Logo on your products?

A2: Yes, no problem, however, the quantity should be a bit big.

Q3: Is OEM/ODM available?

A3: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept., we design and produce all kinds of Automatic Voltage Regulators/Stabilizers according to our customers’ specific requirements.

Q4: What is the MOQ?

A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.

Q5: Can you offer Form A or Form E or C/O ?

A5: Yes, no problem, we can apply for it from our local government.

Q6: What kind of Certificates do you have?

A6: CE, ISO9001 and SGS.

Q7: What is the Terms of Payment?

A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).

Please don't be hesitate to Contact Us for any questions,your inquiry will be on our priority attention and fastest reply!
