Low Cost Pouch Single Wet Wipe Making and Packing Machine

Supplier: Foshan Ocpack Packaging Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Lana Lee
Price: $15600.00 / 1 - 1 sets
$15300.00 / 2 - 2 sets
$15000.00 / 3 - 3 sets
$14800.00 / >=4 sets
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Guangdong China;	Dimension(LWH):	(L)3770(W)670(H)1450mm,(L)3770(W)670(H)1450mm;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;	Products heigh:	Max.55mm;
Power:	220V,50/60HZ,2.4KVA,2.2KVA;	Certification:	ISO9001 CE;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Film roll width:	Max.250mm;
Brand Name:	OCPACK;	Video outgoing-inspection:	Provided;
Marketing Type:	Wet Wipe Packing Machine;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Packing speed:	50-230bags/min;	Warranty:	2 years;
Warranty of core components:	More than 5 years;	Single gross weight:	850.0 KG;
Selling Units:	Single item;	Film Thinkness:	0.04-0.06mm;
Voltage:	220-380V,220-380V;	Packaging Detail:	A.Standard Export Plywood Packaging B.According the customer to request to packaging C.Other packaging detail please contacts seller to confirm;
Condition:	New;	Machinery Test Report:	Provided;
The biggest roll diameter:	Max.300mm;	Single package size:	250X230X190 cm;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Weight:	850kg;	Packaging film material:	OPP/CPP,OPP/CE,MST/PE, PET ETC.;
Film roll length:	Max.280mm;

Machine Description

Advantages:

1. Four sides sealing package bag,it makes your product looks nicer and different from the normal product in the market.
2. The machine is made by compact construction,ensure the long life using.
3. The machine use top quality brands component parts for drive and control system,ensure the stable,reliable and durable operation.
4. The control system is PLC and Touch Screen,machine drives by servo motor control system,make the machine precise and convenient operation.
5. Wide selection of operation language available in touch screen,including English,Arabic,Spanish,French,Korean,Japanese,Russian etc.
6. Synchronous motor to ensure the tissue and essence to be filled at same time,more reliable and stable compared to cylinder control system.
7. Easy tear V type notch device,to make your wet wipe friendly and easy use to customer.
8. Nice date coding device,same as pharmaceutical machinery standard.
9. The machine uses Electro-Optical Sensor System(EOSS) to realize automatic alignment on the packing films and guarantee the same appearance of each bag.
10. The machine equip with adcanced Japanese Essence Liquid filling system,to control the filling accurancy of essence liquid.
11. Machine runs at low DB,make your workshop not too noisy.
12. The maintenance cost is low because of few damageable assemblies.
13. Highly automation,just one person is able to control several sets of machines.
14. Wide selection range of folding options,10 folds vertical and 4 folding horizontal.

Model NO.	OC-250B-1
Capacity	60-120 bags/min
Bag sealing type	Four sides sealing
Bag size range	(L)40-125mm (W)40-110mm
Tissue material	30-80g/m2 airlay paper,wet strength paper,spunlace nonwoven fabric
Packing material	Lamination film,paper,aluminium
Folding option	Max.10 folding vertical,4 folding horizontal
Liquid range	1-12 grams
Machine noise	≦64.9 DB
Air consumption	300-500ml/min, 0.6-1.0Mpa
Total Power	2.8KW
Power Supply	220/380V 50/60HZ
Machine weight	950kgs
Machine dimension	2700x2500x1800mm (LxWxH)

Application:

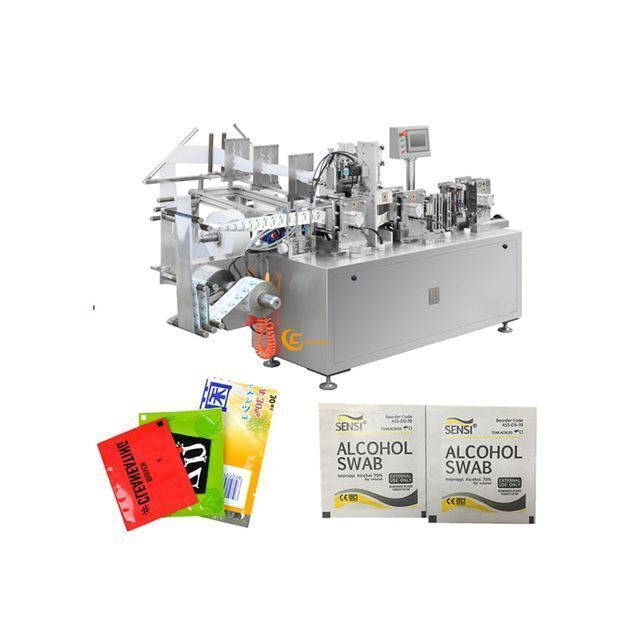

OC-250B-1 is designed as automatic packaging solution for disposable Wet Wipes and Alcohol Swabs and Cosmetic Swabs. It is widly used in cosmetic,pharmacy,cleaning industry.

OCPACK Service

OCPACK Advantage

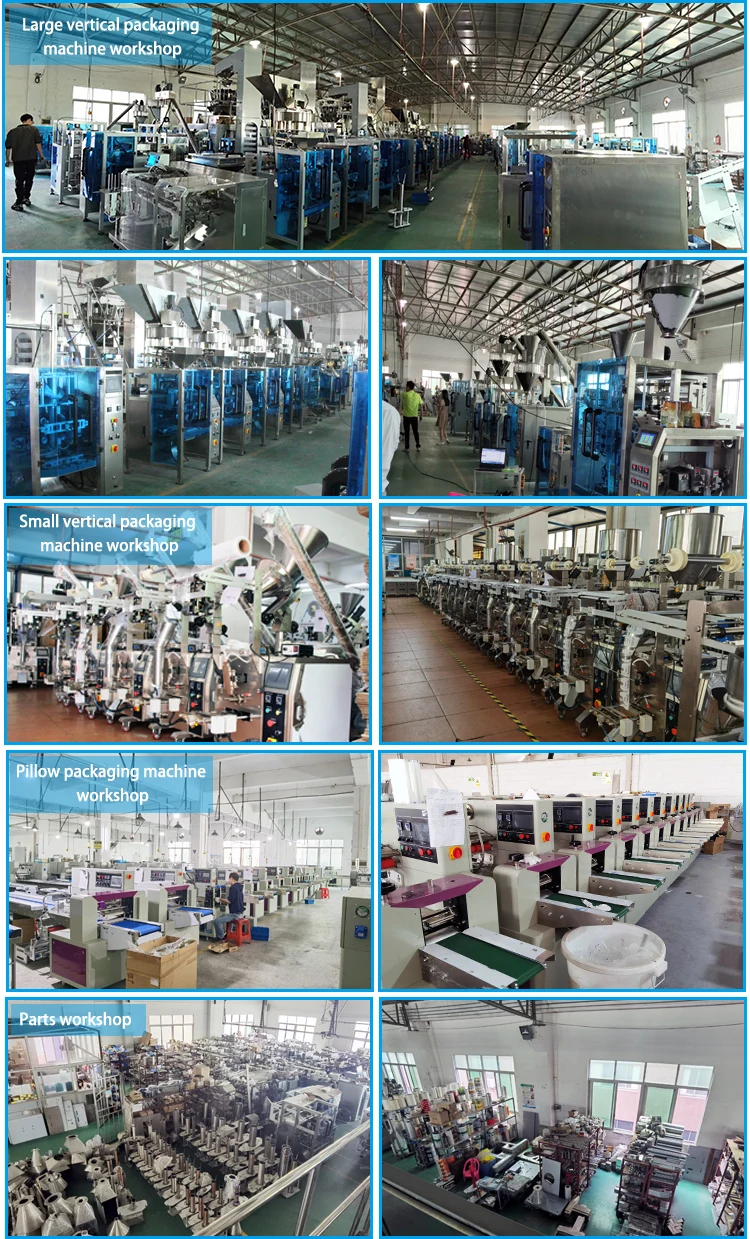

Ocpack Packing Machinery is located in Nanhai District, Foshan city, with plant area of over 6,000 square meters, respectively producing 3 main categories of packaging machines: large vertical packaging machine, small vertical packaging machine, and pillow packaging machine. And the main popular products are granules packing machine,powder packing machine, tea bag packing machine,liquid packing machine,puffed food packing machine, gift box packaging machine, fresh fruit and vegetable packaging machine and etc., exported to Southeast Asia, Europe and the United States, South America, the Middle East and so on, getting the users of praise.

Packaging

Packaging
Unit Composition	Main Machine, Z Type Hoist/ Working Support/Weighing/Finished Products Conveyor
Quantity	4 piece wooden case
Weight	1150kg/11CBM
Packaging Details	1. The normal package is standard export plywooden box(Size: LWH). 2. Export to whole world the wooden box not need fumigated. 3. Packaging type according to customers special request.

Company Advantage:

1. Factories area with over 6000 square meters.
2. Worker more then 300 peoples, has a professional production R7D team, can provide customized services and OEM production services.
3. 16 years automatic packaging machine design and manufacturer experience.
4. Export to 50 countries, Hope our packaging machine can be found all over the world
5. 2 years warranty of electronic parts and Lifetime maintenance.
