Factory Price Sinotruk Howo 11000liters Vacuum Sewage Suction Tanker Truck

Product details
Port:China main port;车身尺寸:7400*2496*3350(custom);
Supply Ability:1000 Unit/Units per Year;Fuel Type:Diesel;
After-sales Service Provided:Online support,Field installation, commissioning and training;Brand Name:Sinotruk;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Packaging Detail:Nude or Waxing in Roro or bulk ship;
Gross Vehicle Weight:24000;Transmission Type:Manual;
Wheel base:4300+1350(mm);Tank Volume:15000--50000L;
Condition:New;Emission Standard:Euro 3;
Place of Origin:Shandong China;Package Preview:;
Horsepower:336--420;Color:White, red, green, golden;
Max. speed:95km/h;

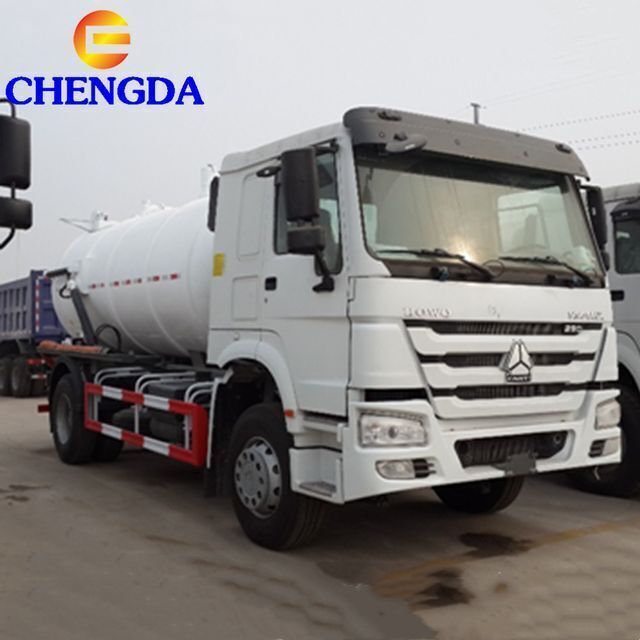

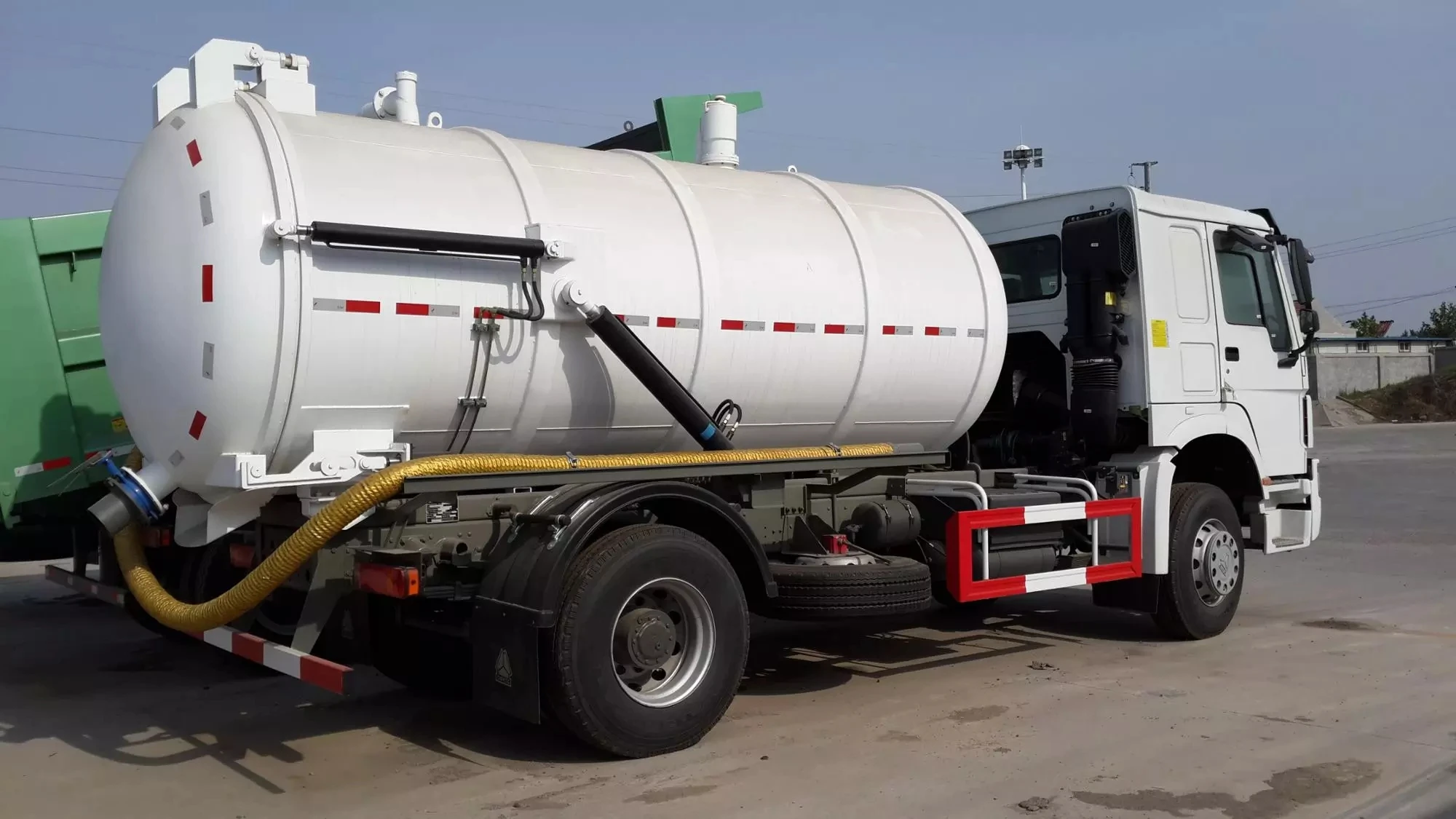

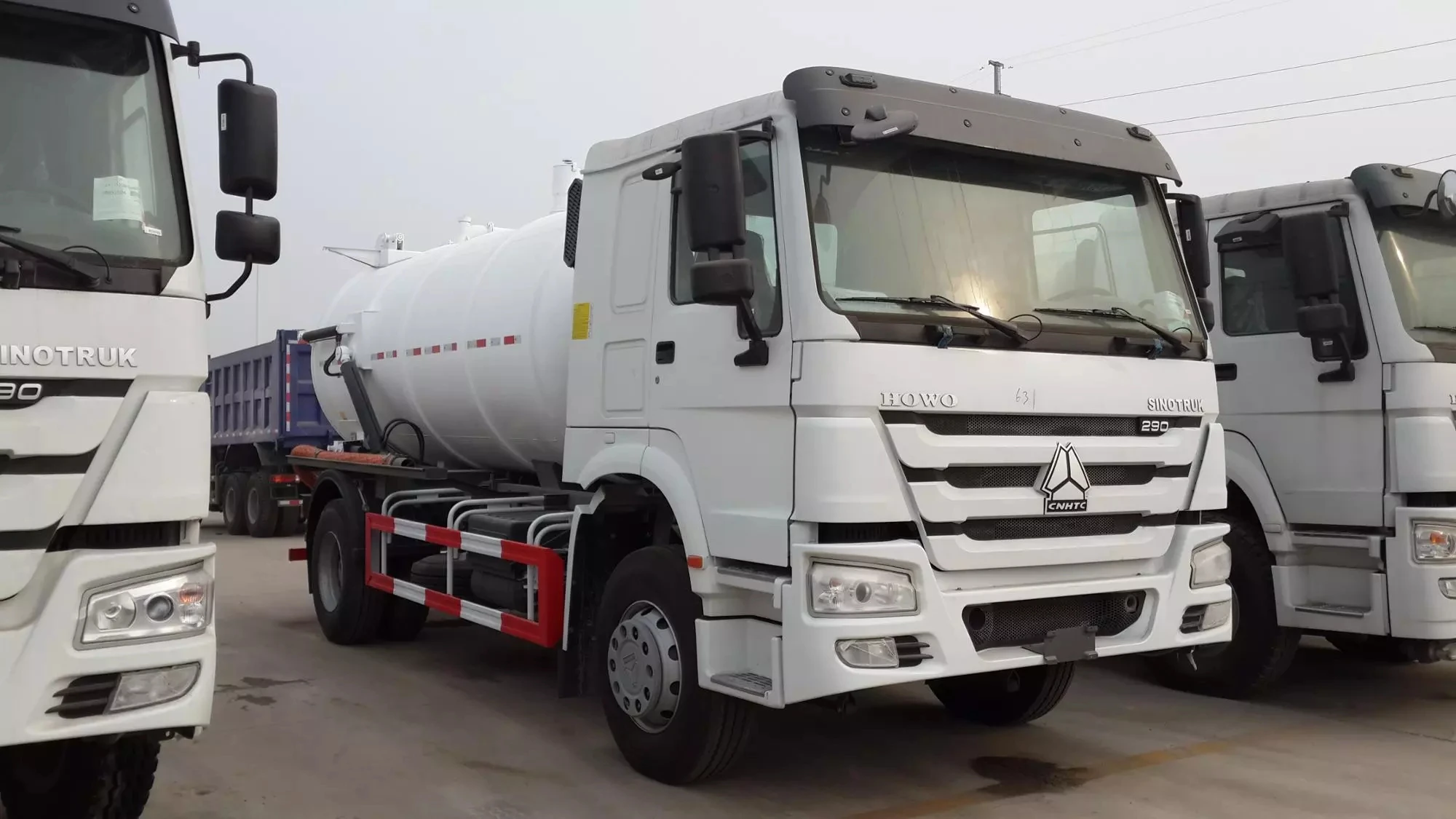

SINOTRUK HOWO 10000L sewage suction tanker truck sewage truck



Specification



Product

10m3 sewage drain truck

loading capacity

10m3

Parameters

Overall dimension L/W/H (mm)

8250×2490×3300

Curb Mass(kg)

7925

Fuel Type

Diesel

Max Speed(km/h)

90

Cabin Construction

Forward Control, All Metal, Tilt Cab, With Air-condition.

Cab Seating capacity

Driver + 2 Passengers ,one sleeper

Parking Brake

Hand Operated, Spring Actuated, Acting on Rear Wheels.

Engine

Type

B190 33

Displacement(ml)/Power(hp)

5900/190

Emission standard

EGR

Transmission box

8Forward Gears 1 reverse gear

Chassis

Drive position

RHD and LHD optional

Drive type

4x2

Wheelbase(mm)

4500

Tire Type

10.00-20

Tank Construction

horizontally mounted tank with domed ends, Internal welded surge baffles,

Full tank length sub frame with side walks, Access ladder to top inspection

cover, Sub frame integral with tank & dismountable from chassis, Lockable

quick release locking mechanism on inspection cover. Durable internal corrosion

protection, Fabricated from 5 mm medium carbon steel plate welded from inside

and outside, Lifting eyes on top of tank for handling, Quick opening 100mm

intake & purge valve, Float ball (full tank) shut off valve to stop entry of liquid into

pump suction. Sight glass at front ded end indicating maximum liquid level.

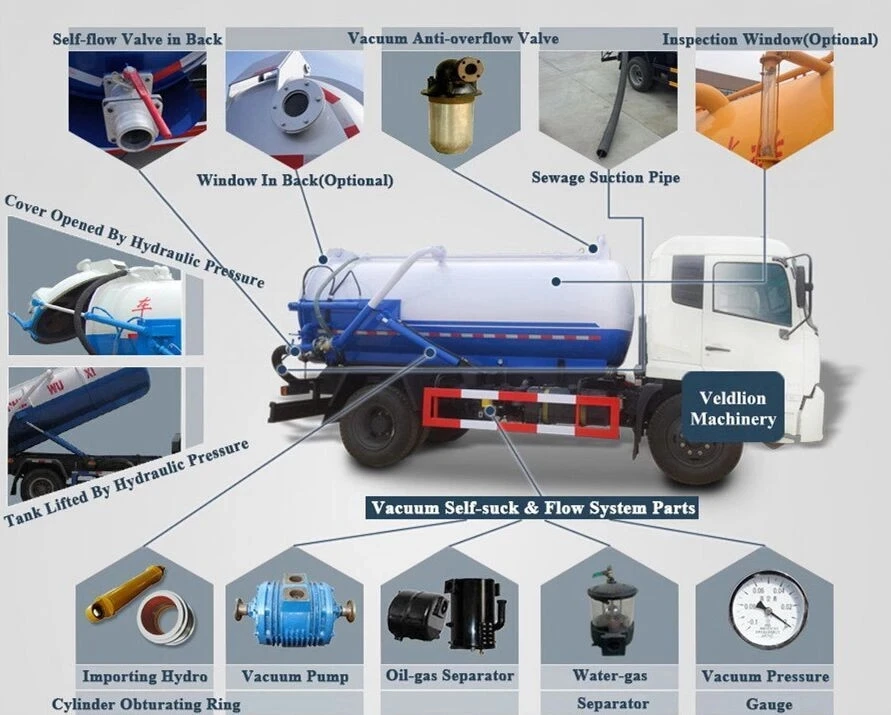

Pumping

Equipment

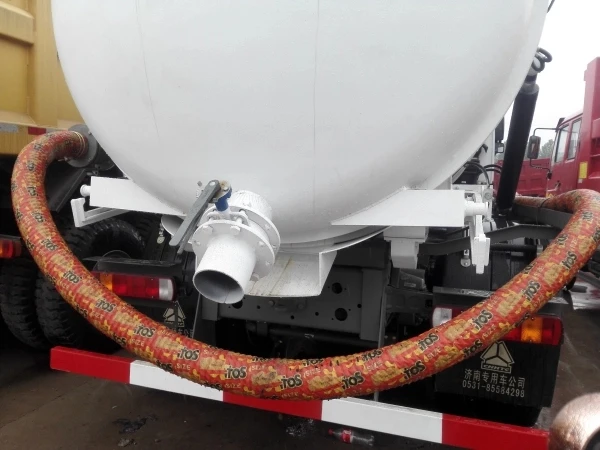

Power Source : Driven by main engine through PTO shaft.

Pump Accessories: Vacuum pressure gauge, Automatic pressure relief valve,

Automatic vacuum relief

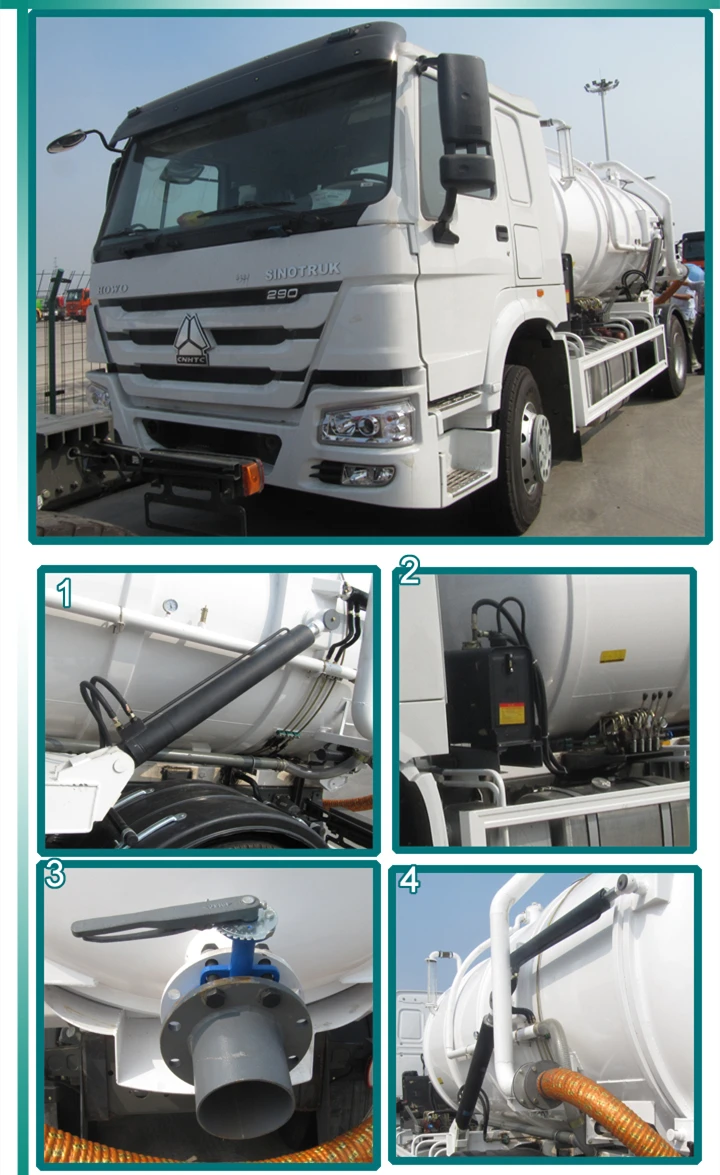

Detailed Images

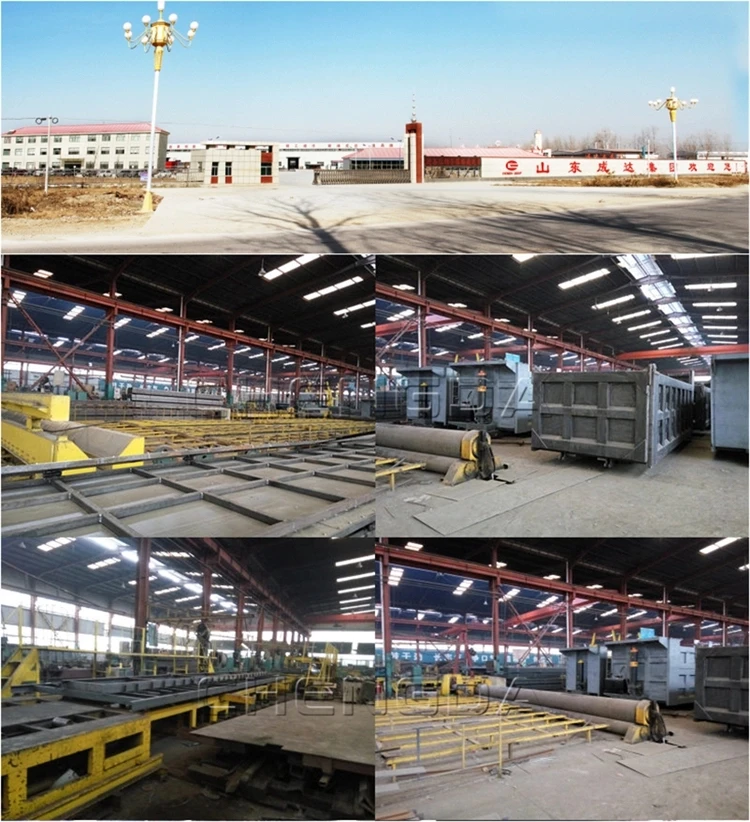

Company Information



Packaging & Shipping





Related Products



FAQ

1. How do you transport the trucks and trailers?

We transport the semi trailers by bulk,container or RORO ship. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. How about your product quality?
All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

3. Can you satisfy my special requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

4. How can you guarantee quality?

Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by Chengda group,every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.

5. I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
