Phonetone 4G LTE 698-2700MHz Outdoor Directional LPDA Antenna with high gain 12dbi

Product details
Packaging Detail:1pcs packed in one PE bag , and all packed in an carton box;Type:External;
antenna color:white/black (optional);Certification:RoHS;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;Supply Ability:20000 Chain/Chains per Day 4G LTE 698-2700MHz Outdoor Directional LPDA Antenna;
Place of Origin:Guangdong China;Material:UV protected ABS;
Product Name:4G LTE 698-2700MHz Outdoor Directional LPDA Antenna;connector:SMA/TNC/N (depend on your request);
Model Number:YNX-LPDA--85X1;Polarization Type:Vertical;
Max Input Power:100W;Compatible Brand:Yetnorson;
Port:Shenzhen;V.S.W.R:≤1.5;
Frequency Range:698-960/1700-2700Mhz;Brand Name:Yetnorson;
Gain(dBi):12dBi;Input Impendence:50ohm;
Antenna Size:450*215*65mm;

Phonetone 698-2700MHz Outdoor Directional 4G LTE LPDA Antenna with high gain 12dbi









Basic Specification of  4G LTE 698-2700MHz Outdoor Directional LPDA Antenna



Product Name

698-2700MHz LTE LPDA antenna

                                          Electric Specification

Frequency Range

698-960/1710-2700 MHz

Bandwidth

262/990MHz

Gain-dBi

12

Horizontal Beam width

70 °

Vertical Beam width

55 °

VSWR

≤1.5

F/B ratio

18

Input Impedance

50Ω

Polarization

Vertical

Maximum Power

100W

Connector

SMA/TNC/F/N

Cable Length

15m

                                   Mechanical Specifications

Dimensions

450x215x65mm






Basic Information of  4G LTE 698-2700MHz Outdoor Directional LPDA Antenna

1. LTE(698-2700MHz) Yetnorson Band.
2. 12dBi with SMA connector and 5m cable.
3. LTE spread spectrum communication system .

Antenna Key features of  4G LTE 698-2700MHz Outdoor Directional LPDA Antenna
1. 698-2700MHZ LTE system
2. Good appearance
3. Durable ,corrosion resistance

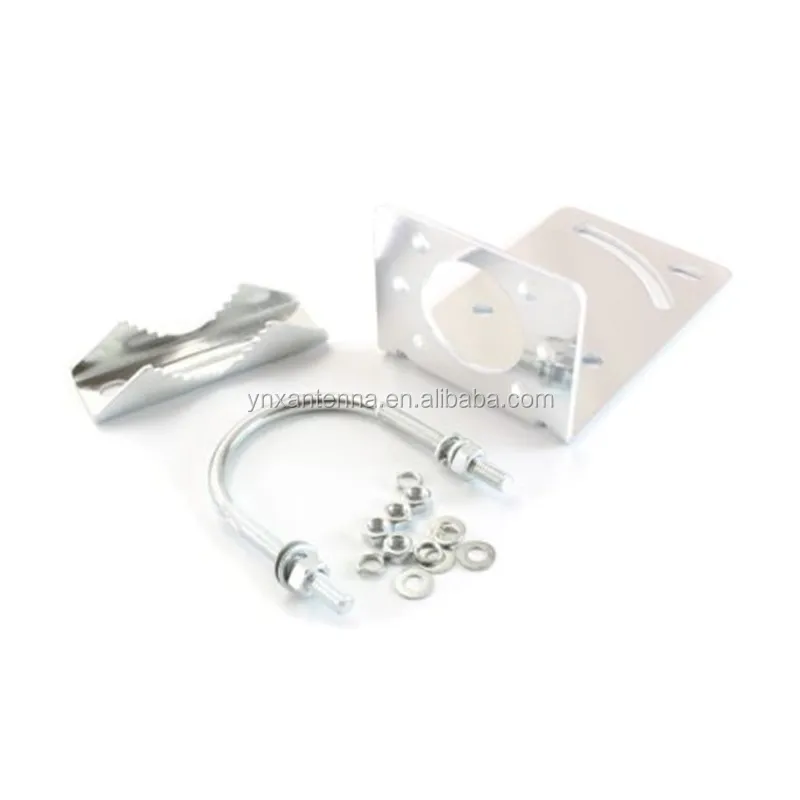

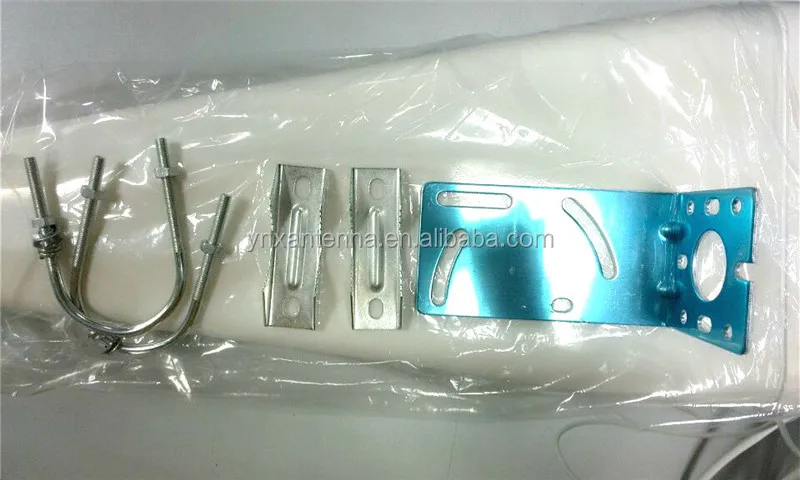

4. Provide with mount kits
5. Optimized dimension
6. Designed by board band technology
7. Lightning protection: DC grounded
8. Light weight,small size,nice appearance
9. Anti ultraviolet PVC material

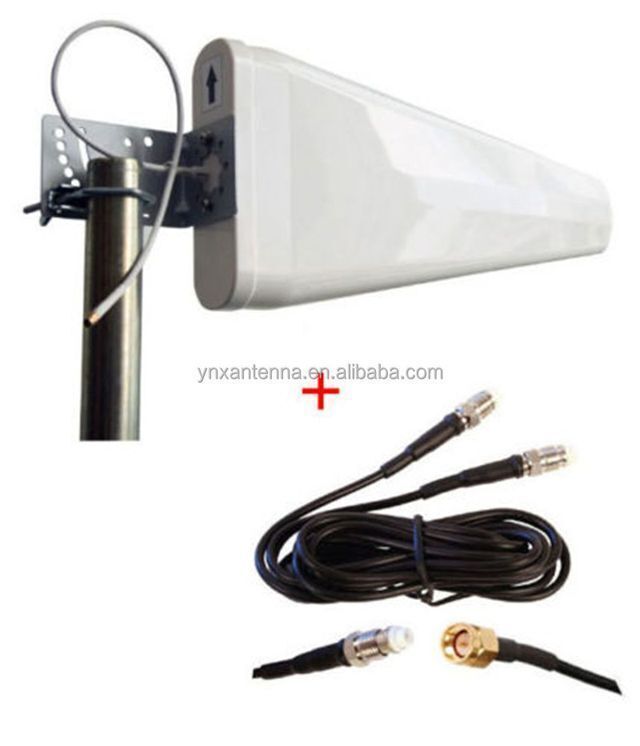

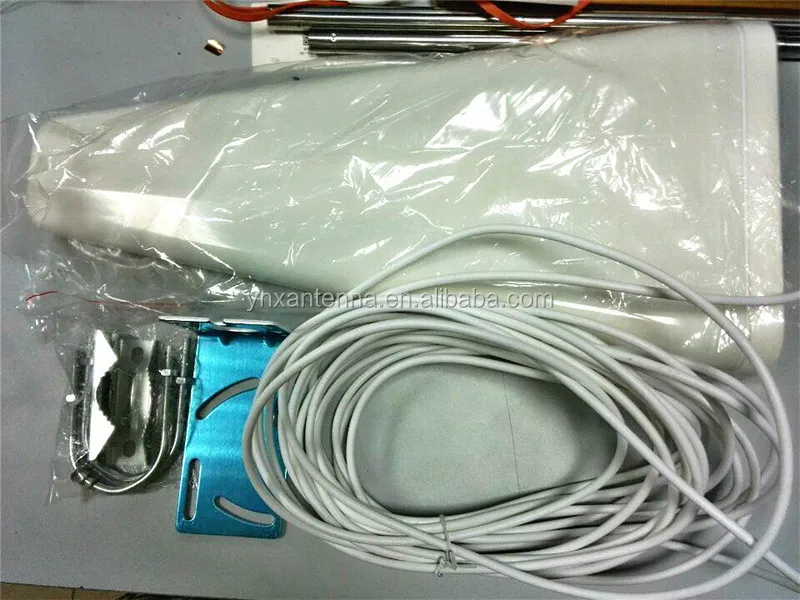

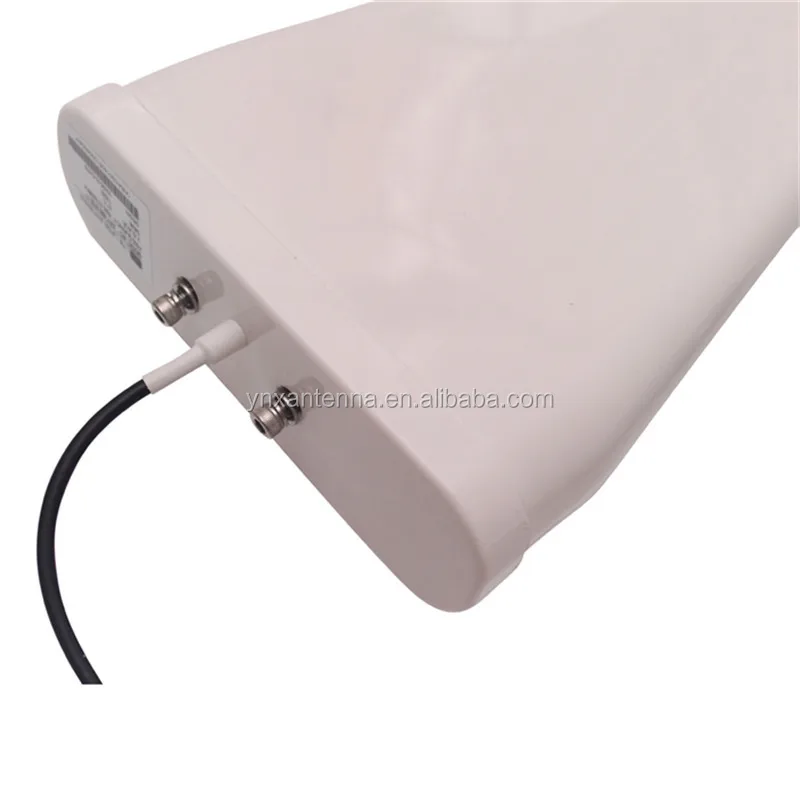

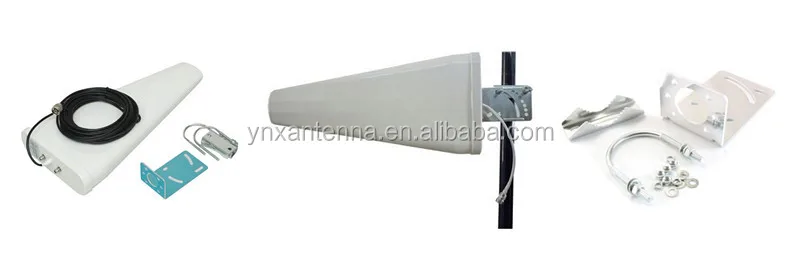

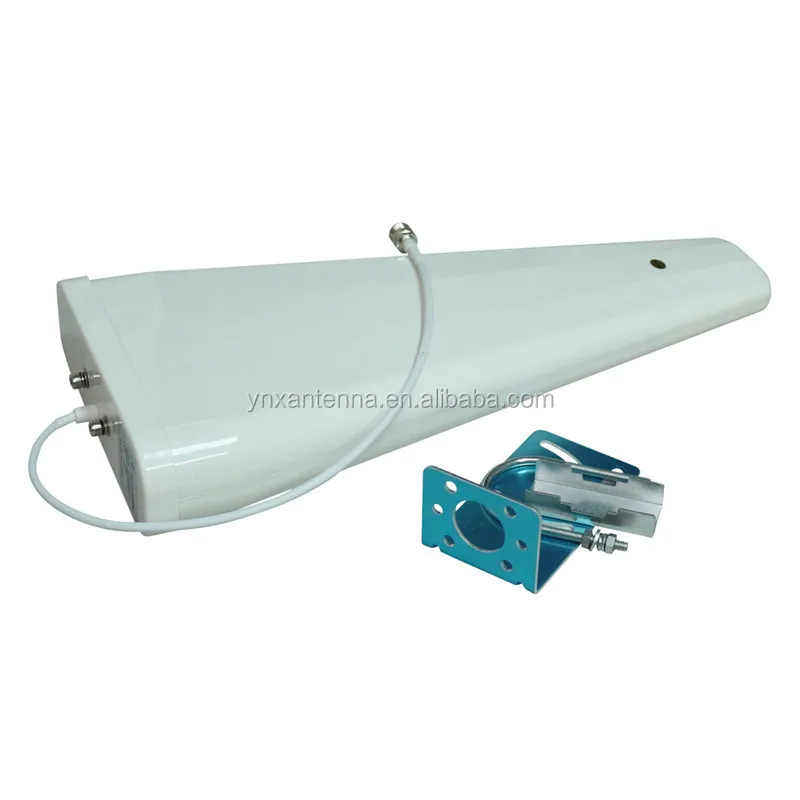

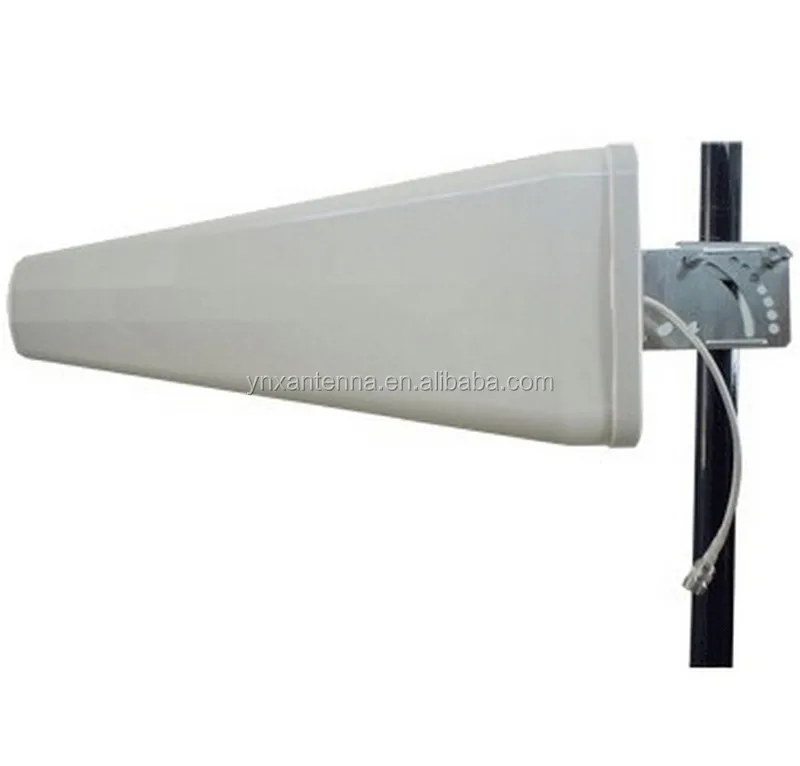

Product pictures of  4G LTE 698-2700MHz Outdoor Directional LPDA Antenna

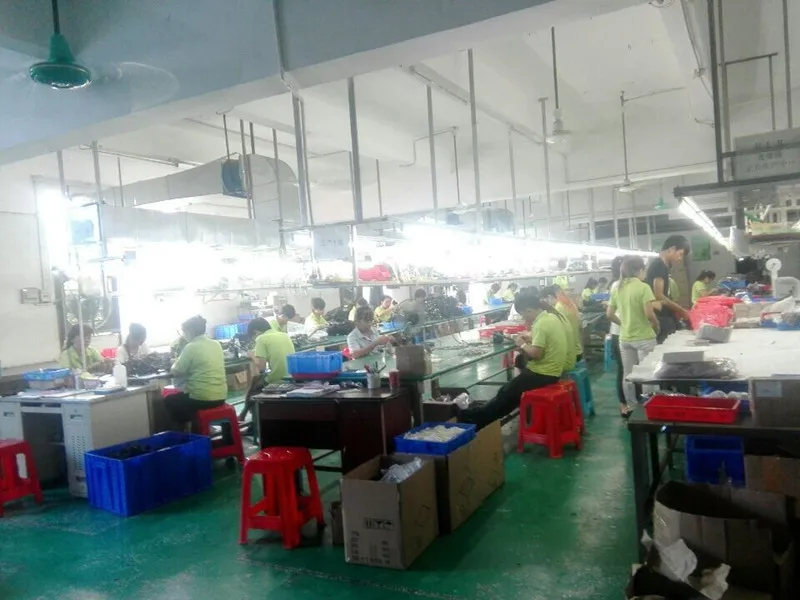

Company Information



  Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series


We Provide

1) High quality and competitive price
2) Standard packing and timely delivery
3) We supply OEM and ODM service
4) Sample Order and Small Order are acceptable





Certificate





FAQ



1,Q:what is you brand ?
A: Yetnorson  antennas

2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost and antenna cost  ,there we can send the sample to you


3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are

4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you



5.Q:Can you give me the deliver time?

A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
