600-2700MHZ LTE antenna 4G lte LPDA outdoor 4g lte router antenna support 2G 3G 4G network

Supplier: Yetnorson Antenna Co., Limited
Region: Guangdong, China
Contact: Ms Lisa Fang
Price: $1.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Material:	UV protected ABS;	Packaging Detail:	1pcs packed in one PE bag , and all packed in an carton box;
Type:	External;	Model Number:	4G lte LPDA outdoor router antenna;
connector:	TNC/N (depend on your request);	Brand Name:	Yetnorson;
Product Name:	4G lte LPDA outdoorantenna;	Frequency Range:	698-960/1700-2700Mhz;
Input Impendence:	50ohm;	Max Input Power:	100W;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Supply Ability:	20000 Chain/Chains per Day 4G lte LPDA outdoor 4g lte router antenna;
Size:	45021565mm;	Gain(dBi):	12dBi;
Place of Origin:	Guangdong China;	Port:	Shenzhen;
Polarization Type:	Vertical;	V.S.W.R:	≤1.6;
Compatible Brand:	Yetnorson;

600-2700MHZ LTE antenna 4G lte LPDA outdoor 4g lte router antenna support 2G 3G 4G network

Basic Specification of 4G lte LPDA outdoor 4g lte router antenna

Product Name	698-2700MHz LTE LPDA antenna
Electric Specification
Frequency Range	698-960/1710-2700 MHz
Bandwidth	262/990MHz
Gain-dBi	12
Horizontal Beam width	70 °
Vertical Beam width	55 °
VSWR	≤1.5
F/B ratio	18
Input Impedance	50Ω
Polarization	Vertical
Maximum Power	100W
Connector	SMA/TNC/F/N
Cable Length	15m
Mechanical Specifications
Dimensions	450x215x65mm

Basic Information of 4G lte LPDA outdoor 4g lte router antenna

1. LTE(698-2700MHz) Yetnorson Band.
2. 12dBi with SMA connector and 5m cable.
3. LTE spread spectrum communication system .

Antenna Key features of 4G lte LPDA outdoor 4g lte router antenna
1. 698-2700MHZ LTE system
2. Good appearance
3. Durable ,corrosion resistance
4. Provide with mount kits
5. Optimized dimension
6. Designed by board band technology
7. Lightning protection: DC grounded
8. Light weight,small size,nice appearance
9. Anti ultraviolet PVC material

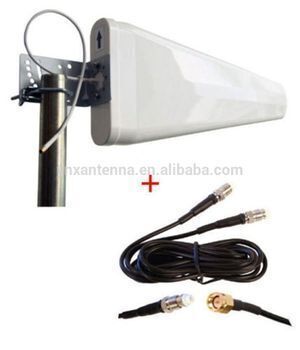

Product pictures of 4G lte LPDA outdoor 4g lte router antenna
