Jetmaker solar water pump system Good Quality Solar DC Pump power submersible water pump for irrigation Products from Jetmaker (xiamen) Fluid Equipment Co., Ltd.

Product Details

Place of Origin:	Fujian China;	Certification:	CE;
Material:	Stainless Steel;	Packaging Detail:	Strong Export carton;
Fuel:	Solar;	Application:	Submersible;
Power:	Electric;	Horsepower:	120W;
Usage:	Water;	Brand Name:	Jetmaker;
Pressure:	Low Pressure;	Voltage:	12V/24V DC;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,alipay;paypal;	Outlet Port:	1'';
Warranty:	12 Months;	Structure:	Diaphragm Pump;
Package Preview:	;	Motor:	Permanent Magnet, Thermally Protected;
Model Number:	YM1260-30;	Amps:	5A/10A;
Outlet Port Materials:	Barbed Fitting/1'' Stainless Steel Threaded Connector;	Maximum Submerion:	100 Feet Maximum (30m);

Welcome To Jetmaker

Option 1 ： Pump = USD 95

Option 2 ：Pump + Controller = USD130

Option 3 ： Pump + solar panel = USD219

Option 1 ： Pump + Controller + solar panel = USD254

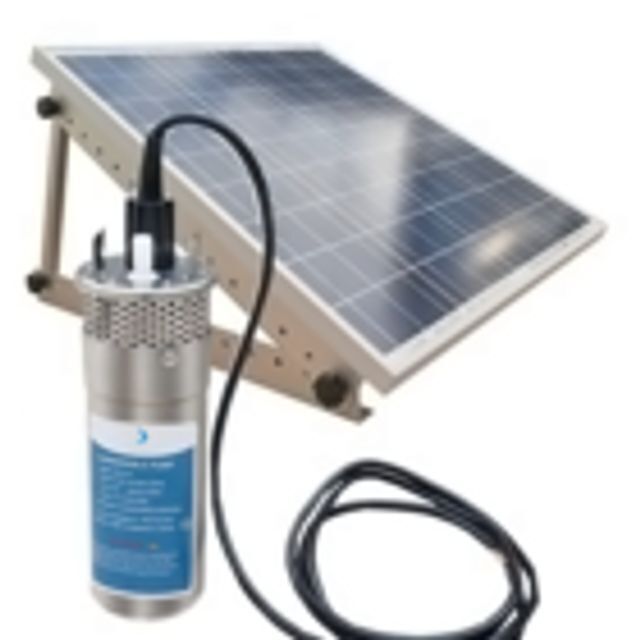

DC Solar Powered Diaphragm Water Pump

Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.

*Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger.
*Designed to be strong and et lightweight.
*Wide-range of parts and kits for easy of rebuilding and repair.
*Great for livestock watering, irrigation, deep well ,remote homes and cabins.

FEATURES & BENEFITS

Pump:

*Strong Construction, yet lightweight.
*Dry Running capability without pump damage.
*Internal Bypass Feature for pump protection.
*Long-life,24VDC Operation.
*Easily repaired in the field.
*State of the art solid diaphragm.

Power Connector:
*Unique water-tight gland connector.
*Stops water wicking and prevents potential condensation.
*Quick Discounnect-No splicing necessary.
*Accepts a variety of jacketable cables.

TECHNICAL DATA

*Strong construction, yet lightweight.

*Corrosion-proof housing with stainless-steel fasteners.
*Dry running capability without pump damage.
*Intemal bypass feature for pump protection.
*Long-life,12VDC/ 24VDC operation.
*Easily repaired in the field.
*State of the art solid diaphragm.
*New product of stainless steel body.

Model	YM2460-30	YM1260-30
Model	24V DC	12V DC
Amps	5.0 Max.	10.0 Max.
Flow Rate	12.0LPM(720LPH)
Outlet Port	Plastic 1/2'' Hose Barb and 3/4'' BSPF
Body Cover	Stainless Steel Body
Max.Lift	330 Feet Maximum (100m)
Max.Submerion	100 Feet Maximum (30m)
Pump Design	Positive Displacement 3 Chamber Diaphragm Pump
Motor	Permanent Magnet, Thermally Protected
Inlet	50Mesh Stainless Steel Screen
Typical Applications	Potable Water Well Pump

Details Images

3/4 BSPF

2.54cm Stainless Steel Threaded Connector

Barbed Fitting
Plastic 1/2'' Hose Barb

If You Want To Know More Water Pump,Pls Click The Link.

Application

Company Profile

Why Choose Us

Product packaging

FAQ

Q1.Can I have a sample order for it?
A: Warmly welcome of sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks, if bulk qty need about 20-25workdays.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order?
A:Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements /our recommend model with suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you have ability to do ODM service?
A1: Warmly welcome your ODM requirement based on our production line and our R&D team with more than 20 years experience on pump &
motors.
A2: ODM service based on offered sample.
A3:Modify & creative new function based on our product series.
Q6: What's your payment terms?
A: T/T & LC, small amount accept paypal. Big amount ok for 30% down payment & balance against copy bill of loading.
For more need, please just contact us and we will reply within 24hours on working days.
