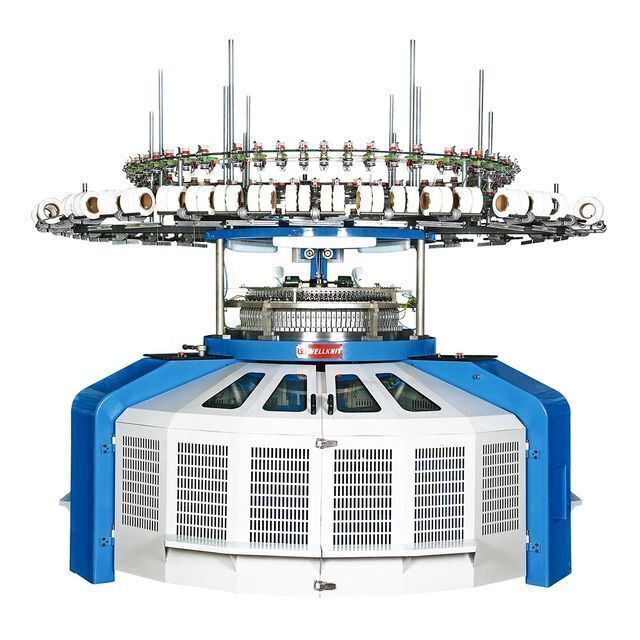

WELLKNIT PF High Speed Open-width Single Jersey Circular Knitting Machine

Supplier: Fujian Quanzhou Aotu Precision Machine Co., Ltd.
Region: Fujian, China
Contact: Mr WELLKNIT MACHINERY
Price: $99999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Not Available;	Type:	Circular knitting machine;
Dimension(LWH):	370022002200;	After Warranty Service:	Video technical support,Online support;
Voltage:	3 phase 380V 50/60Hz;	Condition:	New;
Machinery Test Report:	Not Available;	Port:	XIAMEN PORT;
Package Preview:	;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training;
Gauge:	34G - 44G,34-44G;	Payment Terms:	L/C,T/T;
Local Service Location:	Turkey,Viet Nam,Philippines,Brazil,India,Japan,Malaysia,South Korea,Algeria,Bangladesh;	Place of Origin:	Fujian China;
Knitting Method:	Single;	Machine Type:	single jersey open-width;
Warranty of core components:	1 Year;	Product Name:	WS/3.2F-PF-EL;
Core Components:	Motor,Bearing,Gear;	Knitting Style:	Weft;
Brand Name:	WELLKNIT;	Warranty:	1 Year;
Key Selling Points:	High-accuracy;	Certificate:	SGS- ISO9001:2015 / CE EPRE;
Function, knitting pattern:	single jersey;	Packaging Detail:	Packaging in container : For container delivery, the standard package is wooden plate and the machine in vaccum package. If export to european countries,the wooden material will be fumigated. Packaging in bulk cargo : For bulk cargo delivery, the standard package is wooden box and the machine in vaccum package. If export to european countries,the wooden material will be fumigated.;
Export Main Market:	Turkey, Uzbekistan...;	Knitting width:	30-38 inch;
Product Type:	Knitting machine;	Applicable Industries:	Garment Shops;
Supply Ability:	90 Set/Sets per Month;	Knitting Width:	30" - 38";
Keywords:	Single Jersey Circular Knitting Machine;	Showroom Location:	Turkey;
Marketing Type:	Ordinary Product;	Computerized:	NO;
Color:	Blue and White;	Weight:	3;

Product Description

Product Application

PF Single open-width knitting machine is manufactured based on the PF single knitting machine and open-width machine. It has all the features of PF single knitting machine and no folding as open- width knitting machine when folding fabric. The detail is as the following:

PF single m achine is a new type of knitting machine, invented by Wellknit Machinery Co., LTD. who has combined the knitting principle with human engineering and aesthetics viewpoint.

PF single machine adopts computer 3D auxiliary design (CAD) and computer auxiliary explination/analysis (CAE) to gear static analysis and driving imitation so as to reduce the defectiveness of gear design and manufacture and keep the machine steady when it works; the function more excellent; the weaving more special and exquisite.

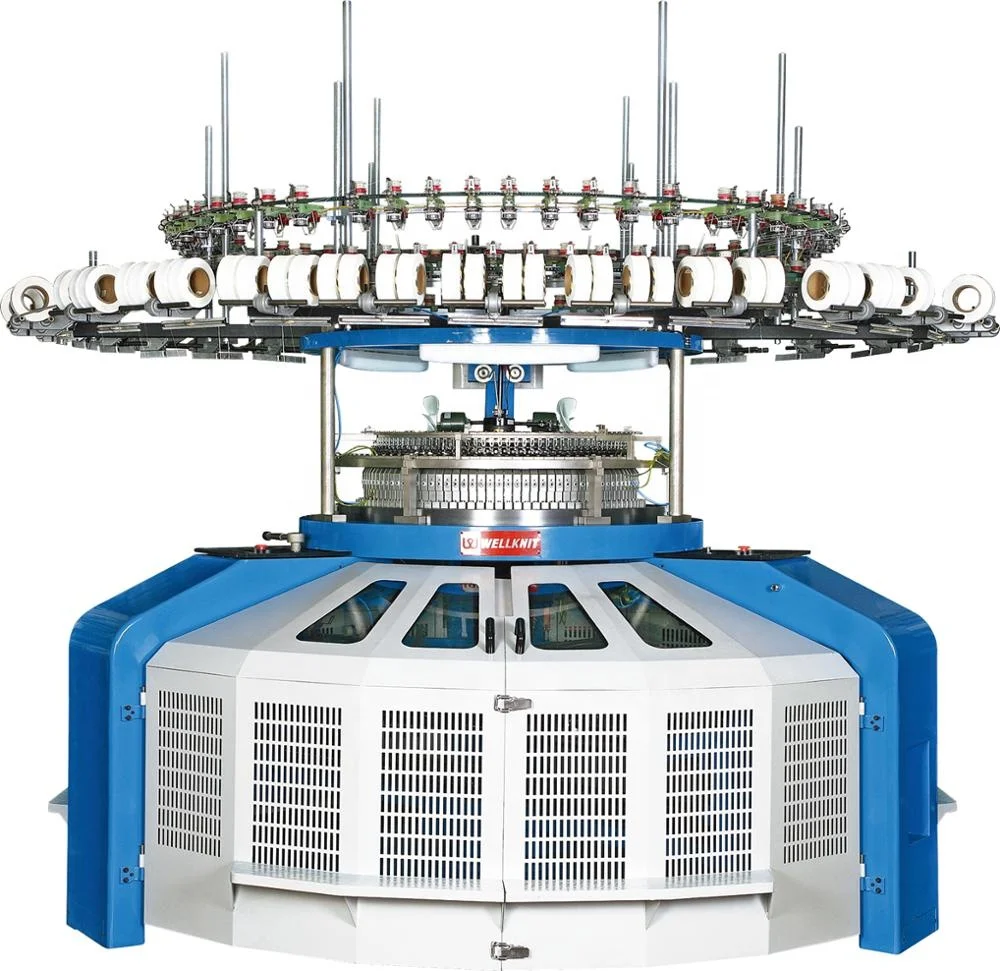

PF Single Open-width Circular Knitting Machine
MODEL	DIAMETER	GAUGE	FEEDER	MATERIAL
MODEL	DIAMETER	GAUGE	FEEDER	MATERIAL
WS/3.0F-PF-DL(EL)	30" - 38"	16G - 44G	90F - 114F	Pure cotton, chemical fiber, blending, real silk, artificial fur, etc.
WS/3.2F-PF-DL(EL)	30" - 38"	34G - 44G	96F - 160F

Main Features

1) Manufacture: Most of the structures and main parts are produced by advanced processing center equipment, which ensure the precision and accuracy.

2) Machine: The structure design has been improved that the strength and hardness of the machine's main structure are raised. Three of the machine legs are equipped with the cushion pad to reduce the vibration when machine works at high speed and keep the machine steady. It adopts three-axis driving positioner to ensure the concentricity when high speed working.

3) Cam box system: The cams are all adopt special metal from abroad and thermal treatment.

4) Fabric opening system: Equipped with roller speed adjusting device.

5) Feeder: The special designed feeder makes the elastic yarn feeding device easily equipped. Adding a small yarn ring between yarn ring and feeder ring to avoid the yarn from disturbance.

6) Cover painting: Adopts car (E.P.B.) cover painting.

Detailed Images

Machine part

Name: Heart part

Brand: WELLKNIT

Original: China by Wellknit

Cam box system: The cams and cylinders are all adopt special metal from abroad and thermal treatment.

Main Features

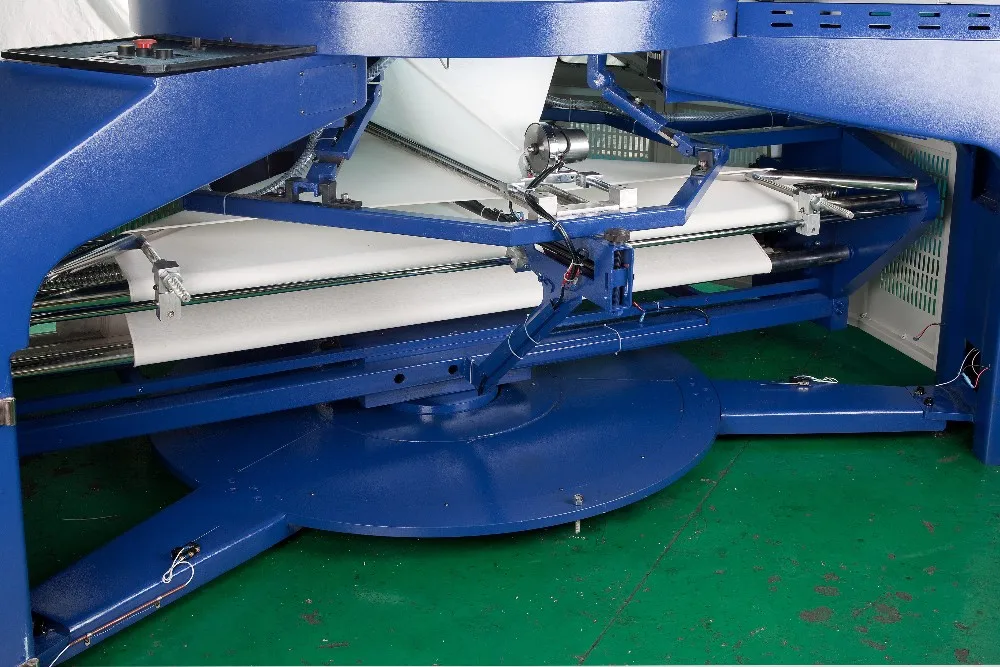

Name: Fabric opening system
Brand: WELLKNIT

Original: Taiwan
No folding line that fabric can be used without any waste. With fabric edge and roller speed adjusting device, makes knitting fabric better performance to save time and effort.

Company Profile

Exhibition

Certifications

Packing & Delivery

Packaging in container
Size (mm)	3350 (L) * 2250 (W) * 2200 (D)
G. Weight	3.5T
Packaging Details	For container delivery, the standard package is wooden plate and the machine in vaccum package. If export to european countries,the wooden material will be fumigated.

Packaging in bulk cargo
Size (mm)	3450 (L) * 2250 (W) * 2300 (D)
G. Weight	3.7T
Packaging Details	For bulk cargo delivery, the standard package is wooden box and the machine in vaccum package. If export to european countries,the wooden material will be fumigated.
