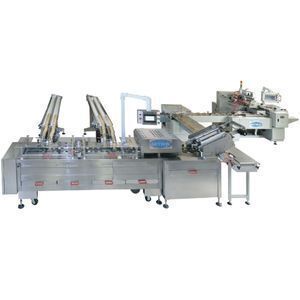

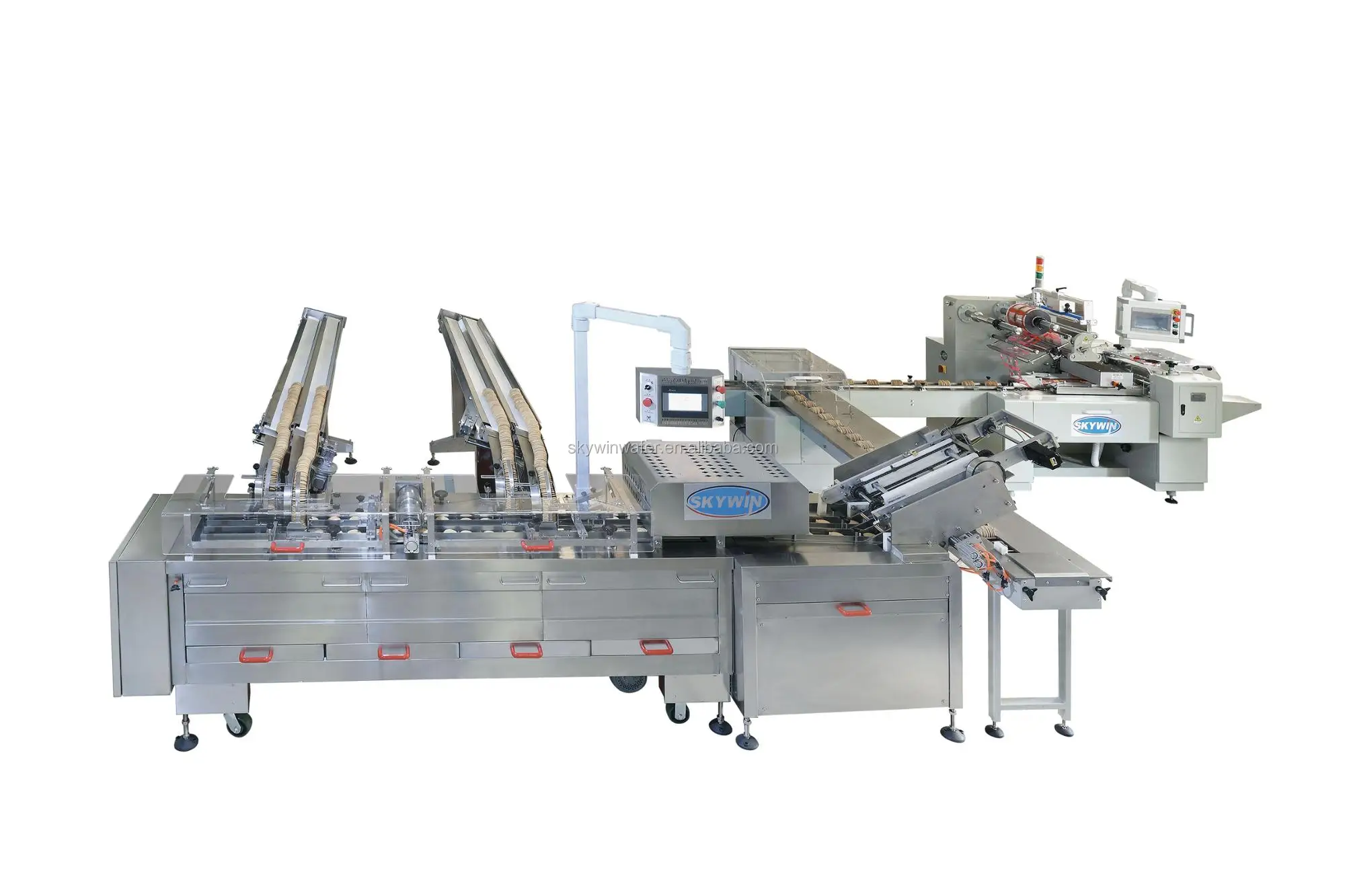

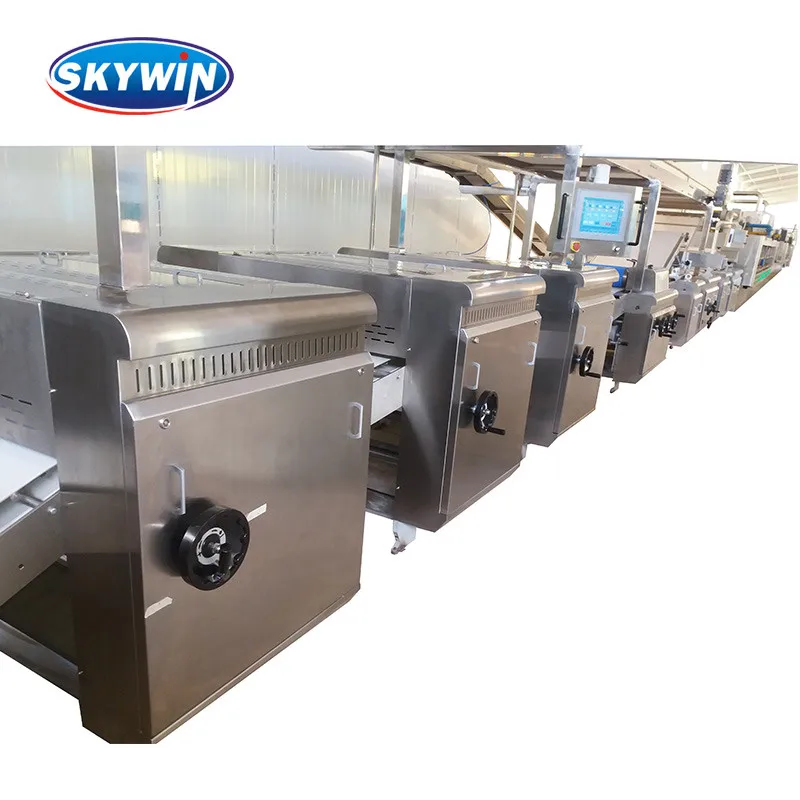

Skywin Two Lanes Ice Cream Sandwich Biscuit Making Machine With Flow Packing Machine

Supplier: Skywin Foodstuff Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr. Wilson Hu
Price: $10000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union,paypal,trade assurance;	Place of Origin:	China (Mainland);
Encoder:	Delta;	Application:	Biscuit;
Port:	SHUNDE;	Warranty:	1 Year;
Voltage:	220V/380V;	Brand Name:	skywinbake;
Application fields:	Dairy products factory,Bakery,Snack food factory,Beverage Factory;	After-sales Service Provided:	Field installation, commissioning and training;
Automatic:	PLC touch screen controlled Delta Siemens brand;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops;
Power:	Schneider;	AC contactors:	Schneider;
Packaging Detail:	Seaworthy wooden case for biscuit sandwich machine;	Weight:	according to different model;
Application:	Food machinery;	Supply Ability:	20 Unit/Units per Month;
Material:	304 Stainless Steel;	Power(W):	according to different model;
Dimension(LWH):	according to different model;	Bearing:	Pneumatic;
Transducer:	Siemens brand;	Certification:	CE, ISO, SGS;
Motor:	SEW brand or chinese famous brand GUOTAI;

Product Description

Skywin Provide different kind of biscuit sandwich machines. The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.It's used for sandwiching for different flavour then transfer to the packing machine automatically.Energy saving and labor saving.

Technical Parameter
Product name	Single Lane Sandwiching Machine	Two Lane Sandwiching Machine
Biscuit size	Rectangle/Square	Rectangle/Square
	L(35-70mm)×W(30-55mm) thickness:3-8mm	L(35-75mm)×W(30-60mm) thickness:3-8mm
	Round	Round
	Φ35-70mm thickness:3-8mm	Φ35-75mm thickness:3-8mm
Capacity	100-600 pcs/min	600-1200 pcs/min
Operating voltage	single-phase AC 220V/50Hz	single-phase AC 220V/50Hz
Machine size	7000 × 1900 × 1470mm	7430 × 3300 × 1500mm
Weight(Cream tanks capacity)	1120kgs(40L)	1350kgs(50L)
Total power	4kw	4kw

Main Features

(1). PLC for simple operation including machine set-up, hopper controls, speed adjustments
(2). Removable scrap trays are provided for simple scrap collection and machine cleaning
(3). Easy to operate: Simple adjustments for machine speeds, cream volume
(4). Sanitary design with stainless steel for food contact parts, including cream stencil and interchange faster
(5). Separating cream holding tank and feeding system
(6). No biscuit no cream system
(7). The pusher with double chain assure machine running stable and cleaning and maintenance
(8).Every cream hopper with independent motor and reducer
(9).Mobile cream hopper can cleaning while finish working separately
(10)SUS304 stainless gear pump, connection tubes between cream hopper and stencil are jacket design.

(11) Temperature metering device installed the cream stencil and convenient change-over stencil design for different cream shapes

Main electric component (Standard type):(can be customized)

No.	Description	Manufacturer	No.	Description	Manufacturer
1	Main motor	DELTA servo motor	9	AC contactors	Schneider
2	Cream motor	TAIWAN Tunglee	10	Circuit breakers	Schneider
3	Motor of Conveyor table	Chinese	11	Relays	ORMON
4	Programme control	SIEMENS	12	Photocell switch	Korea
5	Transducer	SIEMENS	13	Proximity switch	Korea
6	PLC Touch Screen	SIEMENS/DELTA	14	Switch & button	Schneider
7	Encoder	DELTA	15	Thermocouple	Chinese
8	Power	Schneider	16	Heat tubes	Chinese

Detailed Images

Cream supply tank with double

jacket water heating,to prevent the

cream freeze in cold weather

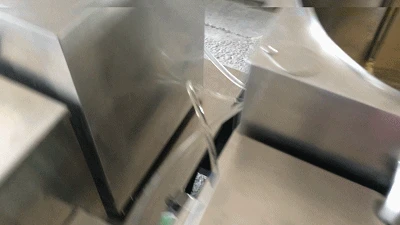

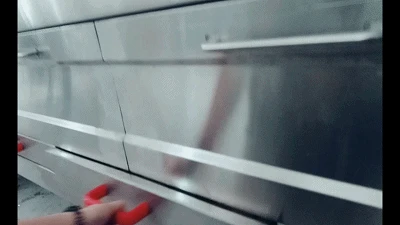

Collecting pan can collect the biscuit
crumbs,make the machine easy to clean

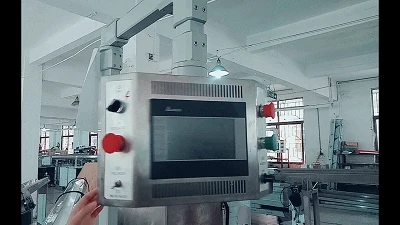

The PLC touch screen can be rotate 360°,

no matter where you stand, it can be

easy controlled

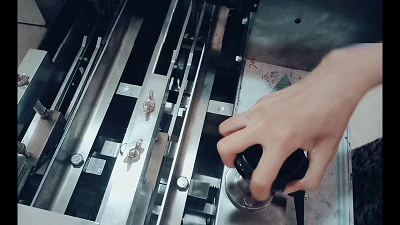

A hand wheels can adjust the
size of row according biscuit size
in 1 minute, save more time

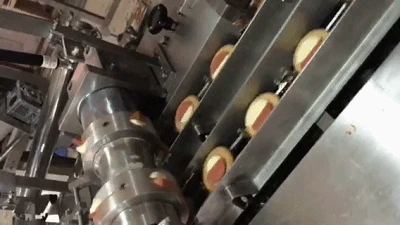

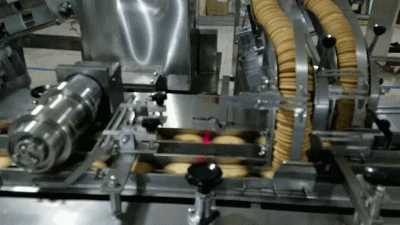

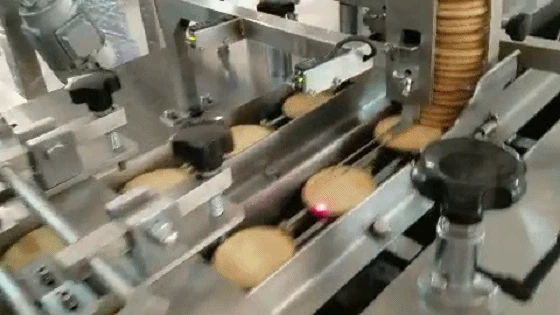

Electric eye can check the biscuit pass or not,

if there no biscuit passing on lane, cream

stencil stop feeding cream immediately

Cream stencil can feed cream,chocolate,jam

etc,with single color and two color

Using the PU conveyor for biscuit feeding

without noise ,avoid to break biscuit integrity.

Flow Packing Machine connected with sandwich machine.

packing type: 1x1, 1x2, 1x3, 2x1, 2x2, 2x3

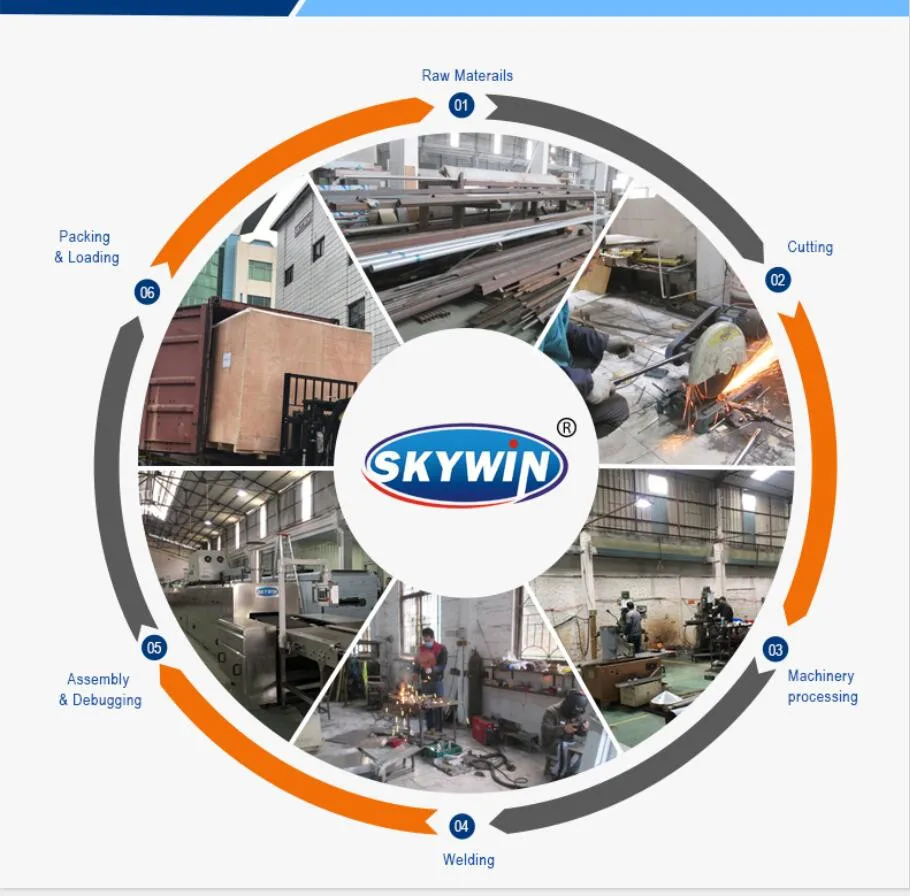

Productive Process

Our Service

1.Overseas installation if needed,or we will send the vedio and pictures about installation.

2.One years guarantee for whole machine

3.Detailed Video

4.you can contact us at any time when you are convenience.

5. Training how to instal the machine

6. Training how to use the machine

7.Supply the receipes if necessary

Packing

Company Show

We also have four line sandwiching machine,and all sandwiching machine have single color,double color, and we also have sandwiching machine connected multiplier,sandwiching machine connected flow packing machine,welcome to send inquiry to get more vedios and informations!
