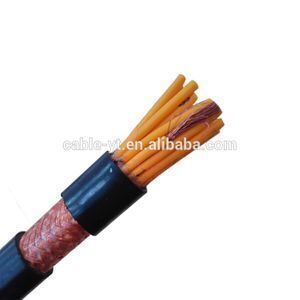

2/4/12 core 30 core SY control cable 0.75mm 1.5mm2 2.5mm2 fl

Applications:

The control cable are suitable for the interconnection between power distribution unit, widely used in controlling signaling protecting and measuring system.as connection wire for electric devices as well as instruments in power station, substations, mines, petrochemical industry etc. as control circuit in control systems for single machine or set of machines, signal system and measuring system. The copper braided shielding ensures the transmission of data signals and free from interference.

Specifications/Techinical Data:

• Voltage:0.6/1kv
• color:red,black,yellow,blue,green,grey ect
• conductor:copper
• insulation/sheath material:PVC
• Nominal Cross-section area mm2:0.75,1,1.5,2.5,4,6,10
• Core Numbes: 2-61 cores
• Temperature range: flexing -5°C to +80°C, fixed installation -40°C to +80°C
• Test voltage:3000v
• Breakdown voltage min:6000v
• Insulation resistance:min 20MOhm x km
• Mutual Capacitance:conductor/conductor approx. 140 nF/km,conductor/shield approx. 187 nF/km
• Inductance Approx: 0.68mH/km
• Coupling resistance max: 250 Ohm/kv
• Minimum bending radius:flexible 10xcable?,fixed installation 5x cable ?
• Radiation resistance:up to 80x106cj/kg(up to 80Mard)

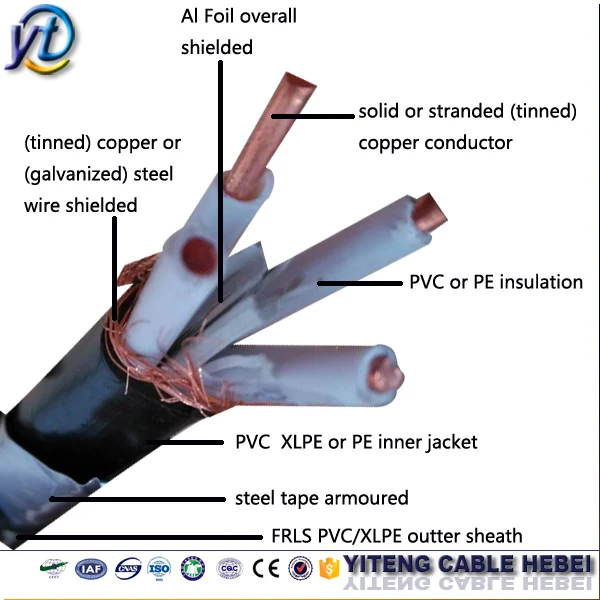

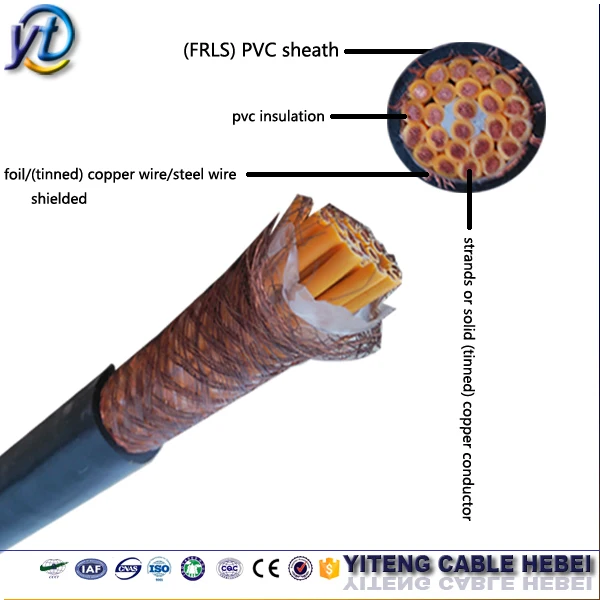

Construction:

If you want to contact the supplier,you can click here>>>>>>sent enquiry

Our main products:

Aluminum Alloy Cable with or without Armor and Interlock

Control Cable with Multi-Cores, Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation

Shielded Cable or Screened Cable

ABC Cable in Aluminum for Overhead Application

ACRS Cable

Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armour

Rubber Cable for General Purposes, Welding Machines or for Mining

Armoured Cable with Steel Tape or Steel Wire Armoured

PVC Cable with PVC Insulation and PVC Sheath

Low Voltage Power Cable

Medium Voltage Power Cable

High Voltage Power Cable

Fire Resistant Cable and Flame Retardant Cable

High Temperature Cable

silicone rubber insulated cable and Teflon insulated cable

Solar cable

Self-regulated heating cable

Enameled wire

Besides, Yiteng Cable also produce cables, wires and conductors as per customers' special requirement.

At present, our cables and wires have spread through many provinces of China and have also exported successfully to

overseas countries, like Korea, Singapore, Philippine, Sudan, South Africa, Angola, Nigeria, India, Pakistan, Turkey,

Sri Lanka, Myanmar, Thailand, Vietnam, Oman, Iraq, Iran, U.A.E., Chile, Brazil and so on. All of our cables to these

countries have earned great pulic praise from customers.

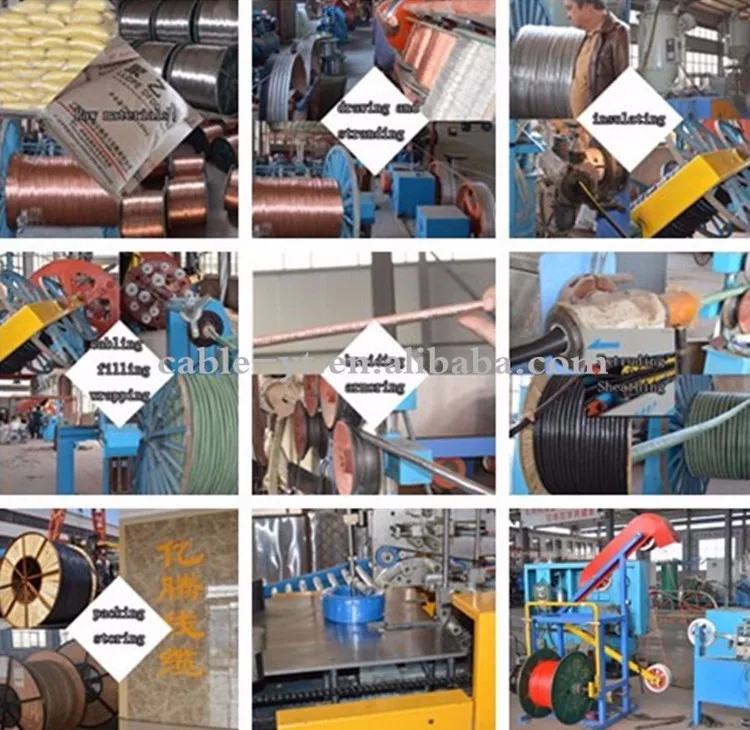

Factory is founded in 1990 years.We have the rich experience,technology and research to produce cables.
