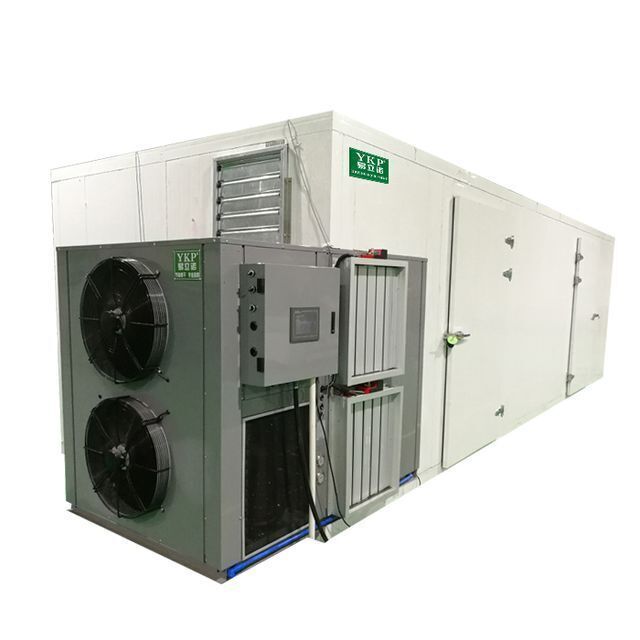

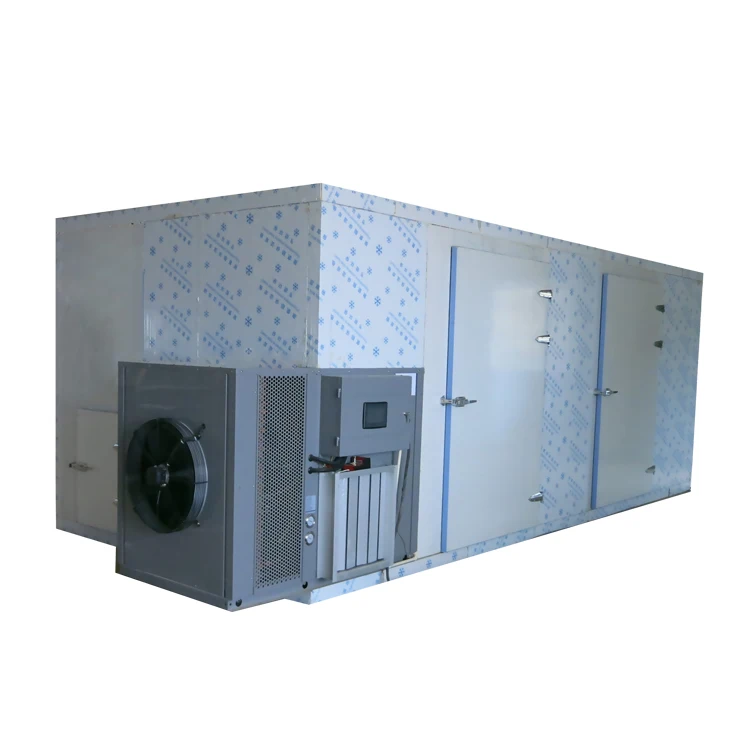

Best selling automatic pasta and instant noodles dehydrator

Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co.,ltd.
Region: Guangdong, China
Contact: Mr Martin zhong
Price: $3800.00 / 1 - 1 pieces
$3600.00 / 2 - 2 pieces
$3300.00 / >=3 pieces
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	YKP;	Key Selling Points:	Sustainable;
Showroom Location:	Germany,Viet Nam,India,Russia,Thailand,Malaysia,Australia;	Item:	Vegetable Dryer Machine;
Voltage:	220V/380V;	Dimension(LWH):	15908561278;
Certification:	CE,CCC,ISO;	Feature:	High Efficiency Low Cost;
Raw material:	Multiple Material;	After-sales Service Provided:	Online support,Video technical support;
Function:	Vegetable Dehydrator;	Place of Origin:	Guangdong China;
Application:	Food Processing;	Single package size:	500X200X200 cm;
Package Preview:	;	Type:	Tray Dryer;
Applicable Industries:	Manufacturing Plant,Farms,Restaurant,Retail,Food Shop;	After Warranty Service:	Video technical support,Online support,Spare parts;
Single gross weight:	2.0 KG;	Selling Units:	Single item;

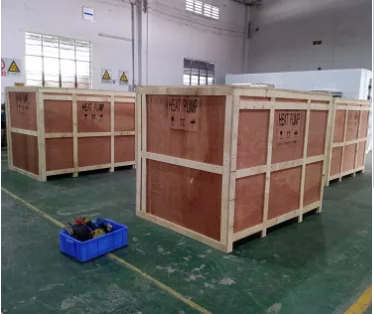

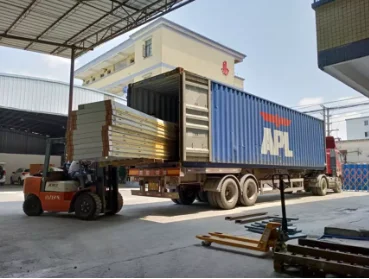

Advantage:	Low Consumption High Efficiency;	Packaging Detail:	plywood;
Installation:	Engineer Guide;	Product name:	Hot Air Drying Machine;
Local Service Location:	Canada,Viet Nam,India,Russia,Thailand,Japan,Malaysia,Australia;	Product Keywords:	Microwave Food Drying Machine;
Material:	Stainless Steel;	Condition:	New;
Heating method:	Air Energy Heating;	Warranty:	1 Year;
Power:	4.8KW;

Product Description

Purpose of drying

The purpose of drying is to remove water or solvent from some raw material and semi-finished products so as to facilitate the packing,transportation,storage,processing and use of material.

About heat pump dryer

What is it ?

YKP Air Energy Heat pump Dryer uses the reverse Carnot principle to absorb the free heat from the air and transfer it to the drying room(input of 1 degrees of electric energy can produce 4 degrees of electric energy).

The temperture of the drying room is increase, and the corresponding dehumidification and moisture removal equipment is used to achieve drying of the material.

Products application:

Heat pump drying equipment is suitable for drying fruit, wood, seafood,agriculture product,tea and sludge in many field.

The working principle of Heat pump drying machine

* YKP heat pump dryer operates according to a basic reverse Carnot cycle. The working fluid (refrigerant) at low pressure is vaporized in the evaporator by heat drawn from the dryer exhaust air. The compressor raises the enthalpy of the working fluid of the heat pump and discharges it as superheated vapor at high-pressure. Heat is removed from the working fluid is then throttled to the low-process line (using an expansion valve) and enters the evaporator to complete the cycle.

* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.

Product features

1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.

2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge.

3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.

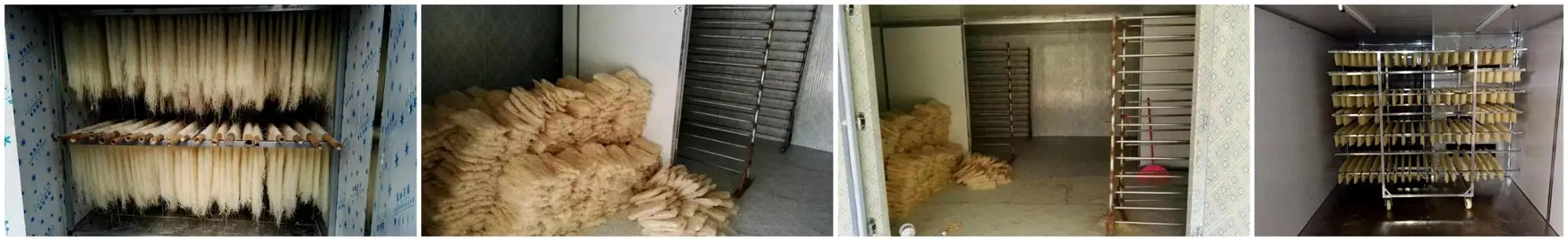

Detailed Images

Size Information

Recommend Configuration

Model	Capacity	Drying room size	Trolley qty	Drying room size can be customized under your requirements.
YK-12E	50KG/batch	1300X760X2400mm	1
YK-24E	100KG/batch	2800x960x2200mm	2
YK-72RD-ZTB-24	150KG/batch	2800x960x2200mm	2
YK-72RD-ZTB-24L	200KG/batch	2800x960x2200mm	2
One unit YK-72RD	400KG/batch	400024002400mm	6
Two units YK-72RD	800KG/batch	8000x2400x2400mm	8
One unit YK-145RD	600KG/batch	5000x3300x2400mm	8
Two units YK-145RD	1500KG/batch	8000x3300x2400mm	12
One unit YK-290RD	1200KG/batch	8000x3300x2400mm	12
Two units YK-290RD	3000KG/batch	12000x3300x2400mm	20
One unit YK-360RD	1500KG/batch	10000x3300x2400mm	12
Two units YK-360RD	4000KG/batch	13000x3300x2400mm	20
