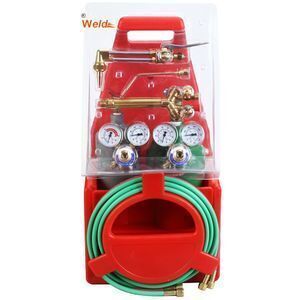

Professional Tote Oxygen Acetylene Oxy Welding Cutting Torch Kit with tank

Product details
Place of Origin:Zhejiang China;Supply Ability:1000 Piece/Pieces per Month;
Type:Welding Torch;Packaging Detail:color box;
Product Material:Steel+brass;Port:Ningbo port;
Color:Brass Natural Color;Model Number:5H1007;
Welding Capacity:10-50mm;Brand Name:Neutral;
Gas:Acetylene Propane Gas;Usage:cutting metal sheet;
Apply:Industry cutting;Payment Terms:T/T;
Product name:Gas Cutting kit;

Product Description



1.Welding handle  Victor 80



Specification:
Working pressure for Ox:  0.15~0.3MPa
Working Pressure for AC:  0.015~0.02Mpa
Working Pressure for Propane: 0.02~0.3MPa

 Cutting attachement

Specification:
Working pressure for Ox:  0.15~0.5MPa
Working Pressure for AC:  0.02~0.07Mpa
Working Pressure for Propane: 0.02~0.1MPa

2. Regulator


Description:
Body and housing cap are machined from class  a brass bar stock
1-1/2″ pressure gauge
Exterior safety pressure relife
Designsintered brass inlet filter
Rear entry inlet construction
OX reg: Max inlet pressure 23MPa,max outlet pre 1MPa,max flow 20m3/h,inlet/
outlet thread is CGA540 &/3/8-24
AC reg: Max inlet pressure 2MPa,max outlet pre 0.1MPa,max flow 5m3/h,inlet/
outlet thread is CGA200 &/3/8-24LH
Gauge dia:50mm


3.Cylinders

A.  AC Cylinder (2L, empty):
Specification of Our Product
Valve: CGA200
Weight: 3.5Kg
Dia: 102mm
Height: 413mm
Thickness: 2.8mm (Nominal: 3mm)
Water pressure: 5.2Mpa
Leakage Pressure: 3.0MPa
Working Pressure: 1.56MPa
Body Material: ST14
Please note we do not have DOT certification.


B.OX Cylinder (4L, empty):
Specification of Our Product
valve: CGA-540
Weight: 5.6Kg
Dia: 133mm
Height: 370mm
Thickness: 4.5mm
Working Pressure: 2015Psi
4.Twin hose pipe with connections on both ends
Specification:
Diameter: inside 5mm,outside 11mm
Working Pressure: 200psi
Blasting pressure: 900psi
Length: 4M


5. Welding tip(size is #2)(welding up to 9mm)
****Cutting nozzle :0-3-101 (cutting up to 150mm)

6.Triple flint spark lighter

7.Welding protection google

8 Plastic frame
