SANOU brand 3 jaw lathe chuck K11-80 mini lathe chuck self-centering diameter 80mm for mini lathe 7x14

Supplier: Shenzhen Dijin Machine Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Thomas Ban
Price: $32.01 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	None;	Customized support:	OEM;

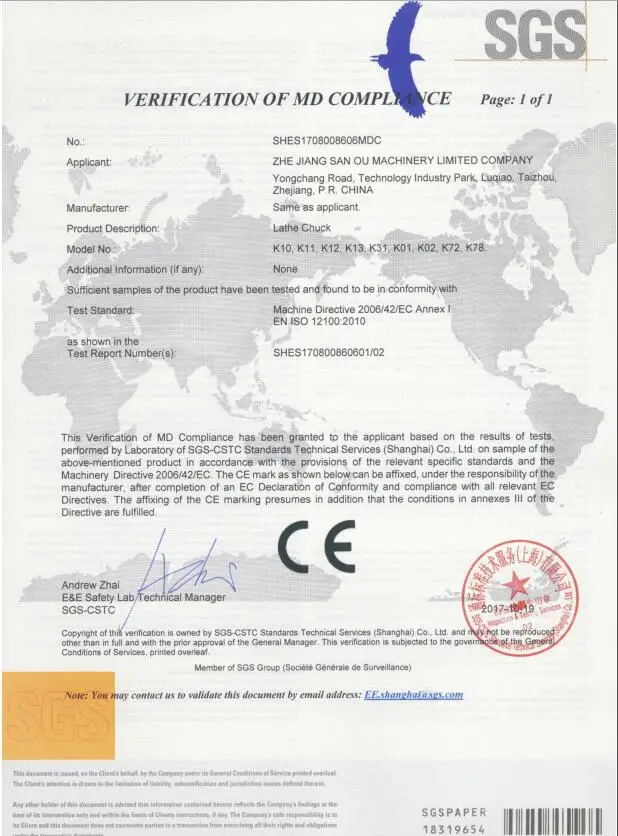

Single package size:	15X15X14 cm;	Certification:	CE;
Single gross weight:	2.2 KG;	Usage:	Mini lathe;
Package Preview:	;	Power:	manual;
Feature:	self-centering;	Brand Name:	SANOU;
three jaw chuck diameter:	80mm;	Packaging Detail:	carton;
Selling Units:	Single item;	material:	hardened steel;
Model Number:	K1180;	Number of Jaws:	3;
Material:	Steel;	Place of Origin:	Guangdong China;
Brand:	SANOU;

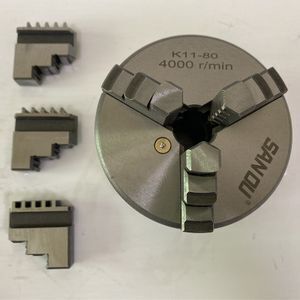

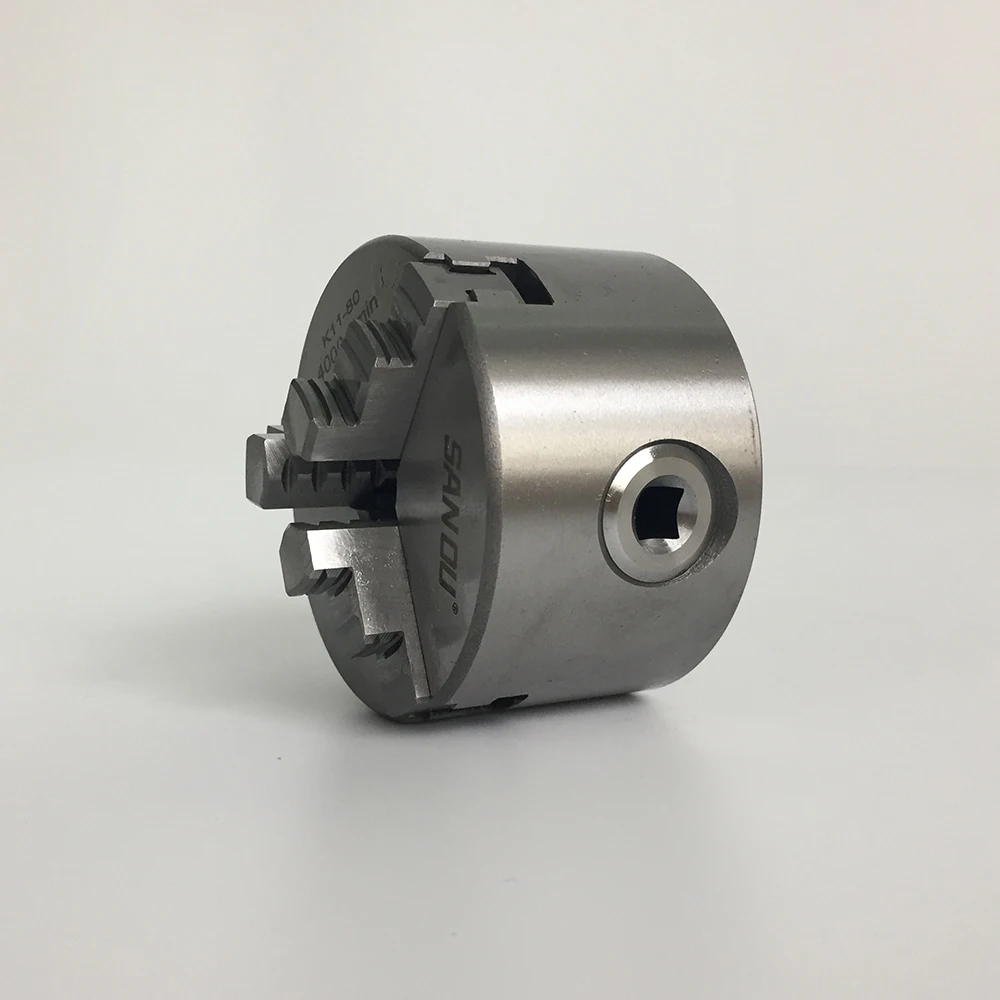

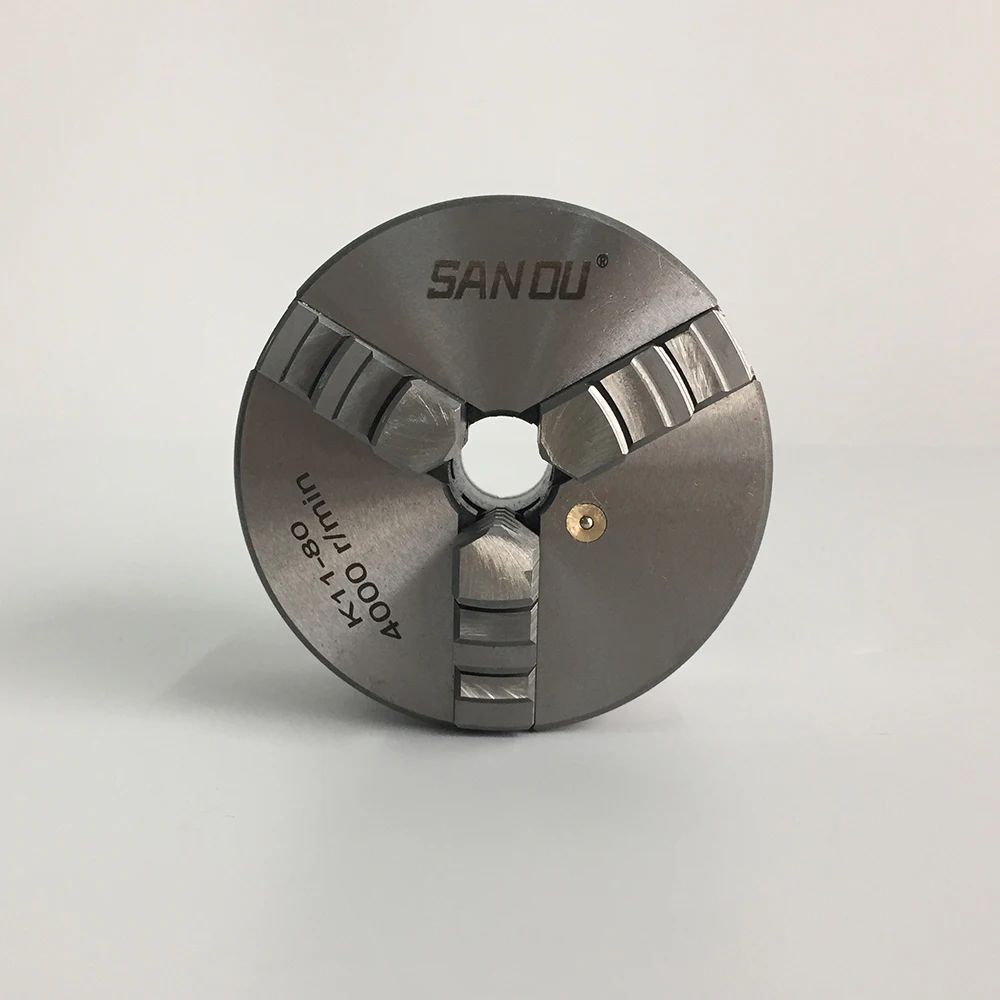

3 jaw lathe chuck K11-80

Specifications:

Jaws material: Hardened Steel
Model: K11-80
Max RPM: 4800 r/min
Jaw: 3 Jaw
Power: Manual

Features:
1. Short cylindrical center mounting .
2. Model K11 chucks are provided with one- piece jaws(which include a set of internal jaws and a set of external ones ).
3 .Model K11 chucks are supplied with traditional two-piece jaws.

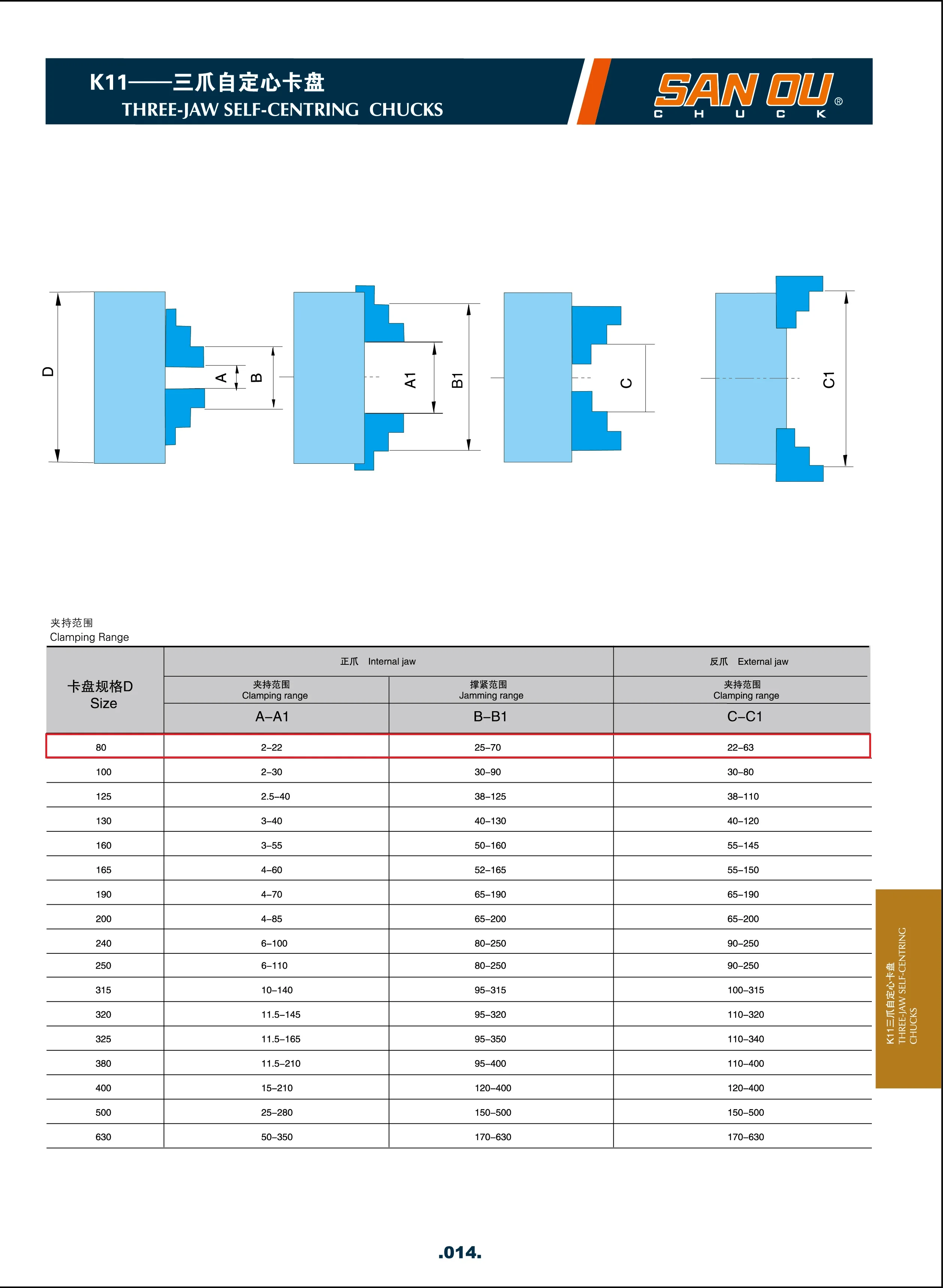

Internal Jaw:
Clamping Range A-A1: 2- 22mm
Jamming Range B-B1: 25- 70mm
External Jaw
Clamping Range C-C1: 22- 63mm

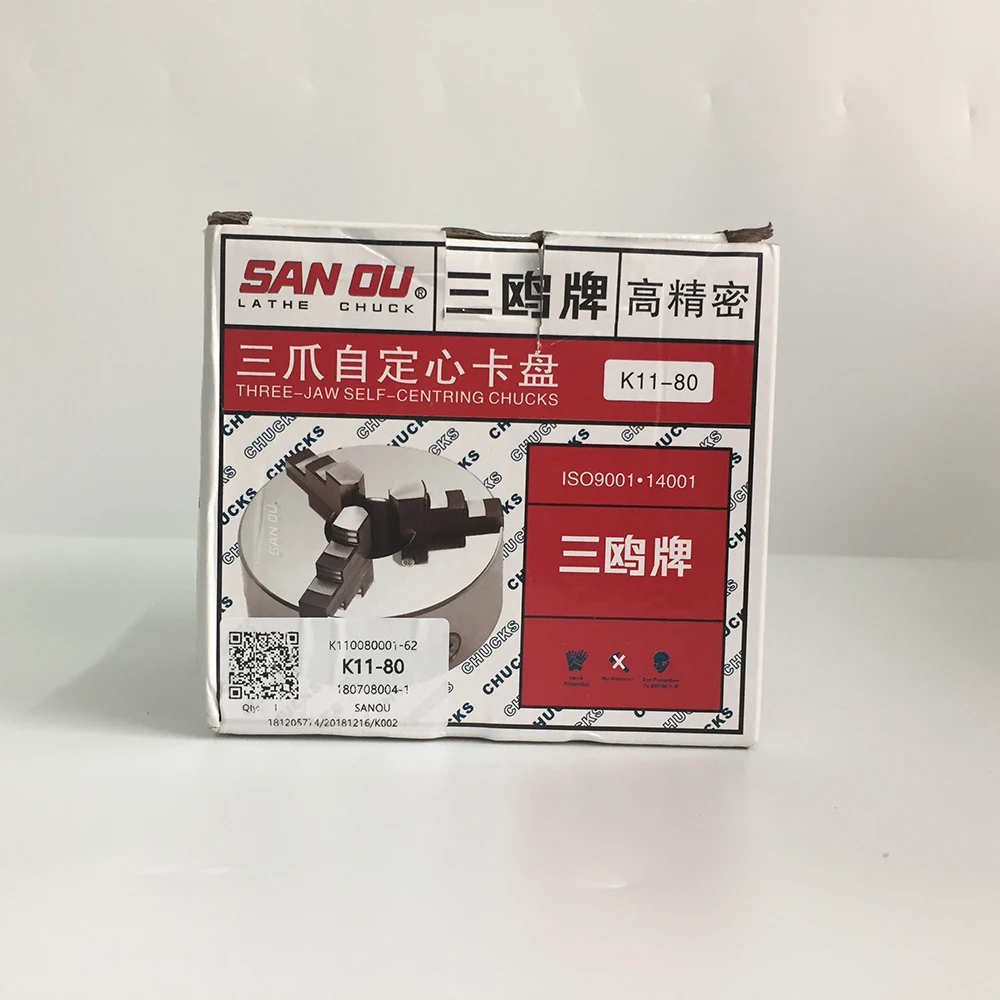

Packaged included :
Self-Centering chuck body x1
Inside jaws x 3
Outside jawslarge x 3
Safety chuck key x 1
Mounting bolts x 3
